MuxLab 500862 KVM HDMI Over IP PoE Workstation Transceiver - 4K/30 - up to 330ft/100m over Ethernet

500862 - Overview

• Features:

  • Extends local audio/video transmission up to 330ft (100m) over Cat5e/6 or 2Km over Fiber
  • H.264/265 video codec
  • High image quality and ~80ms latency
  • Supports KVM workstation with mouse & keyboard control
  • Supports seamless switching
  • Supports access to up to 9 computers/servers simultaneously on each workstation screen
  • Supports real-time preview of all sources in OSD
  • Supports push content from any workstation to any workstation or video wall
  • Supports Workstation Video Wall
  • Supports the creation of groups of computers or servers


• Specifications:

  Technical
  • Environment: HDMI 1.4
  • Devices: Blu-Ray, Set Top Boxes, projectors, monitors, TVs, PCs, supporting HDMI
  • Signal Protocol/Standard: HDMI 1.4 and HDCP 1.4
  • Video Resolution: Up to 4K/30 in and out
  • Audio: 3.5mm Line in/out, or HDMI audio
  • Latency: 80ms - 120ms
  • Network Bandwidth: Up to 12Mbps
  • Protocols: Supports Multicast, RTSP, RTMP
  • Compression: Supports H.264/265

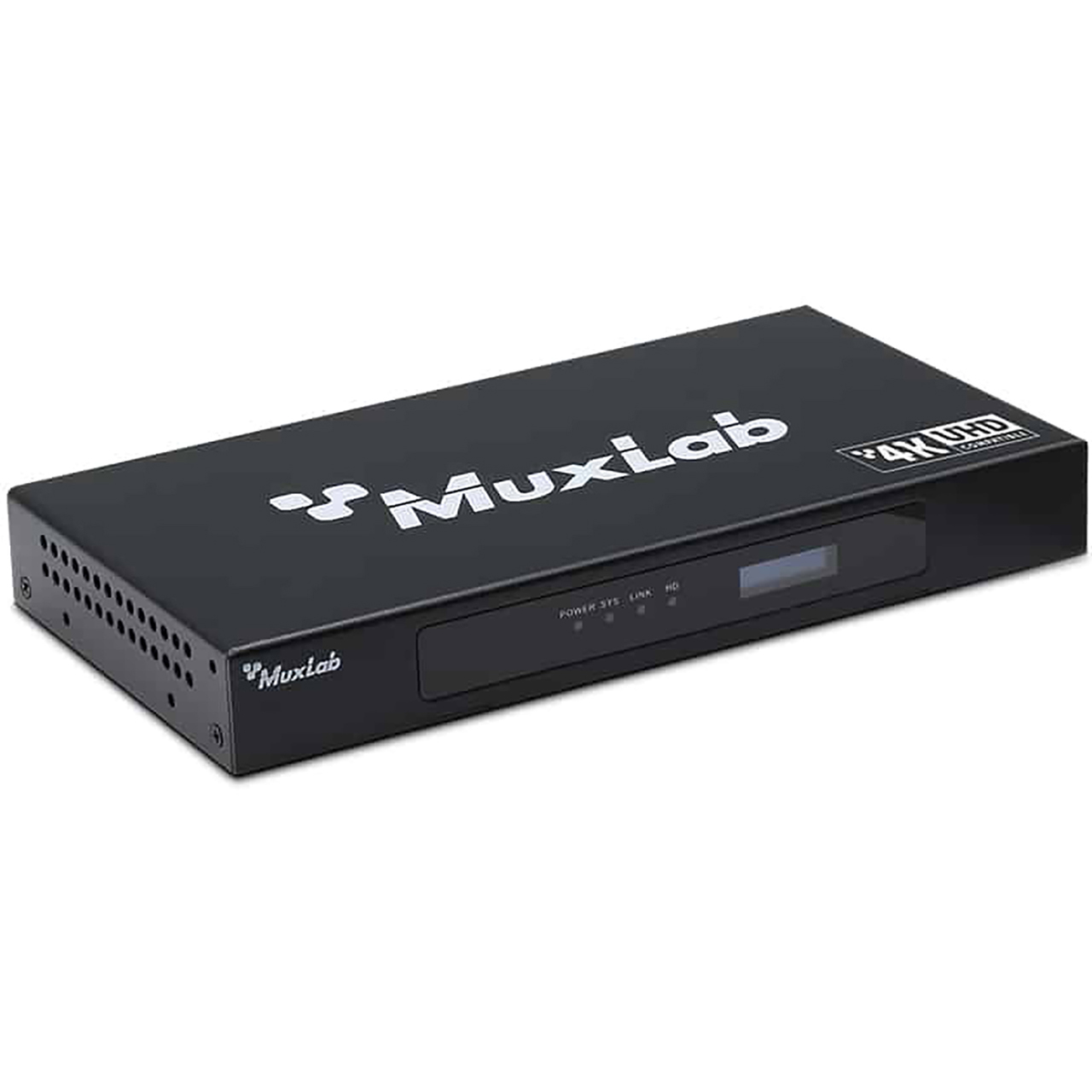

    Front Panel
  • Indicators:
    - Power: Power indicator
    - Sys: System indicator
    - Link: LAN cable connection indicator
    - HD: HDMI signal status
  • OLED Screen: Showing the Model, ID, IP, status

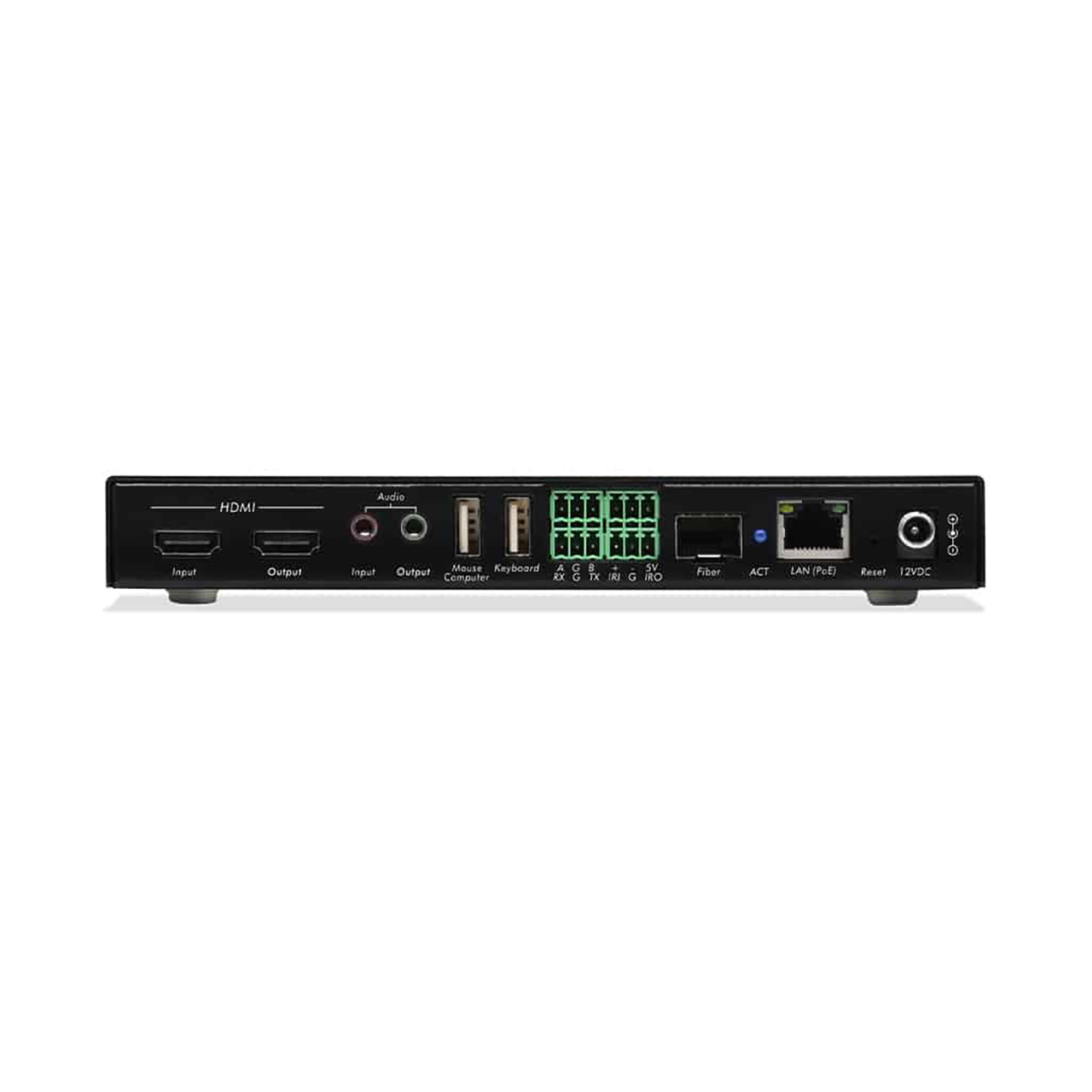

    Rear Panel
  • Video: 2x HDMI Type-A
  • Control Ports:
    - 1x RS232 phoenix connector
    - 1x RS485 phoenix connector
    - 1x Relay phoenix connector
    - 1x I/O phoenix connector (Programmable as IR input/output or voltage sensor)
  • Audio:
    - 1x 3.5mm IN
    - 1x 3.5mm OUT
    LAN:
    - 1x RJ45 (PoE)
    - 1x SFP Cage
  • USB: 2x USB-A ports for Keyboard & Mouse or PC host
  • Power: 12VDC 1A

    General
  • Control:
    - Muximus Network Controller
    - 3rd Party Control by TCP/ UDP
    - Windows PC software, Android/iOS AP
  • Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500988) may be purchased separately.
  • Power Consumption: <10W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Dimensions (LxWxH): 7.51" x 3.93" x 0.98" (191mm x 100mm x 25mm)
  • Weight: 1.2lbs (0.54kg)
  • Compliance: Regulatory: FCC, CE, RoHS Flammability: 94V0


• Item Includes:

  • 1x Muxlab HDMI over IP PoE Workstation Transceiver, 4K30
  • 1x Infrared Emitter with terminal block 6POS
  • 1x Infrared Sensor with terminal block 6POS
  • 2x Wall Mount Brackets with 4x Screws
  • 1x User manual (available via download)


• Warranty:

  • 2 Year Limited Warranty
