Manfrotto MVK509TWINFAUS 509HD Tripod System with Aluminum 645 Twin FAST Legs / 2-in-1 Spreader & Carry Bag

ITEM #: MVK509TWINFAUS MFG #: 7910

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$2,299.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


7910 - Overview

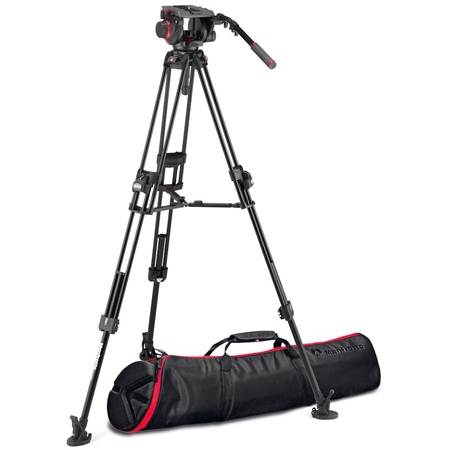

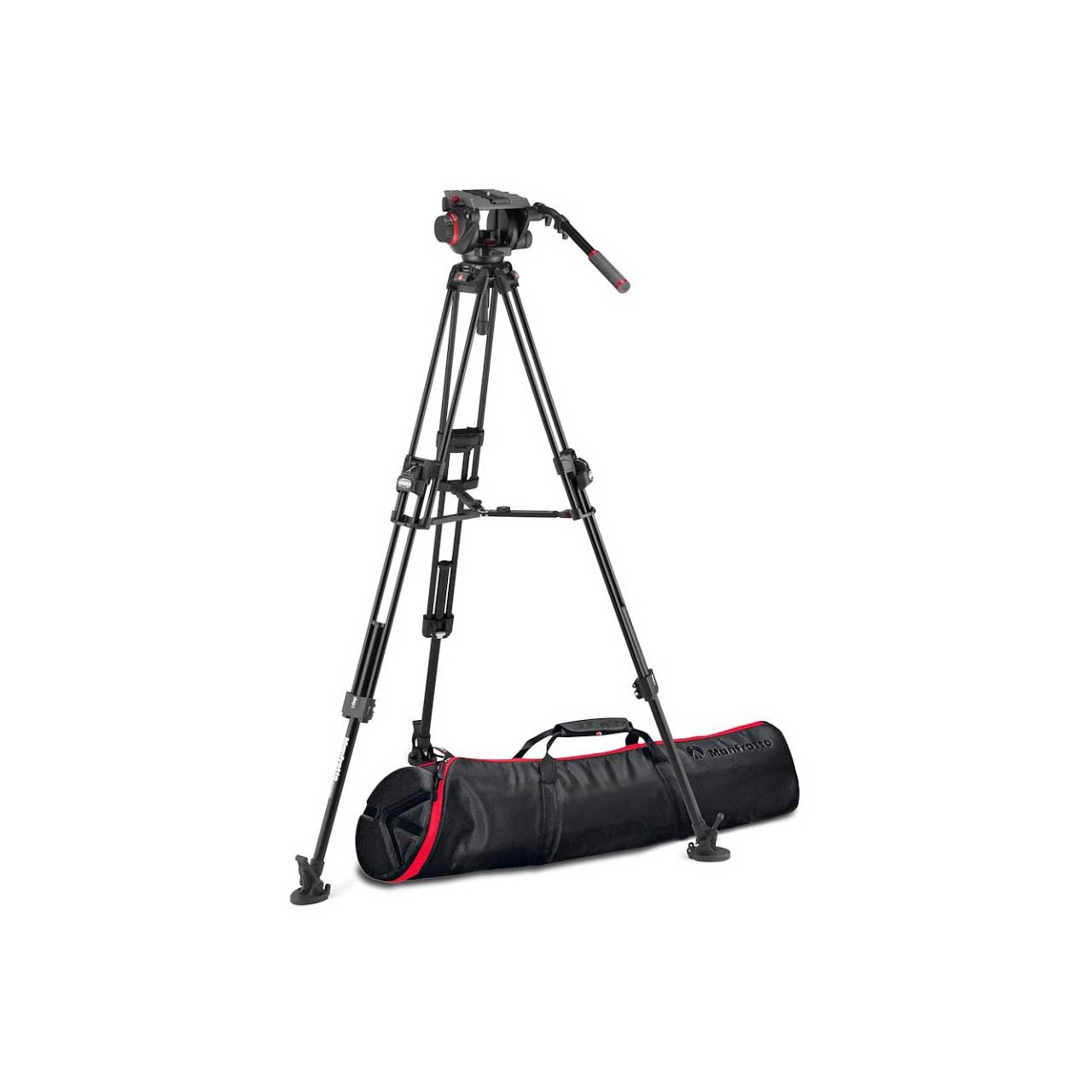

The video system includes the Manfrotto 509 Professional Fluid Video Head and the 645 Fast Twin Tripod in aluminium.

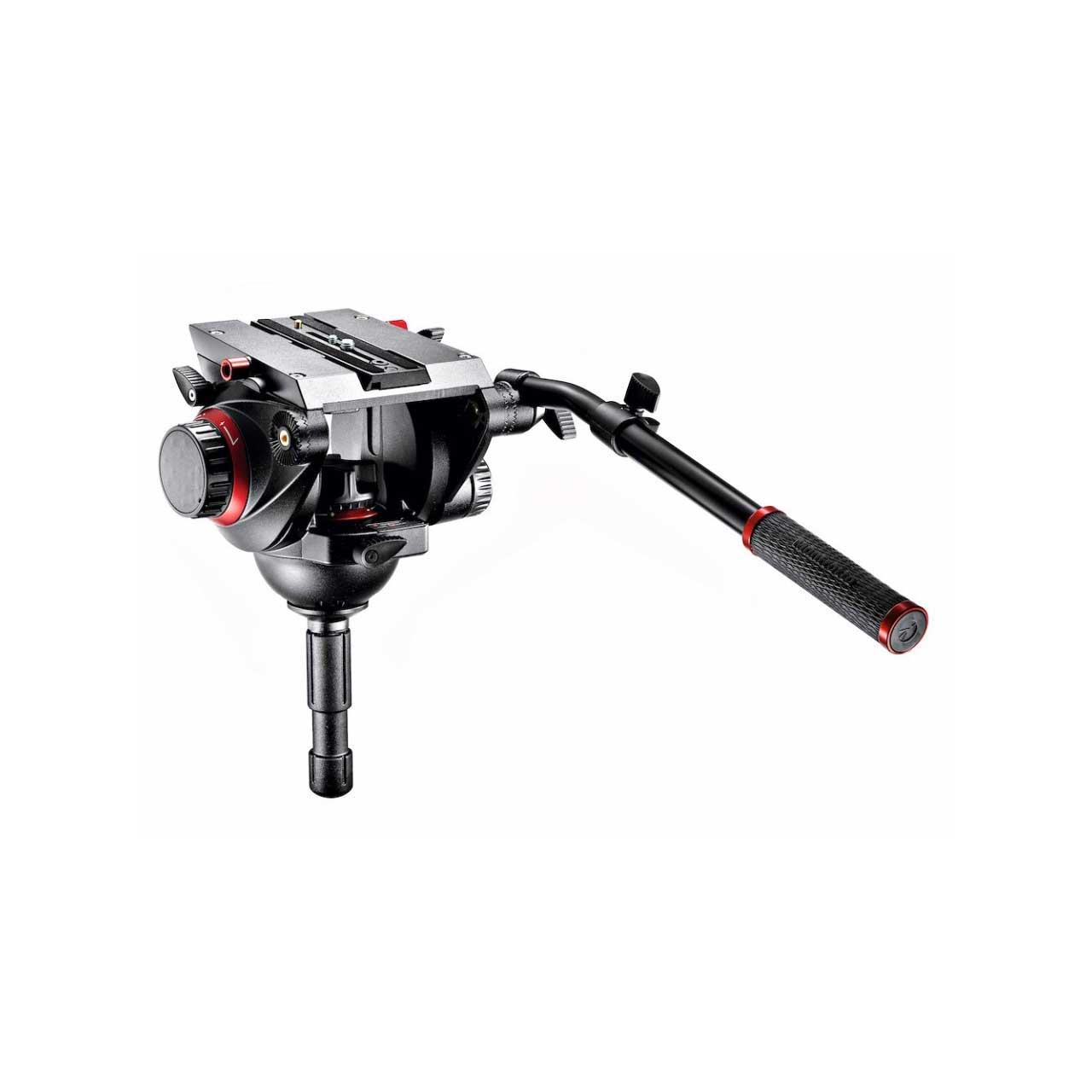

The 509HD fluid head combines ergonomic design features with professional performance. To help you obtain incredibly smooth camera movements and great footage, the 509HD has variable fluid drag and a fast, precise, 4-step counterbalance system that makes it suitable for a wide range of semi-professional and professional camera setups. The 509HD's patented Advanced Balancing Recorder (ABR) allows you to quickly find, memorise and regain the correctly balanced plate position when using a particular combination of equipment. The 509HD also features Easy Link connectors for easy accessory attachment, an illuminated levelling bubble and replaceable rosettes for pan bar attachment on both sides of the head. The 509HD has a 100mm half ball video tripod mount.

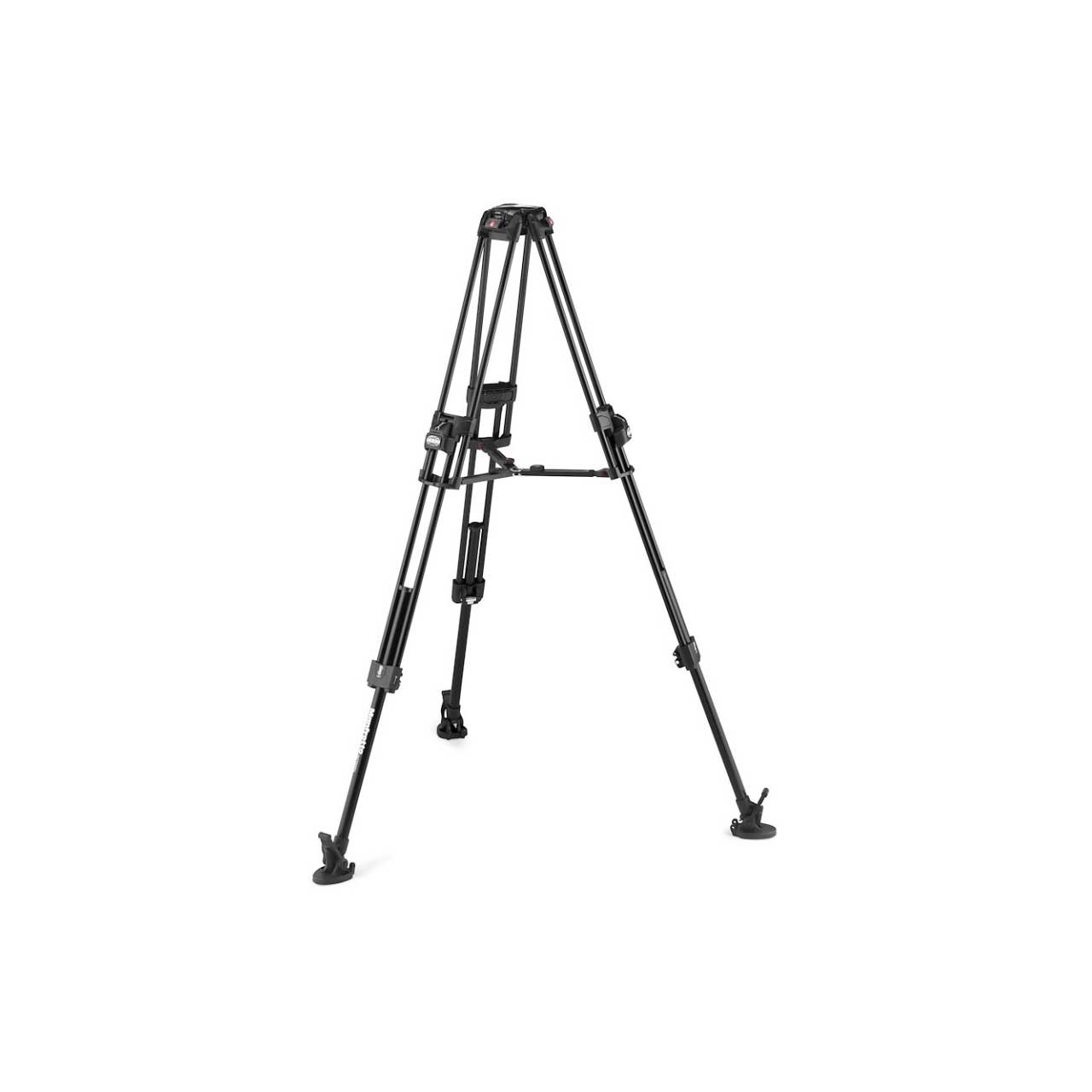

The 645 FTT Fast Twin Alu Tripod features a double tubing and Lever-Lock lever technology for the most robust support ever. The tripod is provided with a 2 in 1 half ball: a standard 100mm bowl compatible with a 75mm adapter (available as accessory) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.
This range was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

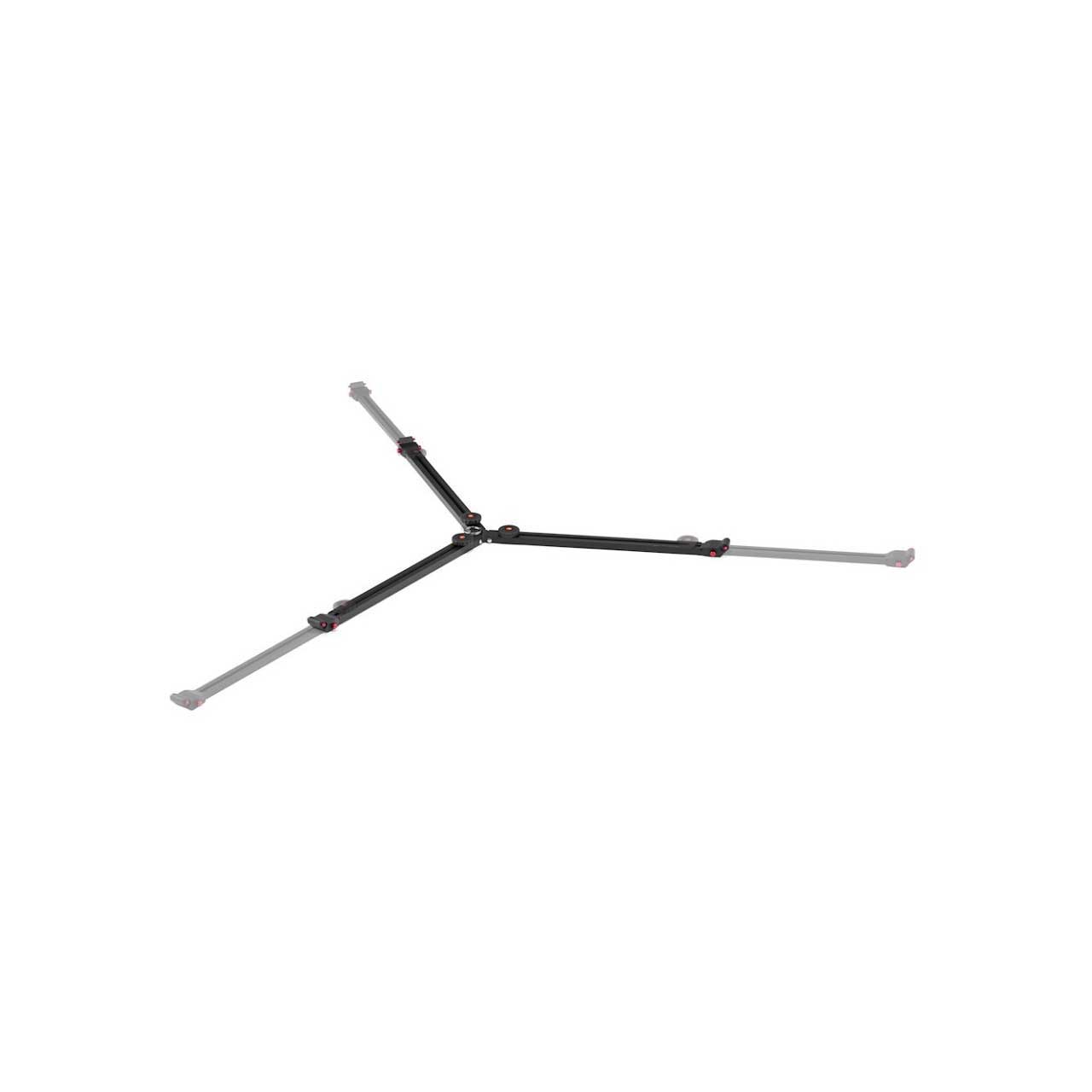

Moreover, it comes with the 2 in 1 ground and middle telescopic spreader and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

  • Features:

    • Variable fluid drag and 4-step counterbalance system
    • Tripod with 100mm bowl, compatible with 75mm adapter
    • Lever-Lock & 3-angle selection mechanism for easy set up
    • Equipped with spiked feet with rubber overshoes for a firm grip
    • Highest safety standards ensured by UNI/PdR 105:2021 compliance

  • Specifications:

    • Weight: 17.2 lbs.
    • Counterbalance System: Variable Steps.
    • Maximum Height: 68.11 in.
    • Bubble Spirit Level (No.): 1.
    • Carrying Bag Included: MB MBAG100PN.
    • Certifications: WEEE; RoHS.
    • Color: Black.
    • Ball Flat: 100 Ball.
    • Easy Link: Yes
    • Head Type: Video/Fluid Head.
    • Leg Angles: 20°, 50°, 70°.
    • Leg Sections: 3.
    • Maximum Working Temperature: 140 °F.
    • Pan Bar Included: Yes.
    • Panoramic Rotation: 360 °.
    • Quick Release: Yes.
    • Tilt Drag: continuously adjustable from 0 to max level.
    • Safety Payload UNI/PdR 105:2021: 29.76 lbs.
    • Counterbalance Weight: 18.74 lbs.
    • Min Height: 17.13 in.
    • Center Of Gravity: 4.92 in.
    • Center Column: no center column.
    • Closed Length: 35.24 in.
    • Top Attachment: 1/4" screw, 3/8" screw.
    • Powered By (Batteries): Lithium.
    • Front Tilt: -60° / +90°.
    • Leg Type: Twin.
    • Leg Lock Type: Flip Lock.
    • Material: Aluminum.
    • Minimum Working Temperature: -4 °F
    • Pan Drag: continuously adjustable from 0 to max level.
    • Plate Type: 509PLONG.
    • Spreader: Low & Mid level - Variable arm leg.
    • Accessory Compatibility: 502HLV; 509HLV; 114MV; 181B; 565
