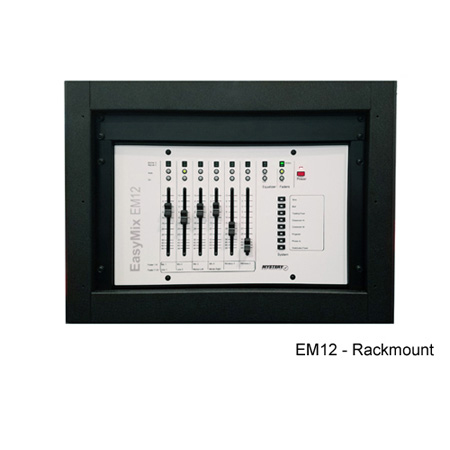

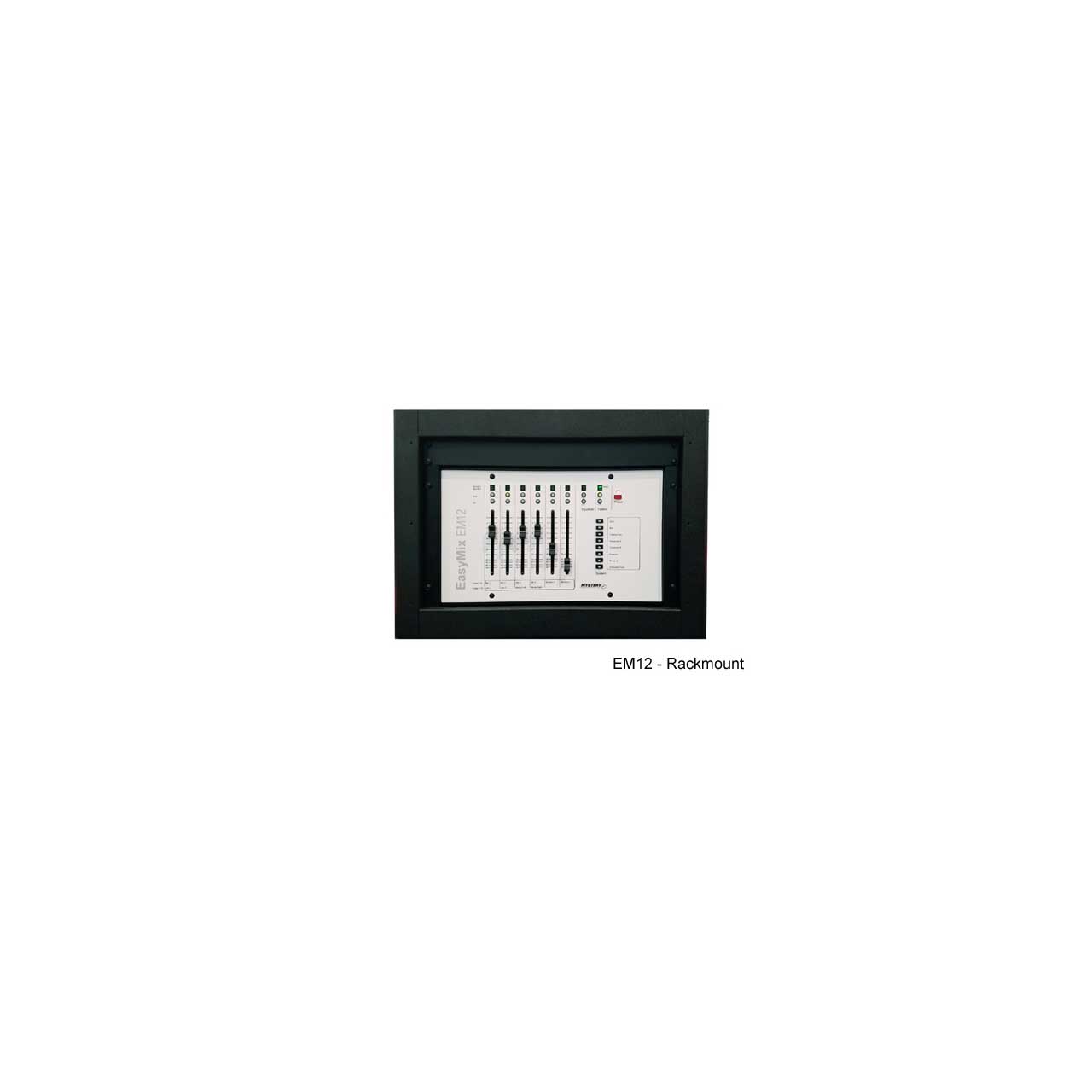

Mystery EM12 Rackmount DSP Control Surface - 6 Physical (12 Virtual) Motorized Faders Includes Customized Overlay
  • Mystery EM12 Rackmount DSP Control Surface - 6 Physical (12 Virtual) Motorized Faders Includes Customized Overlay
  • Mystery EM12 Rackmount DSP Control Surface - 6 Physical (12 Virtual) Motorized Faders Includes Customized Overlay

Questions? Ask a Markertek Expert:
800-522-2025 Email

Mystery EM12 Rackmount DSP Control Surface - 6 Physical (12 Virtual) Motorized Faders Includes Customized Overlay

Manufacturer: Mystery Electronics

Item #: MYS-EM12-RACKMNT   •   MFG #: EM12 RACKMOUNT




Our Price:$2,697.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Import pre-configured templates into your DSP configuration / design software and have your EasyMix EM12 running in minutes, or build your interface from scratch for a fully customized solution. Equipped with six physical motorized fader channels, two programmable backlit push buttons and two status indicating LED’s per channel located above each fader. Additional programmable bank selection push buttons and status LED’s provide up to 24 programmable virtual fader channel positions. Faders can also be programmed to function as high and low frequency EQ controls. Each fader channel comes equipped with 1 Full 100 mm motorized fader, 2 Programmable back-lit push buttons and 2 Status indicating LED’s.

    Each channel’s push buttons are programmed to provide Auto Mixer on / off and Channel on / off control. Channel LED’s are programmed to indicate status of Auto Mixer highest gain and Signal presence. The Fader buttons are pre-programmed to allow bank selection of faders 1 - 6 or 7 - 12. The EQ buttons are pre-programmed for High gain level and Low gain level control of a DSP Equalization Filter. All program choices can be fully customized to your application requirements. The power indicator LED can also be modified via internal jumper to accept 5, 12 & 24 VDC.

    Eight user defined back-lit push buttons switches are available to control system selection or can be used to trigger presets. Power switch can also be used to trigger an external power sequencer, with the status LED then controlled by the power sequencer, to allow single push button control of the sound system. Power connections can be field modified via internal jumper to allow the EM12 power to be controlled remotely. The EM12 ships with a powder coated steel faceplate and customizable text and graphics using a printed vinyl and a durable plastic overlaminate. All electronics are rear mounted in a 16 gauge enclosure that has been certified to comply with Part 15 of the FCC Rules.


    • Features

      • Biamp, BSS, QSC, Rane, and Symetrix DSP's supported
      • Motorized Faders and Backlit LED push button switches
      • Faders, buttons and LED's can be customized to link to most DSP functions
      • Easy access to most system functions
      • Desktop, Rackmount, Rout in (inlaid) configurations available; optional solid oak console-style wrapper and pew back wrapper available

    • Specifications

      • DSP compatibility: Biamp Tesira, BSS Soundweb London (HiQnet Audio Architect required), Q-SYS, Rane Halogen and Symetrix SymNet / Symetrix Jupiter
      • Software required: none - built-in web server for access by browser
      • Faders: 100 mm motorized; field replaceable
      • USB: Firmware updates and future expansion; USB drive supplied
      • Power supply: included; input 120VAC @ 0.7 A - output 24VDC @ 1.1 A
      • Power switch: latching on / off via contact closure
      • Power status LED: selectable - 5, 12, or 24VDC via internal jumper

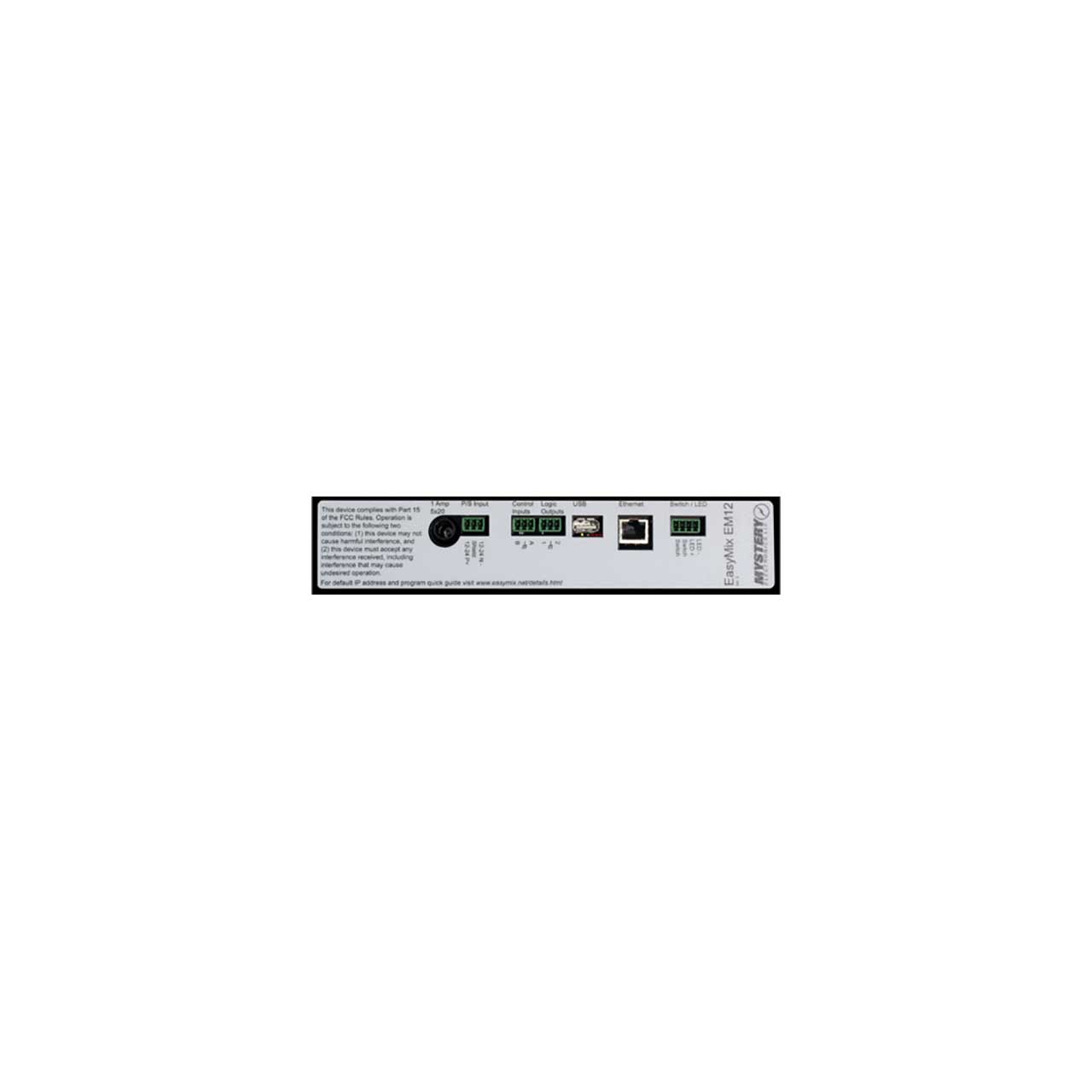

      • Connections: Ethernet RJ45, USB, power switch & status LED - 3.5mm pitch Phoenix type connectors included
      • Faceplate dimensions (W x H x D): 15" x 10" x .075" - 0.375" corner radius
      • Back enclosure depth: 2.1" nominal
      • Desktop Dimensions (W x H x D): 19" x 10.5" (6RU) x 2.5"
