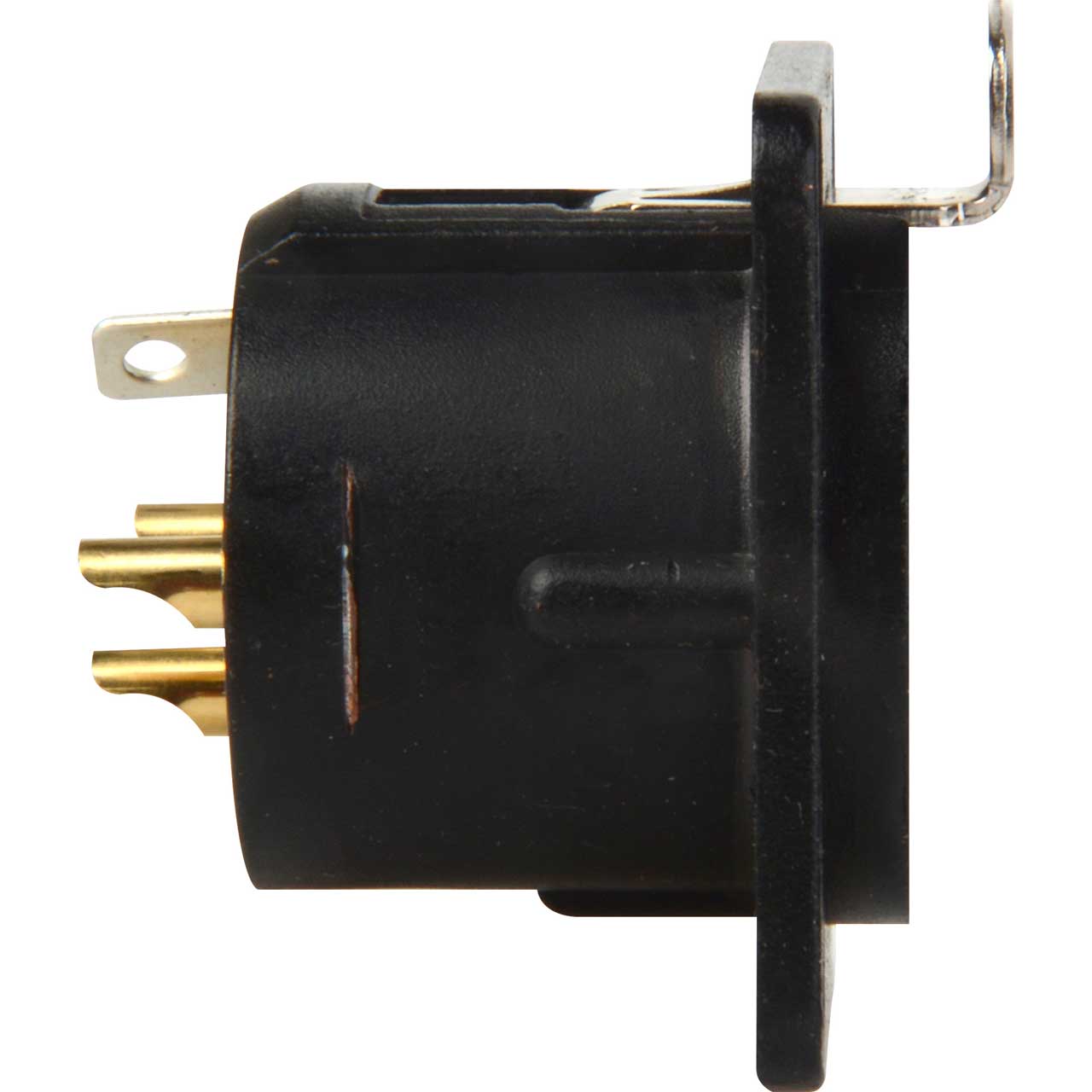

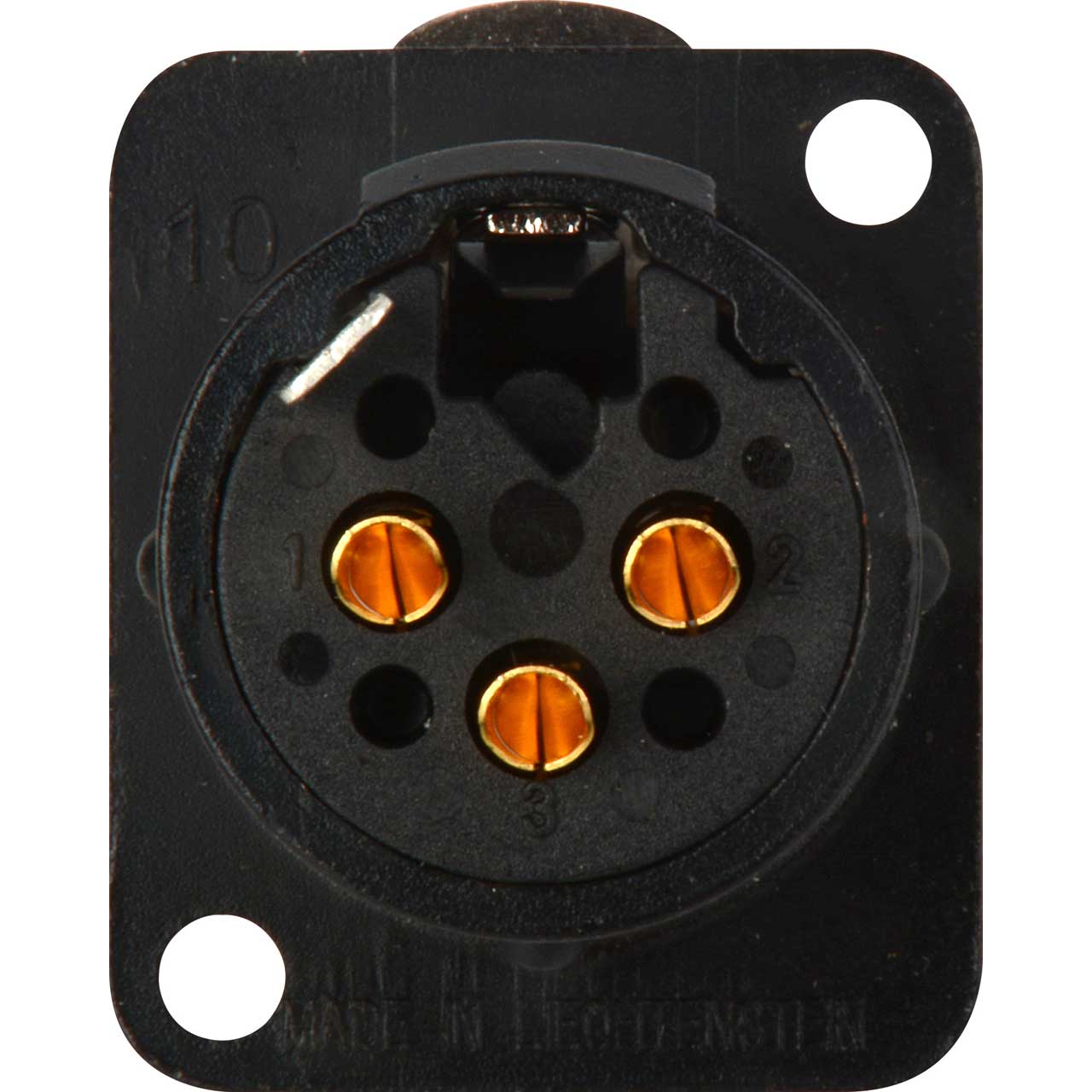

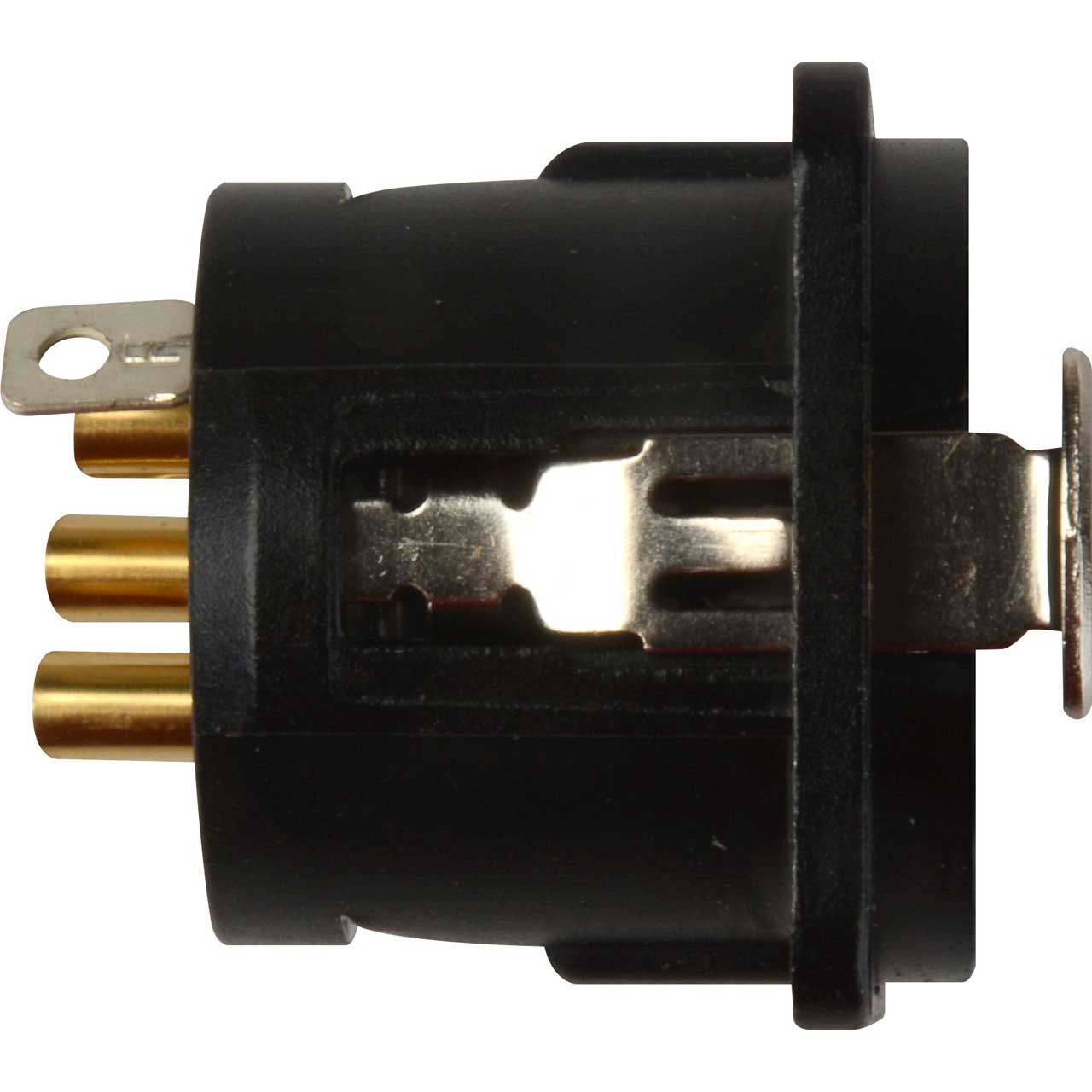

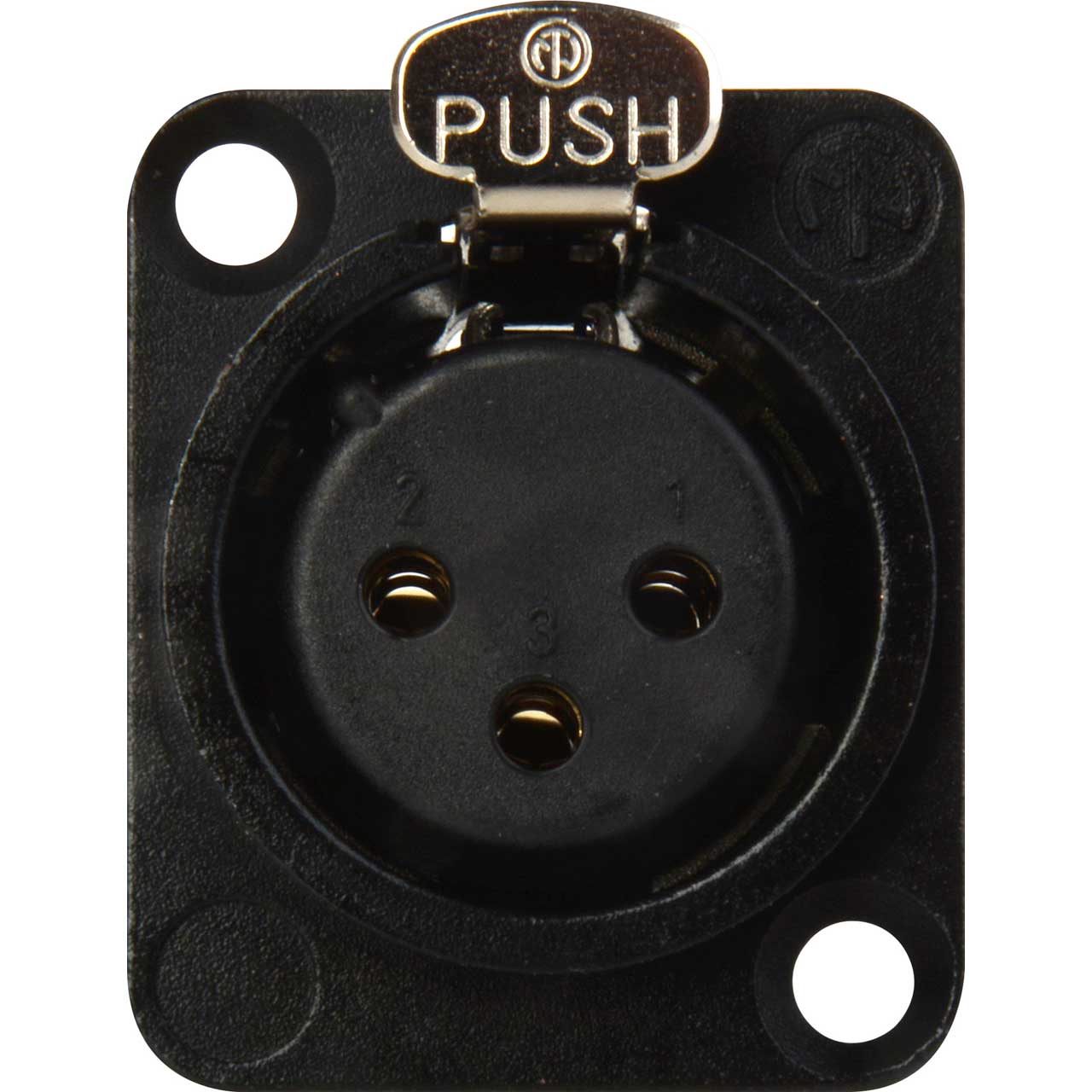

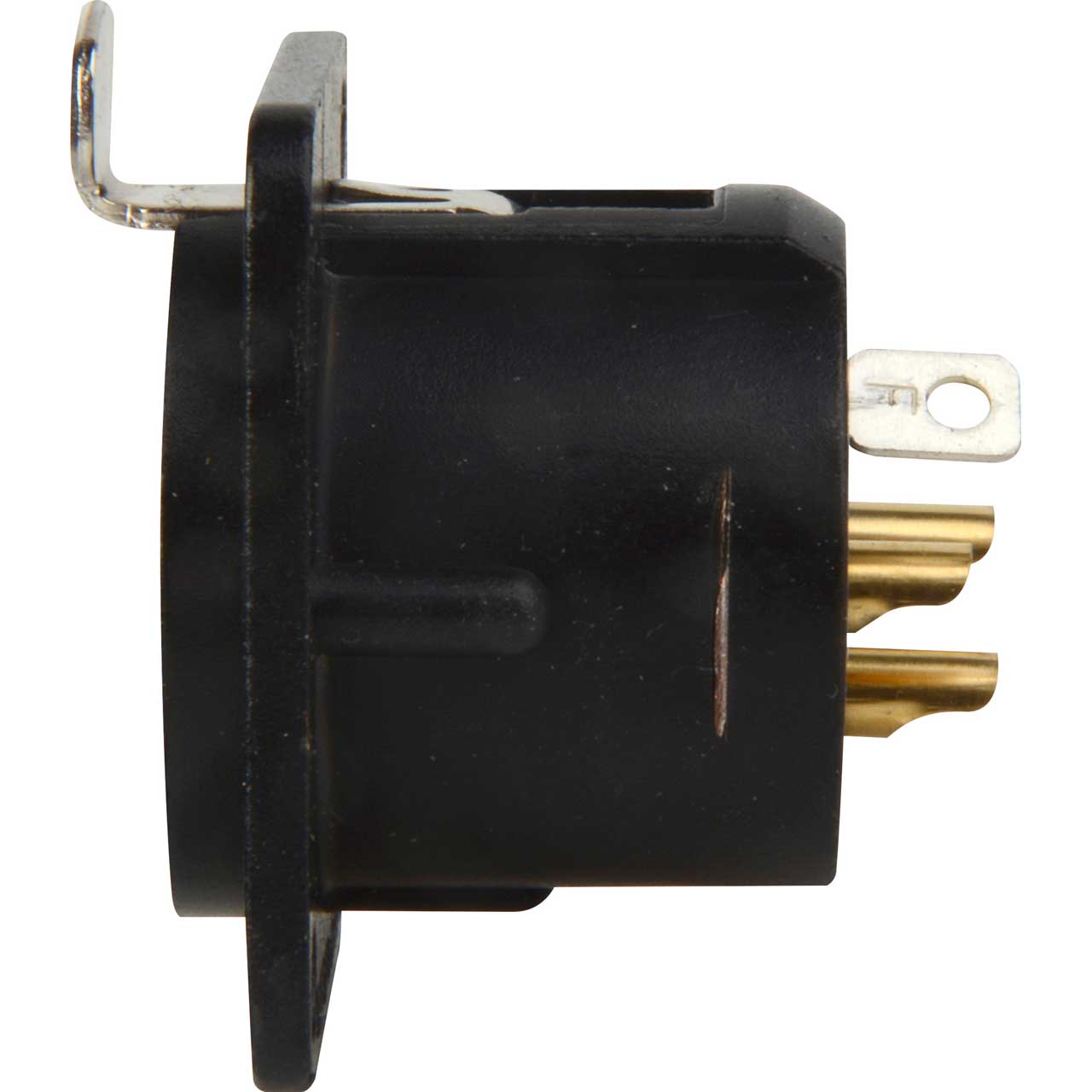

Neutrik NC3FD-L-B-1 3-Pin Female XLR Panel/Chassis Mount Connector - Latching - Black/Gold

ITEM #: NC3FD-L-1-B MFG #: NC3FD-L-B-1

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$4.43

Our Price:

$4.19

Availability: In Stock
iAvailability Description Popup


    NC3FD-L-B-1 - Overview

    Neutrik NC3FD-L-B-1 is a 3 pole female receptacle, solder cups, black metal housing, gold contacts

    Universal D-size metal body XLR panel mount series. UL recognized component.

    • Features:

      • Robust "D" metal shell
      • Standardized D sized 24 mm panel cutout
      • Solder cups on 3 - 7 pole version

    • Specifications:

      • Connection Type: XLR
      • Gender: Female

      • Electrical
      • Capacitance between contacts: ≤ 4 pF
      • Contact resistance: ≤ 5 mΩ
      • Dielectric strength: 1,5 kVdc
      • Insulation resistance: > 2 GΩ (initial)
      • Rated current per contact: 16 A
      • Rated voltage: < 50 V

      • Mechanical
      • Insertion force: ≤ 20 N
      • Withdrawal force: ≤ 20 N
      • Lifetime: > 1000 mating cycles
      • Wiresize: max. 2.5 mm²
      • Wiresize: max. 14 AWG
      • Wiring: Solder contacts
      • Locking device: Latch lock
      • Chassis shape: D

      • Material
      • Contact plating: 2 µm Ag over 2 µm Ni
      • Contacts: Bronze (CuSn8)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Locking element: Steel Ck67
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell plating: Black chromium

      • Environmental
      • Approvals: UL
      • Flammability: UL 94 HB
      • Standard compliance: IEC 61076-2-103
      • Protection class: IP 40
      • Solderability: Complies with IEC 68-2-20
      • Temperature range: -30 °C to +80 °C

    • Item Includes:

      • 1x Neutrik NC3FD-L-B-1 3-Pin Female XLR Panel/Chassis Mount Connector - Latching - Black/Gold
