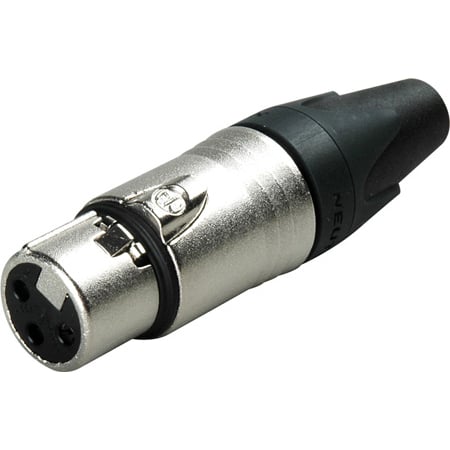

Neutrik NC3FXX 3 Pin Female XLR Connector - Nickel/Silver

ITEM #: NC3FXX MFG #: NC3FXX

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$4.13

Our Price:

$3.54

Availability: In Stock
iAvailability Description Popup


    NC3FXX - Overview

    Neutrik NC3FXX 3 pole female cable connector with Nickel housing and silver contacts.

    The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

    Tech Note : Do not assemble XX connectors without the cable installed. This will cause the pressure chuck to tighten and disassembly will be extremely difficult.

    • Features:

      • Unique cage design of female contact for low contact resistance and high integrity
      • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
      • Female connector with improved solid metal latch which is larger and easier to handle
      • Additional ground spring contacts for better shell ground continuity
      • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
      • Boot with polyurethane gland gives high protection to cable bending stresses
      • Colored rings and boots available for coding or identification
      • Sleek and ergonomic design - valuable and handy
      • Rugged zinc diecast shell, longlasting and dependable
      • Internal thread on shell is well protected against any damage
      • Branded with unique hologram - guarantees genuine and authentic Neutrik product

    • Specifications:

      • Electrical
      • Capacitance between contacts: ≤ 4 pF
      • Contact resistance: ≤ 3 mΩ
      • Dielectric strength: 1,5 kVdc
      • Insulation resistance: > 10 GΩ (initial)
      • Rated current per contact: 16 A
      • Rated voltage: < 50 V

        Mechanical
      • Cable O.D.: 3.5 - 8.0 mm
      • Insertion force: ≤ 20 N
      • Withdrawal force: ≤ 20 N
      • Lifetime: > 1000 mating cycles
      • Wiresize: max. 2.5 mm²
      • Wiresize: max. 14 AWG
      • Locking device: Latch lock

        Material
      • Boot: Polyurethan
      • Contact plating: 2 µm Ag
      • Contacts: Bronze (CuSn8)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell plating: Nickel
      • Strain relief: Polyacetal (POM)

        Environmental
      • Flammability: UL 94 HB
      • Standard compliance: IEC 61076-2-103
      • Protection class: IP 40
      • Solderability: Complies with IEC 68-2-20
      • Temperature range: -30 °C to +80 °C

    • GTIN:

      7613187000027
