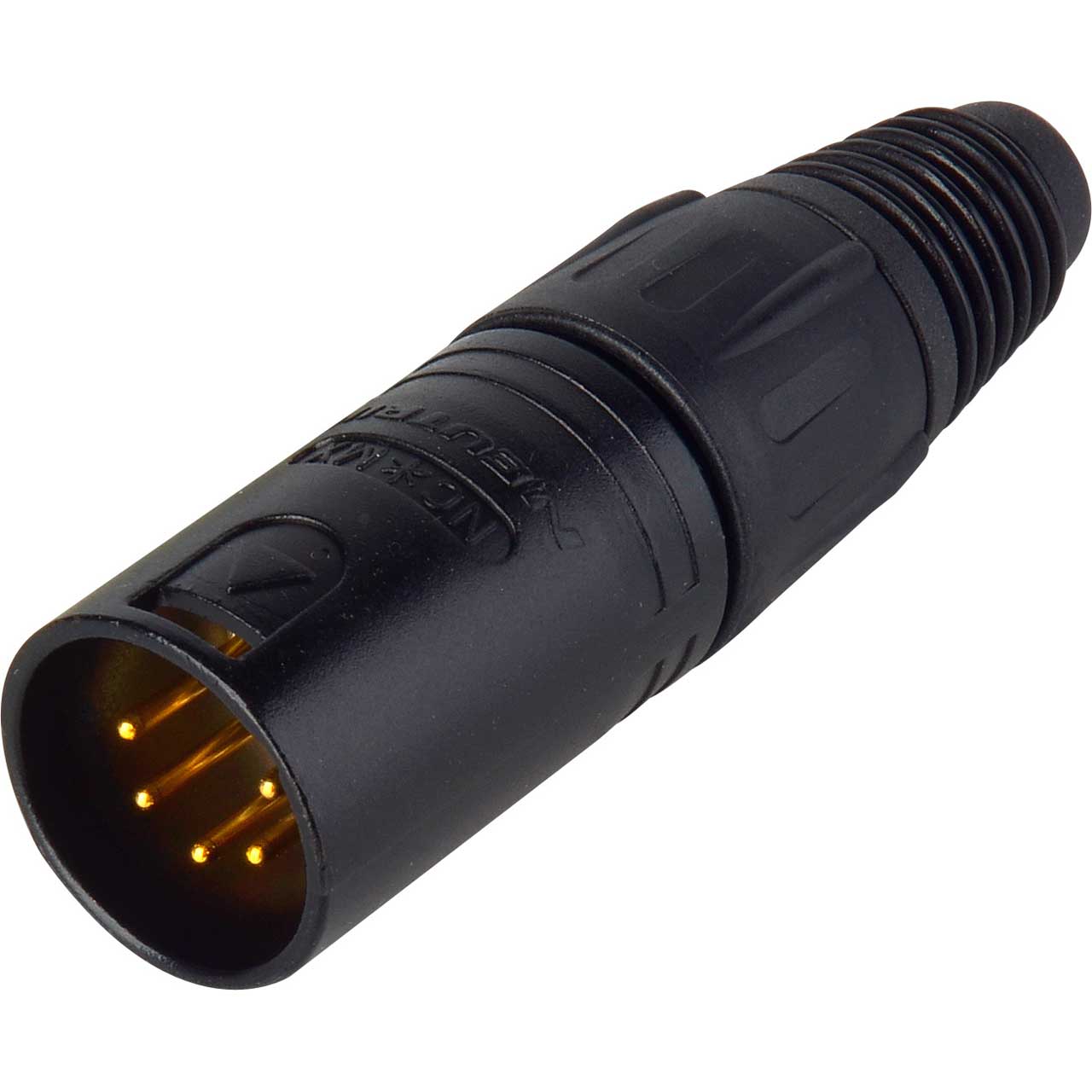

Neutrik NC5MX-B 5-Pin XLR-M Cable Plug - Black Shell & Gold Contacts

ITEM #: NC5MX-B MFG #: NC5MX-B

free ship

List Price:

$7.23

Our Price:

$6.84

Availability: In Stock
iAvailability Description Popup


    NC5MX-B - Overview

    The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

    • Features:

      • Rugged zinc diecast shell, long lasting and durable
      • Chuck type strain relief system for secure clamping of cables
      • Boot with rubber gland gives high protection against bending stresses
      • Coloured rings and boots available for coding and marking
      • UL recognized components

    • Specifications:

      • Connection Type: XLR
      • Gender: Male
      • Capacitance between contacts: ≤ 7 pF
      • Contact resistance: ≤ 3 mΩ (inner)
      • Dielectric strength: 1,5 kVdc
      • Insulation resistance: > 2 GΩ (initial)
      • Rated current per contact: 7,5 A
      • Rated voltage: 50 V
      • Cabel O.D.: 3.5 - 8.0 mm
      • Insertion force; ≤ 20 N
      • Withdrawal force: ≤ 20 N
      • Lifetime: > 1000 mating cycles
      • Wiresizemax: 1.0 mm²
      • Wiresizemax: 18 AWG
      • Wiring: Solder contacts
      • Locking device: Latch lock
      • Boot: Polyuretan
      • Bushing: Polyamide (PA 6 15% GR)
      • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
      • Contacts: Brass (CuZn39Pb3)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Locking element: Zinc diecast (ZnAl4Cu1)
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell plating: Black chromium
      • Strain relief: Polyacetal (POM)
      • Approvals: UL
      • Flammability: UL 94 HB
      • Standard compliance: IEC 61076-2-103
      • Protection class: IP 40
      • Solderability: Complies with IEC 68-2-20
      • Temperature range: -30 °C to +80 °C

    • GTIN:

      7613187003400
