Neutrik NE8FDP-R-B D Series Right Angle RJ45 etherCON Feedthrough Receptacle

ITEM #: NE8FDP-R-B MFG #: NE8FDP-R-B

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$14.40

Our Price:

$12.34

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    NE8FDP-R-B - Overview

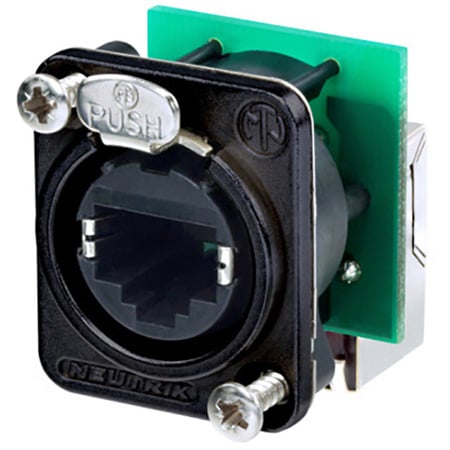

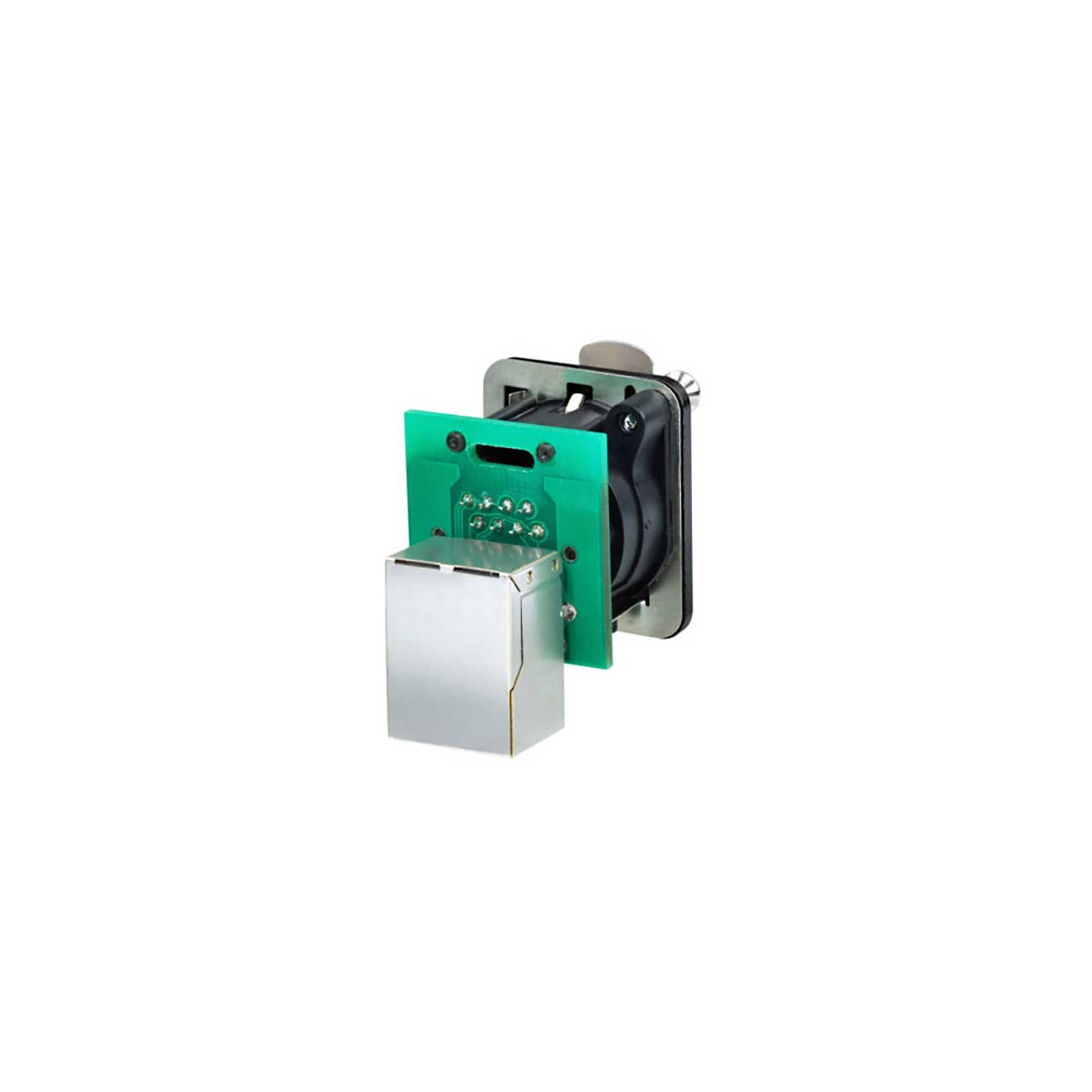

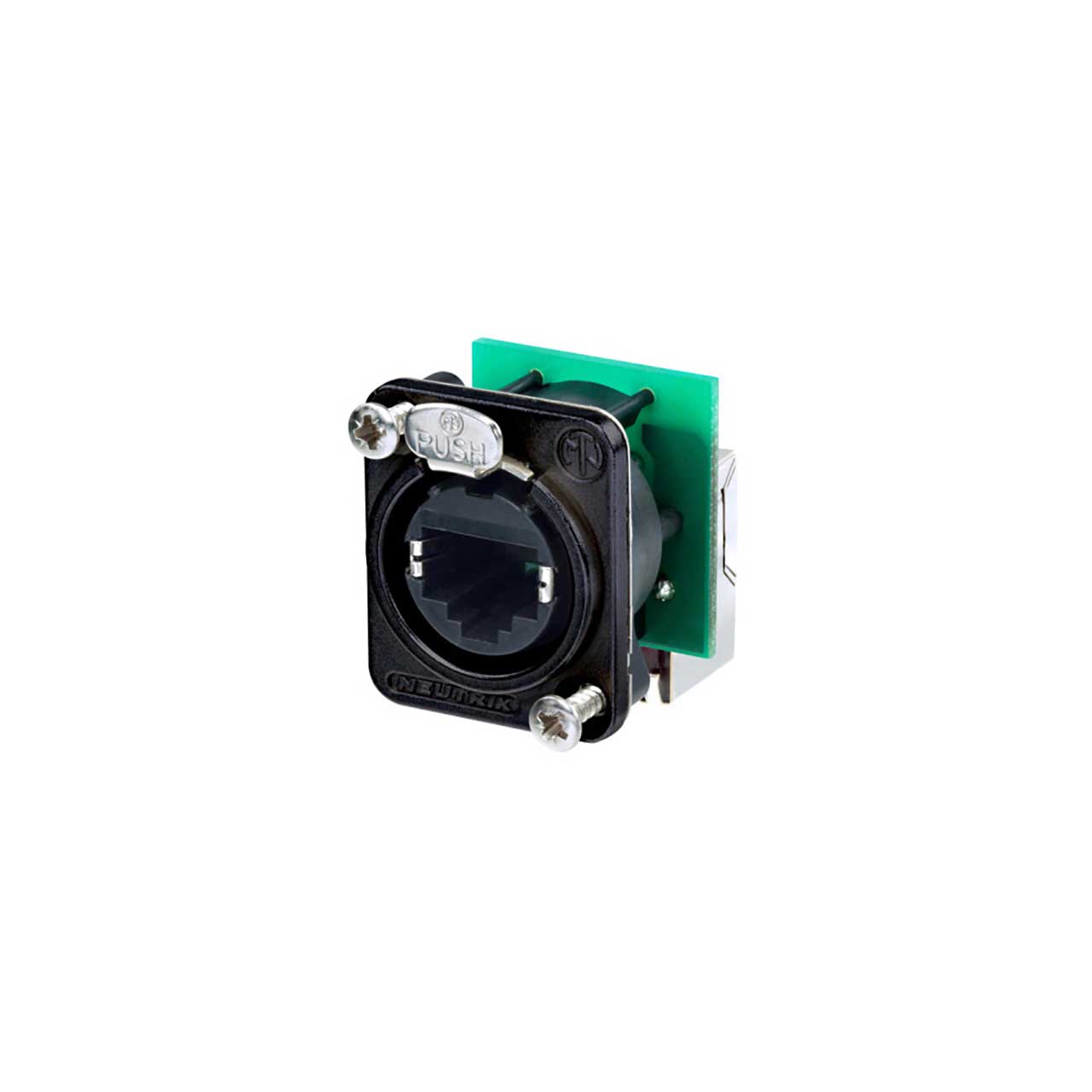

    Right angle RJ45 feedthrough receptacle, black D-shape metal flange with latch lock. Mounting screws included.

    The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
    The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

    Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

    • Features:

      • Right angle CAT5e jack for space saving connections on the rear
      • Accommodates NE8MC* or any standard RJ45 plugs
      • Approved latch lock system
      • Mountable from the front or rear of the panel
      • Complies with CAT5e according to TIA / EIA 568B and ISO / IEC 11801 standards


    • Specifications:

      • Gender: female

      • Electrical
      • Contact resistance: < 10 mΩ
      • Dielectric strength: 1 kVdc
      • Frequency range: 1 - 100 MHz
      • Insulation resistance: > 0.5 GΩ
      • Rated current per contact: 1.5 A
      • Rated voltage: < 50 V
      • Transmission performance: CAT 5e
      • Standard compliance: TIA/EIA 586B, IEC11801

      • Mechanical
      • Insertion force: ≤ 20 N
      • Withdrawal force: ≤ 20 N
      • Lifetime: > 1000 mating cycles
      • Panel thickness: max. 4 mm , 0.16''
      • Wiring: Feedthrough
      • Locking device: Latch lock
      • Chassis shape: D

      • Material
      • Contact plating: 0.2 µm Au over Ni plating
      • Contacts: Bronze (CuSn8)
      • Insert: PBTP 15 % GR
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell plating: Black chrome

      • Environmental
      • Flammability: UL 94 V-0
      • Temperature range: -30 °C to +80 °C


    • GTIN:

      7613187009211
