Neutrik NE8MX-TOP-D Cable Carrier etherCON TOP Series Nickel etherCON Shell ONLY Requires RJ45 Connector & Cable - 100PK

ITEM #: NE8MX-TOP-D MFG #: NE8MX-TOP-D

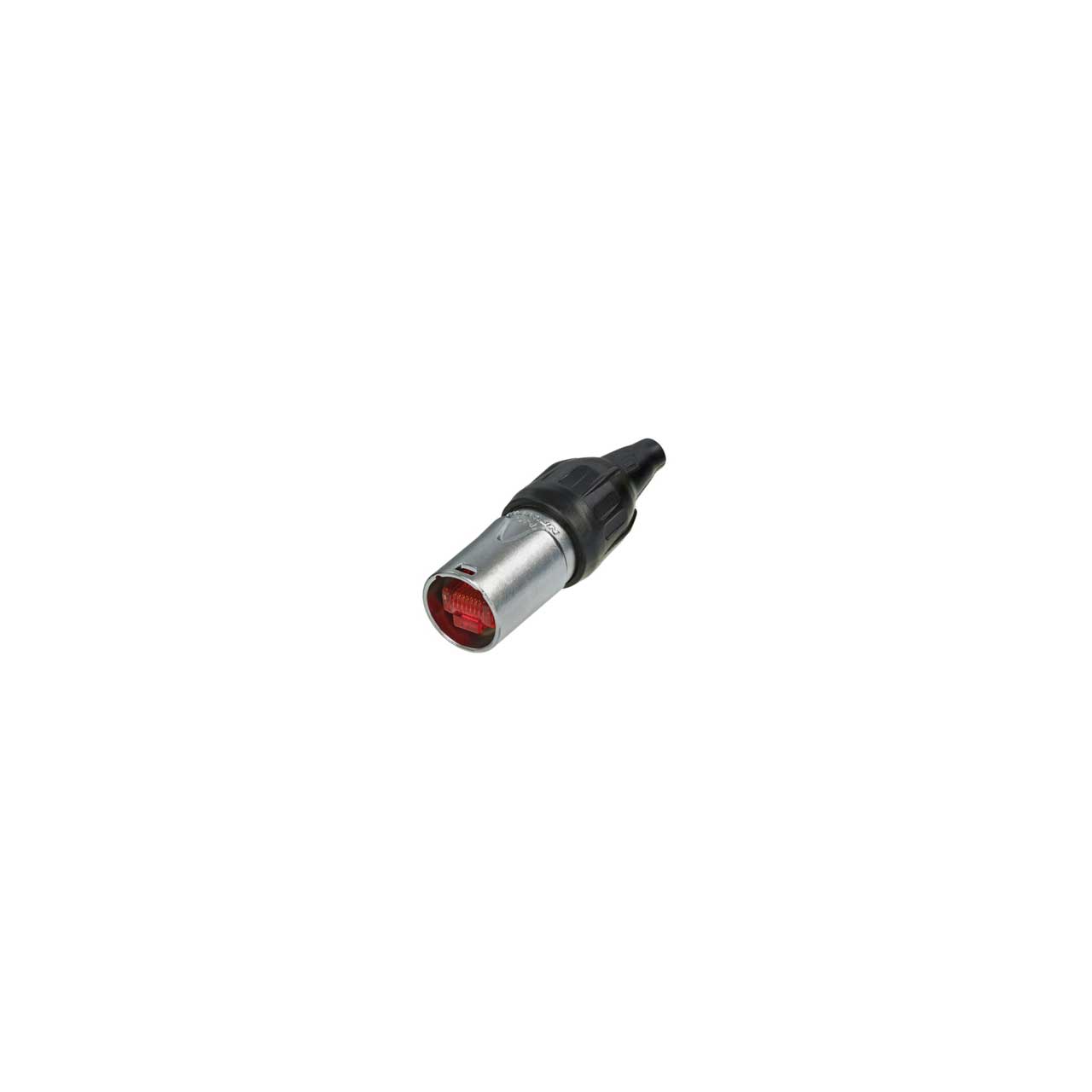

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NE8MX-TOP-D

NE8MX-TOP-D - Overview

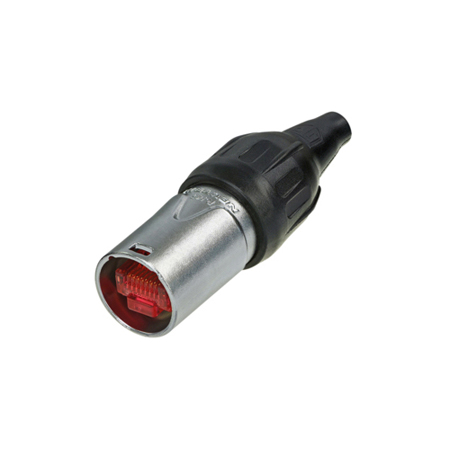

Neutrik NE8MX-TOP-D is a Cable Carrier etherCON TOP Series Nickel etherCON Shell ONLY that Requires an RJ45 Connector & Cable. This is a bulk pack of 100 pieces. Cable connector carrier consists of a velour chromiuim shell, chuck and boot. The boot is suitable for cable diameters from 5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust, lockable and outdoor protected solution with IP65 rating and UL 50E certification.

Please Note:
Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

  • Features:

    • The RJ45 system for harsh and demanding environment
    • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
    • IP65 rating and certified outdoor protection to UL 50E (in combination with a TOP range counterpart)
    • Rugged diecast shell and unique chuck type strain relief
    • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
    • Allows assembly of non pre-assembled conventional RJ45 cables
    • Accessories include color coded boots in 9 standard colors


  • Specifications:

    • Mechanical
    • Cable O.D.: 5.0 - 8.0 mm
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Gender: male

      Material
    • Boot: UV-resistant rubber
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Velour Chromium
    • Strain relief: Polyacetal (POM)

      Environmental
    • Temperature range: -22° to 176°F (-30° to +80°C)
    • Protection class: IP65, UL50E enclosure type 4 (mated)
