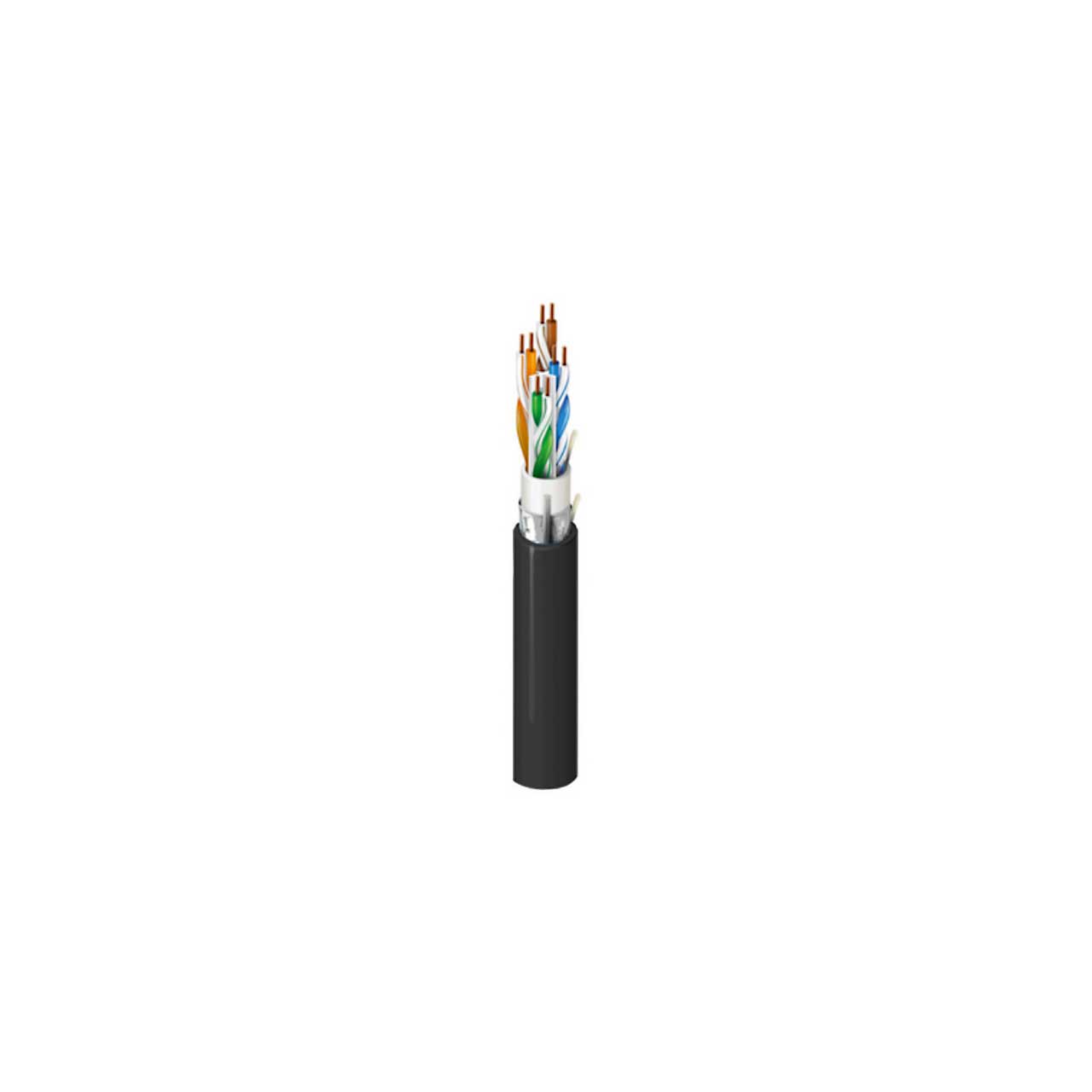

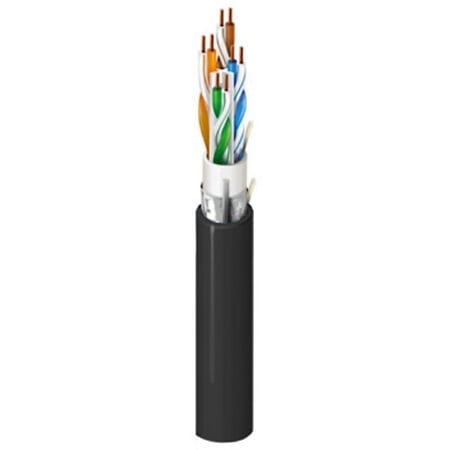

Belden 10GX62F Riser/CMR Rated Enhanced Category 6A F/UTP 4-Bonded-Pair Cable - Black - 1000 Foot

ITEM #: BL-10GX62F1000BK MFG #: 10GX62F 0101000

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,049.20

Our Price:

$839.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    10GX62F 0101000 - Overview

    Belden 10GX62F is a 23 AWG 10GX Category 6A F/UTP Enhanced Premise Horizontal Cable (625MHz). It features 4 Bonded-Pairs, Solid Bare Copper Conductors and is Foil Shielded in a Riser-CMR rated PVC Jacket.

    This 10GX shielded cable delivers performance that goes beyond the ANSI/TIA/EIA 568-C.2 Category 6A standard. When used as the horizontal cable within the Belden 10GX Shielded System, it provides 625 MHz of proven channel bandwidth and a data rate of 10 Gigabits per second. With a thick, 100% coverage foil shield, your 10 Gb/s of data is protected from harsh EMI environments. The Belden design utilizes an inner and outer jacket to sandwich the foil into having a smooth surface. This eliminates adverse PSNEXT and RL effects seen with most other 10G cable products.

    Applications
    Premise Horizontal Cable
    Wi-Fi 6, Wi-Fi 5,
    Surveillance
    HDBaseT
    PoE++, PoE+, PoE
    Ethernet up to 10GBASE-T, and any other Ethernet application in high noise environments (EMI)
    10GBASE-T Full Power Implementation (IEEE 802.3an)
    10GBASE-T Low Power Implementation (Short Reach Mode) (IEEE 802.3an)
    1000BASE-T Applications (IEEE 802.3ab)
    PoE PSE Type 1 (15 W), PSE Type 2 (30 W) PSE Type 3 (60 W), PSE Type 4 (100 W)
    Broadband Video (CATV) and High Speed Internet (DOCSIS) over UTP up to 860 MHz

    • Features:

      • Reliable network performance: Designed for mission-critical situations that require constant uptime
      • Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
      • Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables

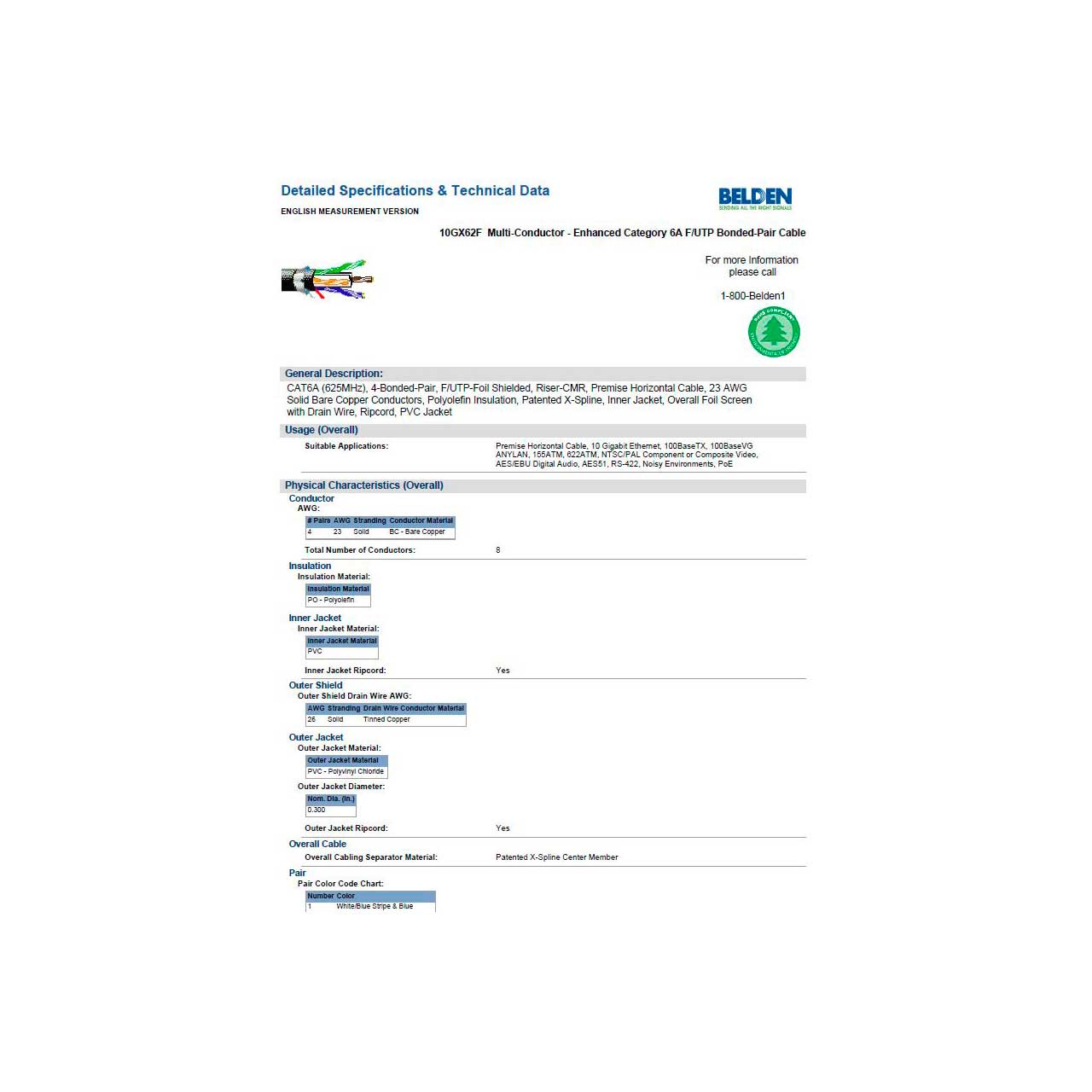

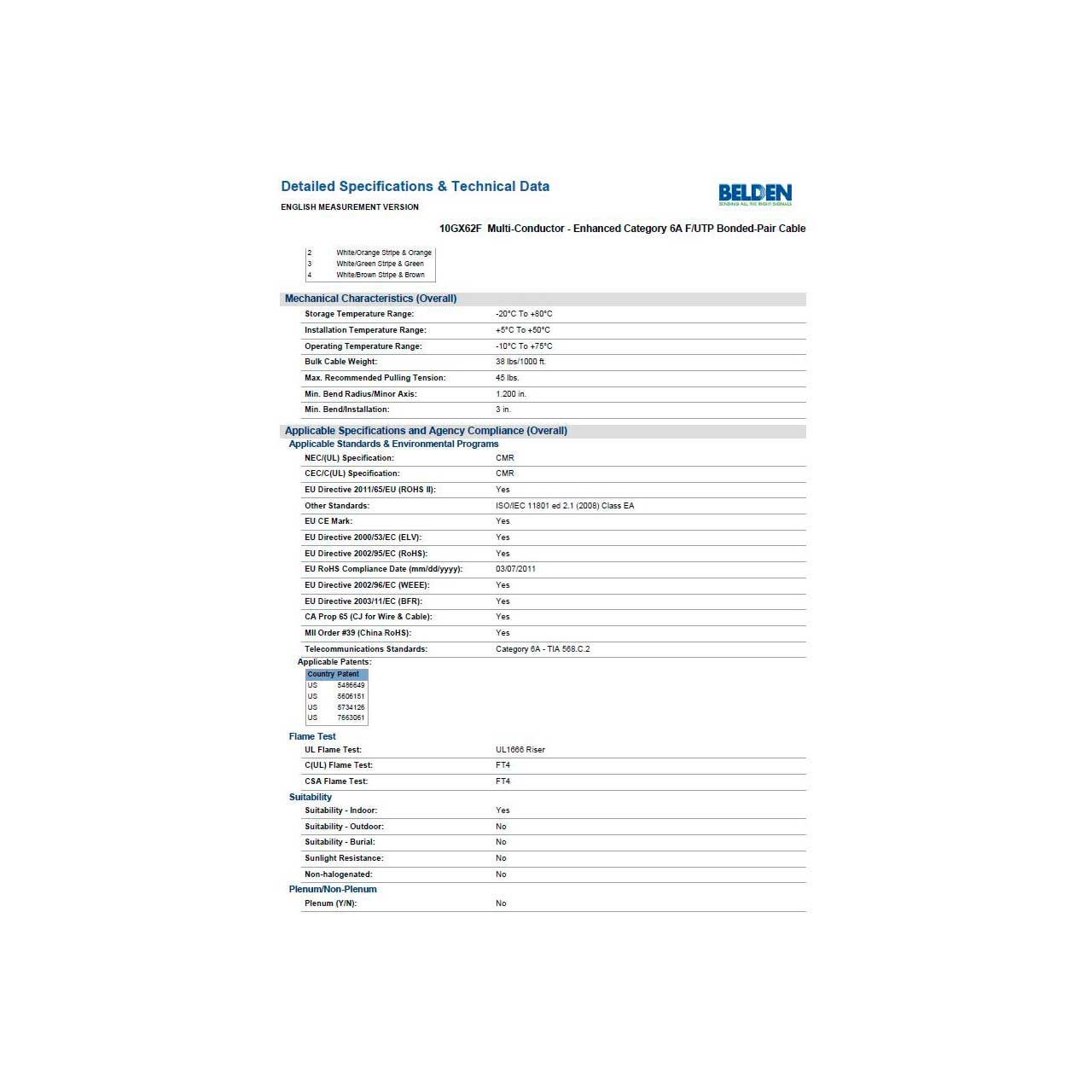

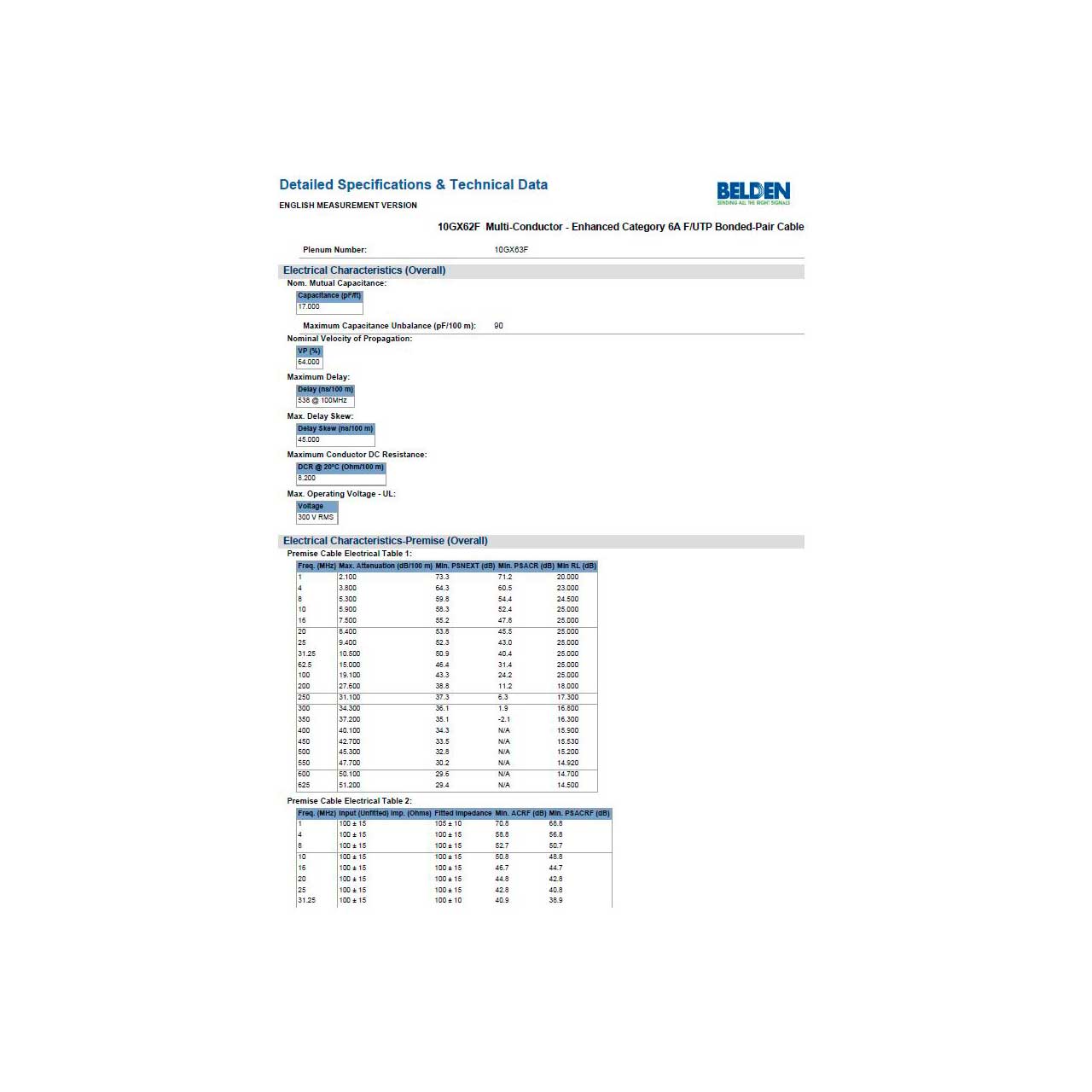

    • Specifications:

      • Conductor AWG: 23
      • Conductor Stranding: Solid
      • Conductor Material: BC - Bare Copper
      • Conductor No. of Pairs: 4
      • Conductor Count: 8
      • Insulation Material: PO - Polyolefin
      • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
      • Bonded-Pair: Yes
      • Inner Jacket Material: PVC - Polyvinyl Chloride
      • Inner Jacket Nom. Diameter: 0.26 in (6.6 mm)
      • Inner Jacket Ripcord: Yes
      • Outer Shield Type: Tape
      • Outer Shield Material: Bi-Laminate (Alum+Poly)
      • Outer Shield Coverage: 100%
      • Outer Shield Drainwire Type: 26 AWG (7x34) TC
      • Outer Jacket Separator: Center Member (Patented X-Spline®)
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Diameter: 0.300 in (7.62 mm)
      • Outer Jacket Ripcord: Yes
      • Overall Cable Diameter (Nominal): 0.300 in (7.62 mm)
      • Max. Capacitance Unbalance: 90 pF/100m
      • Nom.Mutual Capacitance: 17 pF/ft
      • Max. Conductor DCR: 82 Ohm/km
      • Max. DCR Unbalance: 3%
      • Max DCR Unbalanced Between Pairs [%]: 5%
      • Frequency [MHz]: 100 MHz
      • Max. Delay: 537.6 ns/100m
      • Max. Delay Skew: m 45 ns/100m
      • Nominal Velocity of Propagation (VP) [%]: 64%
      • UL Voltage Rating: 300 V RMS
      • Installation Temp Range: +0°C To +50°C
      • UL Temp Rating: 75°C
      • Storage Temp Range: -20°C To +75°C
      • Operating Temp Range: -20°C To +75°C
      • Bulk Cable Weight: 39 lbs/1000ft
      • Max Recommended Pulling Tension: 40 lbs
      • Min Bend Radius During Installation: 3.0 in
      • Min Bend Radius/Minor Axis: 1.2 in
      • NEC/(UL) Specification: CMR
      • CEC/C(UL) Specification: CMR
      • ISO/IEC Compliance: 11801 ed 2.2 (2011) Class EA
      • Data Category: Category 6A
      • ANSI Compliance: S-116-732-2013 Category 6A, ANSI/NEMA WC-66 Category 6A
      • Telecommunications Standards: ANSI/TIA-568-C.2 Category 6A
      • IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
      • Other Specification: Verified Channel/Category 6A

    • Item Includes:

      • 10GX62F Riser/CMR Rated Enhanced Category 6A F/UTP Cable - Black - 1000 Foot

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825102465
