E-S5VDC - Overview

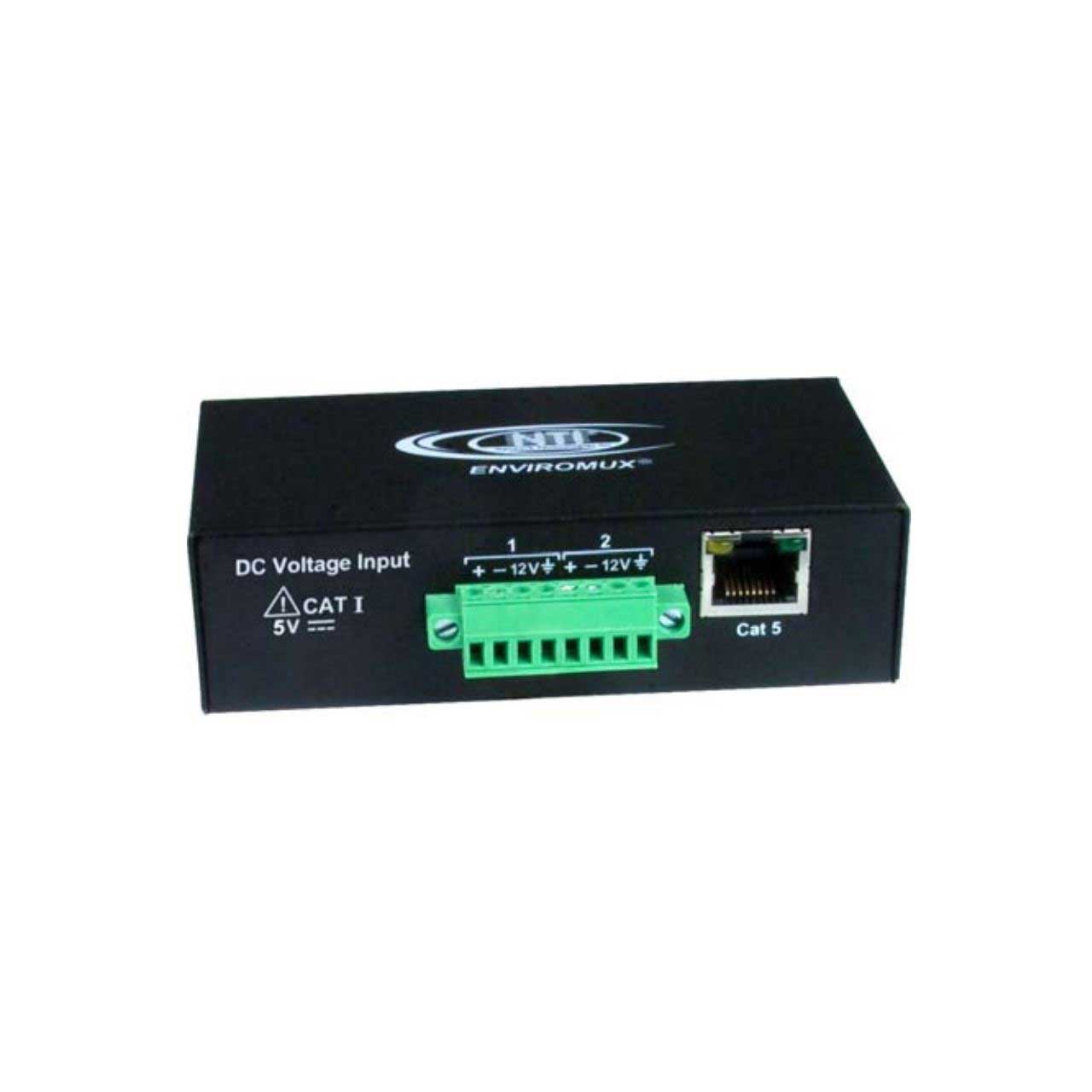

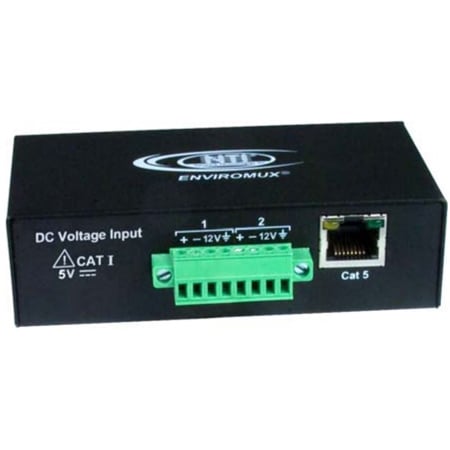

The NTI E-S5VDC Voltage Sensor Adapter monitors DC voltage sources (up to two) when connected to an E-16D/5D/2D Server
Environment Monitoring System(SYSTEM). The voltage sources can be anything with a range between 0 to 5VDC. When connected to a SYSTEM via 18-24AWG CAT5/5e/6 cable (up to 1,000 feet away), the voltage source(s) can be monitored and the SYSTEM can be configured to alert users as to variations in the voltage levels

External RJ45 device monitors up to two linear DC sensors, 0VDC ~ 5VDC
Output: 12VDC, 25mA
Connector: Screw Terminal, 8-position.
Supports CAT5/5e/6 cable up to 1,000 ft. (305 m)
Includes Mounting Hardware
Powered by E-2D/5D/16D.
MTBF: 1,956,288 hrs.
Compatible with E-2D/5D/16D.
Regulatory approvals: CE, RoHS.

  • Features:

    • Detects and monitors up to two DC voltages, each with a range
    • of 0 to 5VDC
    • E-S5VDC provides 12VDC, 25mA for each sensor
    • 8-position screw-terminal connection
    • Supports 18-24AWG CAT5/5e/6 cable up to 1,000 ft. (not included)
    • Includes Mounting Ears
    • CE certified
    • RoHS compliant
