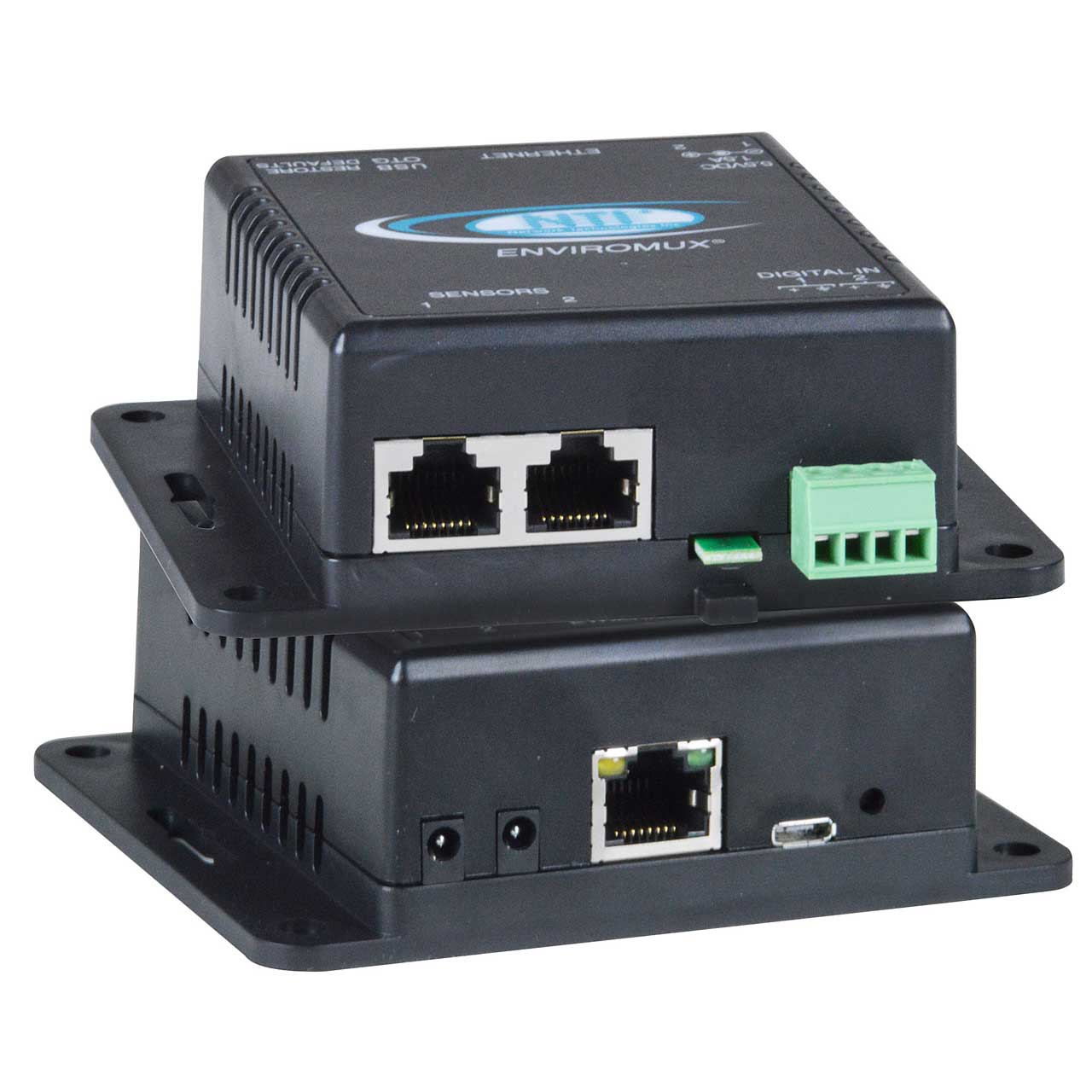

NTI ENVIROMUX MICRO-TRHP Micro Environment Monitoring System - Integrated Temp/Humidity Sensor - POE


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    The ENVIROMUX Micro Environment Monitoring System monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via external USB 3G modem).

    The system functions independently or as an IP-connected remote sensor for the ENVIROMUX-2D/5D/16D. The ENVIROMUX-MICRO-TRHP features an integrated temperature/humidity sensor, two RJ45 sensor ports for external temperature/humidity sensors, two dry contact inputs and built-in Power over Ethernet (PoE).

    • Features:

      • 1 integrated temperature/humidity combination sensor
      • 2 RJ45 ports for external temperature/humidity sensors
      • 2 digital inputs sensitive to contact closure
      • Built-in Power over Ethernet and dual DC power provides triple redundancy
      • Sensors are hot pluggable
      • Monitor (ping) up to 4 IP network devices ± alerts are sent if devices are not responding
      • Create multiple alerts for any installed sensor.
      • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert
      • Alerts are posted in message log, which is accessible through Web user interface
      • Automatically configures network settings received from a connected DHCP server
      • Supports 4 IP network video cameras for live view of any facility
      • Integrates with various Open Source SNMP monitoring packages -Nagios and MRTG
      • USB port for connecting USB modem
      • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors
      • Security: HTTPS, SSLv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights
      • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored
    • Specifications:

      • RJ45 Sensor Ports
      • Two RJ45 modular jacks for connecting temperature sensors or combined temperature/humidity sensors.
      • Three levels of user-defined alerts ± normal, warning, critical

        USB Port
      • One female Micro USB connector for connecting a USB Modem.

        Ethernet Port
      • One female RJ45 connector.
      • 10/100 Base-T Ethernet interface.

        Integrated Temperature/Humidity Sensor
      • Applications from -4 to 167°F
      • Accuracy: +/-0.72°F at -14 to 167°F, +/-0.9°F at -4 to 23°F
      • Resolution: 0.2°F
      • Applications from 0 to 90% relative humidity at temperatures between -4 to 167°F
      • Accuracy:0 to 80% relative humidity, +/-2%80 to 90% relative humidity, +/-3%

      • Built-in Power over Ethernet and dual DC power provides triple redundancy.
      • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
      • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
      • If two or more sources have exactly the same voltage, it will draw in part from each of them.
      • 110 to 240 VAC at 50 or 60 Hz via AC adapter (not included).
      • Country-specific AC adapters sold separately (PWR-SPLY-EMICRO).
      • Input voltage: 5.5VDC +/-5%
      • Power consumption: 4W max.

      • Operating & Storage Temperature: -4 to 167°F
      • Operating & Storage Relative Humidity: 0 to 99% non-condensing RH.

      • WxDxH in (all options): 4" x 3.44" x 1.37" (Includes mounting holes to match rack hole spacing)
    • Item Includes:

      • 1x - ENVIROMUX-MICRO-TRHP Micro Environment Monitoring System
      • 1x - country-specific power cord
      • 1x - 6-inch USB 2.0 female type-A to male micro cable
      • 1x - CD that contains the manual, an SNMP MIB file, and the NTI Discovery Tool

    ENVIROMUX-MICRO-TRHP - Required Accessories
