NTI ST-C6USB4K18GB-230T 4K 18GBPS HDMI USB KVM Extender Kit Via One CAT6/6A/7 Cable

ST-C6USB4K18GB-230T - Overview

• Features:

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz and 4096x2160 @24/25Hz YUV 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
  • Signal transmission via one CAT6/6a/7 cable up to 230 feet (70 m).
  • Zero latency.
  • HDMI features supported:
  • HDMI 2.0 compliant.
  • Up to 36-bit Deep Color
  • LPCM, Dolby Digital, and DTS
  • RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
  • Bandwidth up to 18 Gbps
  • 3D
  • HDR10
  • HDCP 2.2 and 1.4 compliant.
  • Supports local and remote HDMI displays.
  • Built-in default EDID table.
  • Supports HDMI-embedded digital audio and SPDIF digital audio output.
  • Two USB ports for keyboard, mouse, or touch screen monitor.
  • Compliant with USB 1.1 (low/full speed) standards.
  • Keyboard and mouse are hot-pluggable.
  • Supports Plug-and-Play specification.
  • Built-in surge and ESD protection.
  • Mounting brackets included for easy surface/wall mounting


• Specifications:

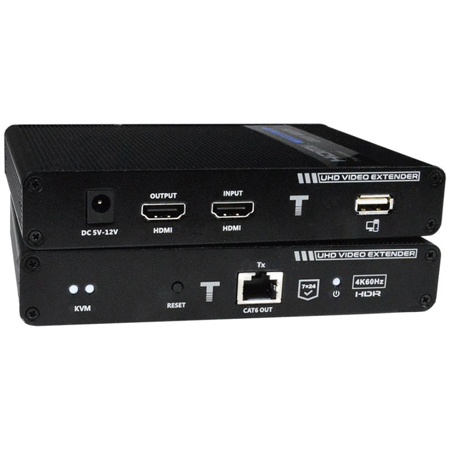

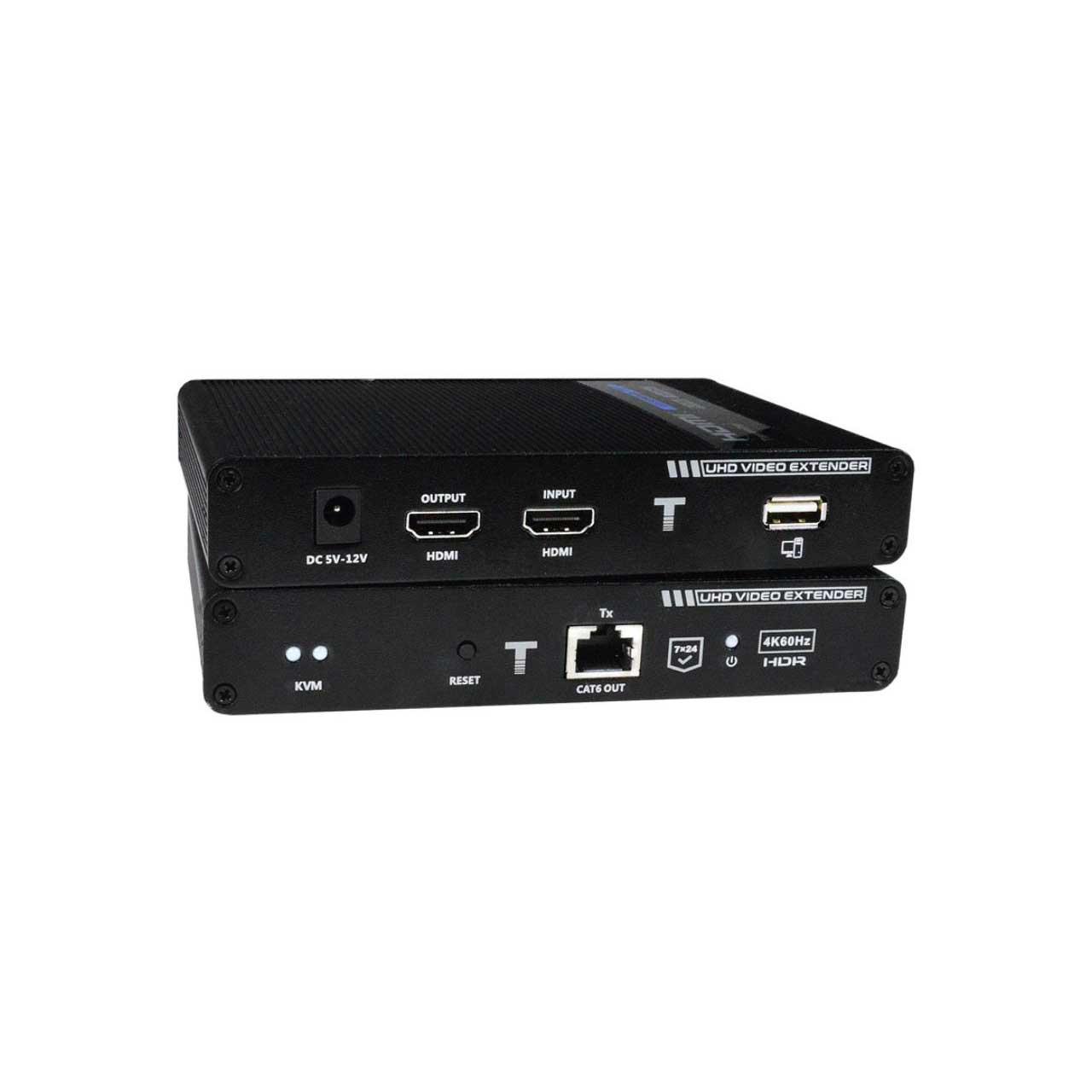

  • Local Unit:
  • Compatible with a USB computer with Ultra-HD HDMI output.
  • Multiplatform support: Windows 7/10/11, Linux, and MAC OS 10/12.
  • One female HDMI connector for source.
  • One female HDMI connector for local display.
  • One female USB Type A connector.
  • One female RJ45 port for sending/receiving video, audio, and USB signals.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz and 4096x2160 @24/25Hz YUV 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
  • Supports HDCP 2.2 and 1.4.

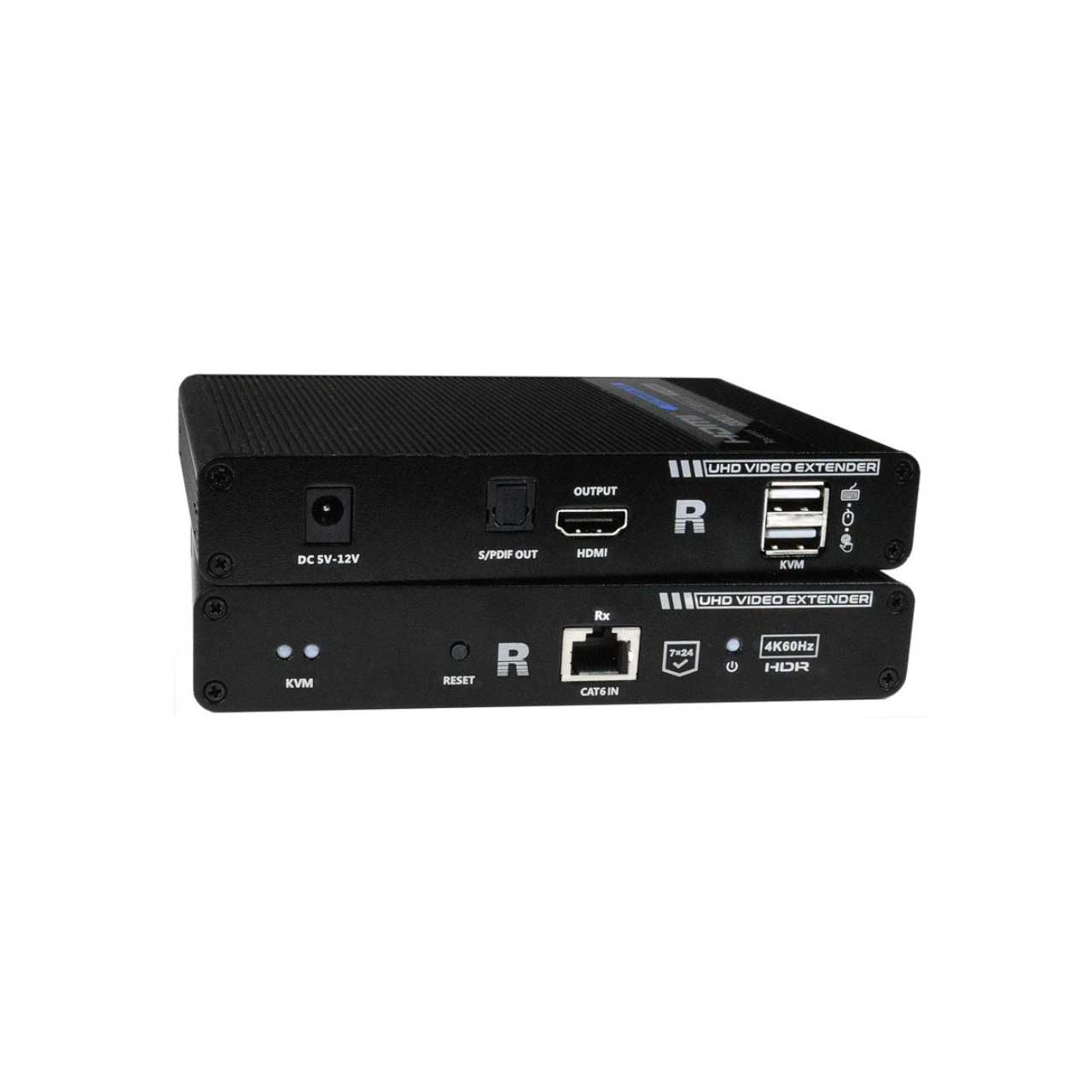

  • Remote Unit:
  • One female HDMI connector for display.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz and 4096x2160 @24/25Hz YUV 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
  • Supports embedded digital audio.
  • Two USB ports for keyboard, mouse, or touch screen monitor.
  • Compliant with USB 1.1 (low/full speed) standards.
  • Keyboard and mouse are hot-pluggable.
  • One TOSLINK optical port for SPDIF digital audio.
  • One female RJ45 port for sending/receiving video, audio, and USB signals.
  • Power:
  • Local unit:
  • 100 to 240 VAC at 50 or 60Hz via AC adapter (included).
  • Input voltage: 5VDC, 2A
  • Power consumption: 2.25W
  • Remote unit:
  • 100 to 240 VAC at 50 or 60Hz via AC adapter (included).
  • Input voltage: 5VDC, 3A
  • Power consumption: 8.55W.
  • Dimensions:
  • WxDxH (in): 5.91x4.17x1.03 (150x106x26 mm


• Item Includes:

  • One transmitter
  • One receiver
  • One 4 ft (1.2 m) male-to-male USB Type A cable
  • Two power supplies
  • Mounting brackets
