NTI ST-C6USBH-300 HDMI USB KVM Extender Via One CATx to 300 Feet
  • NTI ST-C6USBH-300 HDMI USB KVM Extender Via One CATx to 300 Feet
  • NTI ST-C6USBH-300 HDMI USB KVM Extender Via One CATx to 300 Feet

Questions? Ask a Markertek Expert:
800-522-2025 Email

NTI ST-C6USBH-300 HDMI USB KVM Extender Via One CATx to 300 Feet

Item #: NETT-STC6USBH300   •   MFG #: ST-C6USBH-300




Our Price:$555.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

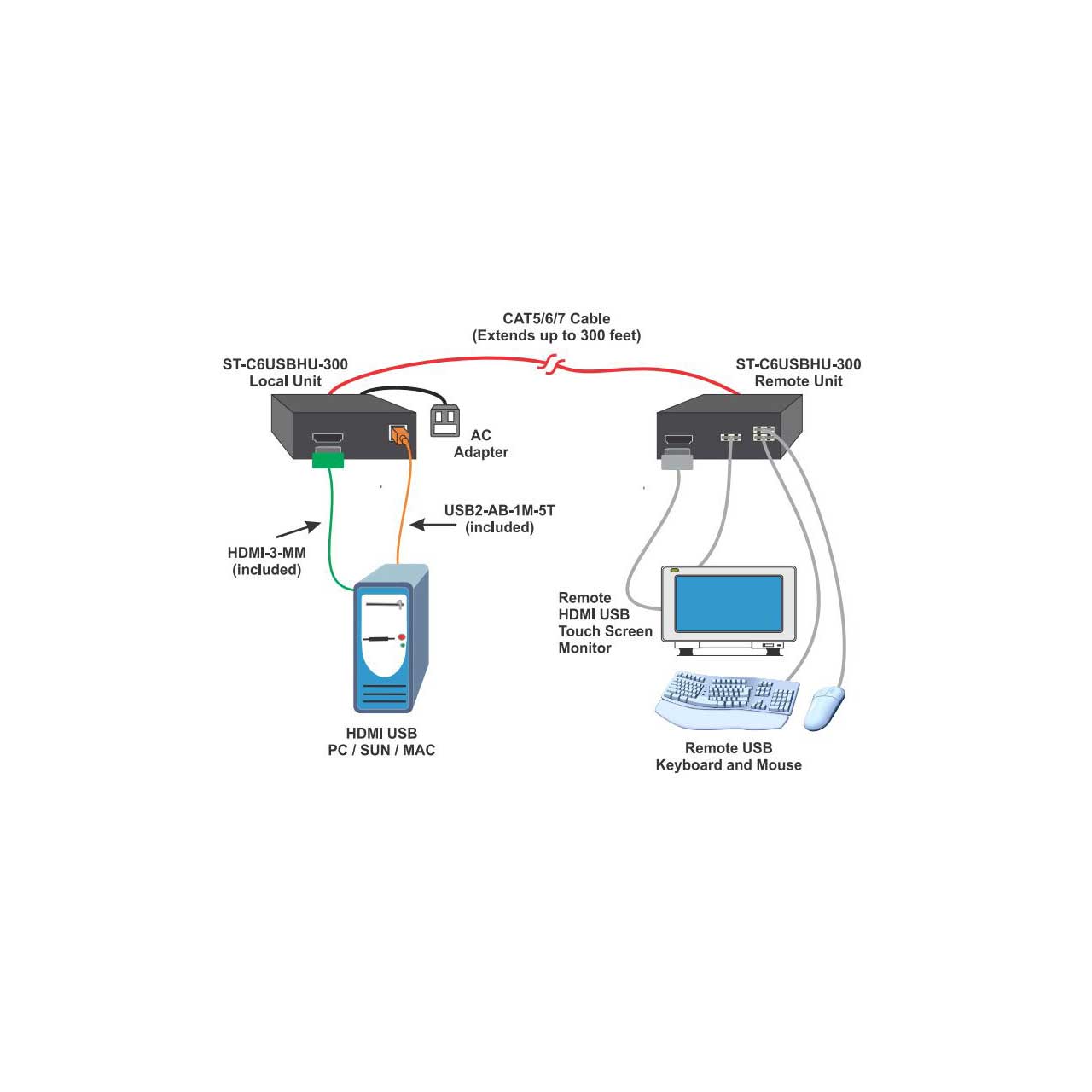

    The XTENDEX® HDMI USB KVM Extender provides remote KVM (USB keyboard, USB mouse and HDMI monitor) access to a USB computer up to 300 feet over CAT5/6/7 cable. Each ST-C6USBH-300 consists of a local unit that connects to a computer, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote units are interconnected via CAT5/6/7 cable.


    • Features

      • Transmits all signals over one CAT5/6/7 cable
      • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA)
      • HDMI features supported:
      • 12-bit Deep Color
      • x.v.Color
      • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
      • Bandwidth up to 225 MHz (6.75 Gbps)
      • Support for CEC (consumer electronic control) compatible devices
      • Lip Sync
      • HDCP compliant
      • Supports the DDC2B protocol
      • Available with additional USB 2.0 (low/full speed) port
      • For the additional USB port on the remote unit, use to connect a USB touch screen monitor, interactive whiteboard, or CAC card reader
      • High quality, rugged steel construction with durable powder coat finish
      • Keyboard and mouse are hot-pluggable
      • Keep-alive keyboard/mouse emulation for flawless operation
      • Only one power supply is necessary to power both the local and remote units

    • Specifications

      • Local Unit
      • Supports a USB computer (PC, SUN, MAC) with HDMI video.
      • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
      • One female HDMI connector.
      • One female USB Type B connector.
      • One female RJ45 port for sending/receiving high definition video/audio, USB, CEC, and DDC signals.

        Remote Unit
      • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
      • Supports embedded digital audio.
      • Auto equalization for different lengths of CAT5e/6/7 cable.
      • One female HDMI connector.
      • Two female USB Type A connectors.
      • Compatible with most USB keyboards and mice, including Logitech M570 wireless mouse and Logitech K400 wireless keyboard.
      • Available with an optional female USB Type A connector for an additional USB 2.0 (low/full speed) device - USB touch screen monitor, CAC card reader, interactive whiteboard, or barcode scanner.
      • USB maximum data rate: 12 Mbps.
      • Supported touch screen monitors: Microtouch 3M, ELO 1529L 3000 Series, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Lenovo L12341 and HP Compaq.
      • Supported interactive whiteboards: SMART Board™ SB640
      • Supported card readers: Athena, Cherry, Gemalto, Generic USB, and Dell smart card/keyboard combo.
      • One female RJ45 port for sending/receiving high definition video/audio, USB, CEC, and DDC signals.

        Dimensions
      • W x D x H(in): 3.09 x 3.49 x 1.08

        Power
      • Powered from a single power supply attached to either the local or remote unit.
      • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)

        Cables
      • Use HD-xx-MM cable to connect an HDMI display.
      • Use DVI-HD-xx-MM cable to connect a DVI source or display.
      • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

        Environmental
      • Operating temperature: 32 to 122°F (0 to 50°C).
      • Storage temperature: -20 to 140°F (-30 to 60°C).
      • Operating/storage relative humidity: 17 to 90% non-condensing RH.

    • Item Includes

      • 3-foot HDMI male-to-male cable
      • 1-meter male USB Type A to male USB Type B cable

    • Warranty

      • 2 Year
