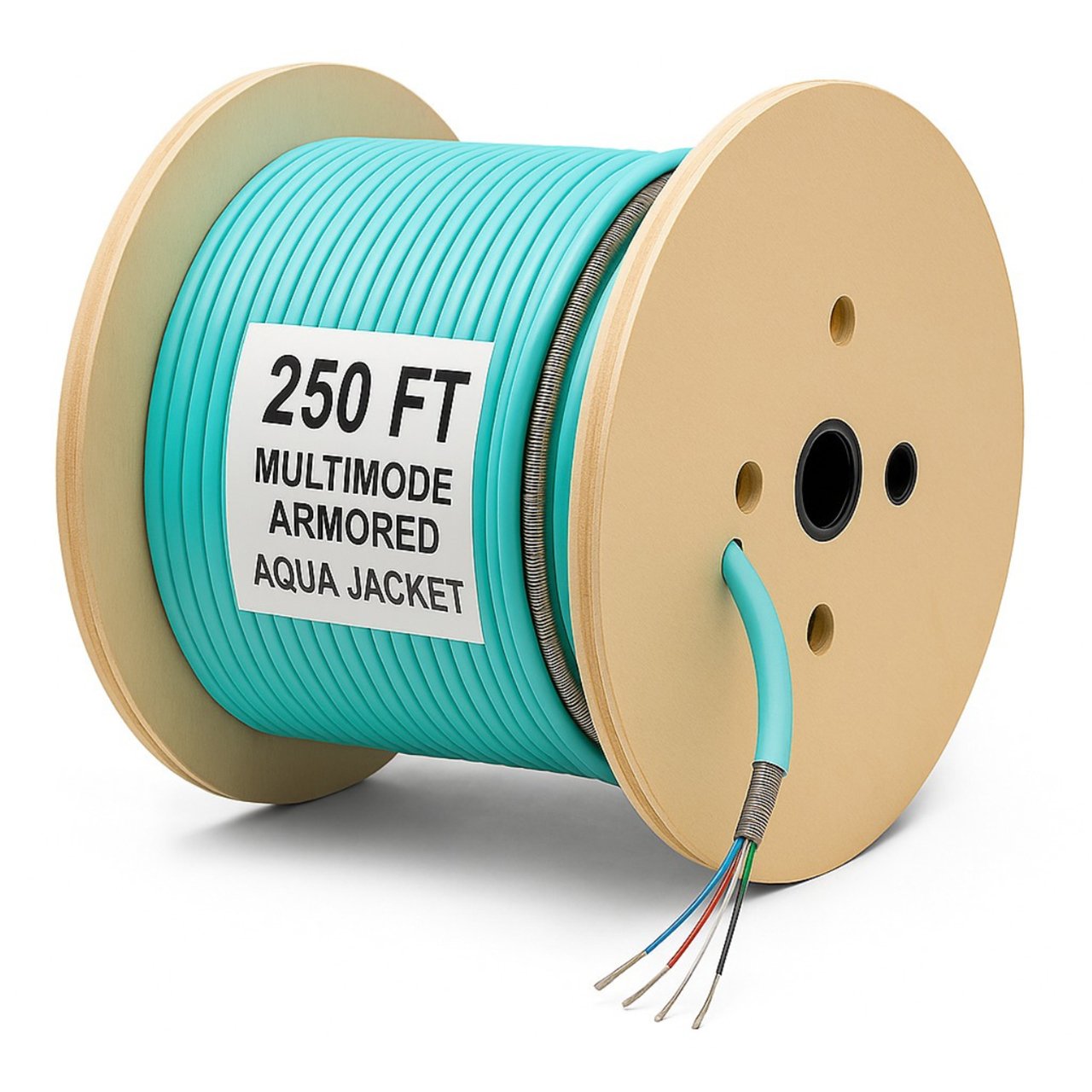

nanoFIBER 6 Strand Steel Armor OM3 50/125 Tight Buffer 900u Indoor/Outdoor Multimode Fiber Cable - Aqua - 250 Foot

ITEM #: NF-MM6T3PA-250 MFG #: MM6T-M3-IOPA-250

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$799.99

Our Price:

$539.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MM6T-M3-IOPA-250 - Overview

The nanoFIBER 250 foot 6-Strand OM3 Multimode Fiber Cable is a high-performance solution designed for speed, durability, and safety. Featuring six laser-optimized OM3 50/125µm fibers, this tight-buffered fiber optic cable delivers outstanding performance in mission-critical indoor and outdoor installations.

With passivated stainless steel spiral tube armor under a plenum-rated OFNP jacket, this cable ensures long-lasting protection in environments prone to crushing, rodents, or UV exposure.

Unlike conventional cables, this design includes 900µm tight buffer construction for quick, easy direct terminations-without fan-out kits-saving time and simplifying installations. With its compact 6.0mm OD and built-in water-blocking yarns, the cable offers unmatched reliability in air-handling plenums, underground conduits, riser systems, and outdoor ducts.

  • Features:

    • 250 foot reel
    • Multimode OM3
    • 6 Strand
    • SUS202 Stainless Steel Armor
    • Tight Buffer 900µm
    • Jacket Color Aqua
    • Indoor/Outdoor Plenum Rated
    • Water blocking Yarn
    • 5.5mm outer diameter
    • Smallest outer diameter armored cable
    • 500% increase in pathway capacity
    • Reduces cable congestion

  • Specifications:

    • Length: 250ft (76.2m)
    • Fiber Count: 6 fibers
    • Fiber Type: 50/125µm OM3, Laser-Optimized
    • Armor Type: Passivated Metallic Cladding (rodent/crush resistant)
    • Diameter: 5.5mm ±0.2mm
    • Construction: Tight Buffered 900µm
    • Jacket Type: Plenum-Rated
    • Jacket Color: Aqua
    • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
    • Minimum Bend Radius: 10x cable diameter (installation), 20x (operation)
    • Compliance: TIA/EIA-568, ANSI, ICEA, and RoHS

  • Item Includes:

    • 1x Stainless Steel Armor OM3 50/125 Tight Buffer 900u Indoor/Outdoor Fiber Cable

  • Warranty:

    • 25 Year Warranty
