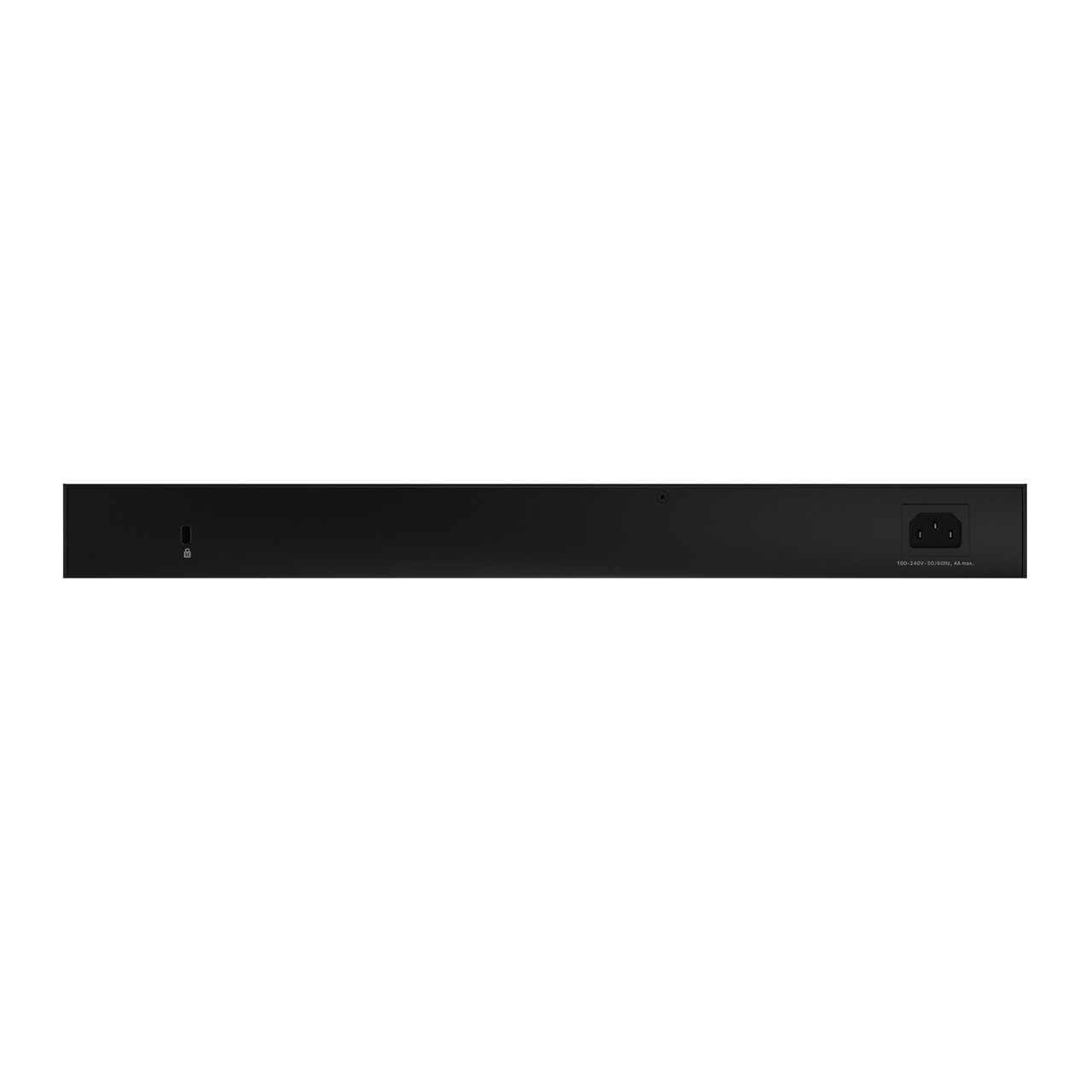

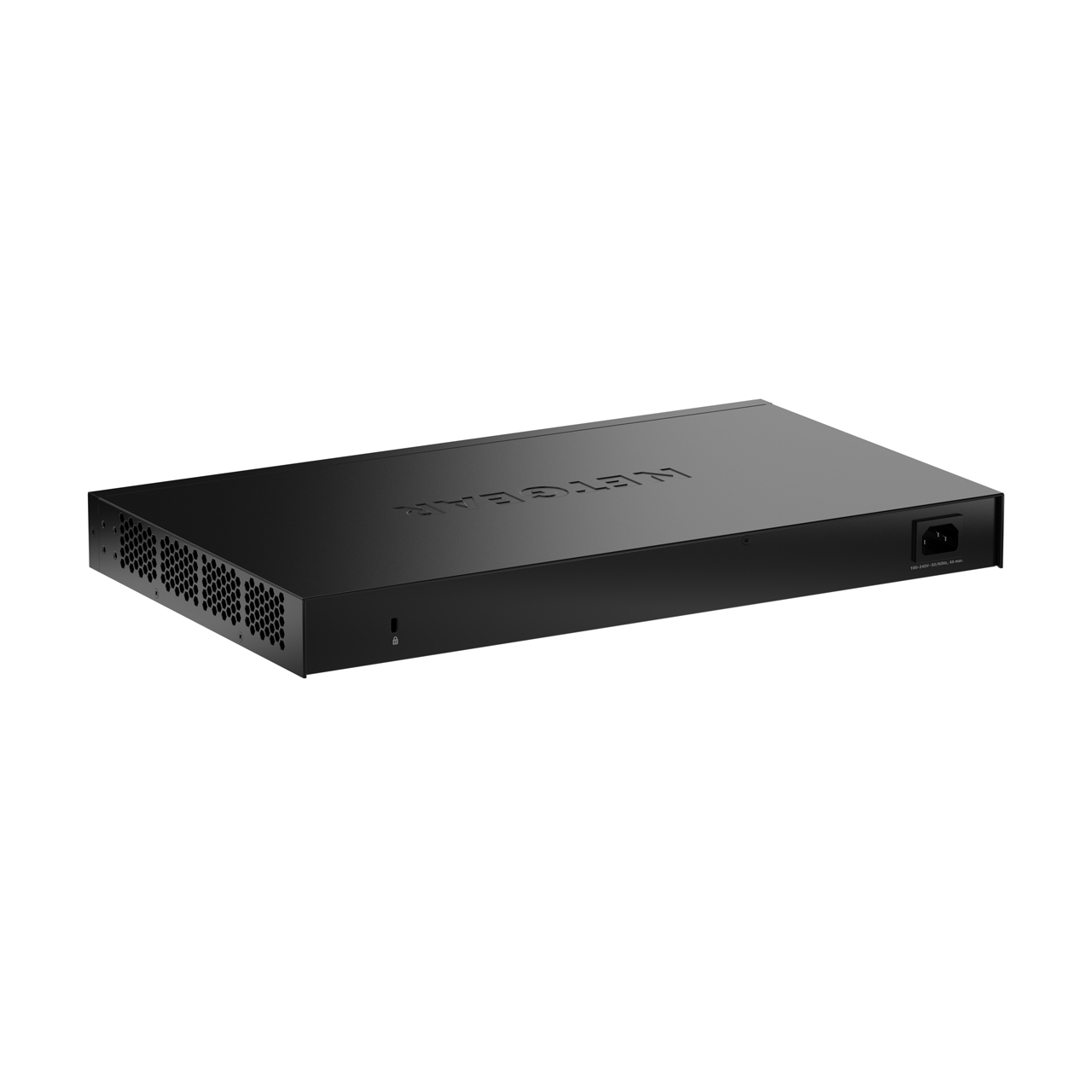

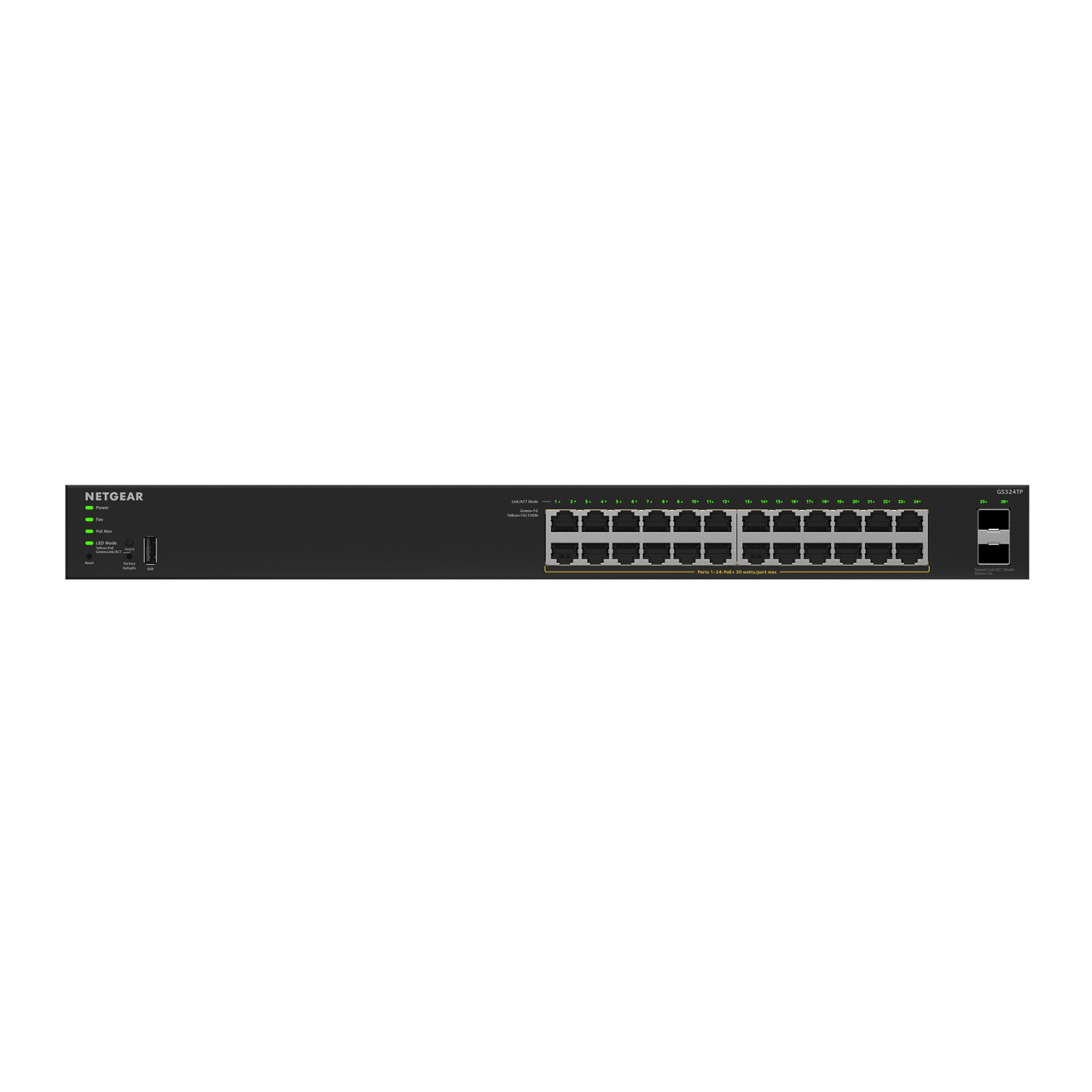

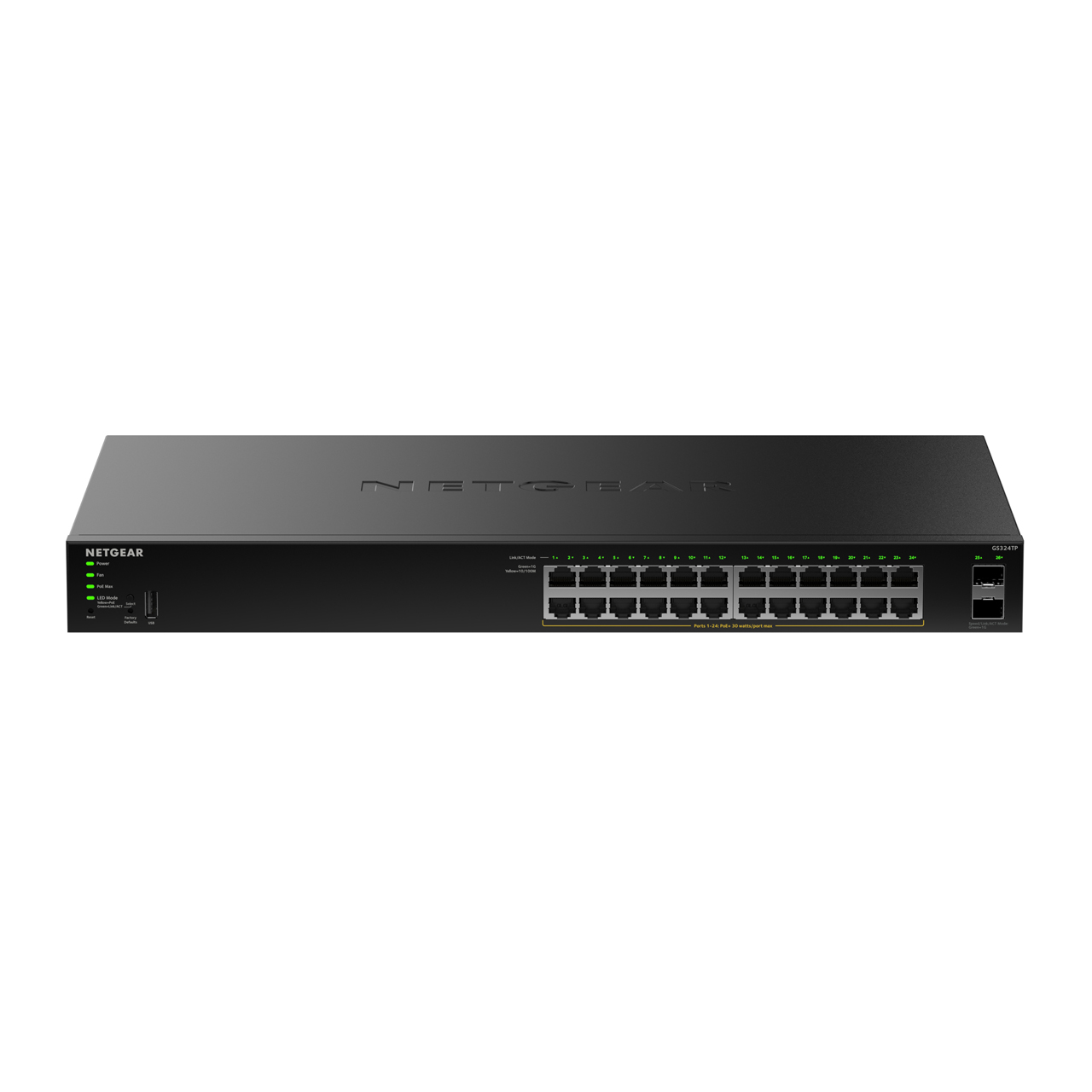

NETGEAR GS324TPv2 S350 Series 24-Port Gigabit Ethernet PoE+ Smart Managed Essentials Switch with 2x Dedicated SFP Port

ITEM #: NG-GS324TPV2 MFG #: GS324TPV2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$514.32

Our Price:

$389.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


GS324TPV2 - Overview

The NETGEAR GS324TPv2 Switch is tailored to the essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost. The NETGEAR Smart S350v2 series consists of three switch models, including the 24-port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Advanced features such as L2/L3/L4 Access Control Lists (ACLs), Quality of Service (QoS), Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) will ensure a high-speed and highly secured network environment for your business.

The 24-model is also rack-mountable. All models include Kensington lock slot to physically secure your switch in open space. The fan-less 8-port model will operate silently, ideal for the noise-sensitive environment. The 24-port and 48-port models also work under 36.3dBA acoustic level. All NETGEAR S350 Series switches support IEEE 802.3az Energy Efficient Ethernet mode, caring power saving for your business.

  • Features:

    • Flexible and Cost-Effective Solution for SME Data, Voice and Video Converged Network
      - 8/24/48 Gigabit 10/100/1000BASE-T RJ-45 ports
      - 55W (GS310TP), 190W (GS324TP), or 380W (GS348TP) PoE budget across 8, 24, or 48 Gigabit PoE+ ports (IEEE802.3at)
      - Dedicated SFP fiber ports: 2 on GS310TP/GS324TP and 4 on GS348TP
      - Non-blocking switching with 20Gbps to 104Gbps line rate fabric
      - Fan-less design on GS310TP, GS324TP and GS348TP have max acoustic noise level at 26.1dB and 36.3dB respectively under 77°F (25°C) ambient
    • Powerful Connectivity and Security Features
      - Advanced VLAN support for better network segmentation
      - L2/L3/L4 Access control lists (ACLs) for granular network access control including 802.1x port authentication
      - QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
      - Auto "denial-of-service" (DoS) prevention
      - IGMP Snooping and Querier for multicast optimization
      - Rate limiting and priority queuing for better bandwidth allocation
      - Port mirroring for network monitoring
      - Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
      - Easy-to-use Web browser-based management GUI available in English, German and Japanese
      - SNMP v1, v2c, v3 and RMON remote monitoring
    • Smart IT, not Big IT
      - Easy to manage via web-Based Management GUI or Smart Control Center (Windows PC required) for multi-switch deployment
      - Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade
      - Dual firmware images, improving reliability and uptime to your network
    • NETGEAR Quality and Reliability
      - Industry-leading 3 year Limited Hardware Warranty*
      - Get 90 days Free Advanced Technical Support with device registration

  • Specifications:

      Technical
    • 10M/100M/1G RJ45 Copper Ports: 24
    • PoE/PoE+ Ports: 24 PoE+ (190W PoE budget)
    • 1G SFP (fiber) Ports: 2 (dedicated)

      Performance
    • CPU:
      - 800MHz
      - 512MB RAM
      - 64MB FLASH
    • Packet Buffer Memory (Dynamically shared across only used ports): 1.5MB
    • Forwarding Modes: Store-and-forward
    • Bandwidth: 52Gbps
    • Priority Queues: 8
    • Priority Queuing: Weighted Round Robin (WRR) or Strict Priority
    • MAC Address Database Size (48-bit MAC addresses): 16K
    • Multicast Groups: 512
    • Number of VLANs: 256
    • Number of DHCP Snooping Bindings: 256
    • Access Control Lists (ACLs): 100 shared for MAC (ingress)
    • Packet Forwarding Rate (64 byte packet size): 38.6Mpps
    • Jumbo Frame Support (bytes): 10k
    • Acoustic Noise Level @ 77°F (ANSI-S10.12): 26.1dBA
    • Mean Time Between Failures (MTBF) @ 77°F: 1,784,610 hrs (203.7 yrs)

      LEDs
    • Per Port: Speed, Link/Activity, or PoE in different mode
    • Per Device: Power, Fan, PoE Max

      Physical
    • Dimensions (WxDxH): 17.3" x 10.2" x 1.7" (440mm x 257mm x 43mm)
    • Weight: 7.78lbs (3.53kg)

      Power Consumption
    • Max Power (worst case, all ports used, full PoE, line-rate traffic): 208.7W
    • Max Power without PoE (worst case, all ports used, line-rate traffic): 19.4W
    • Iddle Power Consumption (all ports link-down standby): 11.1W
    • Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic):
      - Max: 713.75 BTU/hr
      - Min: 38.13 BTU/hr
    • Energy Efficient Ethernet (EEE) IEEE 802.3az: Yes (deactivated by default)
    • Fan: 2

  • Item Includes:

    • 1x NETGEAR 24-Port Gigabit Ethernet PoE+ Smart Managed Essentials Switch
    • 1x Power cord
    • 1x Rack-mount kit and rubber feet

  • Warranty:

    • 5 Year Limited Warranty
