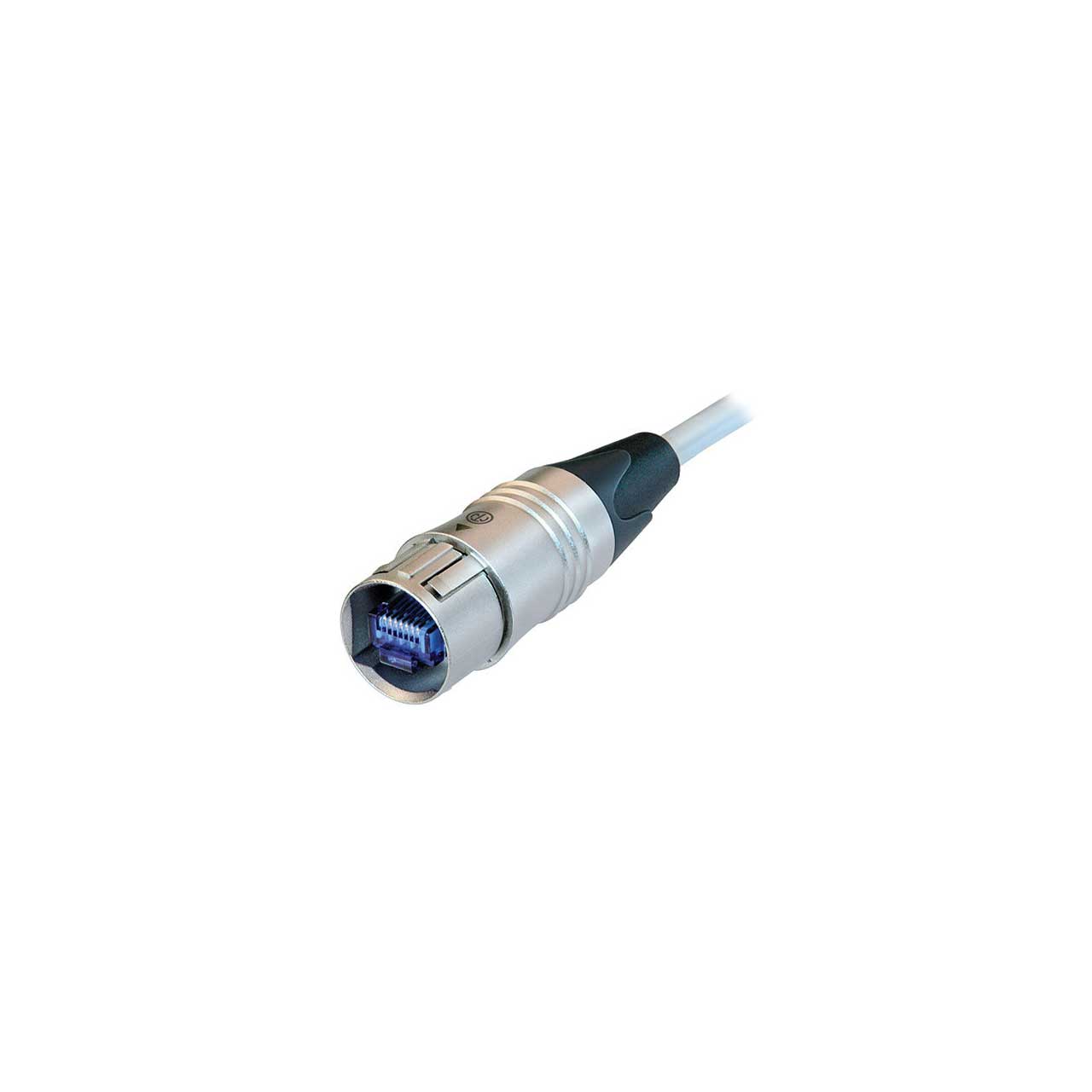

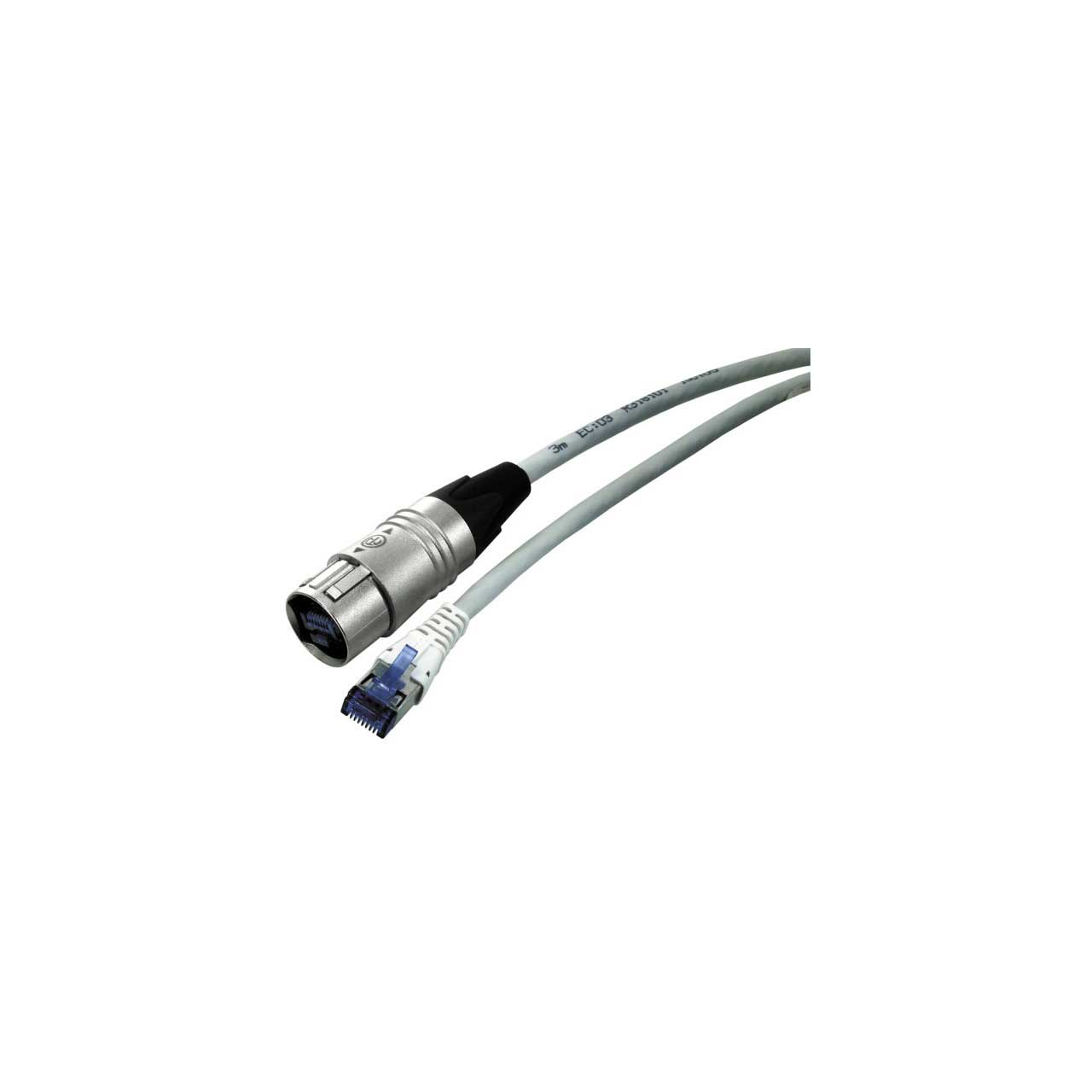

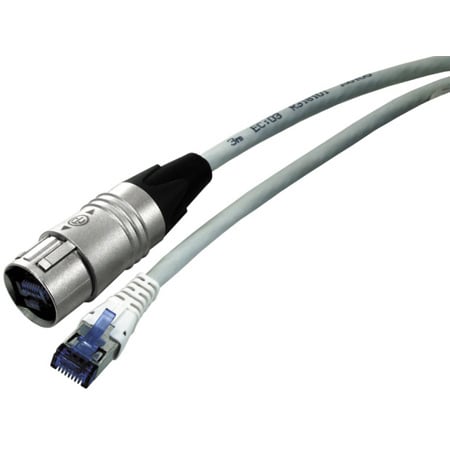

Neutrik NKE6S-3-WOC Patch Cable- Preassembled with CAT6 etherCON On One Side and Standard RJ45 on the Other 3M

ITEM #: NKE6S-3-WOC MFG #: NKE6S-3-WOC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$58.52

Our Price:

$50.16

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    NKE6S-3-WOC - Overview

    The preassembled etherCON CAT6 patch cables use a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system. one cable end with cable plug carrier,

    Please Note! Does not intermate with CAT5 and CAT6A chassis connectors

    • Features:

      • CAT6 compliant - data rate up to 10 GBit/s
      • CAT6 performance - fast data transmission and high bandwidth applications
      • CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
      • IP65 - Dust and waterproof in mated condition
      • Shielded system - high noise immunity and EMI protection
      • Push Pull mating - secure and proven locking system
      • Ready made patch cables with rugged cable carrier and unique chuck-type strain relief

    • Specifications:

      • Gender: male
      • Contact resistance: < 10 mO
      • Dielectric strength: 1 kVdc
      • Frequency range: 1 - 250 MHz
      • Insulation resistance: = 0.5 GO
      • Rated current per contact: 1,5 A
      • Rated voltage: < 50 V
      • Insertion force: = 40 N
      • Withdrawal force: = 20 N
      • Lifetime: > 1000 mating cycles
      • Wiresize: 8 x AWG 27/7 mm²
      • Locking device: Push-Pull
      • Boot: Polyurethan
      • Contact plating: 0.7 æm Au over 1.2 æm Ni plating
      • Contacts: Bronze (CuSn8)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell plating: Nickel
      • Strain relief: Polyacetal (POM)
      • Flammability: UL 94 HB
      • Standard compliance: CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
      • Protection class: IP 65
      • Temperature range: -10 °C to +60 °C
