Neutrik NKHDMI-1 HDMI 2.0 Cable - 1 Meter

Questions? Ask a Markertek Expert:
800-522-2025 Email

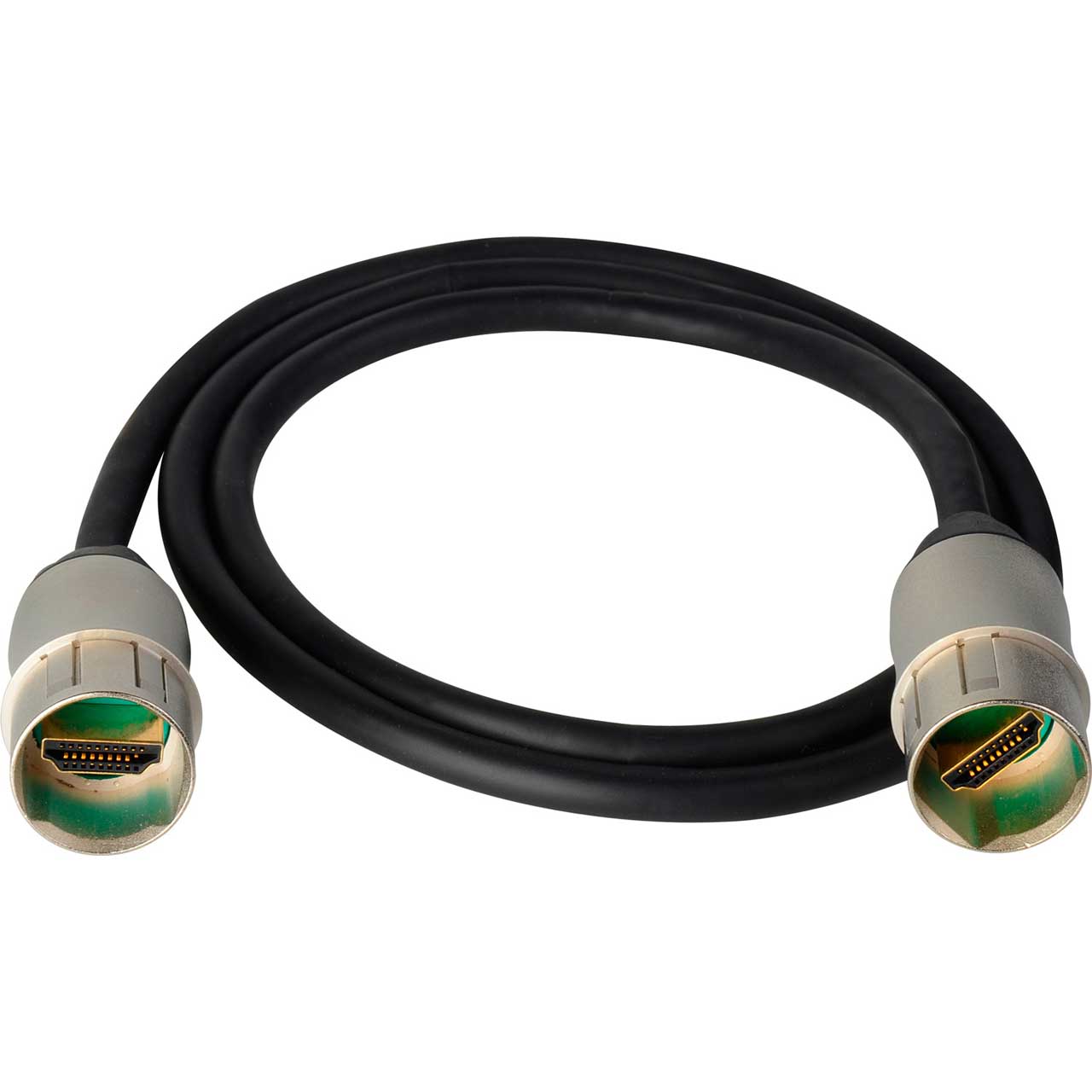

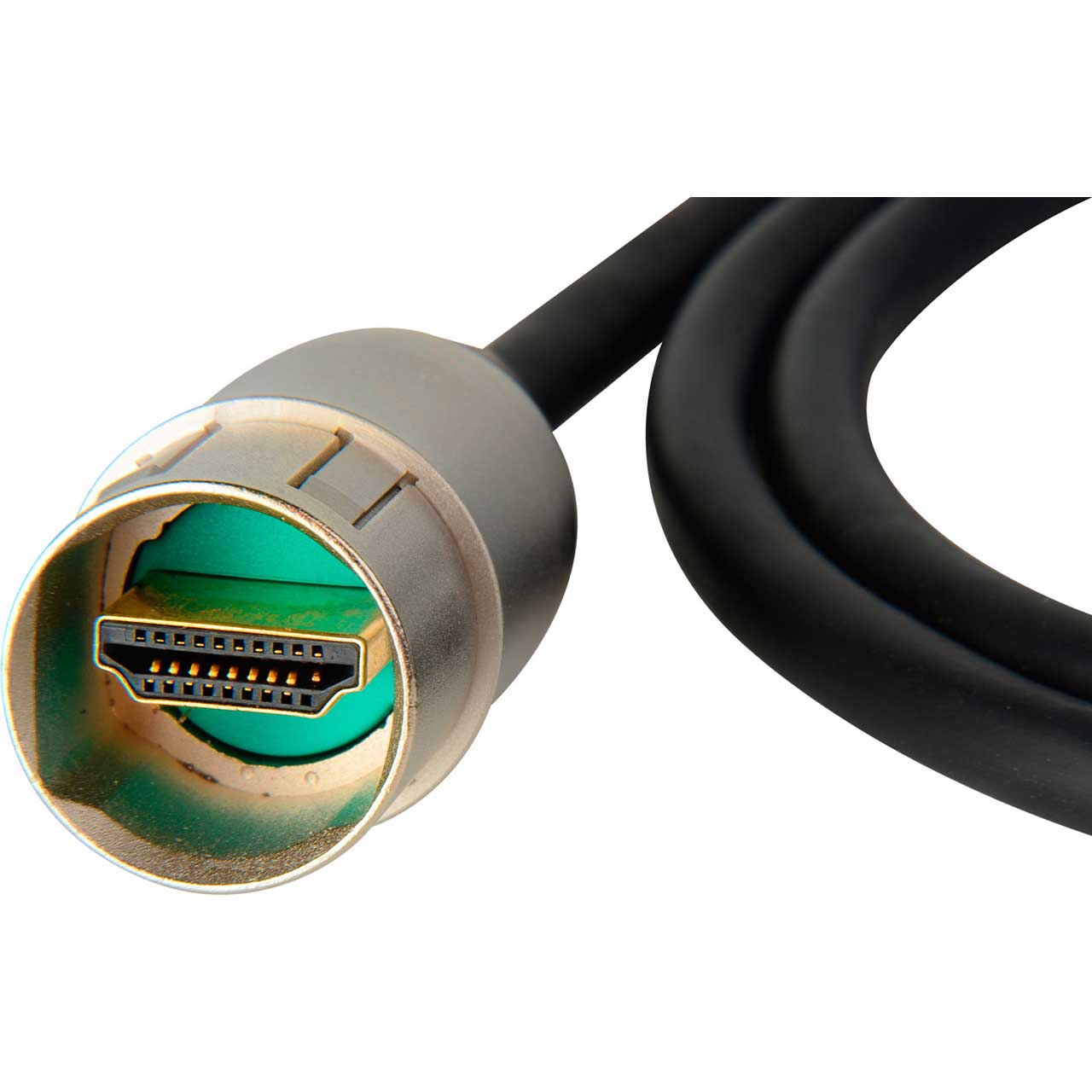

Neutrik NKHDMI-1 HDMI 2.0 Cable - 1 Meter

Manufacturer: Neutrik USA Inc

Item #: NKHDMI-1   •   MFG #: NKHDMI-1



List Price:$37.72
Our Price:$32.33
Quantity Pricing

free ship


Lengths:



Availability: Extended Lead Time
i
This item is on backorder with an extended lead time from the manufacturer. We will contact you with expected availability.



    Share!





    The Neutrik NKHDMI-1 is an HDMI 2.0 patch cable with overmolded flex relief and rugged metal cable carrier that can fit and lock with NAHDMI-W HDMI feedthrough adapters. The cables are available in 0.6 m, 1 m, 3 m, 5 m and 10 m lengths. (10 meter cable complies with HDMI 1.4 Category 1 specifications.) Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.

    The NKHDMI-0.6, NKHDMI-1, NKHDMI-3, and NKHDMI-5 operate at the full HDMI 2.0 specification.

    **Please Note** Since adding passive couplers and cables, and increasing overall system cable lengths, can only serve to degrade signal levels, performance limits are dependent on each particular system's end-to-end configuration.


    • Features

      • HDMI 2.0 - data rate up to 18 GBit/s
      • Push Pull mating design provides secure locking system if mated with NAHDMI-W
      • Removable rugged diecast cable carrier
      • Dust and water resistant acc. to IP65 safety standard in combination with NAHDMI-W
      • Shielded connection - high noise immunity and EMI protection
      • Mates with conventional HDMI receptacles if cable carrier is removed

    • Specifications

      • Mechanical
      • Minimum bending radius allowed: 40 mm
      • Lifetime: > 1000 mating cycles

        Material
      • Contact plating: Au
      • Contacts: Brass (CuZn39Pb3)
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell Plating: Nickel

        Environmental
      • Flammability: UL 94 V-0
      • Standard Compliance: HDMI 2.0 specifications up to 5 m cable length
      • Temperature Range: -13°F to 185°F (-25 °C to +85 °C)
