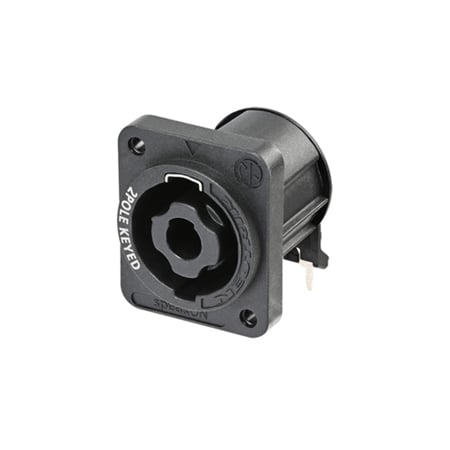

Neutrik NL2MDXX-H-3 Receptacle speakON XX Series 2 Pole - PCBH - Rear Mt with A-SCREW-1-8 100pk

NL2MDXX-H-3 - Overview

• Features:

  • Pack of 100 2 pole chassis connectors
  • IEC 61984 certified > IEC 62368-1 compliant
  • Glass reinforced V-0 materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications


• Specifications:

  • Quantity: 100 pieces
  • Gender: male
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: 2.8 kVac
  • Insulation resistance: >0.1 GΩ (after dampheat)
  • Rated current per contact: 25 A rms continuous (audio rating significantly higher, depending on signal)
  • Rated voltage: 250 V ac
  • Attention: speakON is NOT to be used as an AC mains or power supply connector!
  • Lifetime: > 5000 mating cycles
  • Wiring: Horizontal PCB mount
  • Locking device: Quick Lock
  • Mounting direction: Rear mounting
  • Chassis shape: D
  • Layout: Standard hole position, self tapping screw holes (A-Screw)
  • Contact plating: Ag
  • Locking element: Stainless Steel
  • Shell: Polyamide (PA 6.6)
  • Contacts: Copper Alloy
  • Flammability: UL 94 V-0
  • Temperature range: -22° to 176°F (-30 °C to +80 °C)


• Item Includes:

  • 1x Neutrik NL2MDXX-H-3 Receptacle speakON XX Series 2 Pole - PCBH - Rear Mount with A-SCREW-1-8
