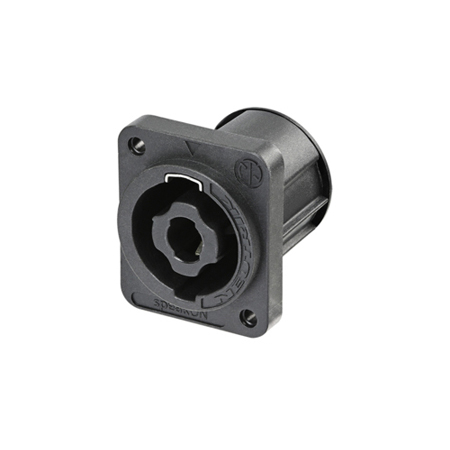

Neutrik NL4MPXX-3 Receptacle speakON XX Series 4 Pole - Tab Terminals for NLFASTON/Soldering - Rear Mount / A-SCREW-1-8

NL4MPXX-3 - Overview

• Features:

  • IEC 61984 certified > IEC 62368-1 compliant
  • Glass reinforced V-0 materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications


• Specifications:

  • Gender: male
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: 2.8 kVac
  • Insulation resistance: >0.1 GΩ (after dampheat)
  • Rated current per contact: 25 A rms continuous (audio rating significantly higher, depending on signal)
  • Rated voltage: 250 V ac
  • Attention: speakON is NOT to be used as an AC mains or power supply connector!
  • Lifetime: > 5000 mating cycles
  • Termination: 3/16" flat tabs (e.g. NLFASTON)
  • Locking device: Quick Lock
  • Mounting direction: Rear mounting
  • Chassis shape: D
  • Layout: Standard hole position, self tapping screw holes (A-Screw)
  • Contact plating: Ag
  • Locking element: Stainless Steel
  • Shell: Polyamide (PA 6.6)
  • Contacts: Copper Alloy
  • Flammability: UL94 V-0
  • Temperature range: -30 °C to +80 °C


• Item Includes:

  • 1x Neutrik NL4MPXX-3 Receptacle speakON XX Series 4 Pole - Tab Terminals for NLFASTON/Soldering - Rear Mount / 1x A-SCREW-1-8
