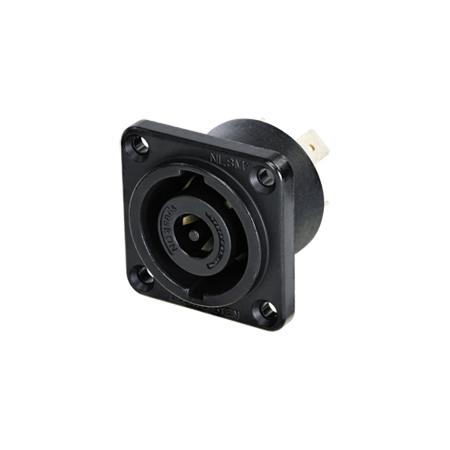

Neutrik NLT8MPXX-BAG 8 Pole Male Chassis Connector - Metal Square Black G-size Housing/Countersunk Thru Holes

ITEM #: NLT8MPXX-BAG MFG #: NLT8MPXX-BAG

free ship

List Price:

$19.32

Our Price:

$16.56

Availability: In Stock
iAvailability Description Popup


    NLT8MPXX-BAG - Overview

    Neutrik NLT8MPXX-BAG 8 pole male chassis connector, metal square black G-size housing, countersunk thru holes, 1/4" flat tabs.

    This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.

    The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

    Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!

    • Features:

      • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
      • Current rating 30 A rms
      • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
      • Uses precise "Quick Lock" system
      • Airtight design - optimized for speaker applications
      • Compatible with complete speakON 8 pole product series

    • Specifications:

      • Gender: male
      • Contact resistance: < 2 mΩ
      • Dielectric strength: 1.5 kVac
      • Insulation resistance: > 0.1 GΩ (after dampheat)
      • Rated current per contact: 30 A rms continuous (acc. to IEC 61984)
      • Rated voltage: 250 V ac
      • Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!
      • Lifetime: > 5000 mating cycles
      • Termination: 1/4" flat tabs
      • Locking device: Quick Lock
      • Mounting direction: Rear / front mounting
      • Chassis shape: square G-size flange
      • Layout: four thru holes
      • Contact plating: Ag
      • Contacts: Copper Alloy
      • Shell: Zinc diecast, black chrome plated
      • Insert: Polyamide (PA 6.6)
      • Temperature range: -30 °C to +80 °C
      • Flammability: UL 94 V-0
      • Protection class: IP 50 (mated condition)

    • Item Includes:

      • 1x Neutrik NLT8MPXX-BAG 8 Pole Male Chassis Connector - Metal Square Black G-size Housing/Countersunk Thru Holes
