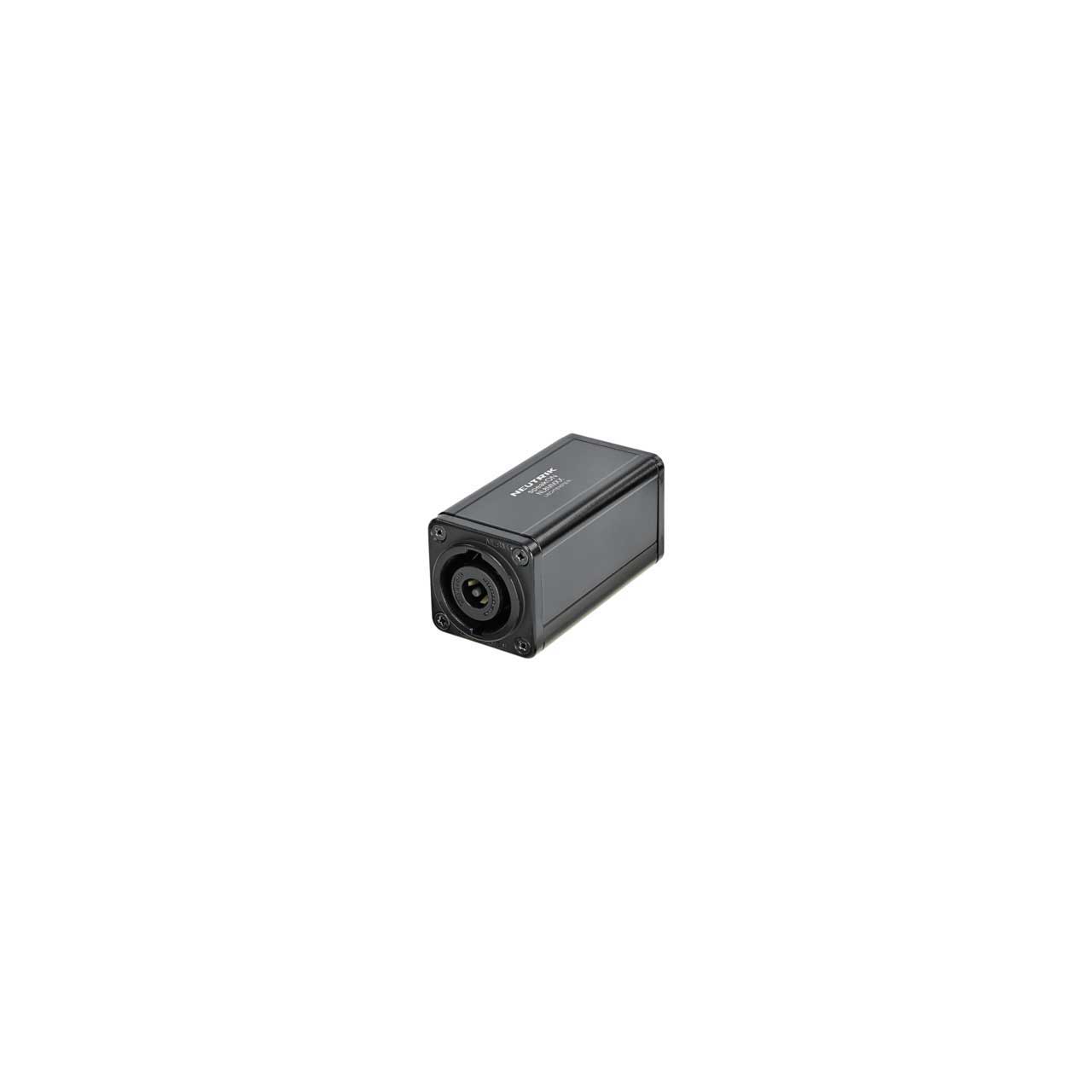

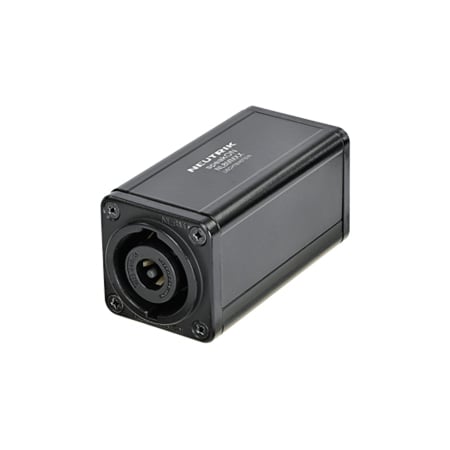

Neutrik NL8MMXX 8 Pole speakON Feedthrough Coupler for Cable Extensions

NL8MMXX - Overview

• Features:

  • 8 pole speakON feedthrough coupler for cable extensions


• Specifications:

  • Connection Type: Adapter
  • Gender: male
  • Contact resistance: < 3 m Max.
  • Dielectric strength: 1.5 kVac
  • Insulation resistance: > 0.1 GMax. (after dampheat)
  • Rated current per contact: 25 A rms continuous
  • Rated voltage: 250 V ac
  • Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!
  • Lifetime: > 5000 mating cycles
  • Locking device: Quick Lock
  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Shell: Zinc diecast, black chrome plated
  • Insert: Polyamide (PA 6.6)
  • Temperature range: -30 °C to +80 °C
  • Flammability: UL 94 V-0


• Item Includes:

  • 1x Neutrik NL8MMXX 8 Pole speakON Feedthrough Coupler for Cable Extensions
