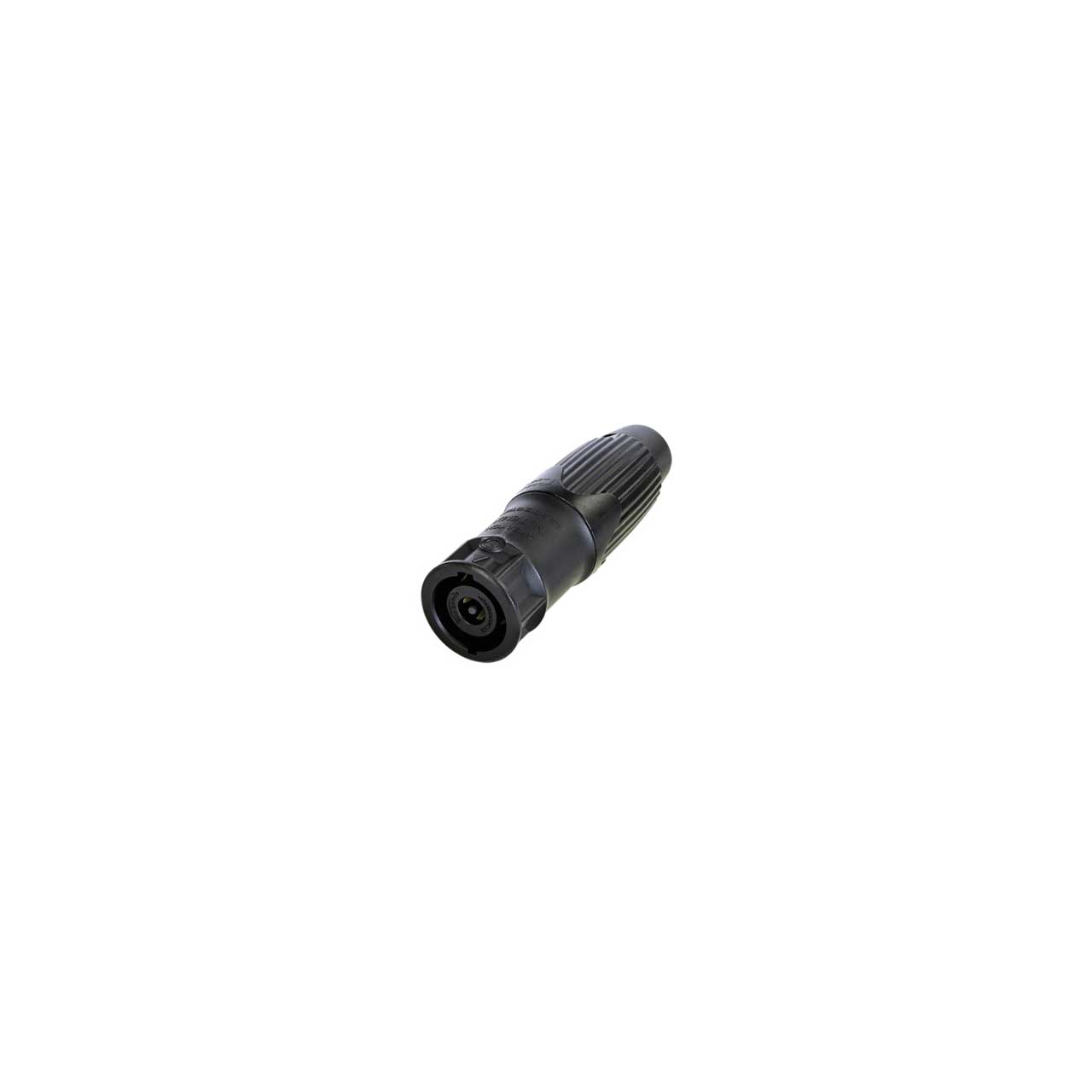

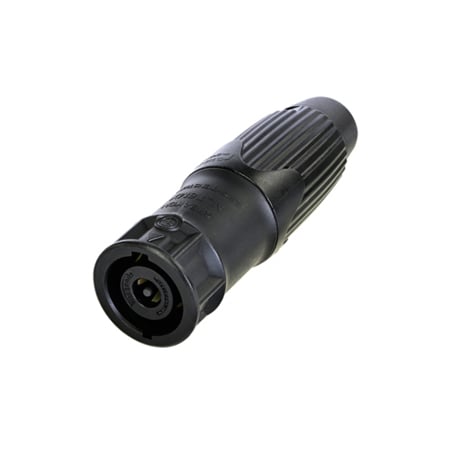

Neutrik NLT8MXX-BAG 8 Pole Male Cable Connector - Black Metal Housing - Chuck Type Strain Relief - 1/4in Flat Tabs

ITEM #: NLT8MXX-BAG MFG #: NLT8MXX-BAG

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$35.70

Our Price:

$30.60

Availability: In Stock
iAvailability Description Popup


    NLT8MXX-BAG - Overview

    Neutrik NLT8MXX-BAG 8 pole male cable connector, black metal housing, chuck type strain relief, 1/4" flat tabs.

    This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.

    The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

    Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!

    • Features:

      • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
      • Current rating 30 A rms
      • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
      • Precise "Quick Lock" system
      • Compatible with complete speakON 8 pole product series

    • Specifications:

      • Gender: male
      • Contact resistance: < 2 mΩ
      • Dielectric strength: 1.5 kVac
      • Insulation resistance: > 0.1 GΩ (after dampheat)
      • Rated current per contact: 30 A rms continuous (acc. to IEC 61984)
      • Rated voltage: 250 V ac
      • Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!
      • Cable O.D.: 8 - 20 mm
      • Cable retention: ? 220 N (subject to cable O.D. and material)
      • Lifetime: > 5000 mating cycles
      • Wiresize: 1.5 mm² - 6 mm²
      • Wiresize: 10 AWG
      • Termination: 1/4" flat tabs
      • Locking device: Quick Lock
      • Contact plating: Ag
      • Contacts: Copper Alloy
      • Shell: Zinc diecast, black chrome plated
      • Insert: Polyamide (PA 6.6)
      • Strain relief: Polyacetal (POM)
      • Temperature range: -30 °C to +80 °C
      • Flammability: UL 94 V-0
      • Protection class: IP 50 (mated condition)

    • Item Includes:

      • 1x Neutrik NLT8MXX-BAG 8 Pole Male Cable Connector - Black Metal Housing - Chuck Type Strain Relief - 1/4in Flat Tabs
