Neutrik NMC-C-HR Receptacle - mediaCON® USB Type-C - with Integrated USB IF Approved Receptacle

ITEM #: NMC-C-HR MFG #: NMC-C-HR

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$9.18

Our Price:

$7.87

Availability: In Stock
iAvailability Description Popup


    NMC-C-HR - Overview

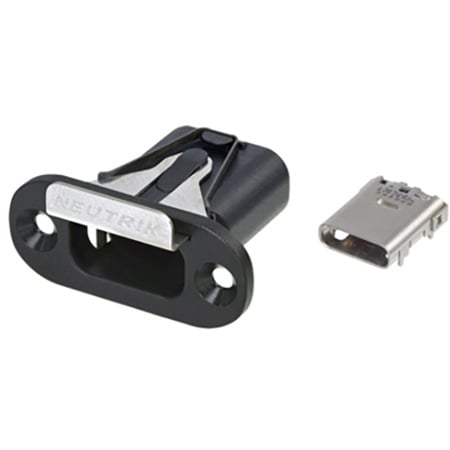

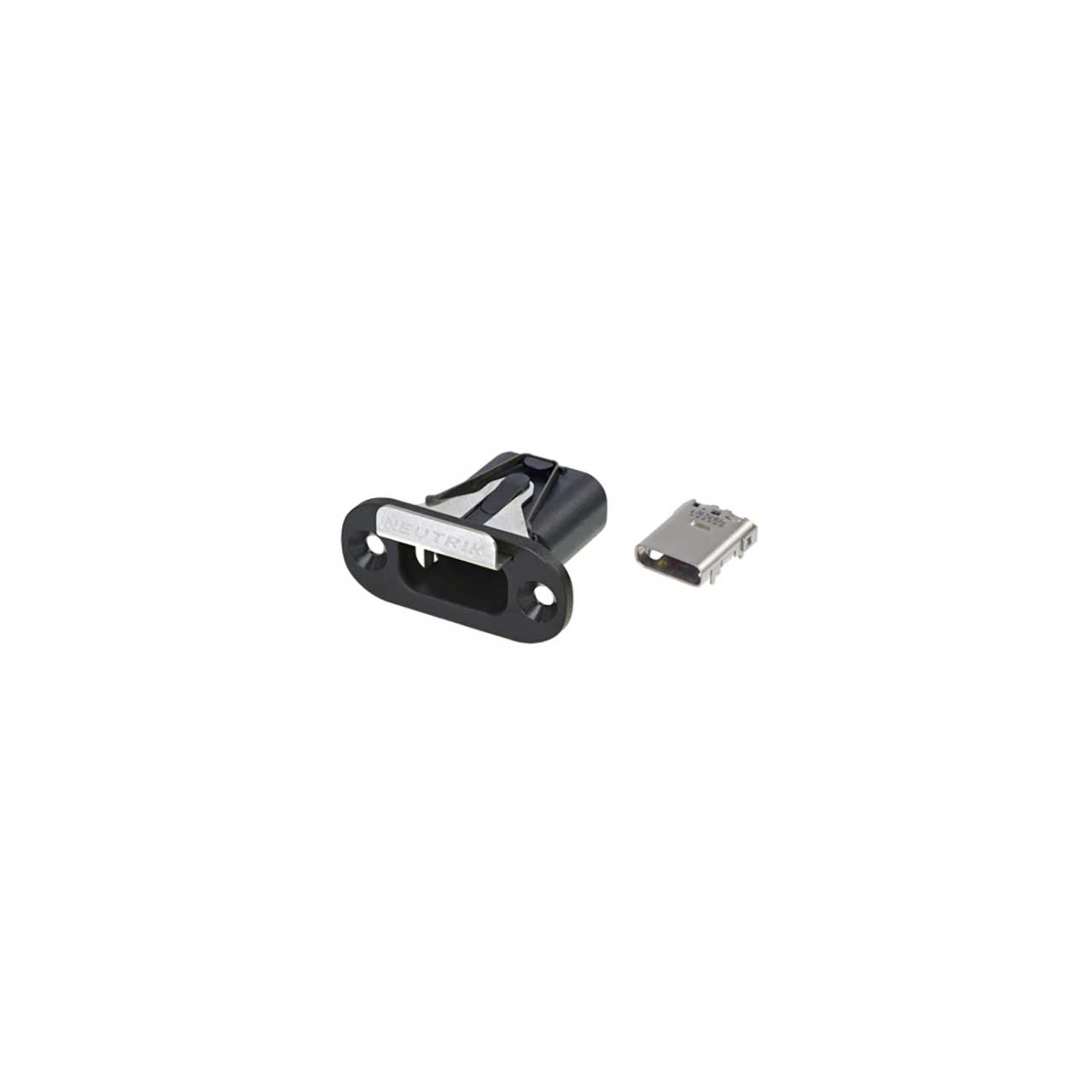

    The NMC-C-HR is a lockable USB type-C chassis with integral USB IF approved receptacle.The mediaCON product family includes robust, lockable USB Type-C cables and panel sockets. All components are designed for data rates up to 10 GB/s (USB 3.1), 100 W power and 10,000 mating cycles.

    Design engineers at Neutrik have observed that with increasing digitalization, the demand for high-quality and robust data connectors is steadily increasing. More and more manufacturers rely on USB Type-C technology. However, a lockable and reliable interface to connect professional audio components, storage media, cameras, monitors and computer hardware has been missing. The new mediaCON series now offers the perfect solution for professional AV and broadcast applications, live rental, system integration and industrial applications.

    • Specifications:

      • Rated current per contact: 5 A
      • Rated voltage: 20 V
      • Transmission Performance: null
      • Body Height: 3.16 mm
      • Body Length: 11.3 mm
      • Body Weight: 9.7 mm
      • Orientation: Right Angle
      • PCB Mounting: HYBRID SMT+DIP
      • PCB surface center: 1.58 mm
      • Version: USB3.1 Gen.II
      • Lifetime: 10,000 mating cycles
      • Locking force: 50 N
      • Locking device: Latch lock


    NMC-C-HR - Required Accessories
