    NMK-20U-1 - Overview

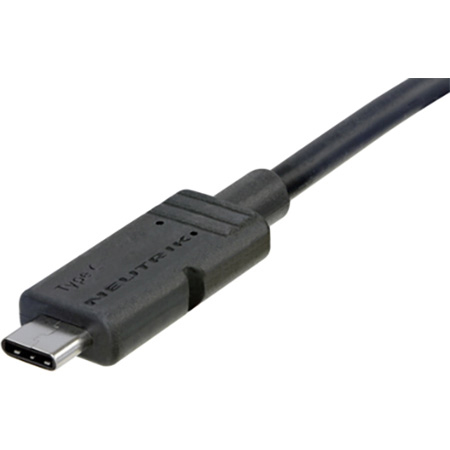

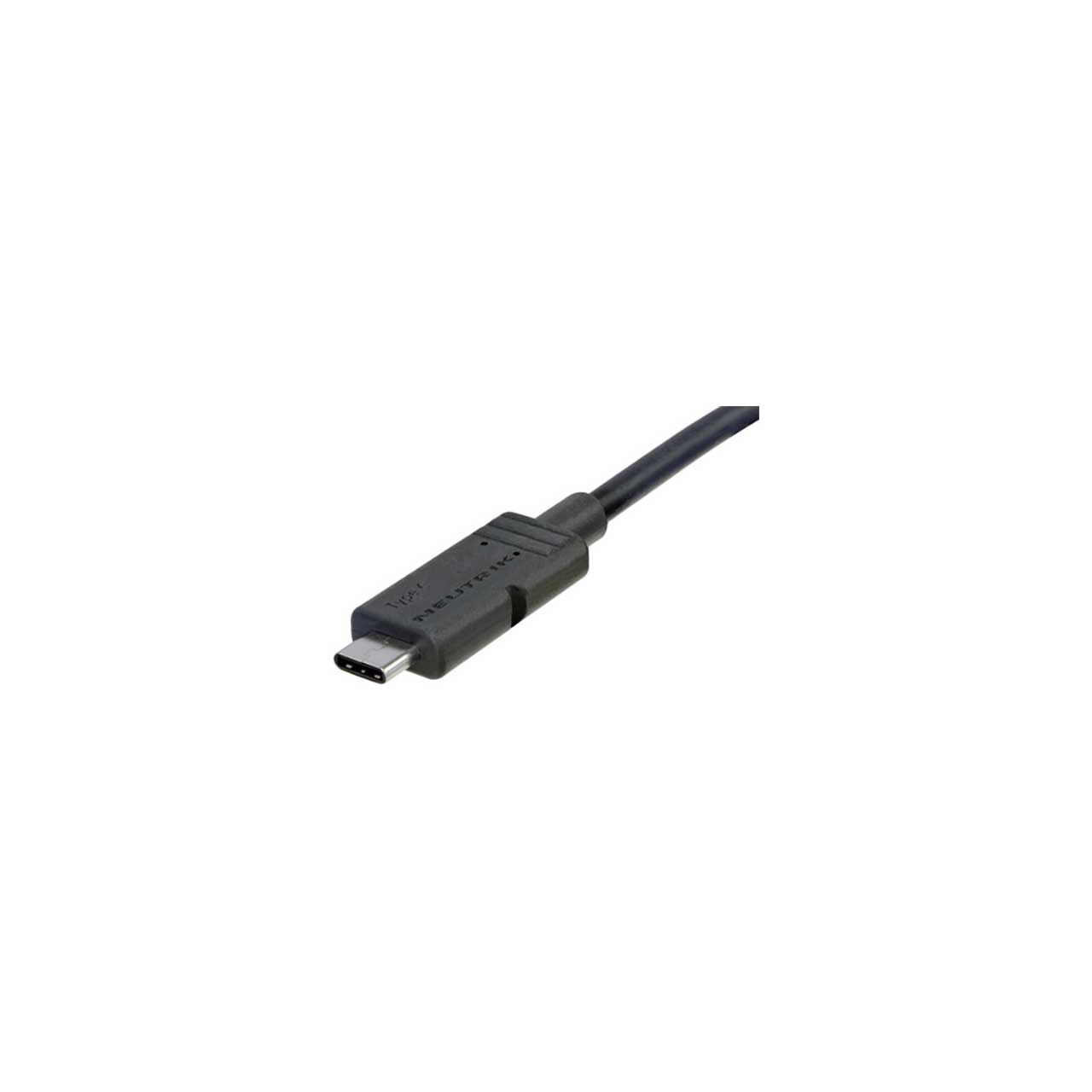

    The Neutrik NMK-20U-1( 3 foot, 3 inches) is a reversible USB Type-C cable with over molded flex relief and rugged cable fit and lock with NMC- Chassis. Guaranteed performance up to 10 Gb/s (USB 3.1 Gen.II compatibility).The mediaCON product family includes robust, lockable USB Type-C cables and panel sockets. All components are designed for data rates up to 10 GB/s (USB 3.1), 100 W power and 10,000 mating cycles.

    Design engineers at Neutrik have observed that with increasing digitalization, the demand for high-quality and robust data connectors is steadily increasing. More and more manufacturers rely on USB Type-C technology. However, a lockable and reliable interface to connect professional audio components, storage media, cameras, monitors and computer hardware has been missing. The new mediaCON series now offers the perfect solution for professional AV and broadcast applications, live rental, system integration and industrial applications.

    • Features:

      • Guaranteed performance up to 10 Gb/s (USB 3.1 Gen.II compatibility)
      • Push Pull mating design provides secure locking system if mated with NMC-
      • Reversible USB-C housing Provide power up to 100 W (@5A/20V)
      • Shielded connection - high noise immunity and EMI protection
      • Mates with conventional USB-C receptacles
    • Specifications:

      • Electrical>
      • Rated current per contact: 5 A
      • Rated voltage: 20 V
      • Insulation resistance: 10 MΩ
      • Conductor resistance: 3 Ω
      • Transmission Performance: 100 Watt

      • Contact plating: Au
      • Contacts: Brass (CuZn37)
      • Cable Jacket Type: PVC - Polyvinyl Chloride
      • Shell: TPE - Thermoplastic Elastomer

      • Flammability: UL 94 HB
      • Standard compliance: USB 3.1 Gen II; USB 3.2
      • Temperature range: -25 °C to +85 °C
      • Environmentally Compliant: RoHS and Halogen Free
