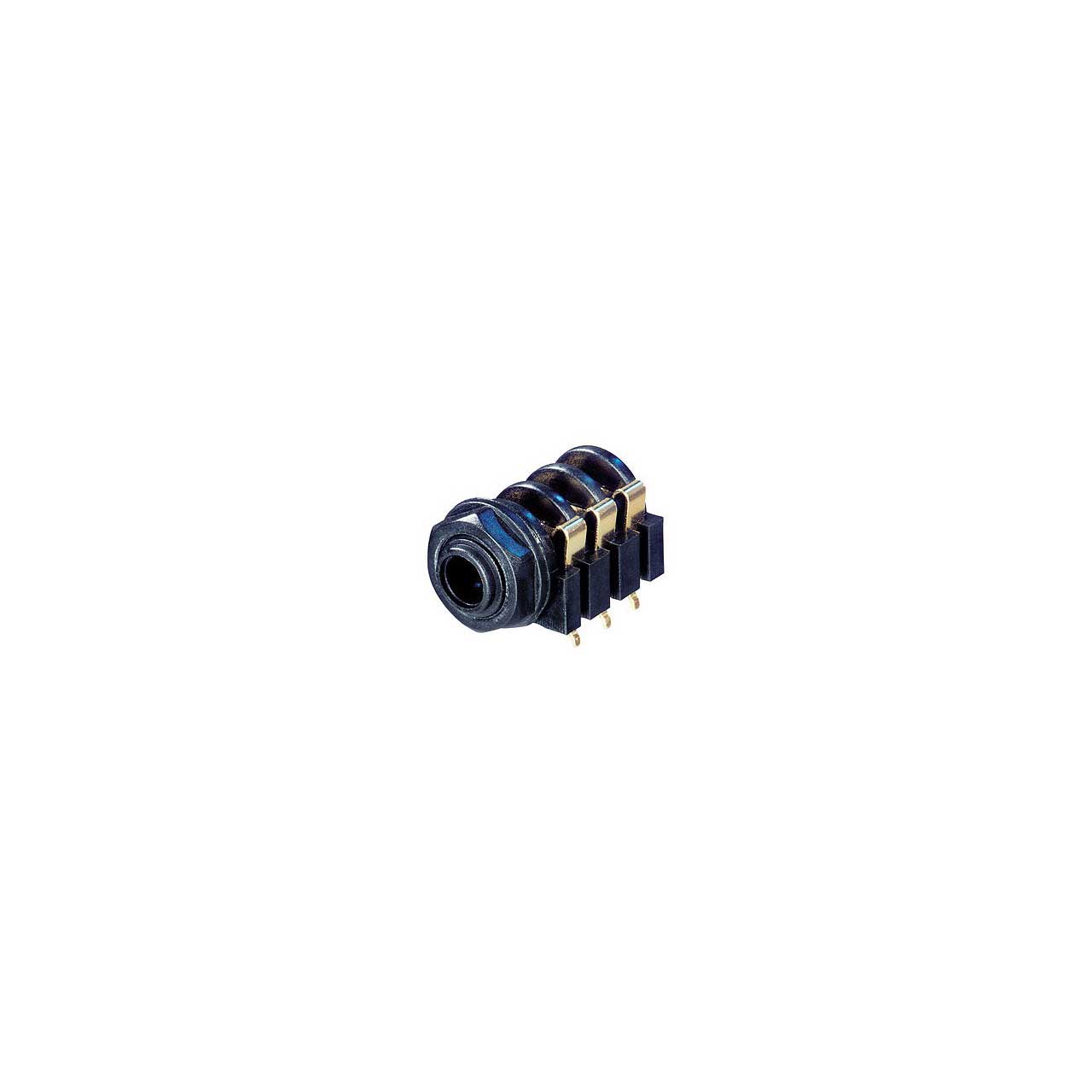

REAN NYS216G Horizontal Jack (all contacts switched) 3-Pole Plastic

Name: REAN NYS216G Horizontal Jack (all contacts switched) 3-Pole Plastic
Brand: Rean
SKU: NYS216G
Price: 1.06 USD
Availability: InStock

ITEM #: NYS216G MFG #: NYS216G

Rean

List Price:

$1.78

Our Price:

$1.06

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NYS216G - Overview

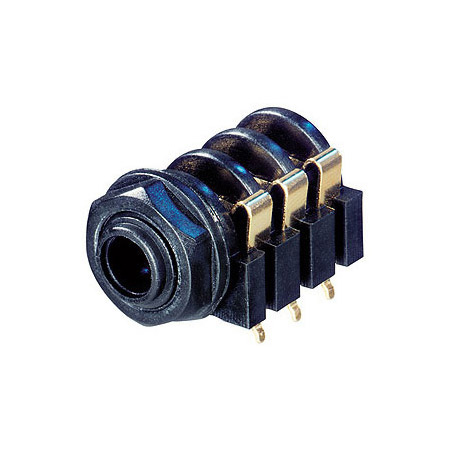

The REAN NYS216G is a Horizontal Jack (all contacts switched) 3-Pole Plastic Housing with Nut and Washer; Gold Contacts.

Specifications:
- Dielectric Strength: 0.5 kVdc
- Insulation Resistance: ≥ 1 GΩ
- Rated Current: Depends on mated connector
- Contact Resistance: Depends on mated connector

  Mechanical
- Insertion Force:: ≤ 20 N
- Withdrawal Force: ≥ 10 N
- Lifetime: 1000 mating cycles

  Material
- Contact Plating: SnCe
- Contacts: Brass (CuZn39Pb3)
- Shell / Insulation: Thermoplastic

  Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature Range: -4°F - 158°F (-20°C to 70°C)
