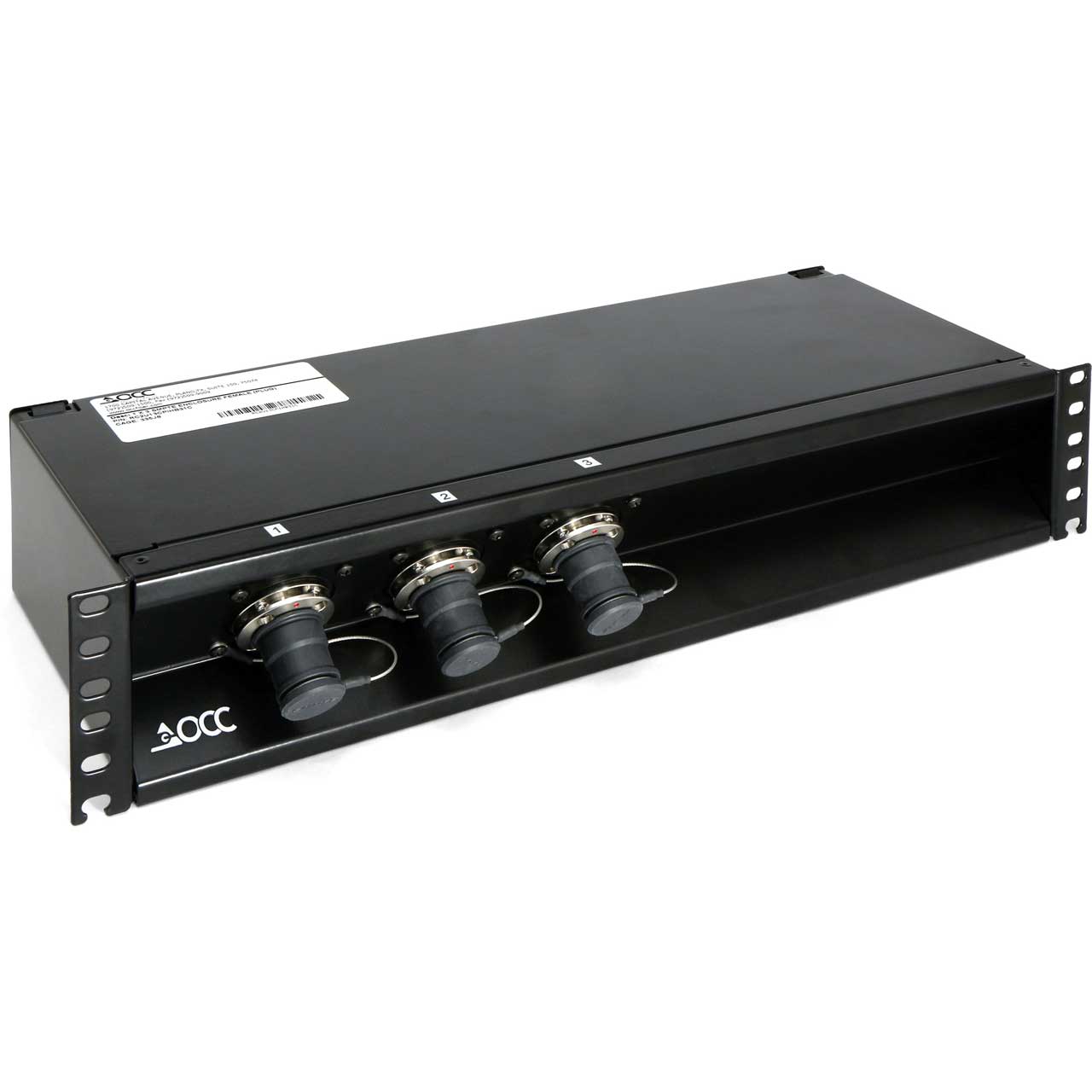

OCC's 3x1 2RU modular enclosure offers are designed to terminate OCC’s 3-IN-1 Stadium cables. The 3x1 2RU enclosure, with three ports on the front panel and one port on the rear panel, can provide connectivity between camera wells and the control center. Built with LEMO connectivity. Cable gland sizes are available in A: 6.35-9.65MM B: 9.65-12.7MM, and C:12.7-16MM. The 6x2 and 3x1 2RU modular enclosures are designed specifically to terminate up to two of OCC's SMPTE 3-IN-1 Stadium cables into SMPTE 311 plugs or sockets. These enclosures are ideal for providing connectivity between the equipment room and camera wells with multiple cameras.
Highlighted Features!
6 ports in the front and 2 ports in the rear
3 ports in the front and 1 port in the rear
Front panel with fixed inward angle
Constructed of 16-gauge steel with a black powder-coat fi nish
Internal discrete connectivity is available in SC, ST, LC, and FC type connectors
Front panel available preloaded with LEMO, Canare, or Neutrik connectivity
Front and rear panel also compatible with other common broadcast connectivity methods
All connectors are fully isolated

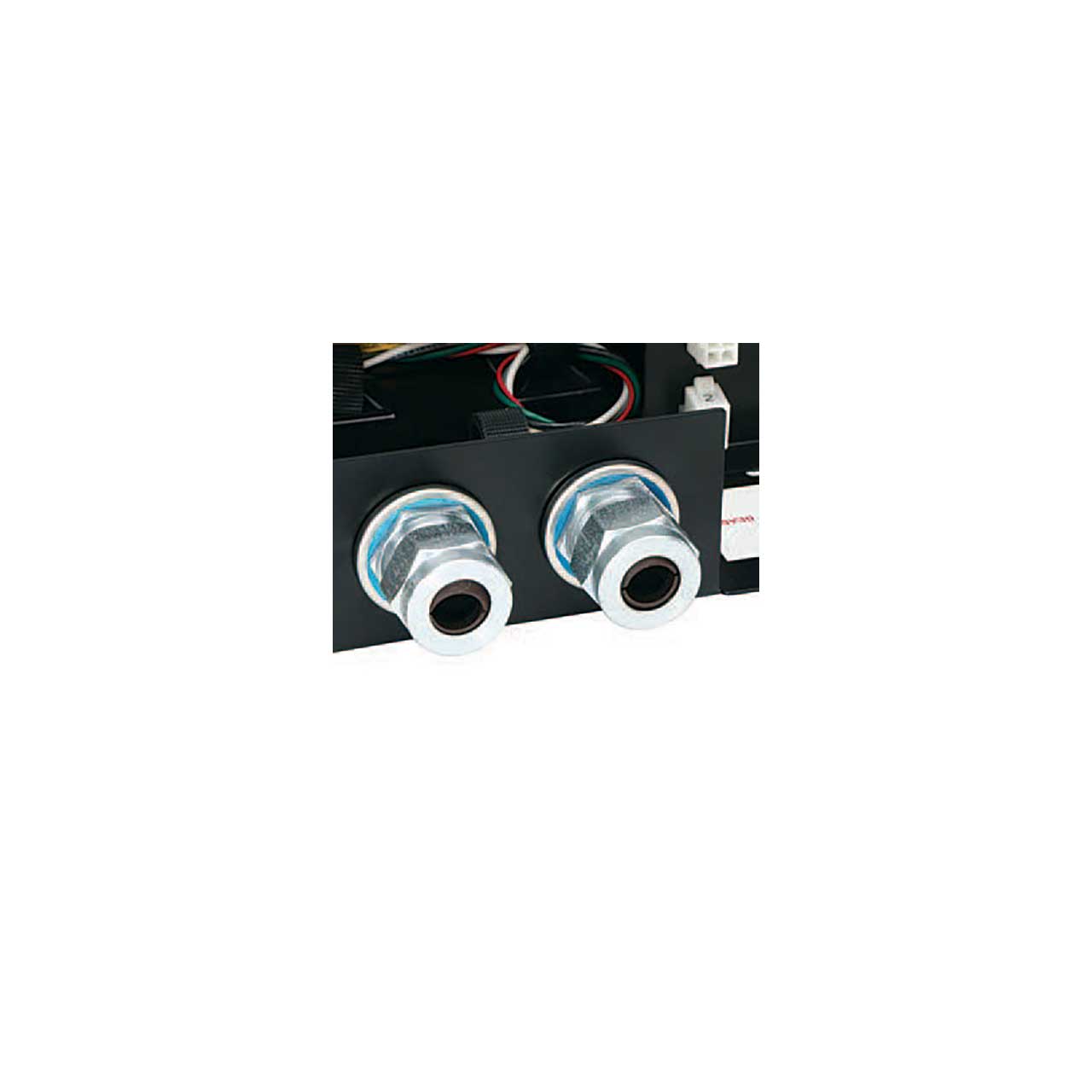

All rear cable glands are fully isolated, various cable gland sizes available

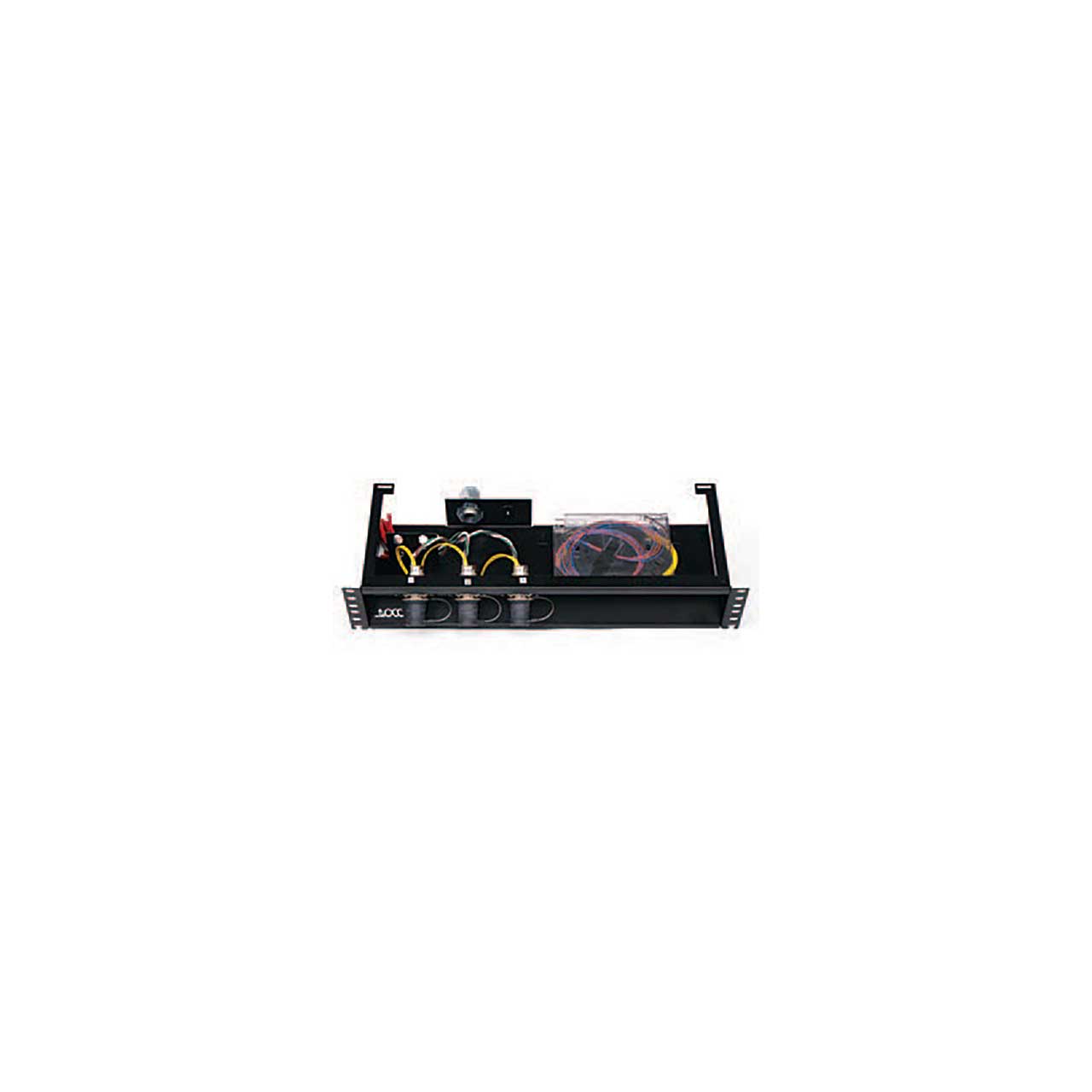

Offers full fiber management inside the enclosure

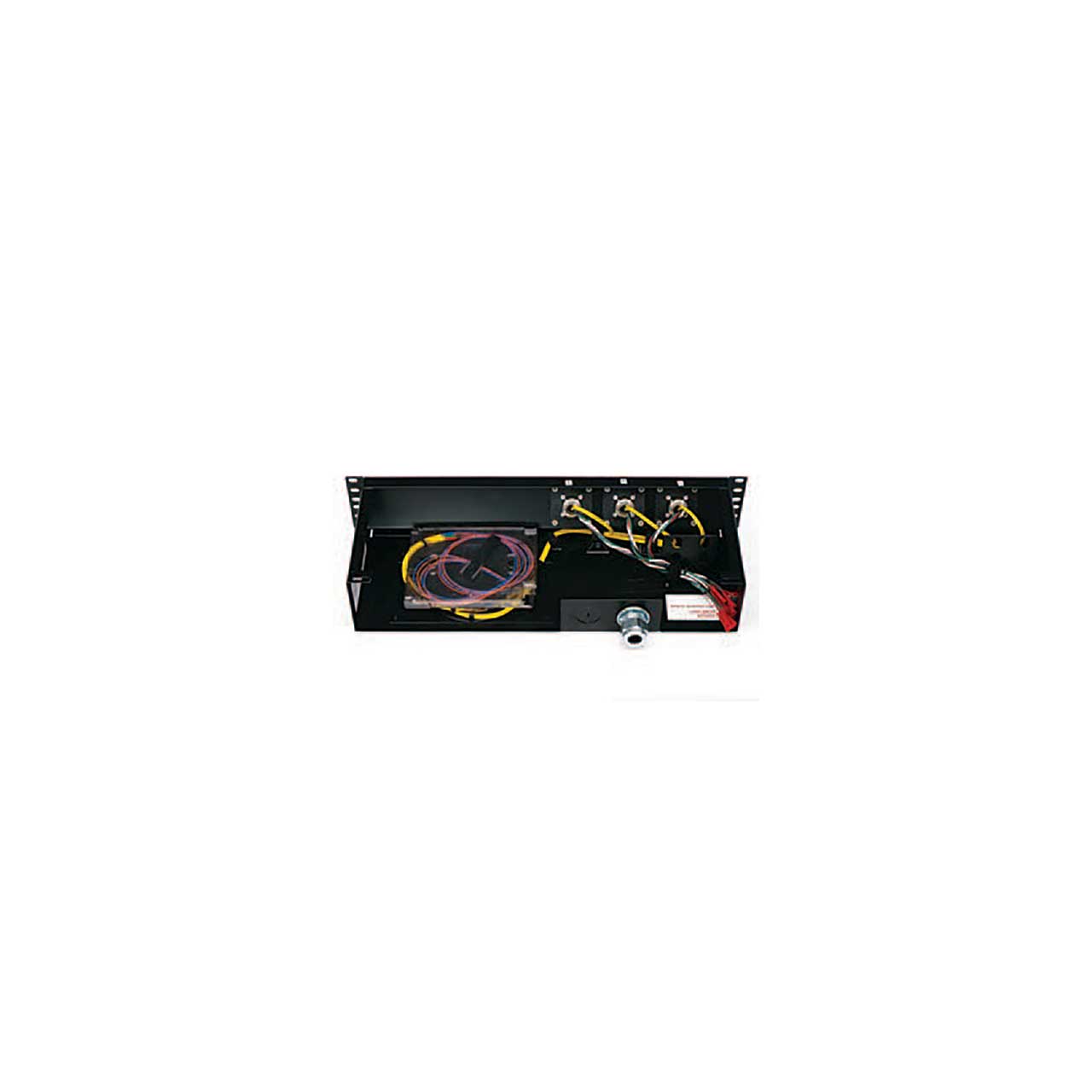

Fusion Splice option available: up to two splice trays available; fiber hoop(s) for fiber management included with splice tray(s)
Includes power/adapter plate bracket or power bracket with splice tray
Power connector options: available blunt ended or with AMP/Tyco plugs or receptacles
Measures 19"W, 3.5"H (2RU), 6.63"D (will fit in JBT enclosures greater than 10"D)
