RTS ODIN64NOCORD ODIN OMNEO 1RU Rackmount 64 Port Digital Matrix Intercom without Power Cord

Name: RTS ODIN64NOCORD ODIN OMNEO 1RU Rackmount 64 Port Digital Matrix Intercom without Power Cord
Brand: RTS Intercoms
SKU: ODIN64NOCORD
Price: 35045.00 USD
Availability: PreSale

ITEM #: ODIN64NOCORD MFG #: F.01U.329.398

RTS Intercoms

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

F.01U.329.398 - Overview

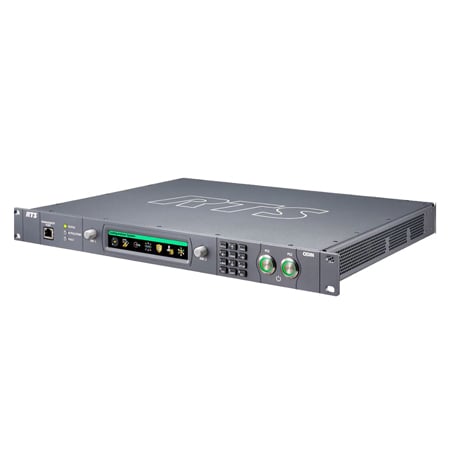

The RTS ODIN64NOCORD is a 1RU rackmount, ODIN OMNEO, 64 Port Digital Matrix Intercom, power cord sold separately. The ODIN Digital Intercom is a highly scalable intercom system in a 1RU (Rack Unit) package. As your capacity needs evolve, a single ODIN can grow from 16 ports to a maximum of 128 ports. A maximum of eight ODIN units can be interconnected via an optical Inter-Frame Link creating a single matrix with up to 1024 ports. The total number of licensed ports may be allocated freely to any port hardware type supported by the unit.

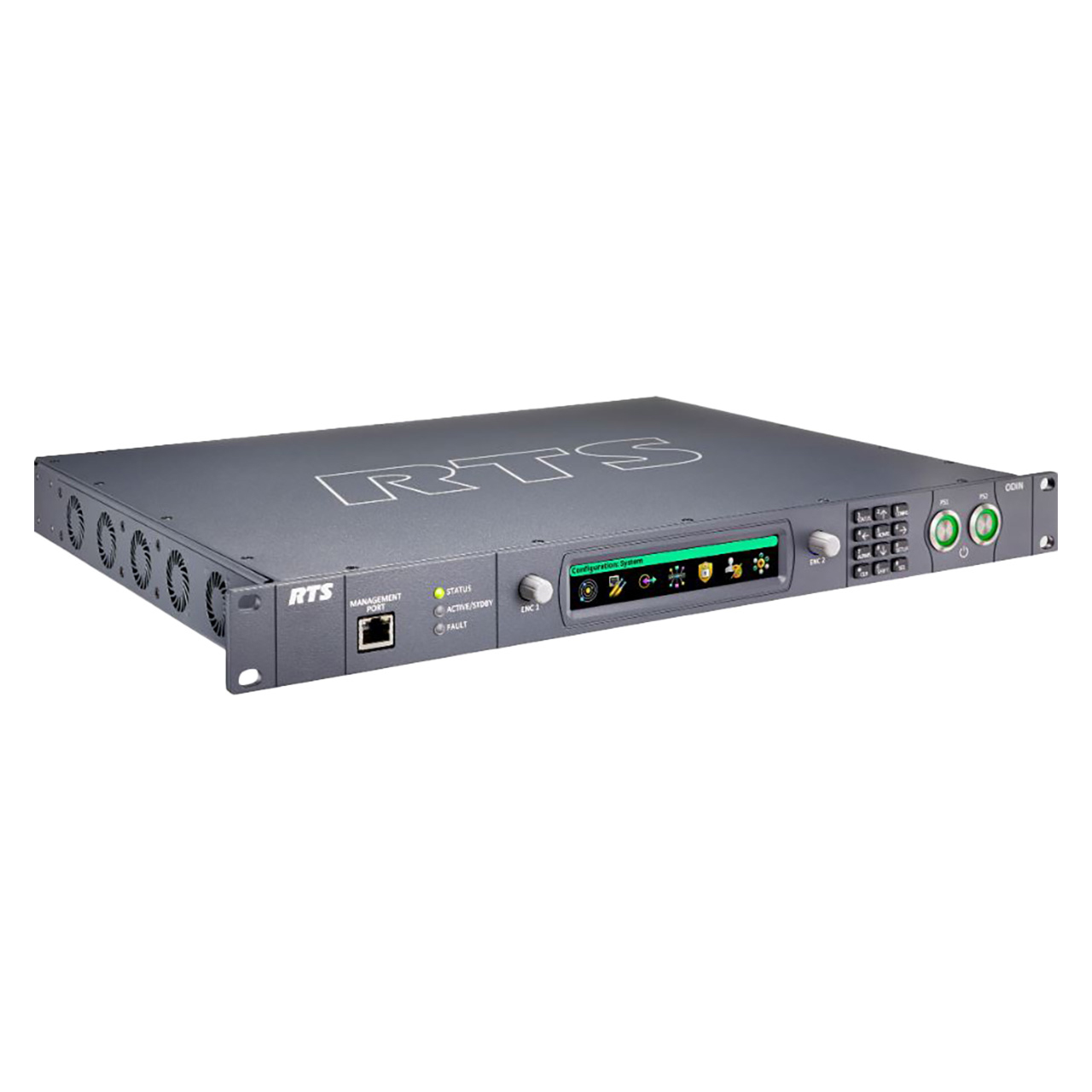

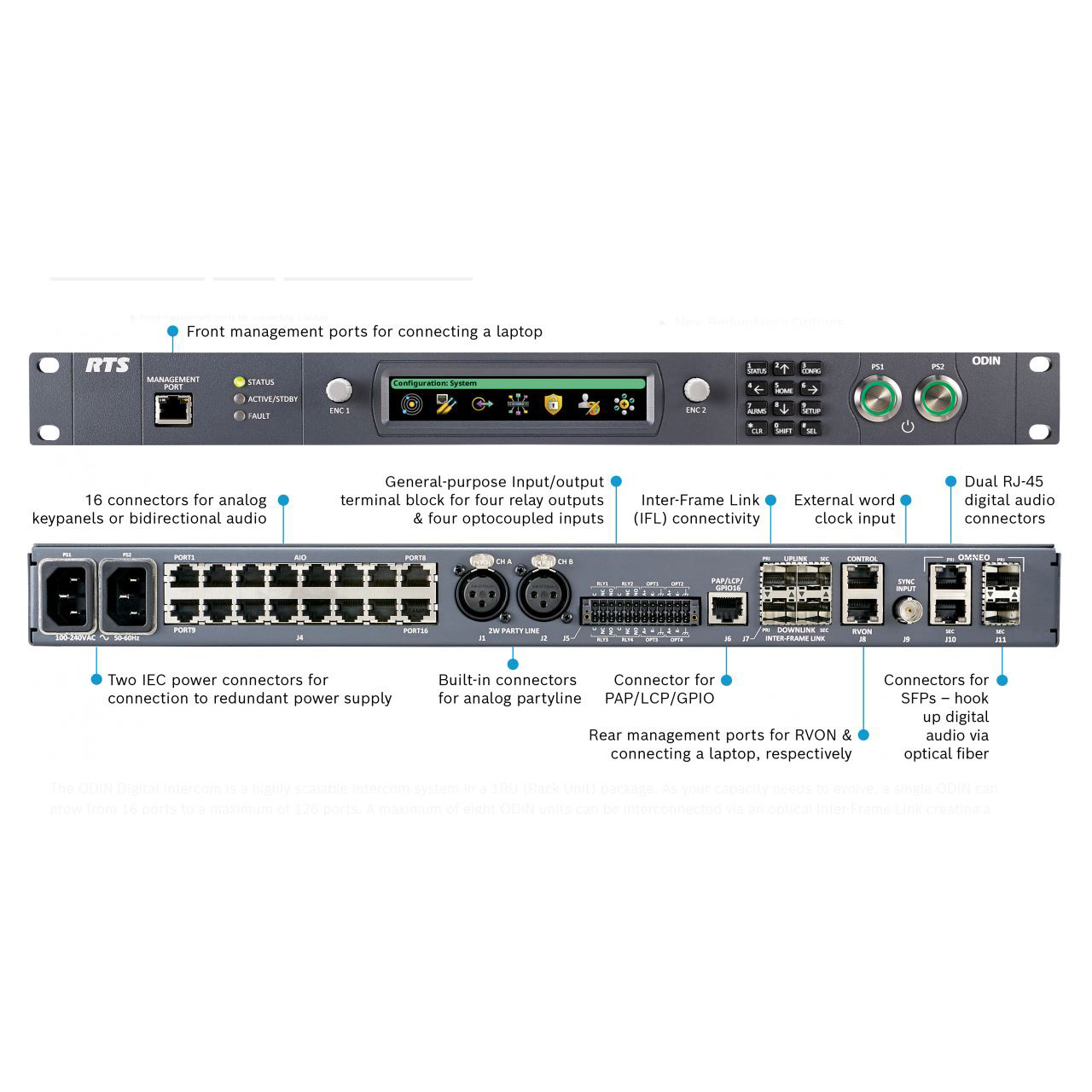

The front panel has been designed to incorporate a User Interface as an alternative option to AZedit that supports the most common setup and configuration tasks. The AZedit and IPedit software applications have been updated to support ODIN.

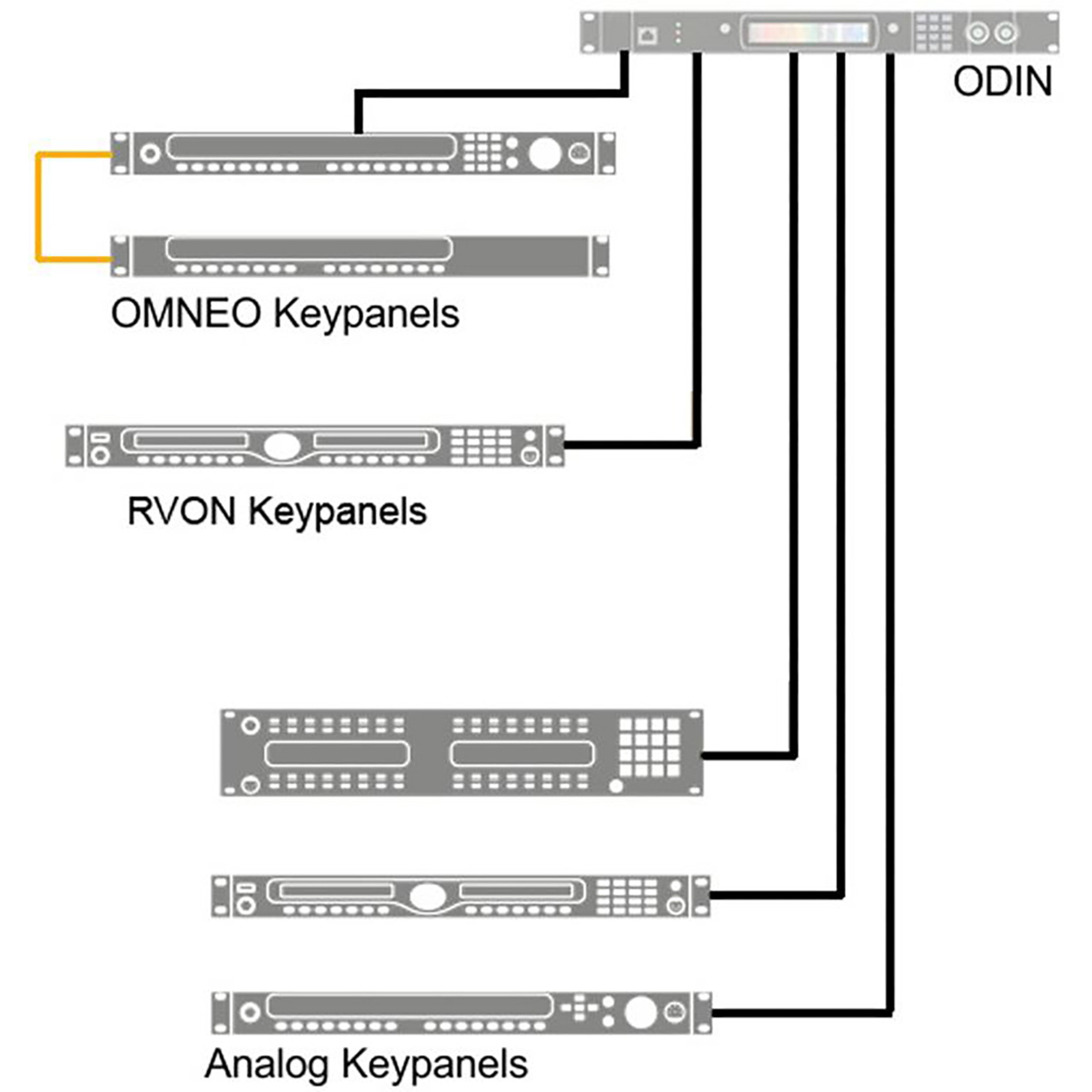

Featuring connectors for AIO, OMNEO and two-wire technology, ODIN supports keypanel technology going forward and, as always, RTS legacy keypanels. OMNEO is standard on RJ-45 connectors or is available using optional Optical Fiber SFP connectors.

Features:
- New Redundancy Options
- Scalable and Versatile
- Glitch-free available for the most clear and reliable communication
- A robust digital matrix in a compact 1RU space
- Built-in OMNEO technology
- Redundant power supplies Line Drawing
- Front panel user interface gives easy access to common configuration tasks allowing quick modifications to the system
- Energy-efficient design, uses less than 50 W of power!
Specifications:
- Power Supply: Locking IE320 C14 style connector (2 connectors, fully redundant load-sharing power supplies)
- AC Input: 100V - 240V AC, 60/50Hz, 0.5A/0.35A
- Maximum Power Consumption: 47W (based on 120VAC)
- Operating Temperature: 32°F - 113°F (0°C - 45°C)
- Storage Temperature: -4°F - 158°F (-20°C - 70°C)
- Dimensions: 19" w/ rack ears (17.3" w/o rack ears) W x 1.7" H x 14.3" D (including connectors) (482.6mm w/ rack ears [439mm w/o rack ears] W x 43.7mm H x 363.5mm D [including connectors])
- Weight: ODIN Matrix - 11.5lbs (5.2kg)

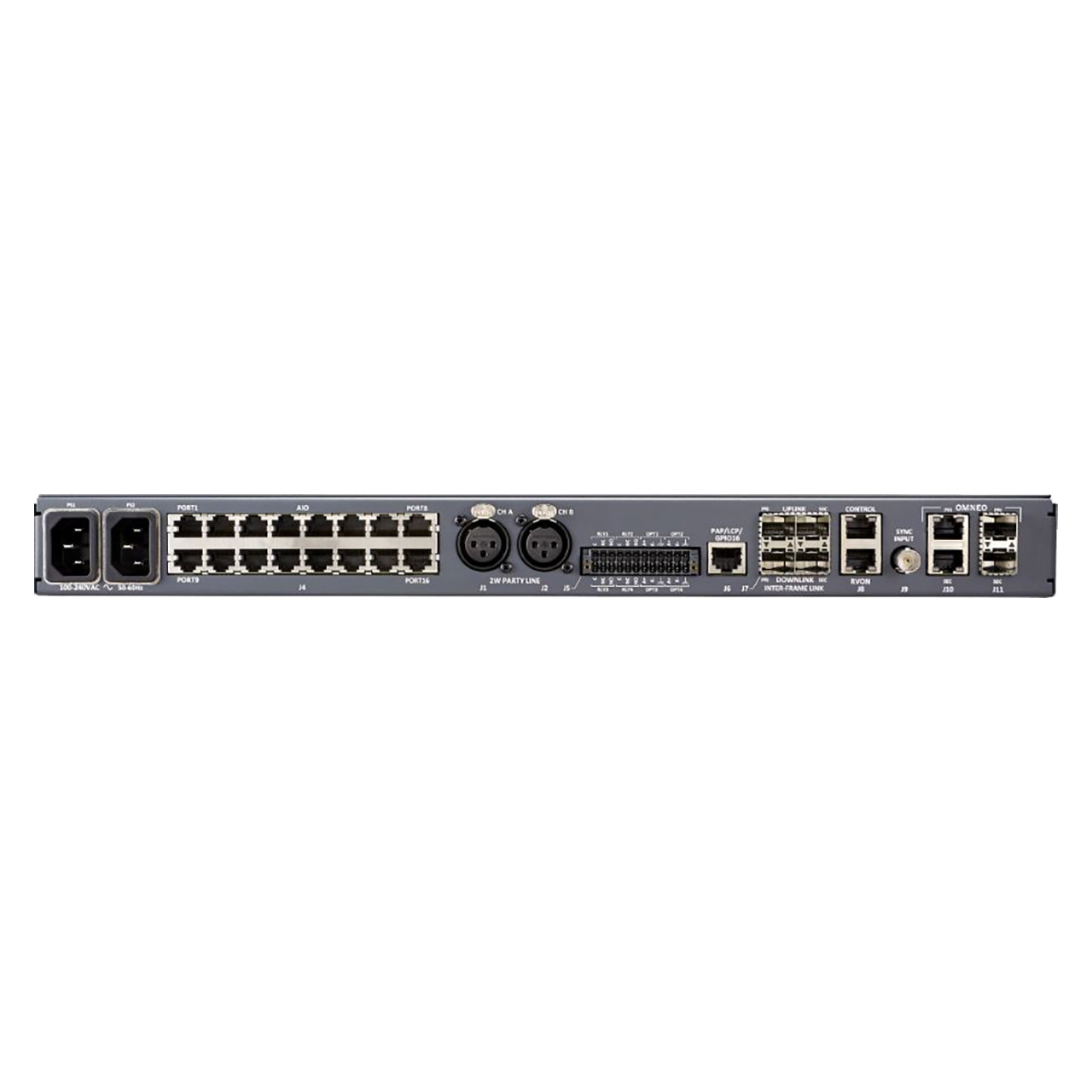

- AIO 4-Wire Analog Connectors: 16 RJ-45 connectors
- Signal Format: Differential RX/TX audio with differential RS-485 control data
- Wiring Scheme: Both 568B & USOC supported
- A/D and D/A Resolution: 24bits
- Max Input Level (balanced): +20dBu w/o clipping
- Digital Input Gain: Programmable (-20dB - +20 dB)
- Input Frequency Response: +1dB/-3dB from 200Hz - 20kHz
- THD+N (8dBu input, unity gain): 0.025% non-weighted@1kHz <0.075% non-weighted, 100Hz - 20kHz
- Nominal Input Impedance: >22kΩ
- Nominal Output Level: 8dBu
- Digital Output Gain: Programmable (-20dB - 20dB)
- Maximum Output Level (balanced): @ 600 Ohms 20 dBu w/o clipping
- Output Frequency Response: +1dB/-3dB from 200Hz - 20kHz
- Output Noise Floor: <-70dBu
- Crosstalk Isolation: >80dB
- 2-Wire Party Line Analog Connector: two 3-pin female XLR connectors
- Modes/Port supported:
  - RTS CH1, RTS CH2
  - Audiocom (1 channel)
  - Clear-Com (1 channel) (Connections are DRY. NO dc voltage provided)
  Please Note: Lighted power buttons on front panel control DC voltage feed to internal circuitry; they do not disconnect AC from the internal power supplies. Power cords must be fully removed from unit to safely disengage internal power.
Item Includes:
- 1x ODIN 64 NOCORD ODIN OMNEO Rackmount 64 Port Digital Matrix Intercom
- Power Cord NOT included - sold separately
Warranty:
- 1 Year Warranty
