    F.01U.306.043 - Overview

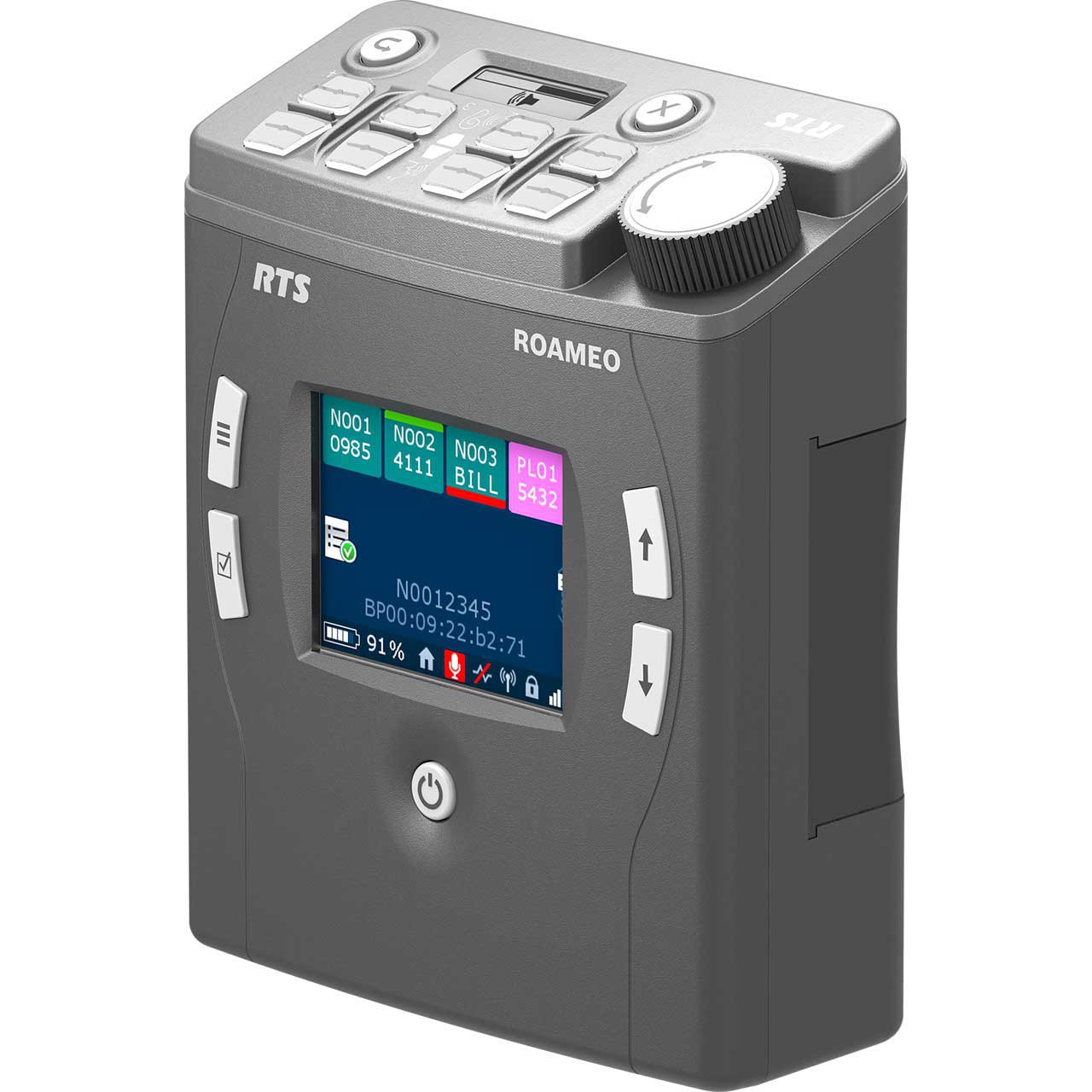

    The RTS ROAMEO wireless intercom system is a professional, easy-to-use and future-proof solution based on the license-free DECT standard which operates in a protected frequency band. ROAMEO provides high-quality audio and seamless matrix integration to a large number of simultaneous users across a wide area. State-of-the-art technology guarantees optimized sound performance. Featuring a modern, rugged design, ROAMEO is suitable for a wide range of professional intercom applications where wireless communication is critical, including broadcast production studios, theater and sport event productions, houses of worship, commercial buildings and outside broadcast (OB) trucks. The system consists of the TR-1800 beltpack, the AP-1800 access point and optional accessories including charger, holster and pole-mount kit.

    Operating like a wireless keypanel, ROAMEO can be fully integrated into the ADAM family of RTS matrices. The system allows users to address individuals or specified groups. Connection to a digital matrix is easily established via a single Ethernet cable. In addition, the system can use standard IT infrastructure, which ensures easy installation and low maintenance costs. Access points may be daisy-chained.

    ROAMEO's cellular structure can cover a wide area with superior audio and seamless roaming between the individual cells. Users can easily expand the coverage area by adding access points, while additional wireless beltpacks can be directly addressed as part of a wired RTS matrix intercom system. With two available audio codecs, the system administrator can choose between a higher emphasis on voice quality (G.722 full bandwidth) or a more efficient use of the radio spectrum with double the number of beltpacks (G.726 narrow-band).

    The system can easily be configured on the TR-1800 beltpack through scroll lists or from a computer using the control software AZedit. Thanks to its large color TFT-display, intuitive icon-based menu structure and multi-language help screens, the TR-1800 beltpack is very easy to set up and operate. The four talk/listen buttons are shaped differently and provide users with a tactile feedback, allowing operation of the device in low light conditions and without the need to look at it. With its lightweight, durable housing, the beltpack has the smallest enclosure in its class and is protected against dust and light rain. The software of the TR-1800 beltpack can be upgraded easily using an USB Flash Drive.

    • Features:

      • User-selectable audio codec to allow the best (wideband) audio quality with an average number of users or good (narrowband) audio quality with double the number of users.
      • Provides reliable, low latency, communications from the beltpack to the Matrix.
      • Provides roaming ability between access point locations with seamless communication.
      • Standard Ethernet backbone communications can be routed over existing LAN or WAN (Layer 3 routable)
      • The beltpack provides a USB port for future software upgrades and the download of a custom front display startup graphic.
      • Easy battery removal for bulk charging in a 4-bay battery charger or in-device charging.

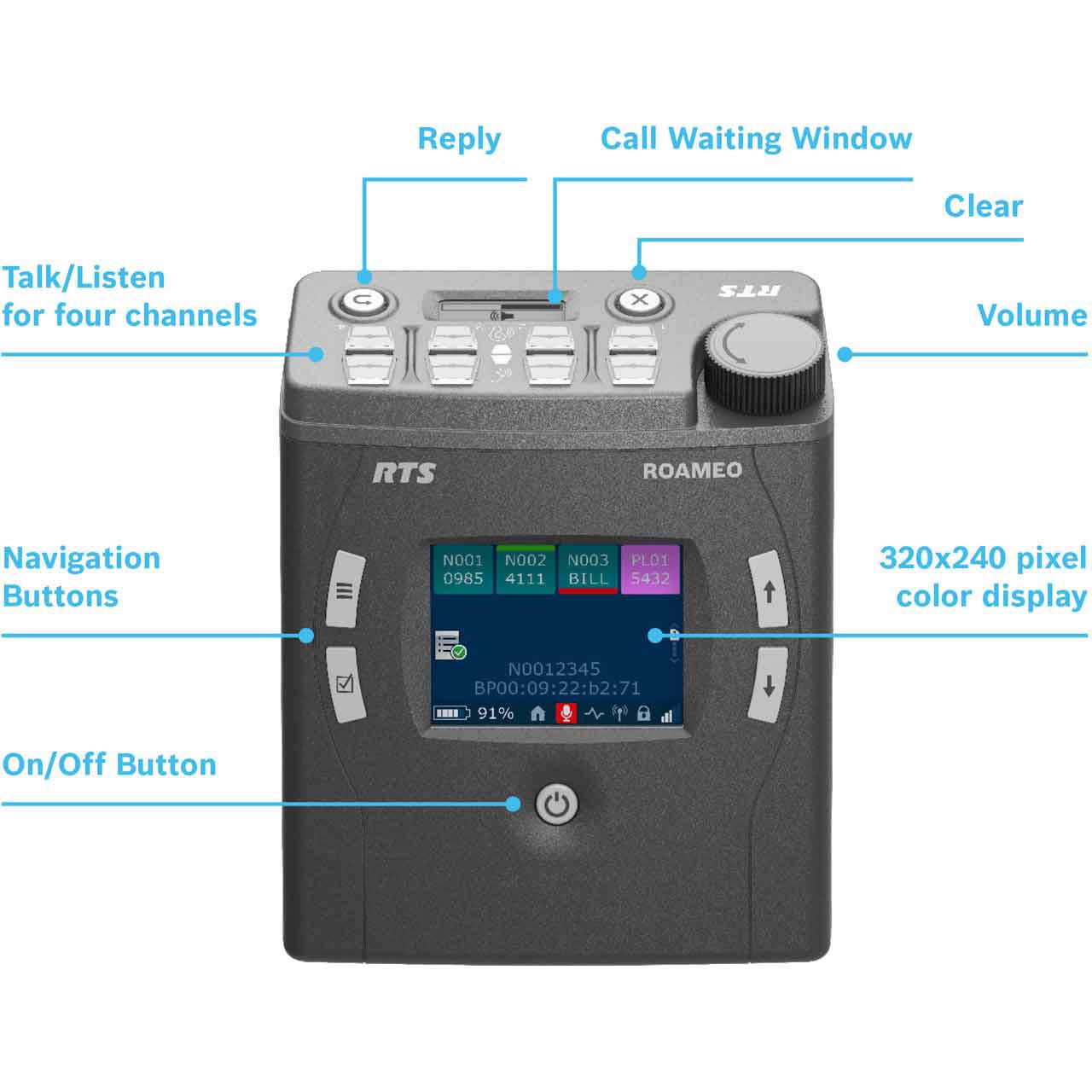

      • Large color screen with intuitively-designed icons for easy configuration and setup, and a smaller call waiting window located on top of the unit.
      • Designed with four (4) independent talk/listen keys for full-duplex communications, CWW (call waiting window) functionality.
      • Two headset options available via an XLR connector or a 3.5mm connector. The 3.5mm jack can also be used for local AUX input audio.
      • Dark Mode feature allows you to quickly toggle on/off all lights and displays on the beltpack. This is especially convenient for theatre and other dark venues where a lighted beltpack would stand out.

    • Specifications:

      • RF range, typical: 50-75 m indoor, 150-200 m outdoor
      • Voice Codecs: G.722 (wideband) / G.726 (narrowband)
      • Voice latency (ms): Approx 40 ms BP to BP; 30 ms BP
      • Audio Modes: G.722 wideband mode, G.726 narrowband mode
      • Frequency Response (G.722): 165 Hz - 7.0 kHz
      • Frequency Response (G.726): 255 Hz - 3.6 kHz

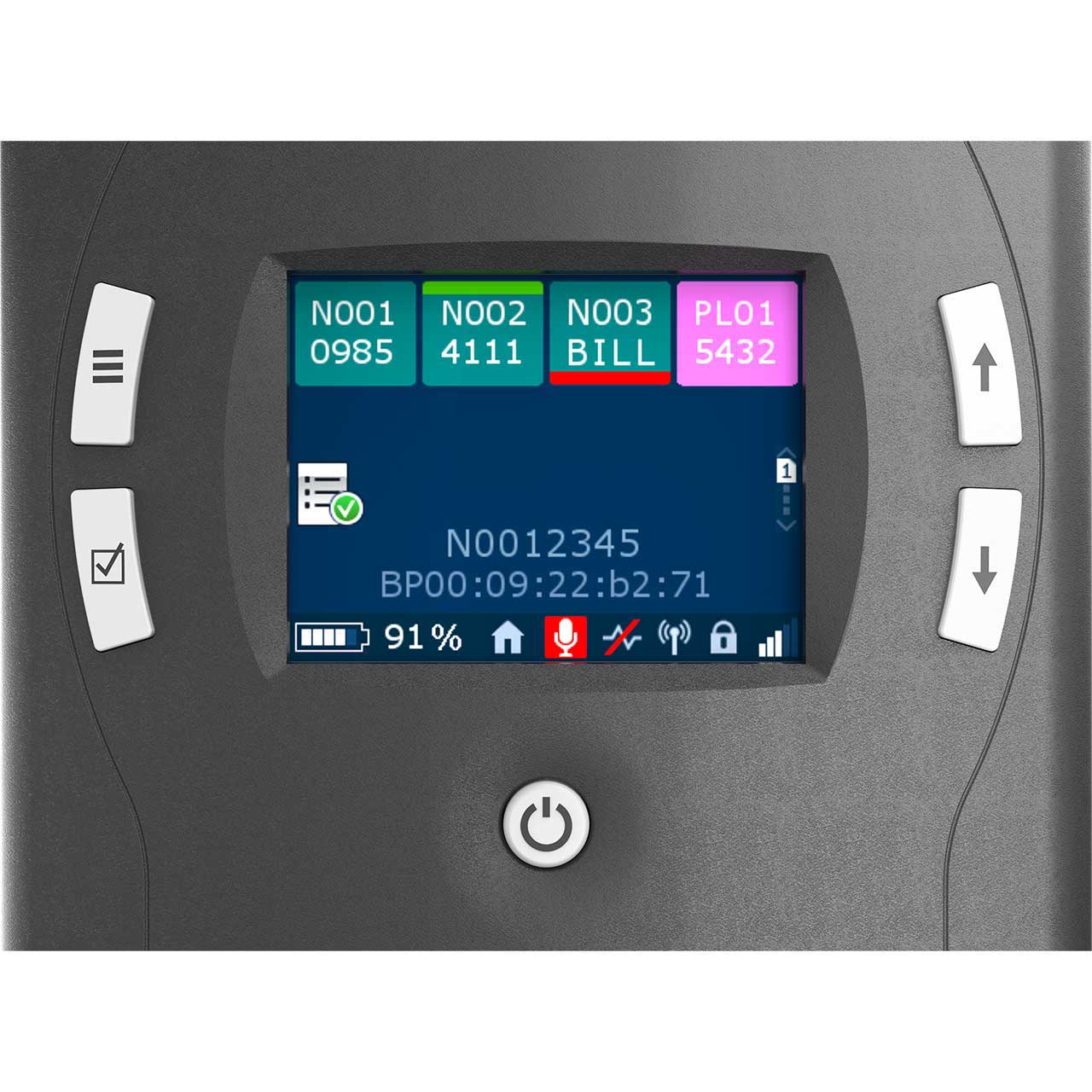

      • Front Backlit Display: Color, 320 x 240 pixel, QVGA LCD
      • Top Backlit Display: Black and White, 128 x 32 pixel LCD
      • Removable Battery Pack: Li-Ion Pack, 7.5 VDC, 2300 mAhr
      • Typical Battery Life: 17 hours
      • Operating Temperature: 32° F - 122°F
      • Storage Temperature: -4°F - 158°F
      • Dimensions (w/beltclip): 4.93 in. H x 4.00 in. W x 2.31 in. D
      • Dimensions (w/o beltclip): 4.93 in. H x 4.00 in. W x 1.85 in. D
      • Weight (w/ battery): 0.771 lbs

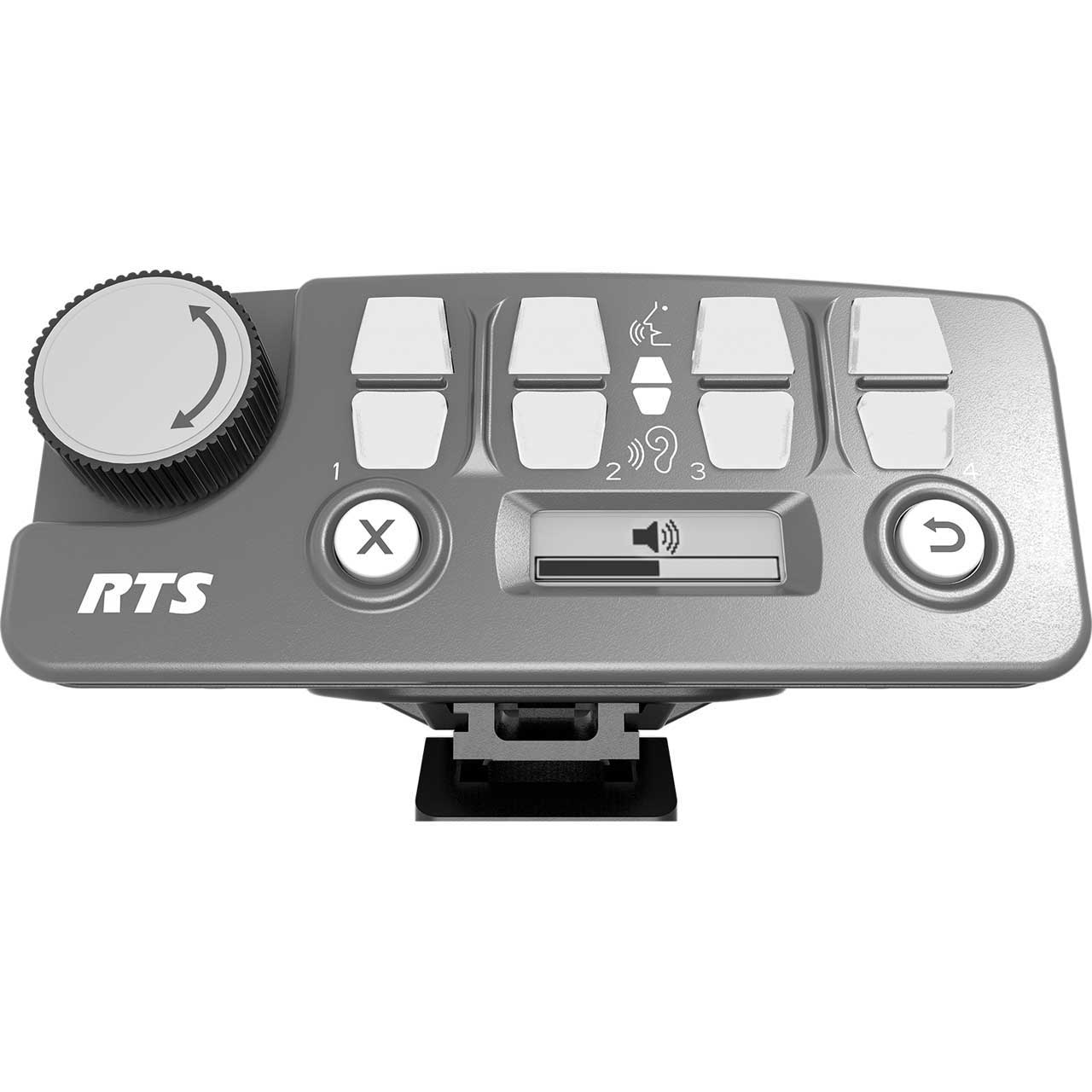

      • Level Controls: Top-mounted rotary encoder Individual listen adjustment
      • Talk/Listen Control: 4 x Talk and 4 x Listen buttons (top panel)
      • Number of Assignment Pages: 4
      • Call Waiting Control: Reply and Clear buttons
      • Menu Settings Control: Menu, Set, Up, and Down buttons

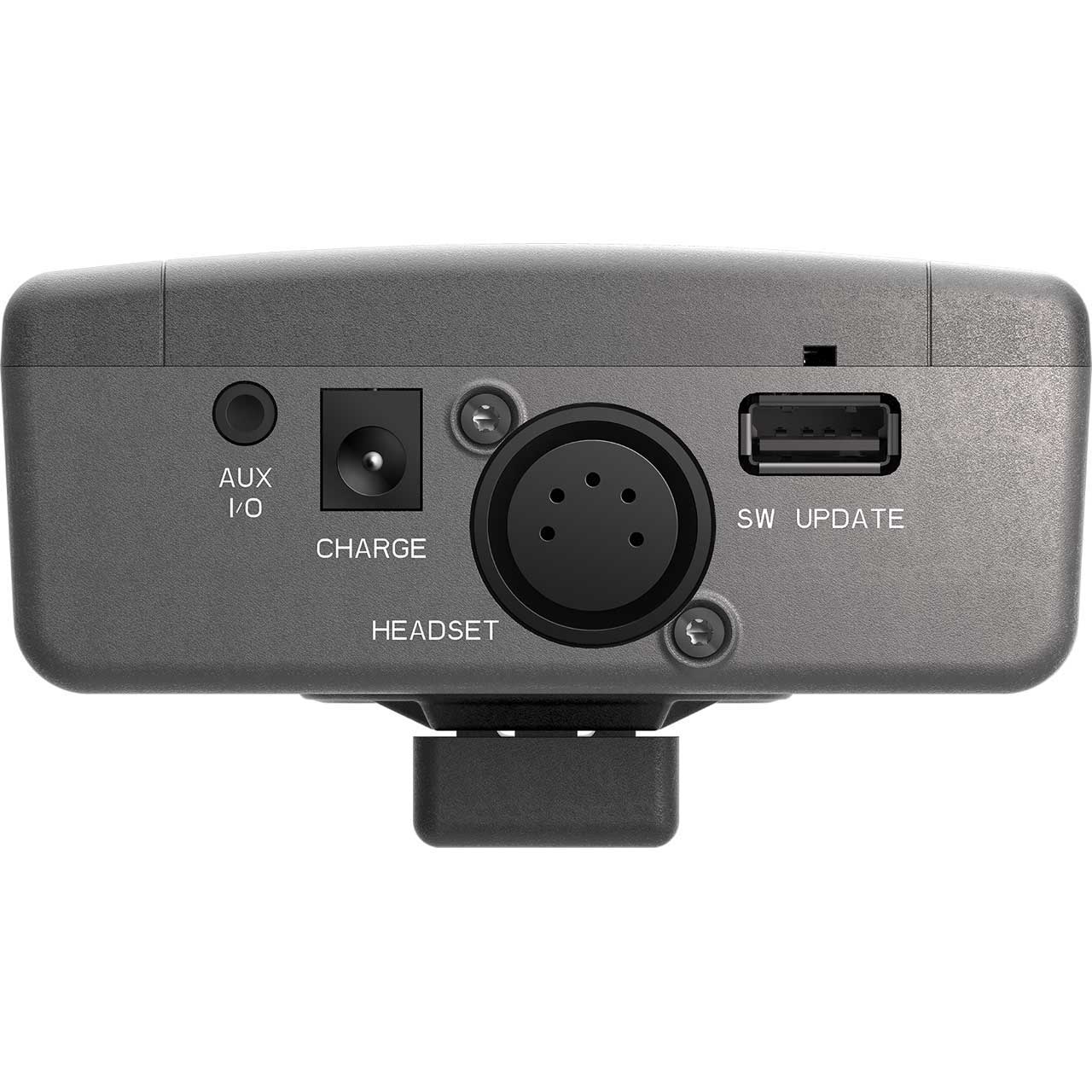

      • Headset Connectors: XLR-5F & 3.5mm (iPhone type)
      • Headphone Impedance (both XLR and 3.5mm): 51 - 2000 Ohms
      • Microphone Type (XLR Jack): Dynamic or Electret auto-detect
      • Microphone Type (3.5mm Jack): Electret only (+5V bias always supplied)
      • In-beltpack Charging Jack: Accepts 2.5 x 5.5mm charging plug, positive center
      • In-beltpack Charging Jack Voltage/Current: 12VDC @ 400mA
      • Auxiliary Audio Input Jack: 3.5mm for MP3 type audio input. Only fed to local headset Firmware Update Jack: USB Type A
      • Frequency Range: 1920 - 1930 MHz (NA - North America)
      • Communication Protocol: DECT
      • Carrier Frequency Selection: Automatic via DCS (Dynamic Channel Selection)
      • Modulation: GFSK Maximum Output Power (Peak) : 100 mW (NA), Average Power (G.726 narrowband): 4 mW (NA), TR-1800 Beltpack Case (includes removable and adjustable shoulder strap)
      • Dimensions: 4 in. x 1.5 in. x 4.5 in
