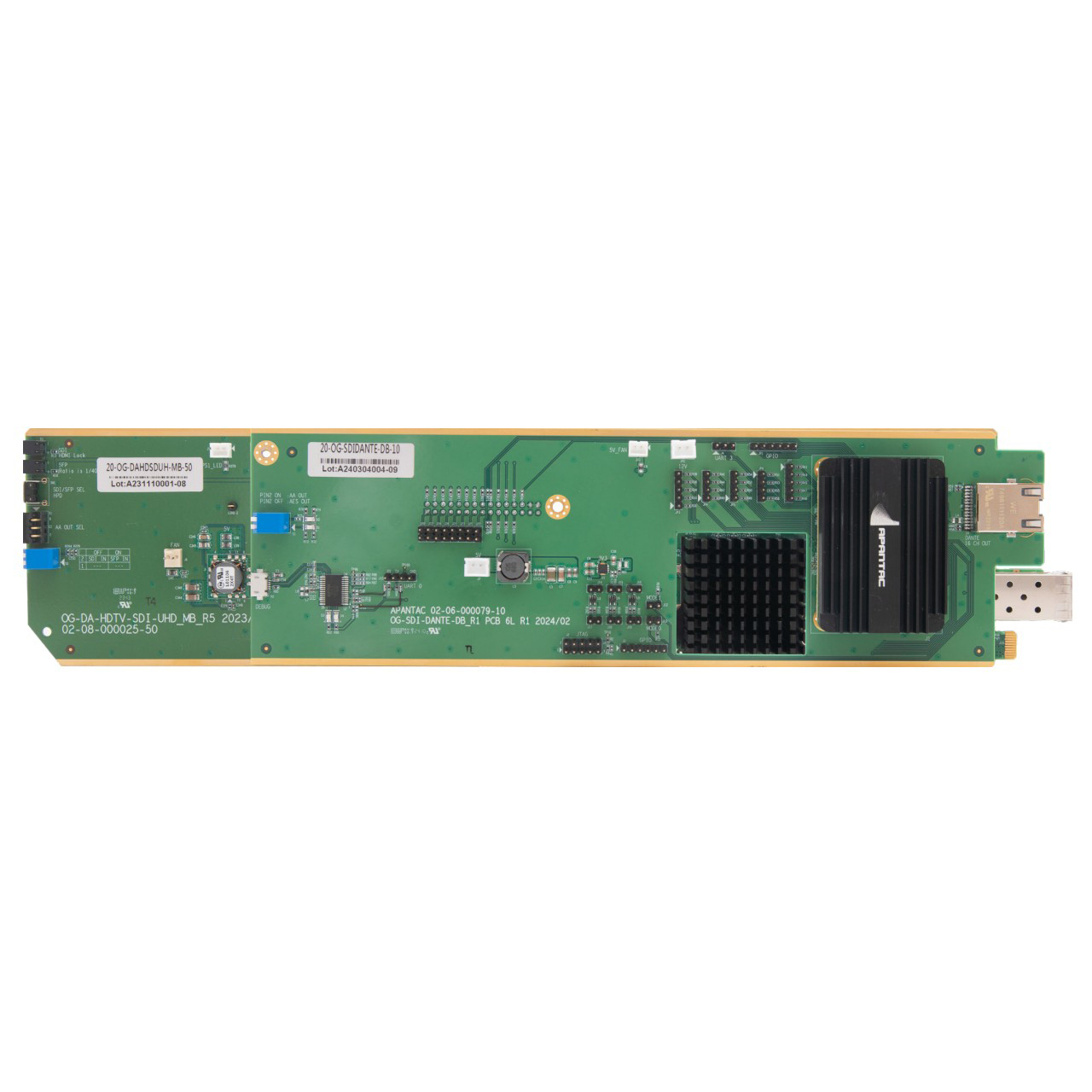

Apantac OG-DA-SDI-DE 12G Dante MB OpenGear 12G SDI 16 Channel De-embedder - Detects 12G SDI/3G SDI/ HD SDI 720p & 1080i

ITEM #: OGDASDIDE12GDMB MFG #: OG-DA-SDI-DE 12G DANTE MB

Primary Image
Apantac
Free Shipping with $49 Minimum Order

Our Price:

$2,135.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OG-DA-SDI-DE 12G DANTE MB - Overview

The Apantac OG-DA-SDI-DE 12G Dante MB 12G SDI 16 channel de-embedder auto detects 12G SDI/3G SDI/ HD SDI (720p, 1080i). It can also de-embed 16 channels into Dante network audio.

  • Features:

    • OGX/3.0 card-based form factor
    • Dashboard control enabled
    • Supports up to 3840x2160p I/O
    • Supports up to 12G SDI video input and loop out
    • Converts SDI to HDMI for monitoring output
    • De-embeds 12G/3G/HD-SDI and output 16 channels of Dante network audio
    • Optional 12G SDI fiber input via SFP
    • Low power consumption


  • Specifications:

    • Dimensions(LxWxH): 17" x 10" x 3" (431.8mm x 254mm x 76.2mm)
    • Weight: 2lbs (0.9kg)
    • Input:
      - 1x 12G/3G/HD-SDI input
      - Optional fiber input
    • Output:
      - 1x 12G/3G/HD-SDI loop out
      - 1x HDMI output that matches the SDI resolution,
    • Audio: 16 channel of Dante output via RJ45
    • Control: Dashboard


  • Item Includes:

    • 1x OG-DA-SDI-DE 12G Dante MB OpenGear 12G SDI 16 Channel De-embedder


  • Warranty:

    • 5-Year Limited Warranty
