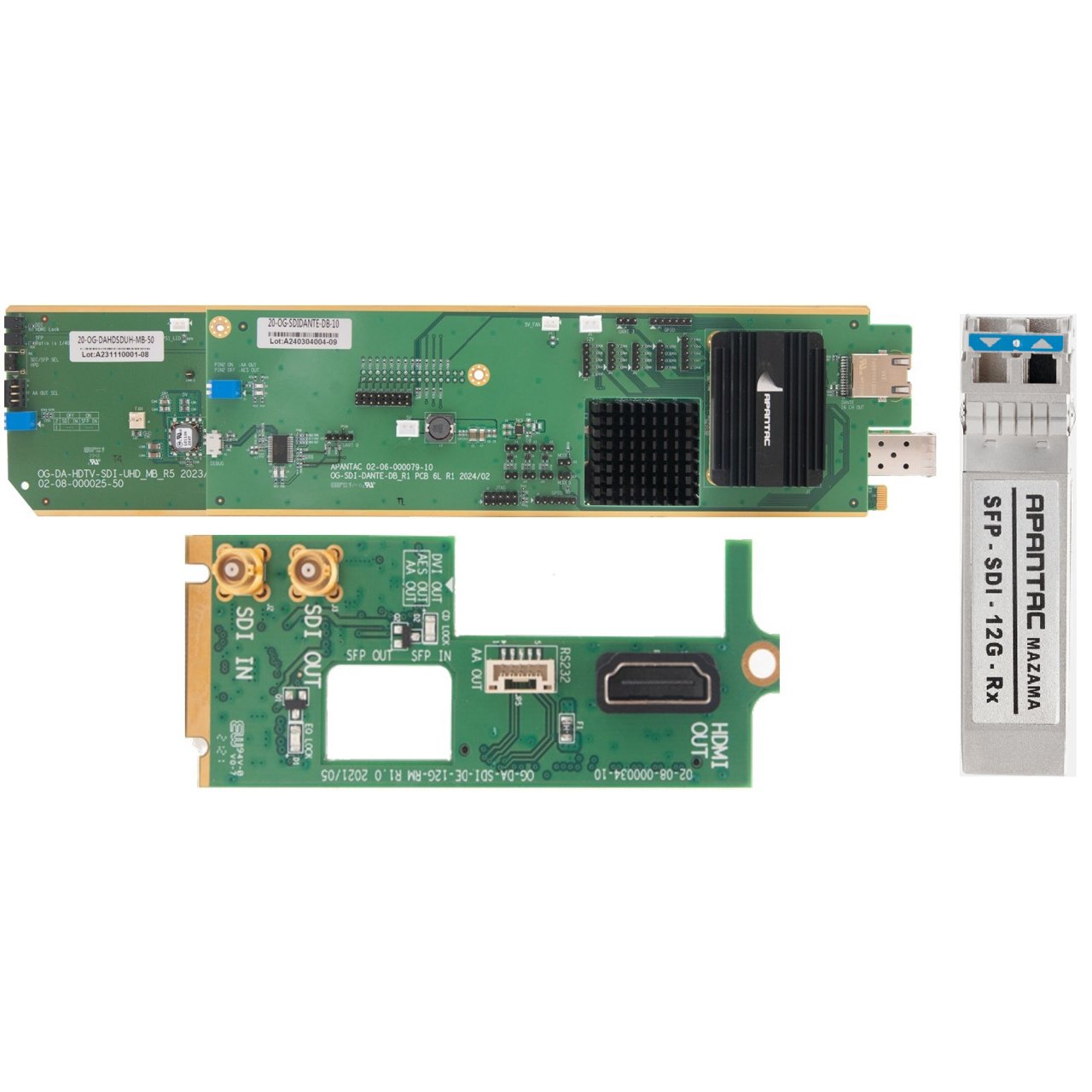

Apantac OG-DA-SDI-DE 12G Dante-SET-2 Bundle with OG-DA-SDI-DE 12G Dante-MB OG-DA-SDI-DE 12G Dante-RM and SFP-SDI-12G-Rx

OG-DA-SDI-DE 12G DANTESET2 - Overview

• Features:

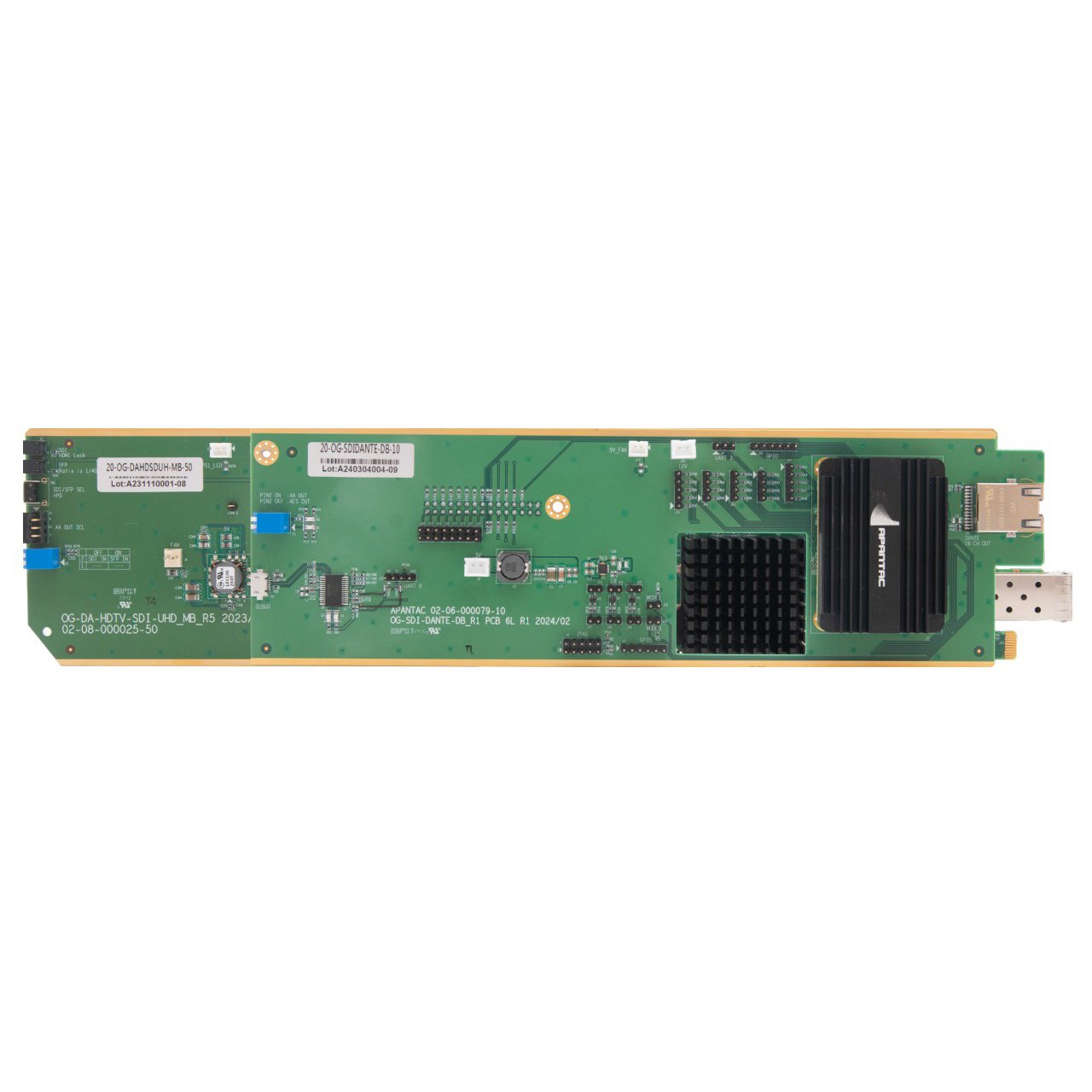

  OG-DA-SDI-DE 12G Dante MB
  • OGX/3.0 card-based form factor
  • Dashboard control enabled
  • Supports up to 3840x2160p I/O
  • Supports up to 12G SDI video input and loop out
  • Converts SDI to HDMI for monitoring output
  • De-embeds 12G/3G/HD-SDI and output 16 channels of Dante network audio
  • Optional 12G SDI fiber input via SFP
  • Low power consumption

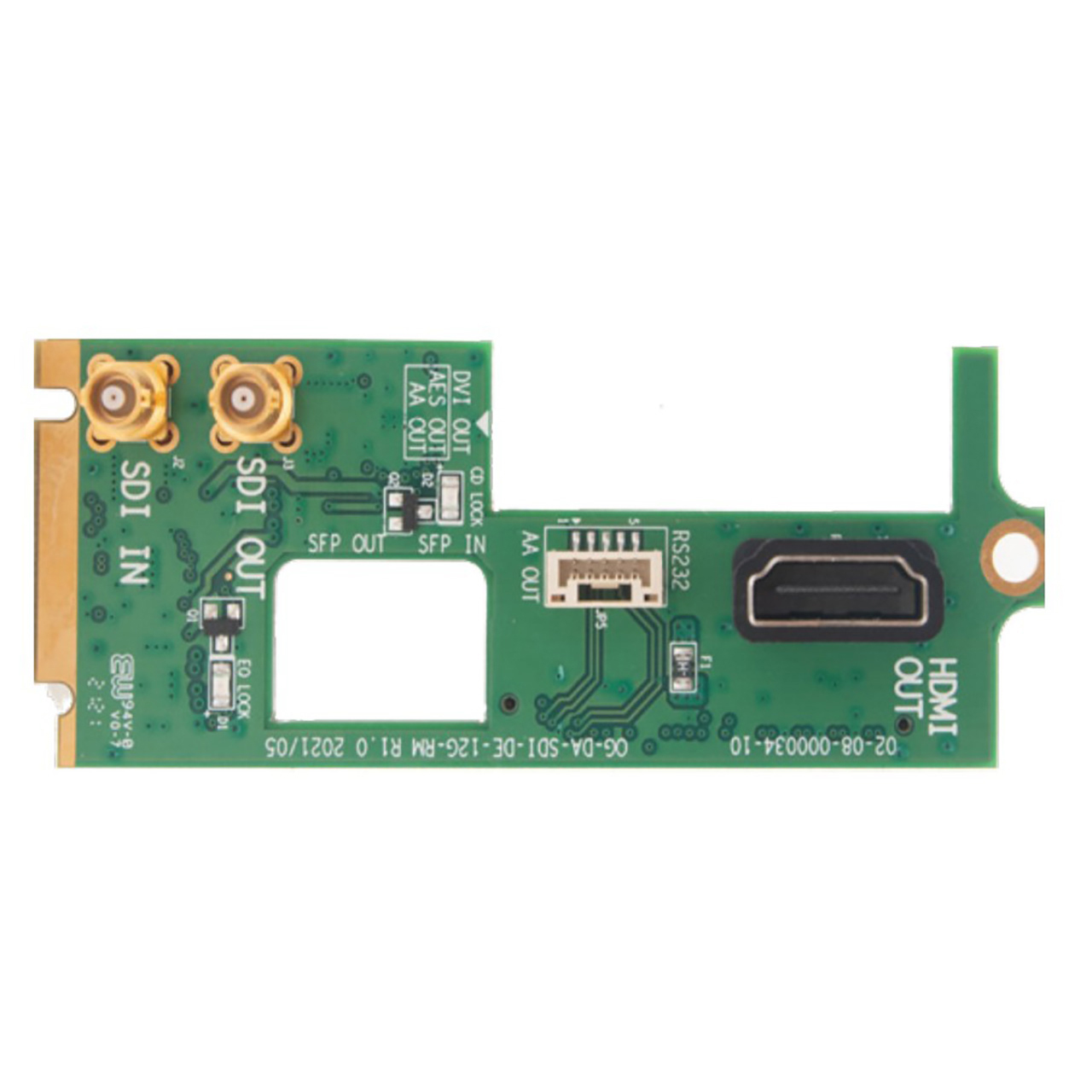

    OG-DA-SDI-DE 12G Dante RM
  • 1x SDI Input
  • 1x SDI Loopout
  • 1x HDMI Output
  • 1x RJ45 Network Dante Audio Output
  • 1x Analog Audio Ouput
  • Optional Fiber SFP Input

    SFP-SDI-12G-Rx
  • For Single Mode Fiber With LC Connector
  • Non-MSA SFP Receiver


• Specifications:

  • OG-DA-SDI-DE 12G Dante MB Specs
  • Dimensions(LxWxH): 17" x 10" x 3" (431.8mm x 254mm x 76.2mm)
  • Weight: 2lbs (0.9kg)
  • Input:
    - 1x 12G/3G/HD-SDI input
    - Optional fiber input
  • Output:
    - 1x 12G/3G/HD-SDI loop out
    - 1x HDMI output that matches the SDI resolution,
  • Audio: 16 channel of Dante output via RJ45
  • Control: Dashboard

    OG-DA-SDI-DE 12G Dante RM Specs
  • Dimensions(LxWxH): 5" x 5" x 5" (25mm x 25mm x 25mm)
  • Weight: 1lb (0.5kg)

    SFP-SDI-12G-Rx Specs
  • IO: 1x LC
  • Mode: Single-Mode


• Item Includes:

  • 1x OG-DA-SDI-DE 12G Dante MB OpenGear 12G SDI 16 Channel De-embedder
  • 1x OG-DA-SDI-DE 12G Dante Rear Module for 12G SDI De-embedder
  • 1x SFP-SDI-12G Reciever


• Warranty:

  • 5-Year Limited Warranty
