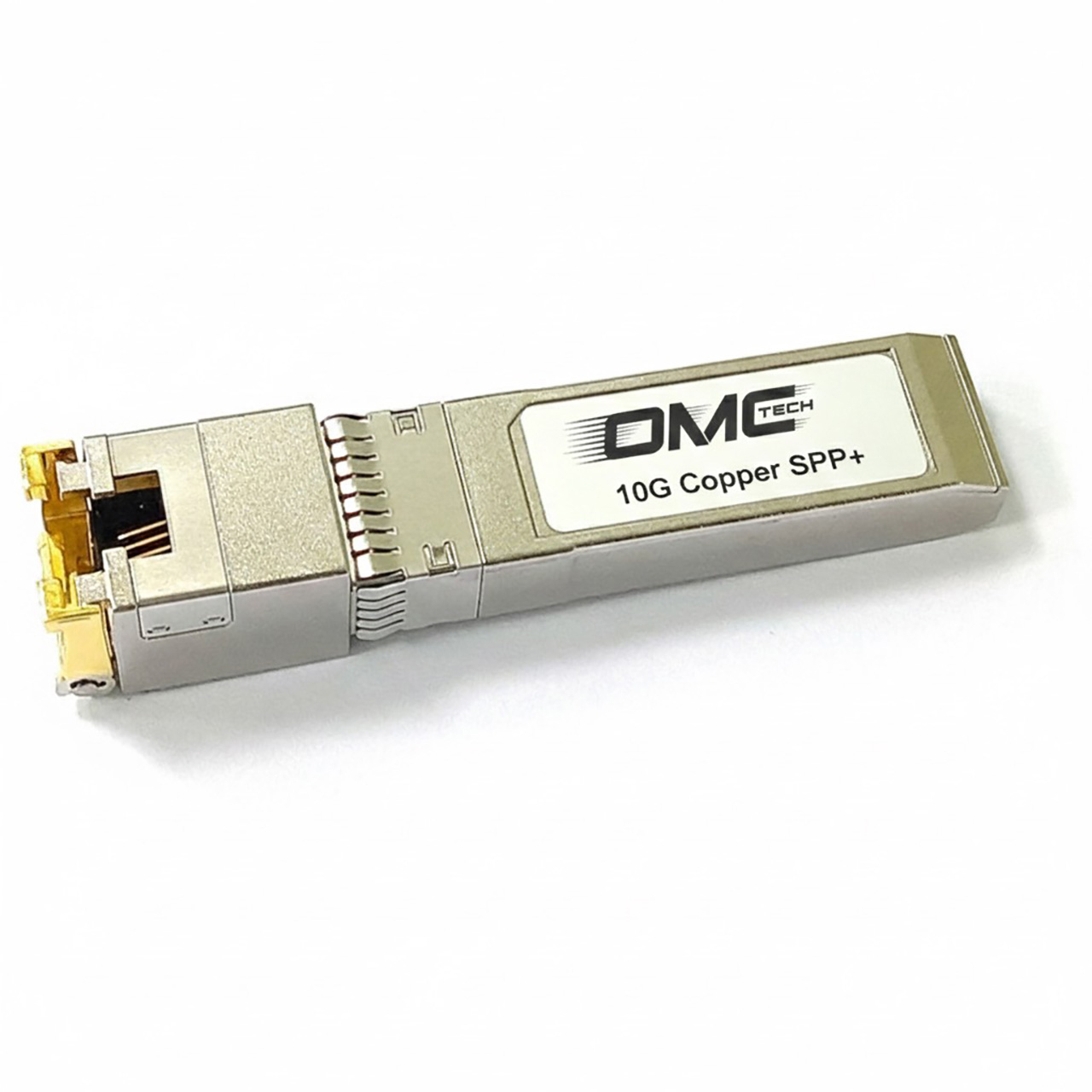

OMC Tech SY00A0-Y3ATKZ 10Gbps RJ45 SFP+ Copper Transceiver Module - 98.4 Foot Range

SY00A0-Y3ATKZ - Overview

• Features:

  • Single + 3.3V power supply
  • Compliant with IEEE802.3-2002 and 802.3ab
  • Compliant with SFP MSA
  • Up to 10 Gb/s bi-directional data links
  • Hot-Pluggable SFP+ footprint
  • RJ45 connector
  • Link length up to 98.4 feet with four-pair Cat.6/7 cable
  • Industrial Operation


• Specifications:

  • Supply Voltage: 3.13V - 3.47V
  • Supply Current: Max. 375mA
  • Maximum Voltage: 4V
  • Surge Current: 30mA
  • Data Rate: 10.3Gbps
  • Bit Error Rate: 10⊃12;
  • Cable Length: 98.4 Feet (30 meters)
  • Dimensions: 2" x 0.4" x 0.5" (50.8mm x 10.2mm x 12.7mm)
  • Weight: 1lb (0.5kg)


• Item Includes:

  • 1x SY00A0-Y3ATKZ 10Gbs RJ45 SFP+ Copper Transceiver Module


• Warranty:

  • 1-Year Limited Warranty
