Ocean Matrix OMX-CV-HDMI Analog Composite Video to HDMI Converter/Scaler Bstock: Not Current Version/Not Original Box

ITEM #: OMX-CV-HDMI-BS MFG #: OMX-CV-HDMI-BS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OMX-CV-HDMI-BS

OMX-CV-HDMI-BS - Overview

The cost effective Ocean Matrix OMX-CV-HDMI Video to HDMI Mini Converter is the perfect solution for scaling analog composite video sources up to 1080p for seamless integration into your HDMI system. Ocean Matrix's exclusive CEC (Color Enhancement Chipset) Technology produces jitter free imagery and vibrant color enhancement on the input sources to produce stunning picture quality.

Converts both Composite video (RCA) and S-Video with L/R stereo audio.

Please Note: Bstock: Not Current Version/Not in the Original Box.

  • Features:

    • Please Note: Bstock: Not Current Version/Not in the Original Box.
    • Convert Analog Composite Video or S-Video with L/R Stereo Audio to a single HDMI Output
    • Scales Composite Video or S-Video to HD 1080p
    • Front Panel Selectable 720P 50Hz/60Hz or 1080P 50Hz/60Hz HDMI Output
    • Selectable Composite or S-Video Input with Simultaneous Live Input Source
    • Supports 50Hz to 60Hz Frame Rate Conversion
    • Simple & Intuitive OSD (One Screen Display)
    • Automatic NTSC/PAL Detection


  • Specifications:

    • Supported HDMI Input Resolutions
    • 480p@60Hz
    • 480i@60Hz
    • 576i@50Hz
    • 576p@50Hz
    • 720p@50/60Hz
    • 1080i@50/60Hz
    • 1080p@50/60Hz

      Supported HDMI Graphic Card Resolutions
    • 640x480@60Hz
    • 800x600@60Hz
    • 1024x768@60Hz
    • 1280x720@60Hz
    • 1280x768@60Hz
    • 1280x1024@60Hz
    • 1360x768@60Hz
    • 1366x768@60Hz
    • 1400x1050@60Hz
    • 1440x900@60Hz
    • 1680x1050@60Hz
    • 1920x1080@60Hz

      Specifications:
    • HDMI DDC Signal: 5Vp-p (TTL)
    • HDMI TMDS Signal: 0.5 - 1.0V p-p
    • HDMI Output Signal: 720p @ 50/60Hz or 1080p @ 50/60Hz

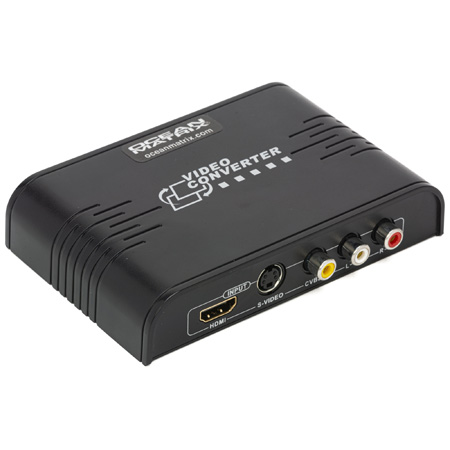

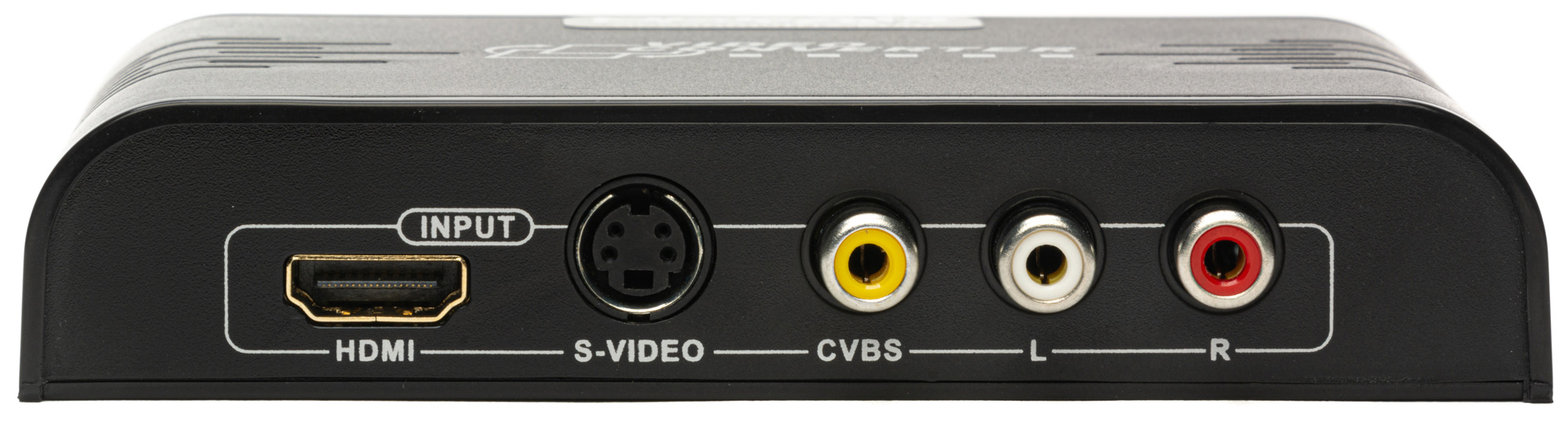

    • Composite Input: RCA
    • S-Video Input: 4-Pin DIN
    • Audio Input: L/R RCA
    • HDMI Input: 19-Pin Standard

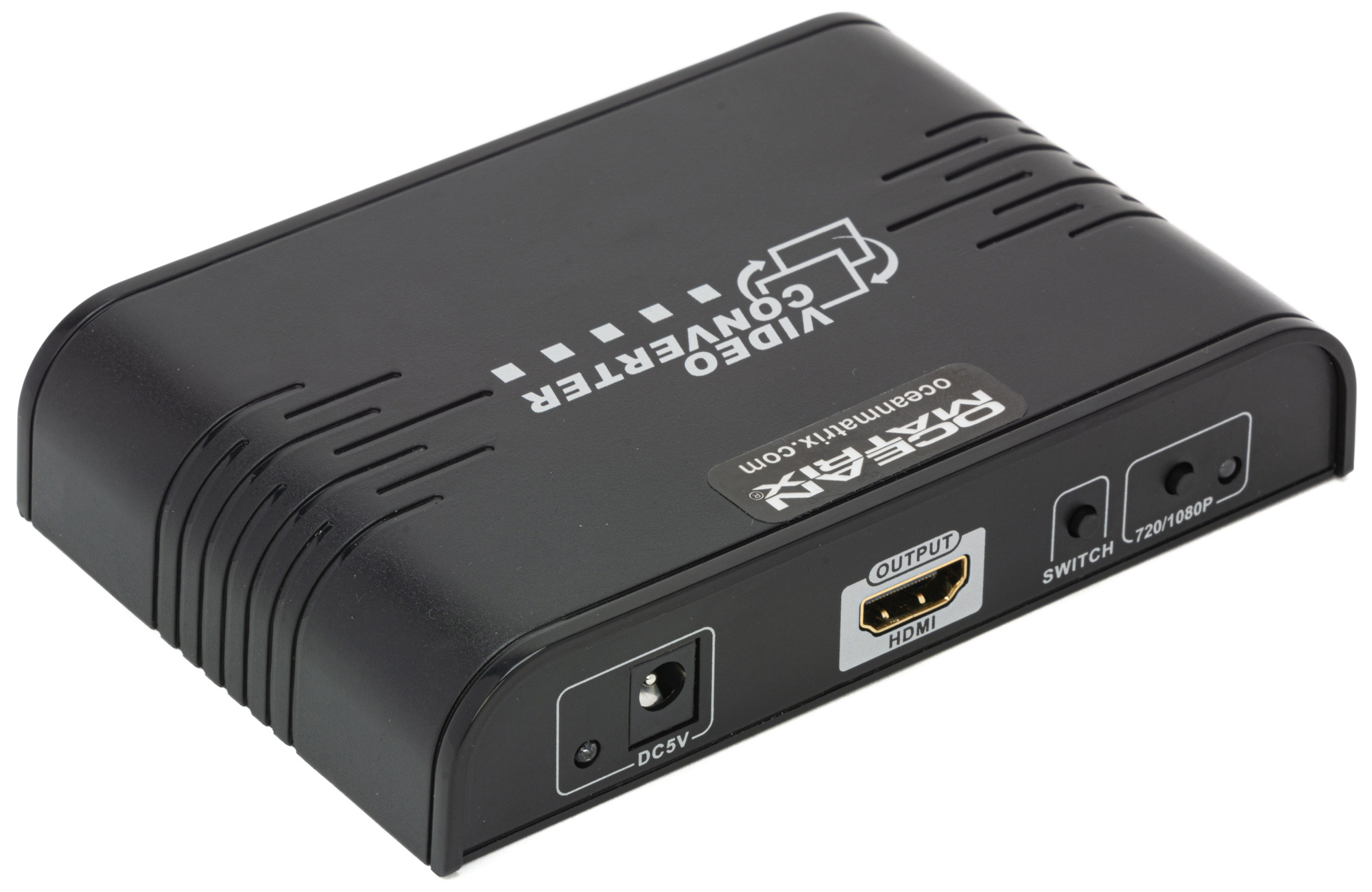

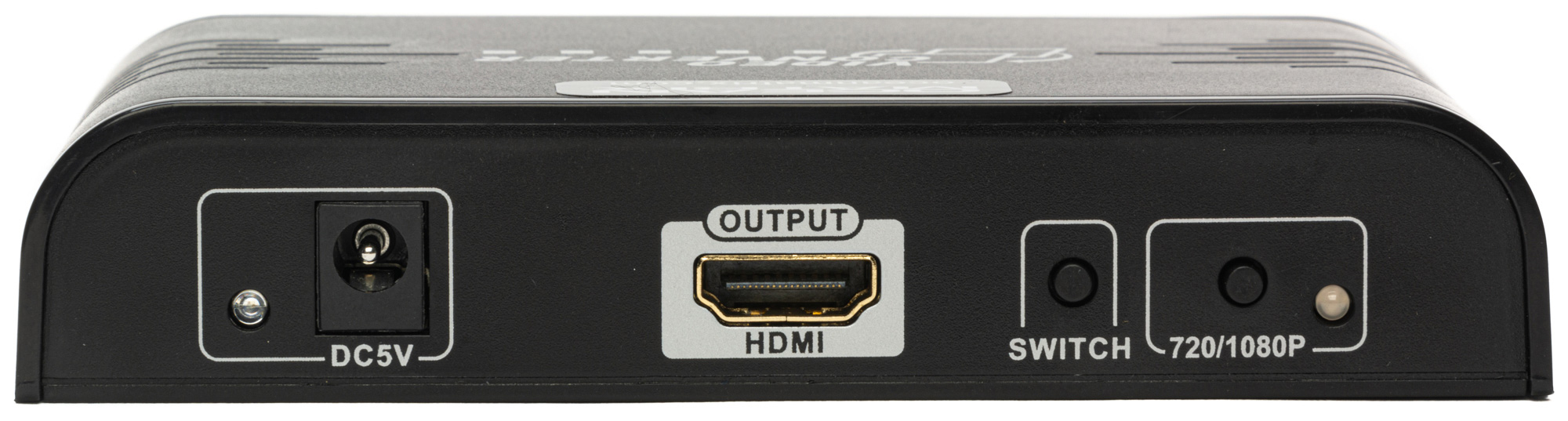

    • HDMI Output: 19-Pin Standard

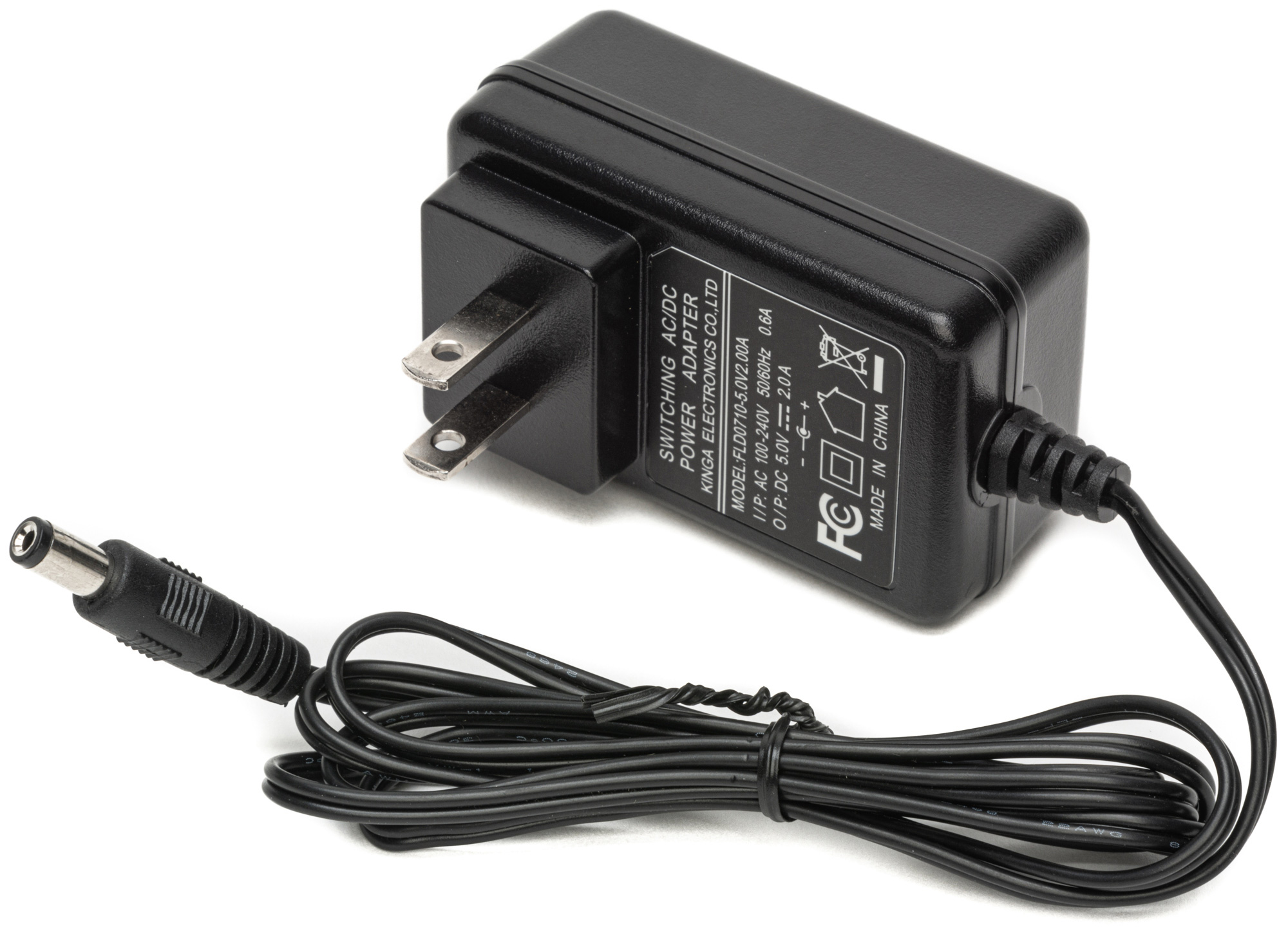

    • Power Supply: 5VDC/1A
    • Power Consumption: 3.5W
    • Dimensions: 5.125"L x 3.375"W x 1.0"H
    • Product Weight: 0.375 Lbs.
