Ophit DDA-D Converts Digital DVI Video Signal to Analog VGA Signal

ITEM #: OPHI-DDA-D MFG #: DDA-D

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OPHI-DDA-D

DDA-D - Overview

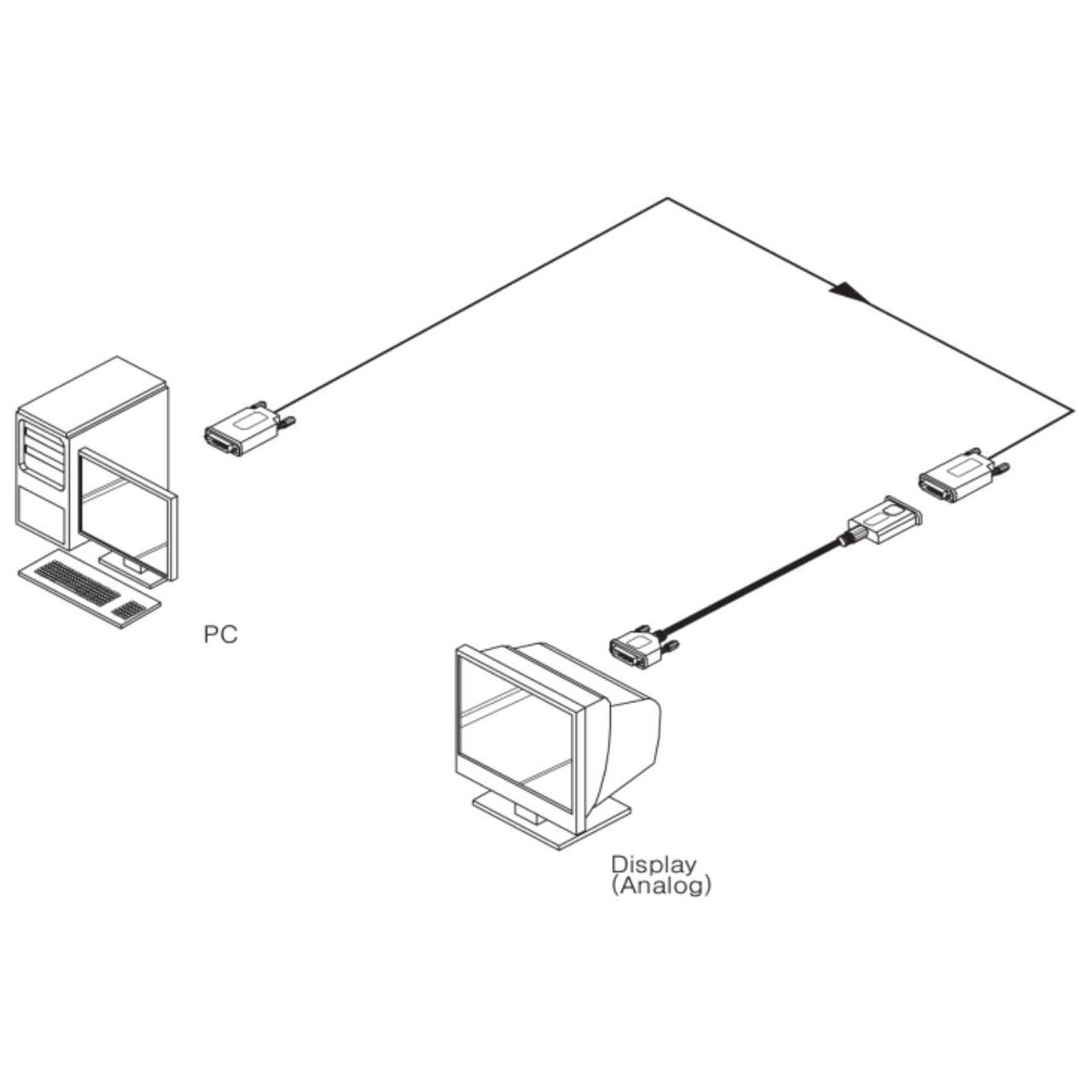

This Ophit DDA-D unique DVI converter transports your PC's DVI signal to analog graphic signal so that display devices without DVI input can be connected to your PC and Labtop with DVI output easily and conveniently.

  • Features:

    • Converts DVI signal to analog VGA signal
    • DVI v1.0 compliant
    • External power adapter is available
    • Easy Connecting (pig tale type)
    • EMC & Safety : CE, FCC


  • Specifications:

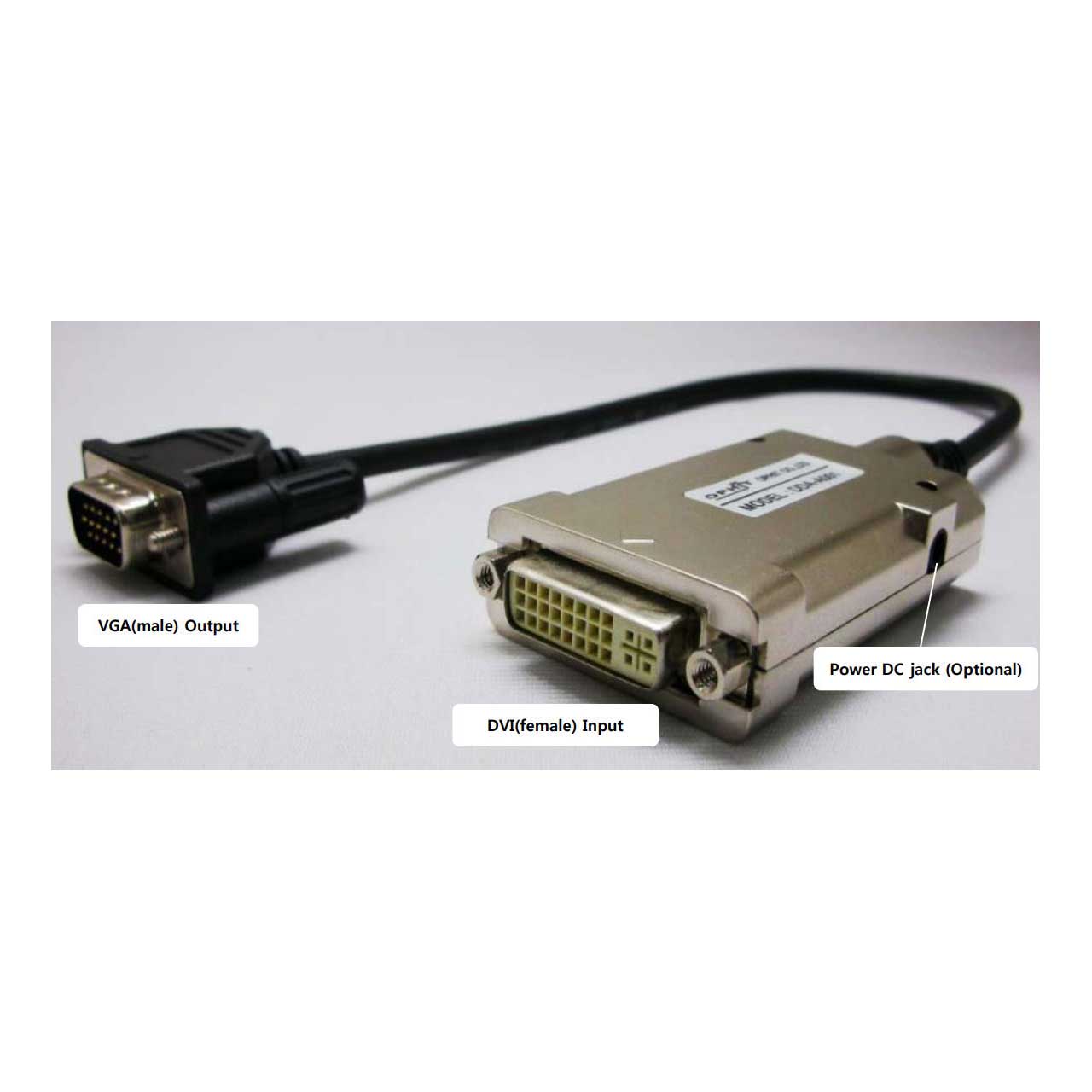

    • Connectors: Input: DVI-I (female) / Output: D-sub 15pin (female)
    • Pixel Clock: 165MHz (single link)
    • Supporting Resolution: WUXGA (1920 x 1200) @ 60Hz / 1080p (1920 x 1080) @ 60Hz
    • Power Consumption: 1.8W (max)
    • Power Supply: 100 ~ 240V with DC 5V, 2A (option)
    • Length: 350 (mm)
    • Operating Temperature range: 0°C ~ 50°C
    • Storage Temperature range: -20°C ~ 70°
