    OG-ROI-DVI - Overview

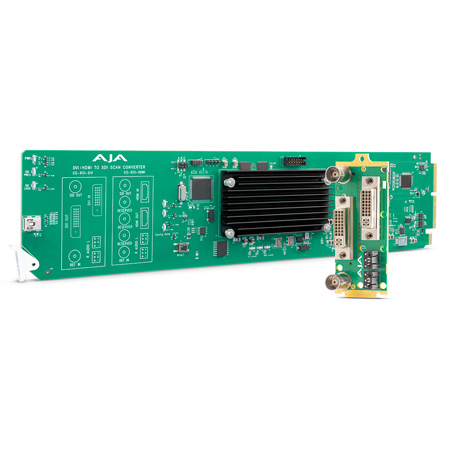

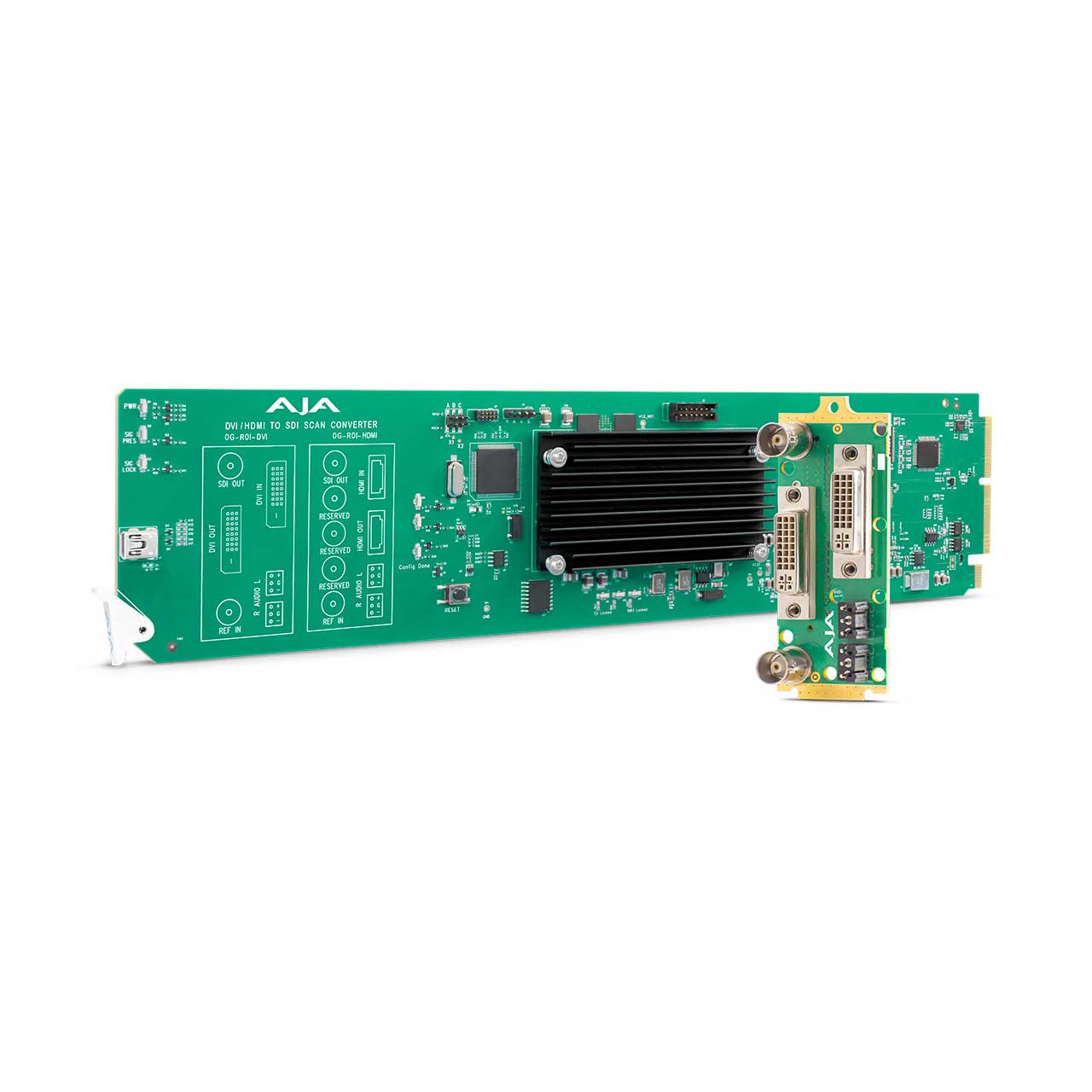

    AJA's OG-ROI-DVI is an openGear DVI to 3G-SDI Scan Converter. This versatile unit features incredible region-of-interest image scaling as well as aspect and frame rate conversion, OG-ROI-DVI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space.

    ROI, or Region of Interest, allows you to eliminate extra interface clutter and menu bars and extract only the portion of the computer screen you want.

    OG-ROI-DVI is fully compatible with the free Ross DashBoard application, offering interactive selection of a Region of Interest from the incoming computer signal. You have full control over how that region is scaled to the output resolution using AJA's high quality scaling algorithms for the cleanest picture quality possible.

    Take full control of aspect ratio, image rotation, and frame rate conversion with on-screen controls in the DashBoard software that shows you exactly what your source and output will look like, including the formats that are coming in and the choices you have made for the signal going out.

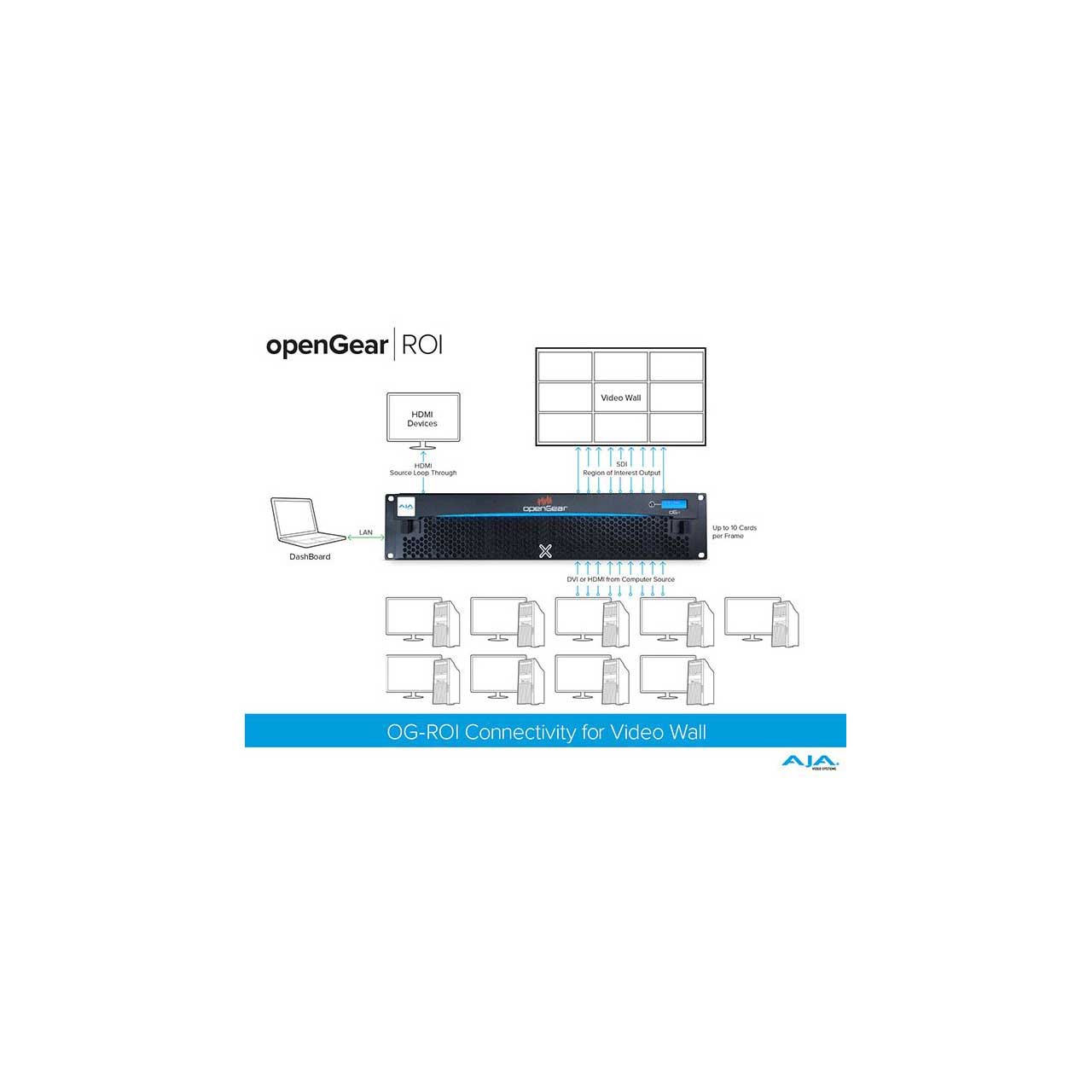

    It is also possible to expand output options and create a large, synchronized video wall display. The workflow diagram shows 9 OG-ROI-HDMI utilized in a rackframe to produce a video wall of 9 SDI monitors. Control over each OG-ROI-HDMI is provided via ethernet to the DashBoard. Each computer source is connected to an OG-ROI-HDMI input with the region of interest output via SDI. Simple controls and connectivity for the OG-ROI-HDMI can be used to create sophisticated and complex video wall presentations.

    OG-ROI-DVI accepts 2-channel analog audio from 2x 3-pin terminal blocks connectors. The audio source can be selected in the DashBoard software and is embedded into the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.

    • Features:

      • Scan Converter
      • DVI input with loop through
      • 3G-SDI output
      • Supports SD, HD, and 3G formats (see Tech Specs for complete list)
      • Region of Interest scaling
      • Up, down, cross-conversion
      • Aspect ratio conversion
      • Frame rate conversion
      • Image H/V flip and 90 degree rotation
      • Supports 8 channels of embedded audio
      • 2-channel embedding of balanced analog audio inputs or 2-channel or 8-channel of HDMI audio, when using a HDMI to DVI adaptor (2x 3-Pin Terminal Block connectors included)
      • Sync reference selection (External, openGear frame, or Free-run)
      • Remote control over Ethernet using DashBoard network control software
      • Hot-swappable
      • Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames

    • Specifications:

      • Video Input Formats
      • Computer Signals:
      • WUXGA (1920 x 1200) 60 Hz max
      • VGA (640 x 480) minimum
      • Video Signals:
      • (HD) 1920 x 1080i 50, 59.94
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1280 x 720p 50, 59.94, 60
      • (SD) 625i, 525i
      • (SD) 580p, 480p
      • Note: Frame rates limited by the 166 mHz max pixel rate of the DVI receiver.

        Video Output Formats
      • (HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080i 50, 59.94, 60
      • (HD) 1280 x 720p 50, 59.94, 60
      • (SD) 625i 25
      • (SD) 525i 29.97

        Color Range
      • Full
      • SMPTE

        Reference Source
      • Free Run
      • Card Ext Ref
      • OG Frame Ref 1
      • OG Frame Ref 2

        Reference Input
      • Supported reference video inputs include:
      • 1080i tri-level sync
      • 1080p tri-level sync
      • 720p tri-level sync
      • 625i Color Black
      • 525i Color Black
      • 75 ohm terminating

        Video Input
      • 1x DVI input connector (with embedded audio, up to 8-channels)

        Video Outputs
      • DVI
      • 1x HDMI loop through connector (with embedded audio, up to 8-channels)
      • SDI
      • 3G-SDI, SMPTE-259/292/424, 1x BNC

        Audio Inputs
      • 2-channel balanced analog audio inputs, 2x 3-pin terminal blocks connectors

        Audio Output
      • SDI embedded audio, 24-bit, 2-channel or 8-channel

        User Interface
      • openGear DashBoard network control software via Windows, macOS or Linux

    • Warranty:

      • 5 Year Warranty

    • GTIN:

      0812321032093
