StarTech DVI2VGAE DVI-D to VGA Active Adaptor Converter Cable

ITEM #: ST-DVI2VGAE MFG #: DVI2VGAE

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$38.99

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    DVI2VGAE - Overview

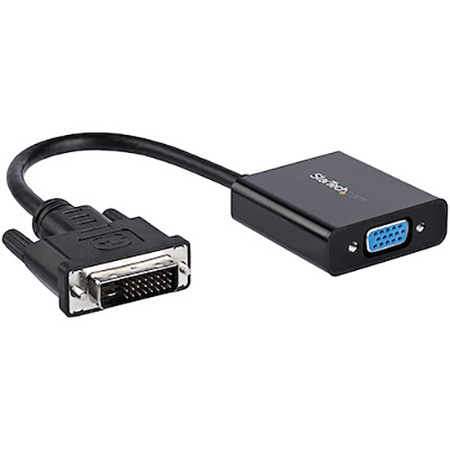

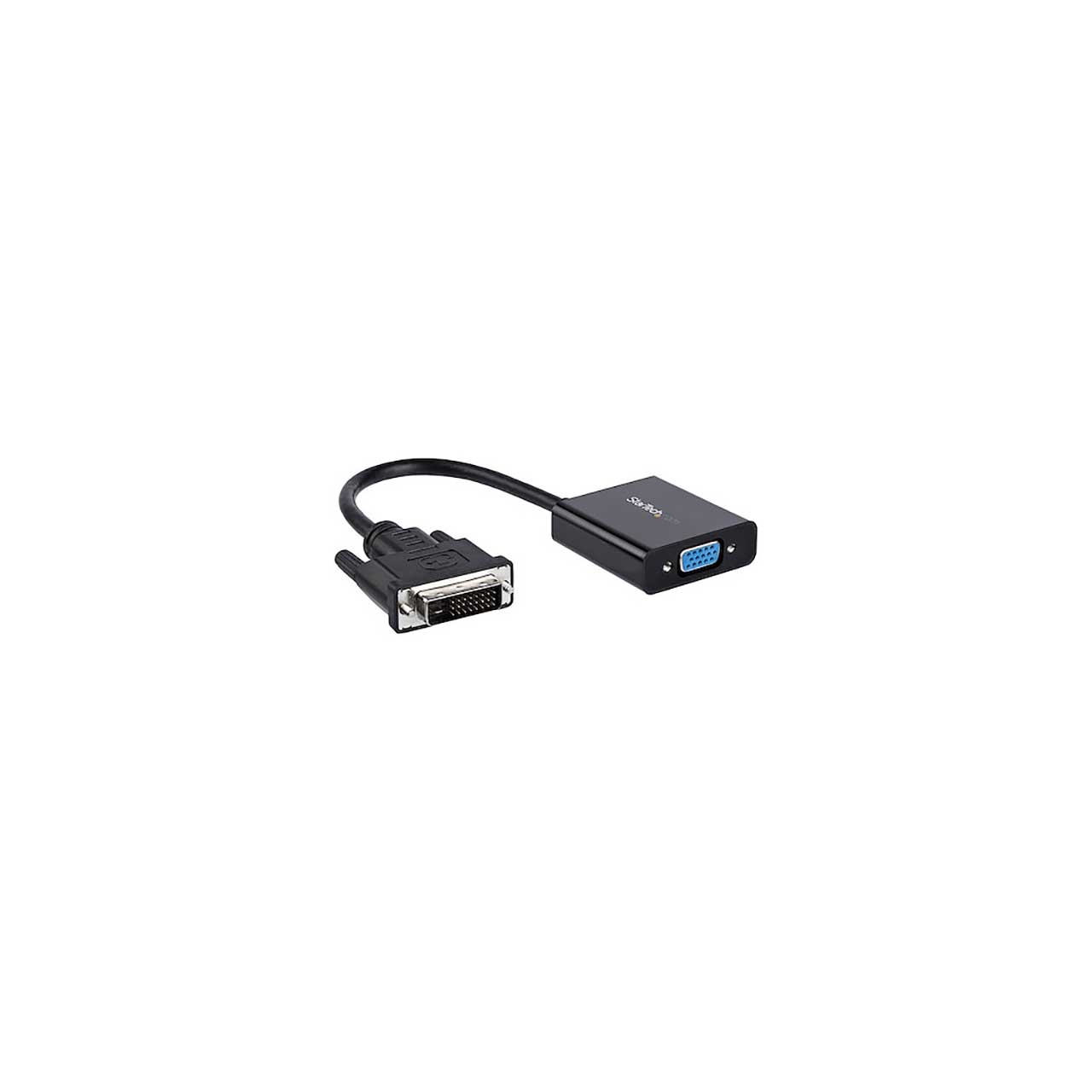

    The StarTech DVI2VGAE active DVI-D to VGA adapter lets you connect a digital DVI output from your desktop or laptop computer onto a VGA monitor or projector, saving the cost of upgrading to a DVI-D compatible display.

    Providing a simple way to output user-generated content such as presentations and work documents, the DVI-D to VGA converter can also work to increase your productivity by extending your computer's desktop onto to a secondary monitor, doubling available workspace.

    This portable adapter works to convert a standard powered DVI bus to VGA, without an external power source. For low-powered DVI ports, a USB cable is included that can power the device from any USB power source.

    With support for resolutions up to 1080p (WUXGA), this active adapter offers a comprehensive solution for connecting a High-Definition VGA display to a DVI-D video source.

    Applications:
    Connect digital DVI-enabled devices, such as your laptop or desktop computer, to a VGA projector or display

    The DVI2VGAE DVI-D to VGA Adapter is backed by a StarTech 3-year warranty and free lifetime technical support.

    • Features:

      • Maximum resolution of 1080p
      • No external power adapter required

    • Specifications:

      • Connector Type(s): USB Micro-B (5 pin), 1 - Connector A - USB Micro-B (5 pin) DVI-D (25 pin), 1 - Connector B - VGA (15 pin, High Density D-Sub)
      • Operating Temperature: 0°C to 60°C (32°F to 140°F)
      • Humidity: 40%-85%RH
      • Active or Passive Adapter: Active
      • AV Output: VGA
      • AV Input: DVI-D
      • Audio: No
      • Shipping (Package) Weight: 2.6 oz [73.4 g]
      • Package Length: 3.5 in [88.0 mm]
      • Package Width: 7.9 in [20.0 cm]
      • Package Height: 0.7 in [18.0 mm]
      • Maximum Analog Resolutions: 1920x1200
      • Wide Screen Supported: Yes
      • MTBF: 1,654,172 hours
      • Weight of Product: 2.7 oz [77.1 g]
      • Color: Black
      • Cable Length: 7.5 in [19 cm]
      • Product Length: 9.8 in [24.8 cm]
      • Product Width: 1.8 in [45.0 mm]
      • Product Height: 0.6 in [15.0 mm]
      • Power Consumption (In Watts): 1.3

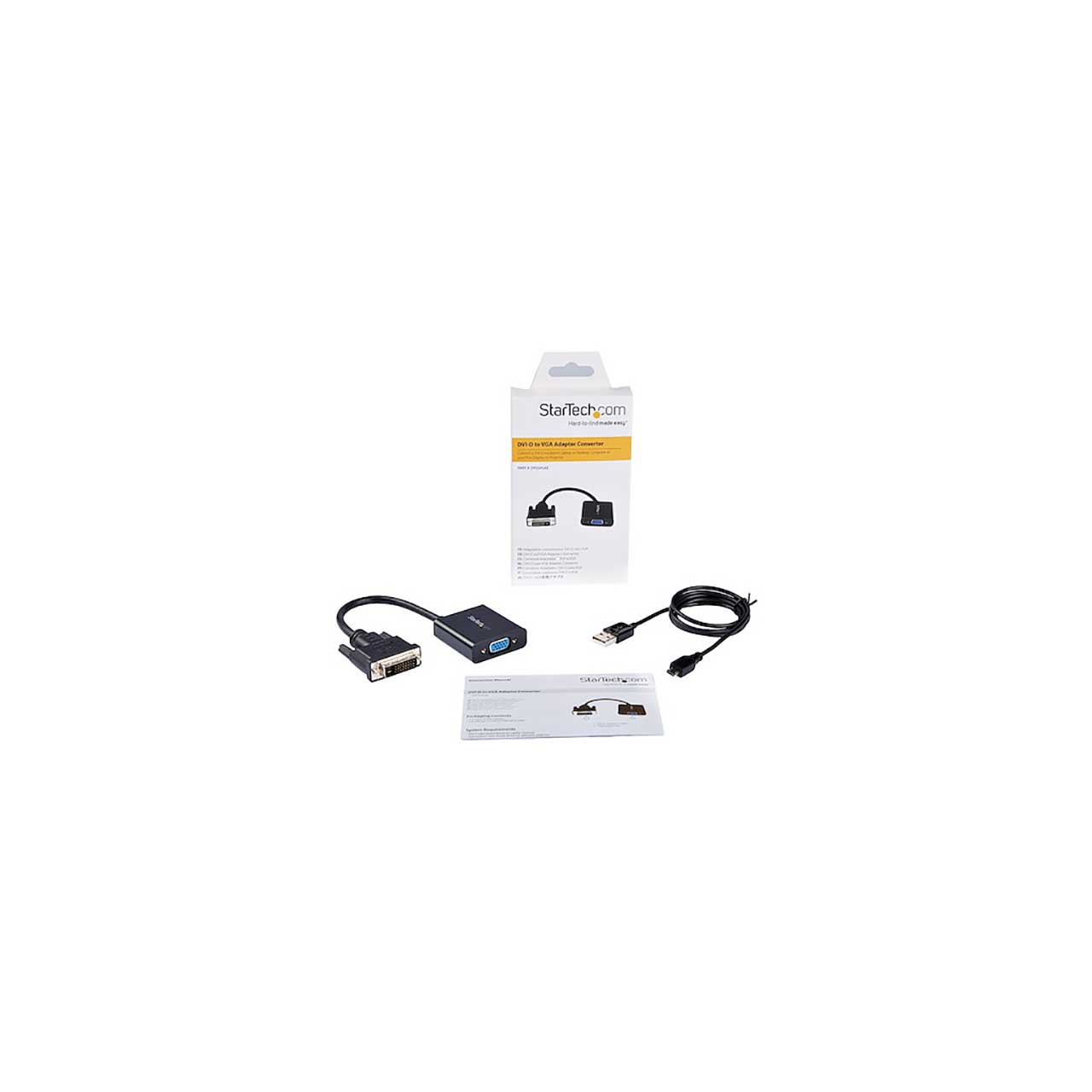

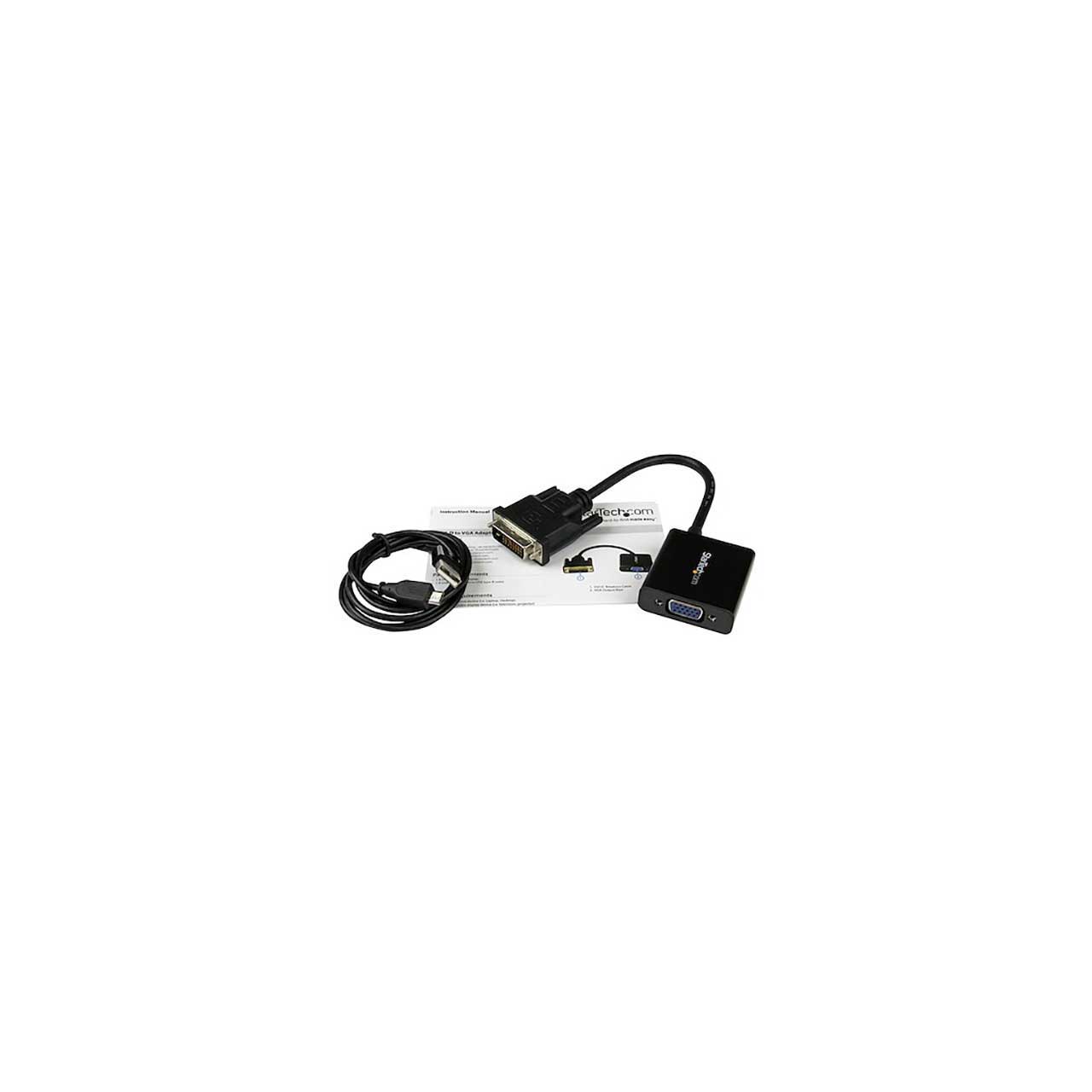

    • Item Includes:

      • 1x DVI-D to VGA Adapter Converter
      • 1x 24 in. [610 mm] USB type A to Micro USB type B Cable

    • Warranty:

      • 3 Years

    • GTIN:

      0065030850834
