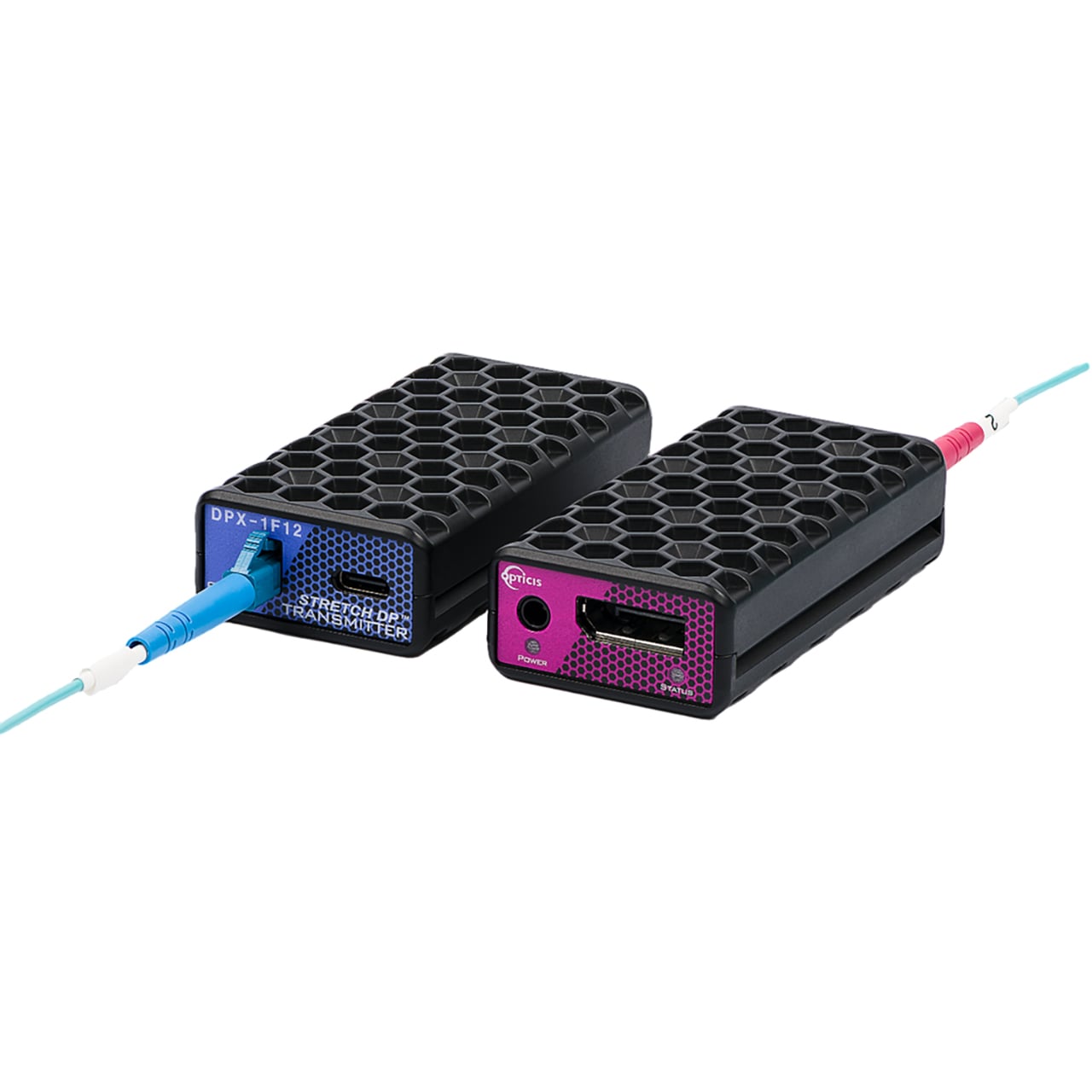

Opticis DPX-1F12-TR 4K DisplayPort 1.2 Optical Extender with Transmitter and Receiver - Extends 984ft over One LC MM OM3

DPX-1F12-TR - Overview

Meets DisplayPort 1.2 Standards and Transmits Uncompressed and Transparent Video Signals in 4K at 60Hz!

• Features:

  • TAA Compliant
  • Extends up to 4K (4096x2160) at 60Hz
  • Supports DisplayPort 1.2 standards for seamless high-definition audio and video

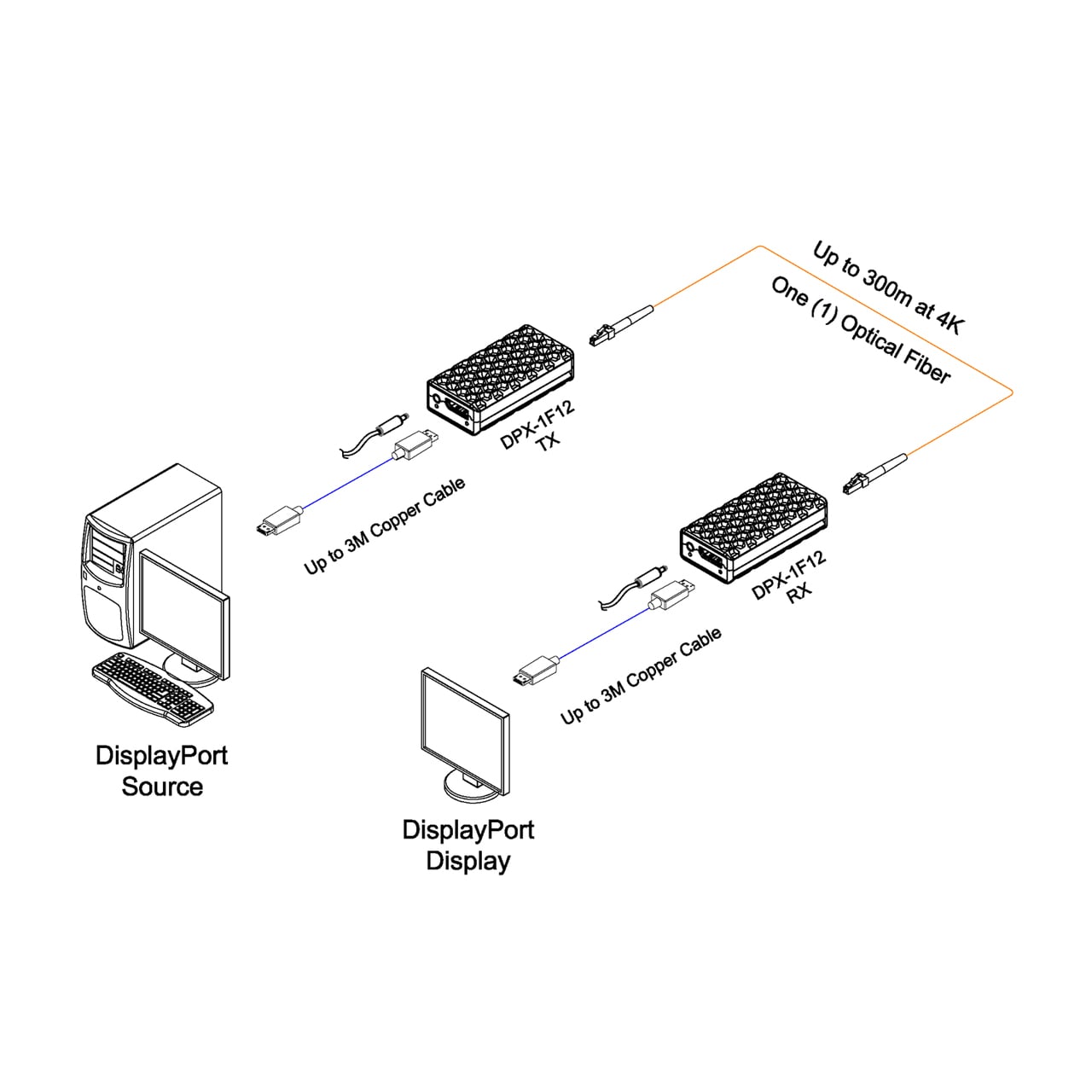

  • Transmits data up to 984ft (300m) over one 1x LC multimode fiber (OM3)
  • Extra copper extension available up to 9.84ft (3m) on each side (TX/RX)
  • Supports MST (Multi-Stream Transport)
  • Data security with negligible EMI emission
  • Diagnosis Link Manager (GUI program) will be provided to manage firmware upgrades
  • Compatible with Power Rack (BR-600), supports up to 8 units of Opticis diagnosis extenders, and offers a one-step feature at a one-time
  • Diagnosis features can check the status of products and manage them from a long distance
  • Firmware upgradable via USB Type C port
  • Certifies FCC and CE standards for EMI/RFI emission


• Specifications:

  • Resolution: Up to 4K (4096x2160) at 60Hz
  • Bit Rate: Total 21.6Gbps (5.4Gbps/lane)
  • Maximum Distance: Up to 984ft (300m)
  • Fiber Type: 1x LC multimode fiber (OM3)
  • Power Supplying: External DC power 5V/1A
  • Power Consumption: < 2.5W
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Operating Humidity: 10% - 85% RH (non-condensing)
  • Dimensions (LxWxH): 1.53" x 2.99" x 0.78" (39mm x 76mm x 20mm)
  • Weight: 1.94lbs (.87kg)


• Item Includes:

  • 1x Transmitter
  • 1x Receiver
  • 2x 6.56ft (2m) Male to Male DisplayPort copper cable
  • 2x 5V 1A power adapter
  • 1x User Manual


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0008101195922
