DisplayPort 1.4 pure optical extender, the Opticis DPC-MP14-TR enables transmision of up to 8K DSC(7680x4320) at 60Hz. It supports a maximum total bandwidth of 32.4Gbps with 8.1Gbps per lane. Through transmitting high bandwidth data, it can support 5K resolution up to 60Hz and even 4K at up to 144Hz. With transmission of DisplayPort 1.4 signal over MPO cable(OM3), it ensures reliable signal processing and exceptional quality without any latency.

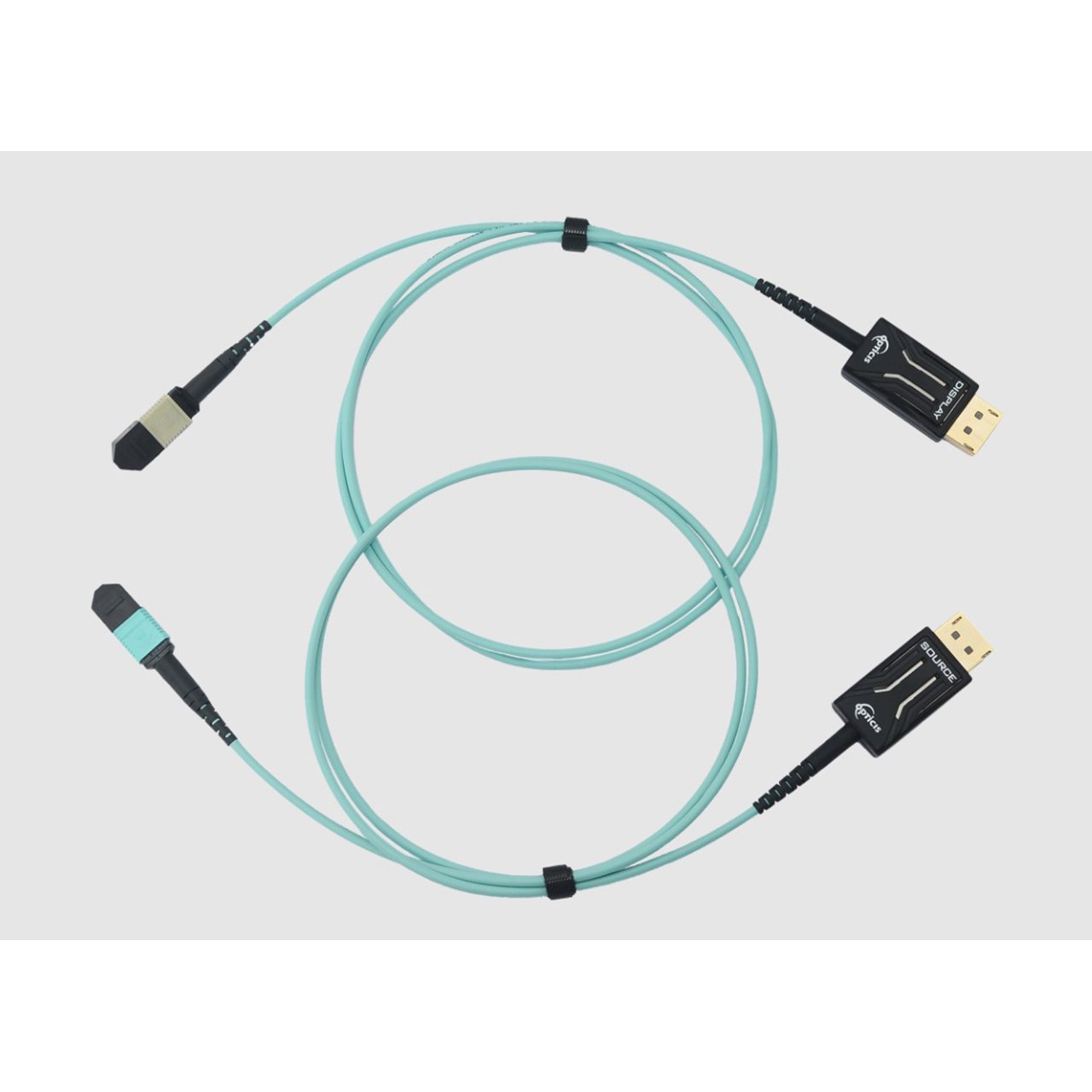

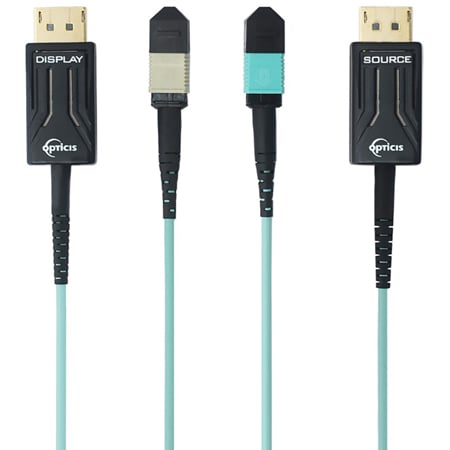

The DPC-MP14-TR is designed with a detachable pigtail type for easy connection to equipment through its DisplayPort end, while the other end can be conveniently linked with an MPO cable. To avoid confusion in the installation environment, the DPC-MP14 applies different colors to the MPO connectors (TX-Aqua, RX-Beige). Furthermore, DPC-MP14-TR is designed to operate reliably across a wide range of temperature, providing stable performance in any environment.
With outstanding EMI (Electro Magnetic-Interference) and RFI (Radio Frequency Interference) characteristics, DPC-MP14-TR is designed for versatility across various fields.
