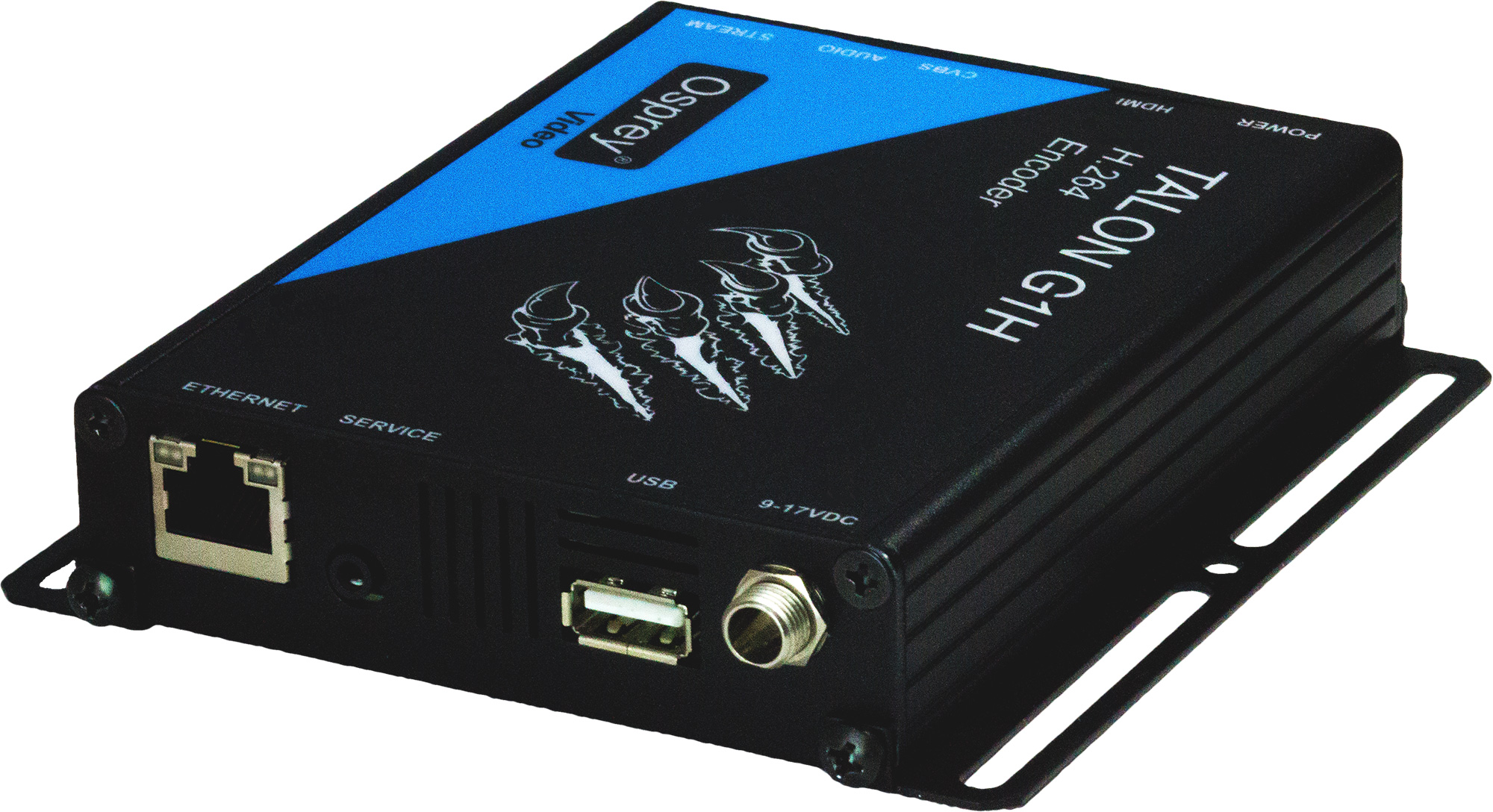

Osprey Talon G1 H.264 Video Streaming Encoder HDMI Composite Audio Input

ITEM #: OSP-TALONG1H MFG #: 96-02011

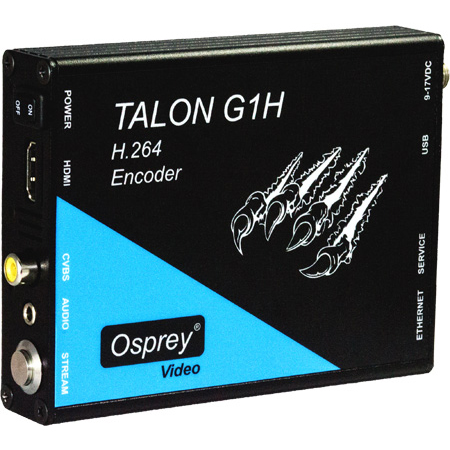

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OSP-TALONG1H

96-02011 - Overview

HDMI/CVBS inputs One Touch Encoding 2 Configuration Modes Closed Caption Support Simultaneous Streaming and Archiving. Talon's unique design allows the user to select from 2 distinct configuration modes to suit a wide range of projects.

  • Features:

    • One Touch Start - Front panel control for easy start/stop of encoding.
    • Closed Captioning (EIA-608) Type 1 ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard (Available in RTMP & UDP streams).
    • HTTP based configuration - Easily control encode settings with the user-friendly HTTP based interface. Quickly modify resolutions, frame-rates, and destination settings.
    • Professional Audio Options - Embedded HDMI: One stereo pair per input. Additional Unbalanced Stereo Pair available from front panel.
    • Mission Critical Encoding - Reliable Hardware Based Encoder, Silent Fan-less Operation, Low Power Consumption

  • Specifications:

    • Description: 2 channel Hardware Based Encoder
    • Software Control: HTTP-Based GUI
    • Ethernet Connector: 1 GigE x 1
    • Video Input: HDMI 1080P/60, Composite (CVBS)
    • Video Connector: Composite (RCA x 1), HDMI
    • Audio Input: Unbalanced stereo Embedded HDMI (1 stereo pair)
    • Audio Connector: Unbalanced stereo (3.5mm x 1)
    • USB Connector: USB Type A 2.0
    • Video Modes: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.95, 60; 1080i 50, 59.94, 60; 720p 23.98, 24, 25, 29.97, 50, 59.94, 60; 720 x 480 29.97, 30/i (NTSC); 720 x 576 25/i (PAL); 720 x 576 25, 50/p
    • Hardware controls: Power Switch, Stream Start/Stop button
    • Encoding: Video Encoding: H.264 RTMP, RTP, MPEG-2 TS UDP, .TS File; Audio Encoding: AAC-LC & AAC-HE (32 to 320 kbps)
    • Closed Caption: Closed Captioning (EIA-608) via CVBS input. Type 1 ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard
    • LED Indicators: Power; Encoding; Signal Lock for HDMI, Composite
    • Dimensions: 93.1mm X 120.2mm X 24.75mm (Chassis only. Does not include mounting brackets or connectors)
    • Weight: 260g
    • Power Consumption: 6W
    • Compliance: CE, FCC, ROHS, WEEE

  • Warranty:

    • 2 Years
