Optical Wavelength Labs FR-M6-150-SCSC Multimode Fiber Ring OTDR Launch Cable - 150 Meters

ITEM #: OWL-FR-M6-150-SC MFG #: FR-M6-150-SCSC

free ship

List Price:

$255.00

Our Price:

$238.00

Availability: More on the Way
iAvailability Description Popup


    FR-M6-150-SCSC - Overview

    Reflections caused by connector interfaces "blind" OTDRs for a short period of time. The period of time it takes for an OTDR to recover from this "blindness" is commonly referred to as a "dead-zone". During this dead-zone period, OTDRs are unable to distinguish one anomaly (e.g. breaks, shatters, bends, or even another connector) from another.

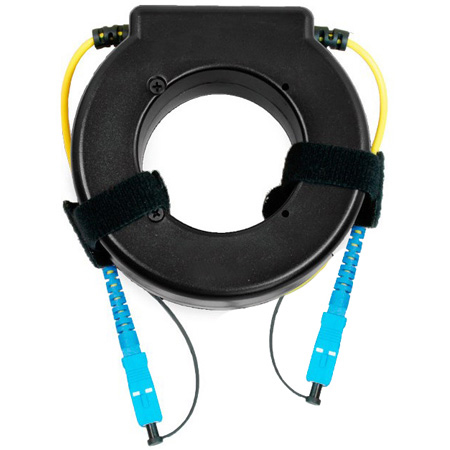

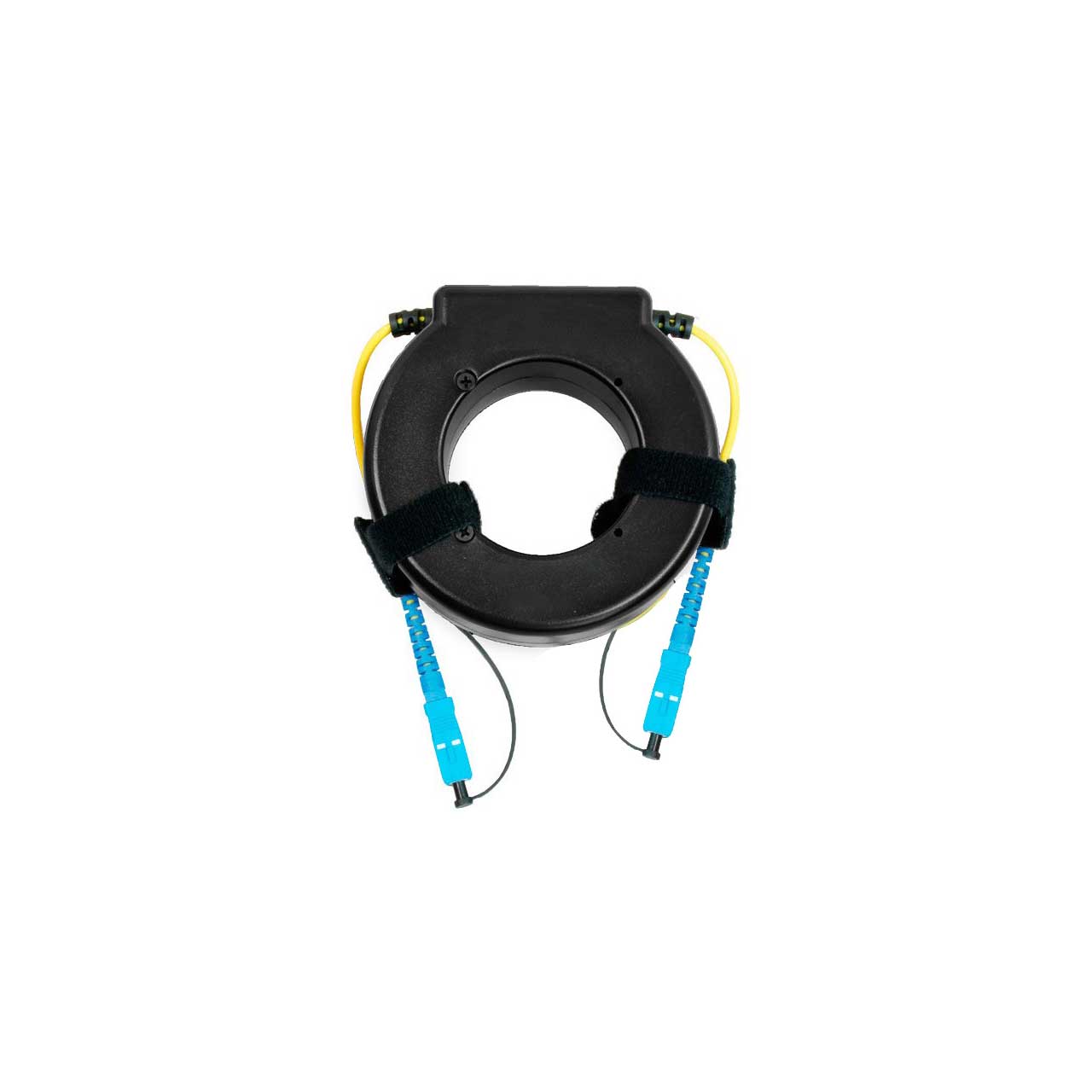

    Optical Wavelength Labs FR-M6-150-SCSC OTDR fiber ring, which is simply an extremely long patch cable, is placed at the near-end patch panel to allow the OTDRs detector port to recover from the OTDR port dead zone. Fiber rings also enable the OTDR to measure the relative loss through the near-end and far-end patch panels.

    Without a sufficiently long launch cable like fiber rings, the reflection from the near-end patch panel will be undetectable because it is within the dead-zone caused by the OTDR port. Likewise, at the far-end, lack of a dead-zone box will prevent the OTDR from measuring the relative loss through the far-end patch panel.
