P2P LC/UPC Singlemode Multicolor Pigtails - Non-Jacketed - Ceramic Ferrule - Fusion-Ready - 3.28 Foot - 12-Pack

ITEM #: P2P-PT12LCUSM-XM MFG #: P2P-PT12-LCU-SM-XM

Primary Image
Point 2 Point Communications
Free Shipping with $49 Minimum Order

List Price:

$29.99

Our Price:

$19.99

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

P2P-PT12-LCU-SM-XM - Overview

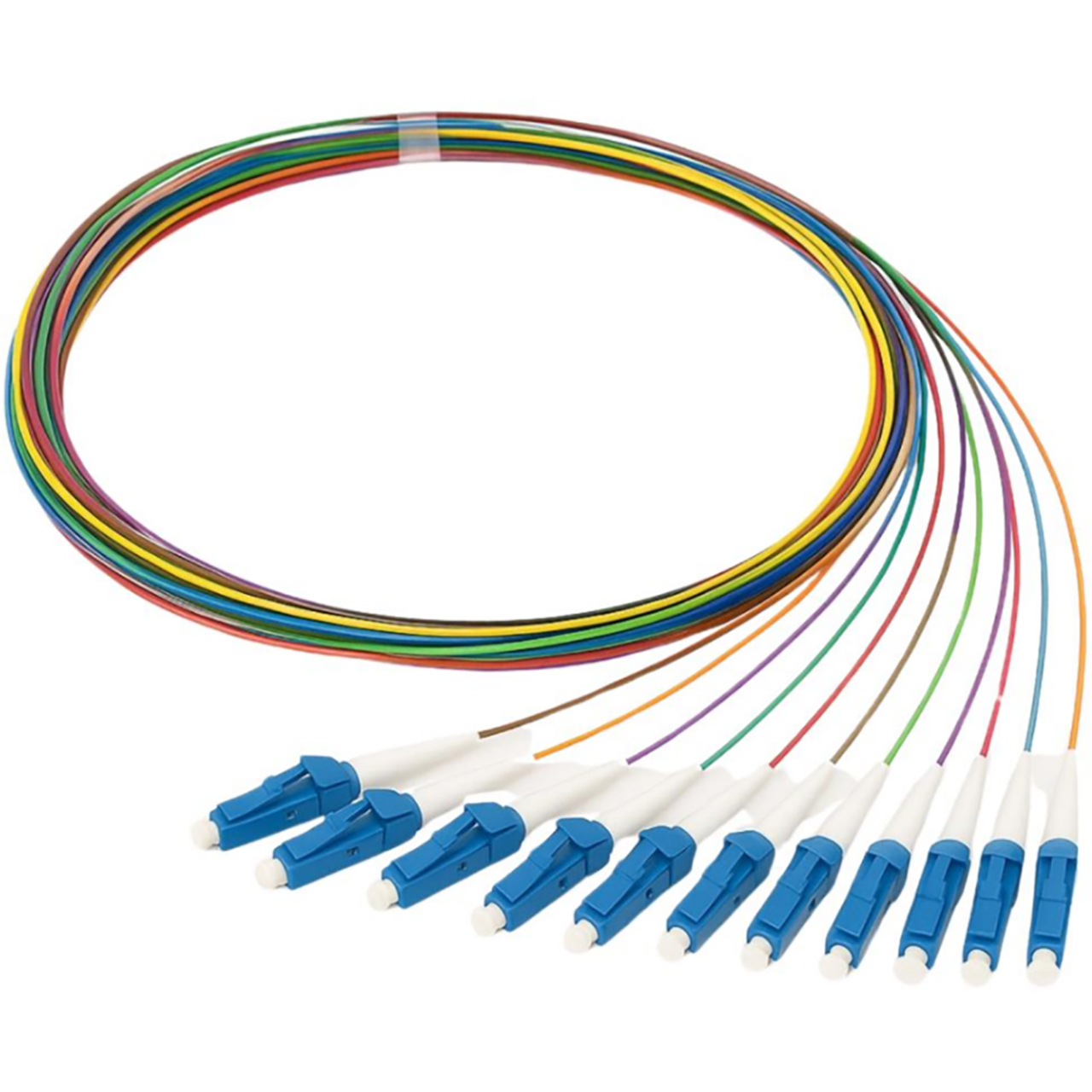

P2P P2P-PT12-LCU-SM-XM is a 12-pack of 3.28 Foot (1 meter) LC/UPC singlemode fiber optic pigtails in multicolor for easy fiber identification.

Designed for telecom, data center, and FTTH applications, each pigtail features a 0.9mm non-jacketed buffer, high-performance ceramic (zirconia) ferrule, and UPC polished LC connector. Engineered for precision fusion splicing, these pigtails are fully compatible with the P2P Camo Fusion Splicer and meet ISO9001 and RoHS compliance standards.

With low insertion loss and high return loss, they ensure minimal signal degradation, even in mission-critical environments. Ideal for fusion splicing in builds from 1 to 12 strands, this 12-pack supports scalable installations with clear color coding and professional-grade performance.

Compatible with P2P CAMOSPLICE-432 fusion splicer

  • Features:

    • Sold as a 12-pack for use across all strand counts
    • Pre-terminated LC/UPC connectors - ideal for fusion splicing
    • Fully compatible with P2P Camo Fusion Splicer
    • 12 distinct colors for fast strand identification
    • Ceramic zirconia ferrule for reliable core alignment
    • Low insertion loss (≤ 0.30 dB) for signal integrity
    • High return loss (≥ 55 dB) for minimal reflection
    • Non-jacketed 0.9mm fiber with minimal footprint
    • Operating temperature range: -4°F to 158°F (-20°C to +70°C)


  • Specifications:

    • Connector Type: LC Singlemode
    • Polishing: UPC
    • Fiber Count: 12
    • Length: 3.28 foot / 1 meter
    • Ferrule Material: Ceramic (Zirconia)
    • Operation Temperature Range: -4°F to 158°F (-20°C to +70°C)
    • Jacketing: Non-Jacketed
    • Outer Diameter (OD): 0.9mm
    • Return Loss: ≥ 55 dB
    • Insertion Loss: ≤ 0.30 dB
    • Jacket Material: OFNR
    • Color: Multicolor
    • Compliance: ISO9001, RoHS
    • Compatible Equipment: P2P Camo Fusion Splicer


  • Item Includes:

    • 1x P2P LC/UPC Singlemode Multicolor Pigtails - Non-Jacketed - Ceramic Ferrule - Fusion-Ready - 3.28 Foot - 12-Pack


  • Warranty:

    • 1 Year


  • GTIN:

    0743634044384
