PAG PAGlink PL96e 14.8V Intelligent Linking V-Mount Li-Ion Battery

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

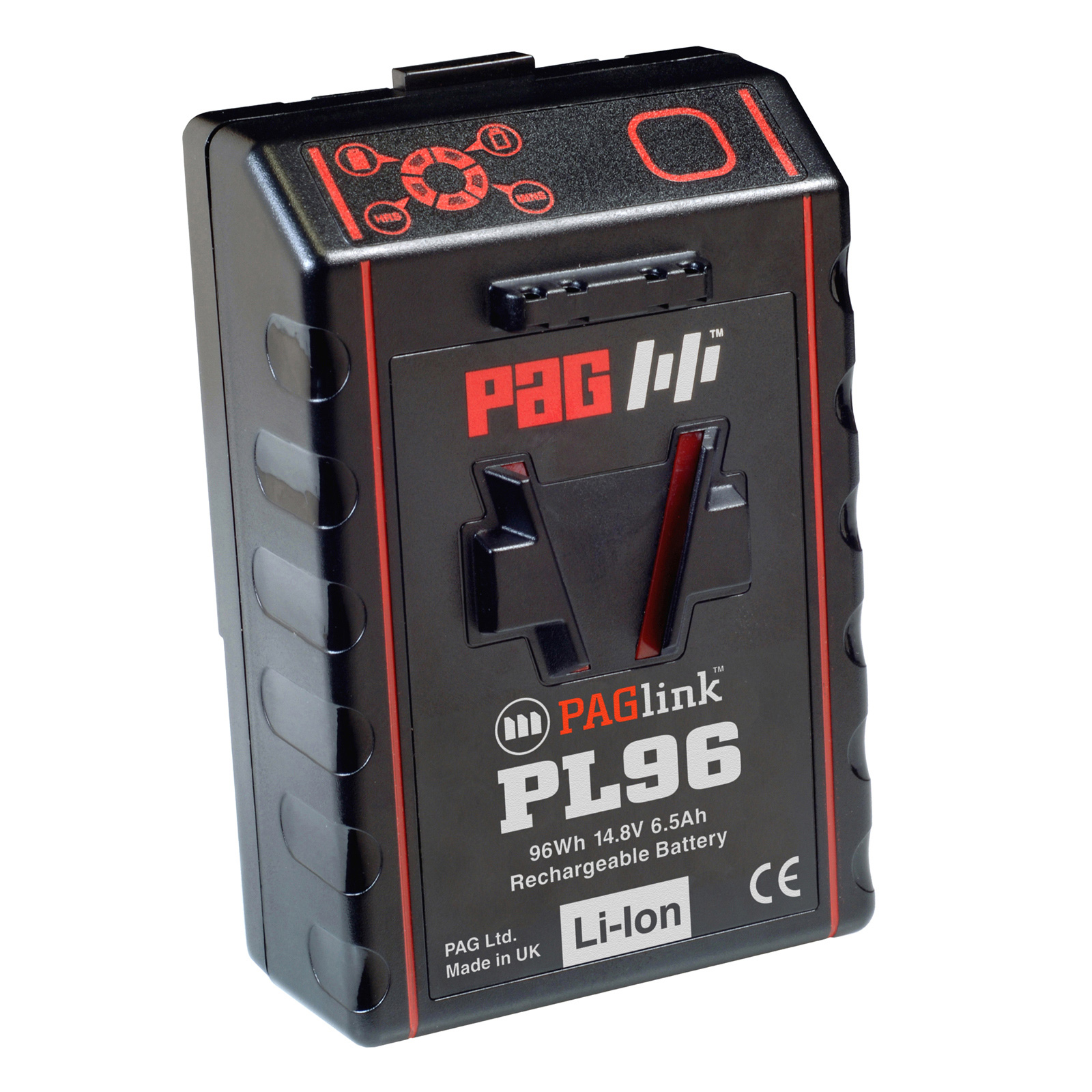

    PAG PAGlink PL96e 14.8V Intelligent Linking V-Mount Li-Ion Battery

    Item #: PAG-9303   •   MFG #: 9303



    List Price:$595.00
    Our Price:$536.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    • Item restricted to the Contiguous United States only.


    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

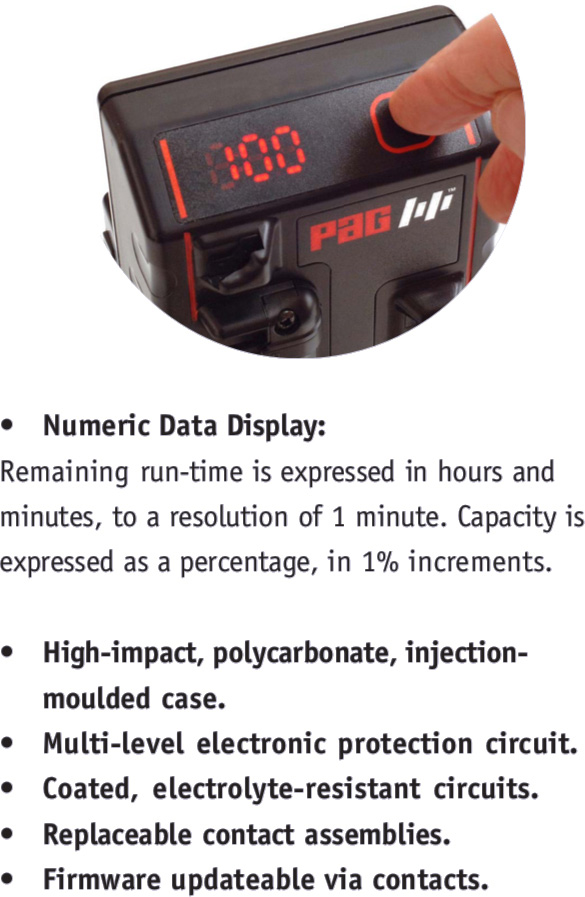

    The PAG PAGlink PL96e Intelligent Linking Battery has a capacity of 96 watt-hours, making it unrestricted in quantity for air transportation. Linking two doubles the capacity to 192Wh; three batteries provide 288Wh. No other system offers as much power. The PL96e incorporates a 5-light Run-time & Capacity indicator which shows remaining camera run-time in hours and minutes. When linked, run-time is displayed for the total of all batteries connected. Battery state-of-charge is displayed as a percentage, in 6 increments. The display maintains its accuracy by tracking the performance, and adjusting calibration values to compensate for the ageing of the cells. The PL96e can be linked to any other PAGlink V-Mount battery for charge or discharge, regardless of rated capacity or state-of-charge.

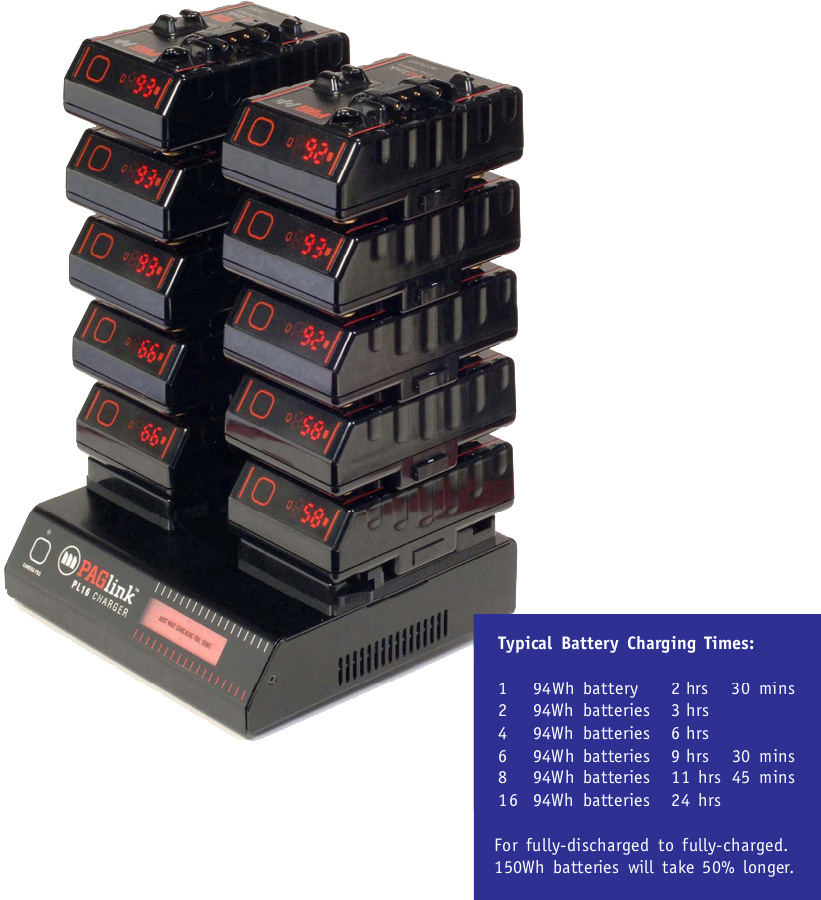

    PAGlink is the only system that allows you to link multiple batteries, in any state of charge. Up to 8 batteries can be linked for charge or discharge. Linking enables you to keep the camera running at vital moments, it allows capacities to be combined, greatly extending run-time, and provides a high-current draw of up to 12A, ideal for powering a camera and multiple accessories simultaneously. PAGlink batteries incorporate heavy duty contacts, engineered for high-load applications.

    Linked batteries form a network that enables them to communicate with each other, managing the output safely, and preventing the transfer of charge between batteries. Unlike other systems the linked batteries can be in any state of charge. PAGlink also allows batteries to be hot-swapped for continuous, uninterrupted power.

    As well as being more intelligent, PAGlink batteries are smaller and lighter, with a higher energy density than any V-Mount system marketed to date. PAGlink batteries feature long-life, premier-quality Li-Ion cells, which have no memory effect, and are completely recyclable. In keeping with PAG's total battery design philosophy they are constructed to provide the longest possible working life.

    PAGlink batteries support four different camera data systems that display capacity in the viewfinder: Sony, IDX, Red and Anton-Bauer. The battery recognizes the system's data protocol and adapts automatically when connected. The battery can be configured easily for compatibility with the Red camera data system by the user (see instruction booklet).

    The battery case is manufactured from high-impact, injection-moulded polycarbonate which is inherently very strong and also used for motorcycle crash helmets. The internal case design also protects the cell-pack against damaging impact.

    The PL96T has been tested to UN standards by an independent authority and certified to comply with air transport safety regulations. It has a capacity below 100 Watt-hours and is therefore suitable for air transport on passenger aircraft, in hand-luggage, without quantity restriction.

    PLEASE NOTE: Since this product is a Lithium Ion Battery and due to FAA regulation, this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.


    • Features

      • 96 Watt-hours, 14.8V 6.5Ah
      • Rechargeable V-Mount Li-Ion battery
      • Batteries in any state of charge can be linked to combine capacities (2 = 192Wh, 3 = 288Wh)
      • Current draw capability of 12A when linked (8A individually)
      • Hard-wearing, high-current contacts
      • Smaller and lighter with a higher energy density than any other V-Mount Li-Ion battery of equivalent capacity
      • Auto-compatible with multiple camera data systems and in-viewfinder capacity displays (Sony, Red, etc)
      • 5-light Run-Time & Capacity Indicator
      • Batteries can be charged while linked
      • Charges on PAGlink, PAG V-Mount or Sony V-Mount Li-Ion chargers
      • Reveals status and usage data stored in microprocessor, for easier battery management
      • Battery software can be updated externally
      • UN tested by independent authority for air transport
      • 3 year guarantee with no restrictive conditions
      • 133 x 84 x 50mm / 0.73kg

    • Specifications

      • Cells: Premium-grade rechargeable Lithium-Ion
      • Capacity: 96 Watt-hours (6.5 Ampere-hours)
      • Voltage: 14.8V nominal
      • Output Current: Rated maximum continuous 8 Amperes (12 Amperes for two or more linked batteries)
      • Run-Time & Capacity Display: 5-light indicator that shows a run-time prediction, on-load, using a combination of lit segments
      • Capacity/state of charge is indicated as a percentage (in approximately 20% segments)
      • Protection: multi-layered electronic protection system that guards against over-current, over-voltage, under-voltage, over-temperature and under-temperature
      • The circuit is conformally-coated to ensure operation of the safety systems in the event of severe damage to the battery
      • Temperature Range: Charging: +32°F to +113°F (Optimum +50°F to +104°F)
      • Discharging: -4°F to +122°F (Optimum +50°F to +104°F)
      • Storage: +14°F to +104°F (Optimum +32°F to +68°F).

    • Warranty

      • 3 years with no restrictive conditions
