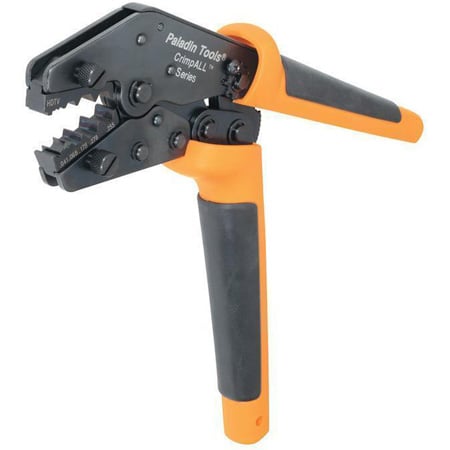

Paladin PA8049 Universal HDTV CrimpALL Crimp Tool with 2699 Die for Popular Belden Coax & Amphenol BNC

ITEM #: PAL-8049 MFG #: PA8049

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$95.84

Availability: In Stock
iAvailability Description Popup


    PA8049 - Overview

    The Paladin / Paladin PA8049 CrimpALL was designed with user satisfaction in mind and work with the most common BNC and coaxial cable brands. This world-class crimp tool is designed for superior confort and ease of use. It is an exceptional value and uses the same die sets as our 1300 Series crimpers.

    The 8049 Crimps true 75 ohm HDTV BNC/TNC coaxial connectorsCoax Type: Belden 1855A, 1865A, 1505A, 1505F, 1694A, 1694FCrimp Size: .278/.255/.178/.041 HEXConnector Brands: Kings, ADC, B&L, Trompeter, Amphenol, Switchcraft

    • Features:

      • Ulra-smooth, fully ratcheting crimp cycle with built-in safety release
      • Interchangeable die sets of heat-treated steel for long life
      • Soft, rubber-embedded handles
      • Long lasting tool that delivers over 50,000 crimp cycles
      • Rugged, double-plated jaw design to increase life span 10-year warranty
      • Angled head to prevent awkward wrist bending during operation
      • Reduced handle grip distance makes it easy for both small and large hands
      • Higher crimp force produced with less hand force so hand doesn't tire as quickly
      • No breakover hand-force -the effort required by most crimpers to make the last click at the end of the cycle to complete the crimp- the CrimpALL does the work!
      • Manufactured using the newest fine blanking technologies
      • EZI-Change die screws make changing die quick and easy -no screwdriver required

    • Specifications:

      • Cable Type: Belden 1855A, 1865A, 1505A, 1505F, 1694A, 1694F, 179DT
      • Crimping Range: 0.178" (4.500 MM), 0.255" (6.500 MM), 0.278" (7.000 MM), 0.068" (1.700 MM), 0.041" (1.000) Hex
      • BNC Connectors: AMPH-112957-11, AMPH-112951-11, AMPH-112955-11

    • GTIN:

      0769328112375
