Panasonic is Creating the Future of Video Production with More Flexibility. More Precision. And More True to You.

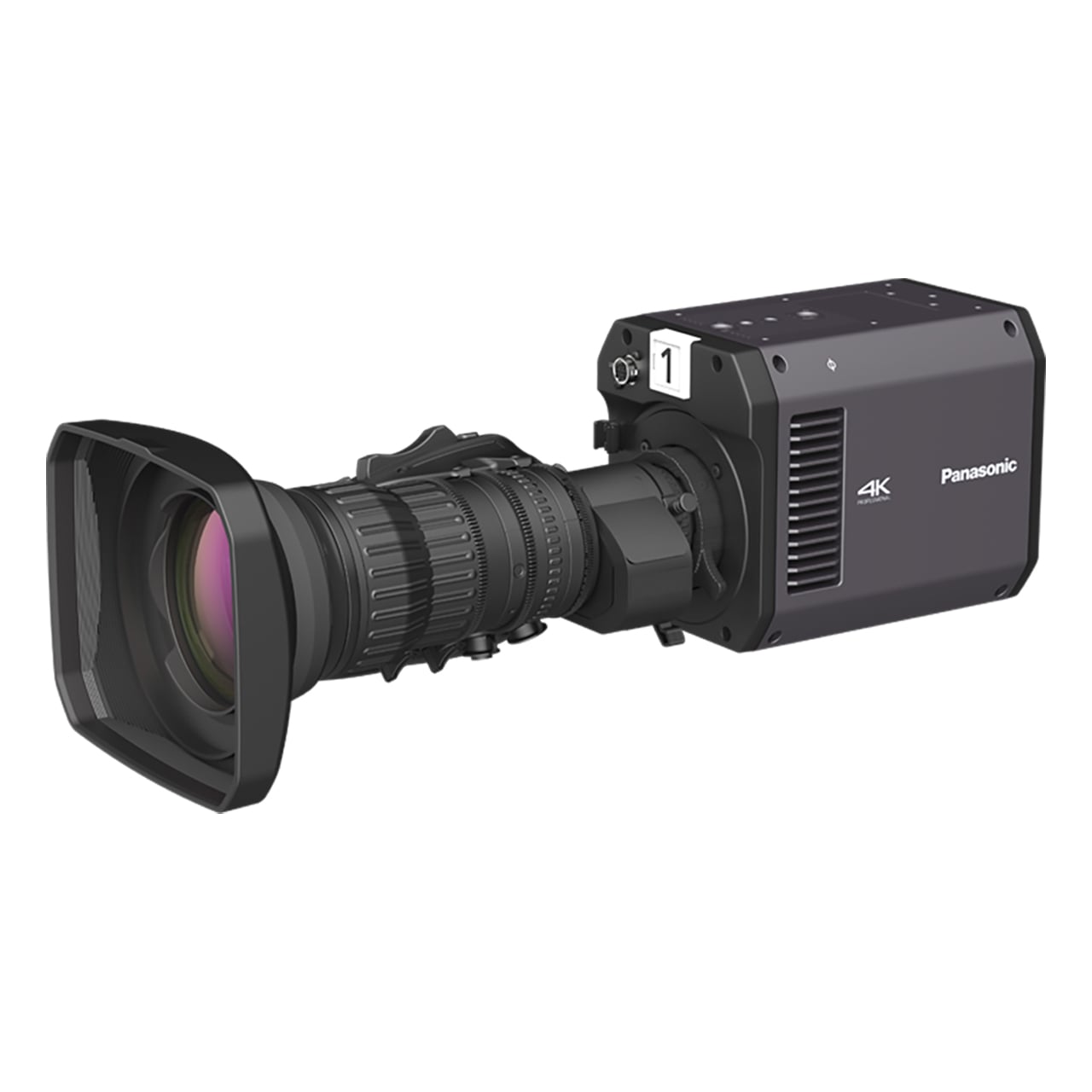

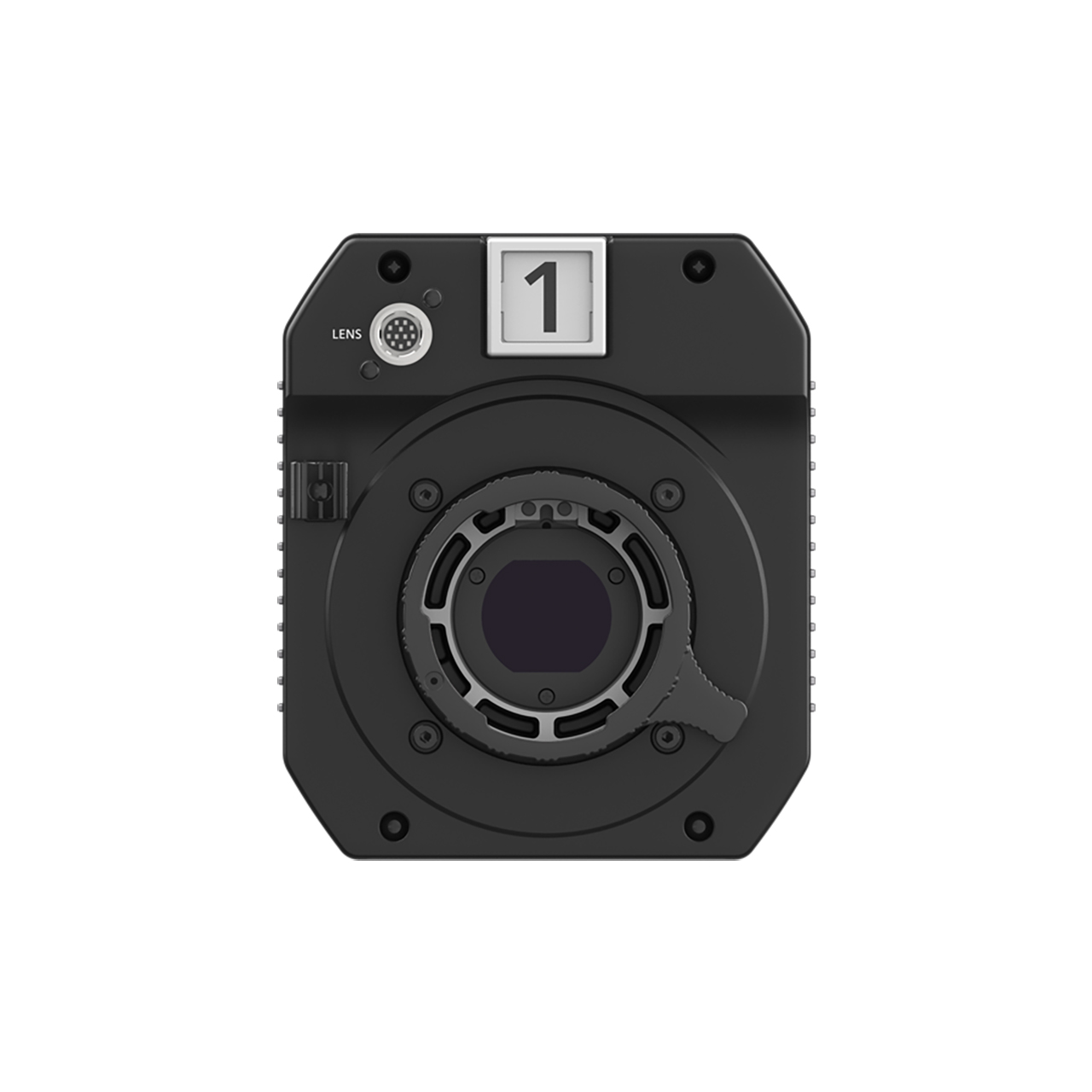

The Panasonic AK-UBX100 is a box-style 4K multipurpose camera with a 2/3 bayonet lens mount, designed for high-quality shooting not only in studio production and sports broadcasting, but also in live event stage performances.
By simplifying color matching with the AK-UCX100 4K studio camera and the AW-UE160 4K PTZ camera, as well as the cross-device operation processes, the AK-UBX100 is expected to deliver smoother, more efficient video production.
Furthermore, by supporting the AF functionality, the AK-UBX100 enhances both image quality and operability in remote productions, contributing to the realization of a more ideal remote production environment.
Seamless Integration Enabled Through a Unified Platform
The AK-UBX100 utilizes the same platform and shared menu interface as the AK-UCX100. This eliminates the complexity of color matching, which has been a challenge in across different devices.

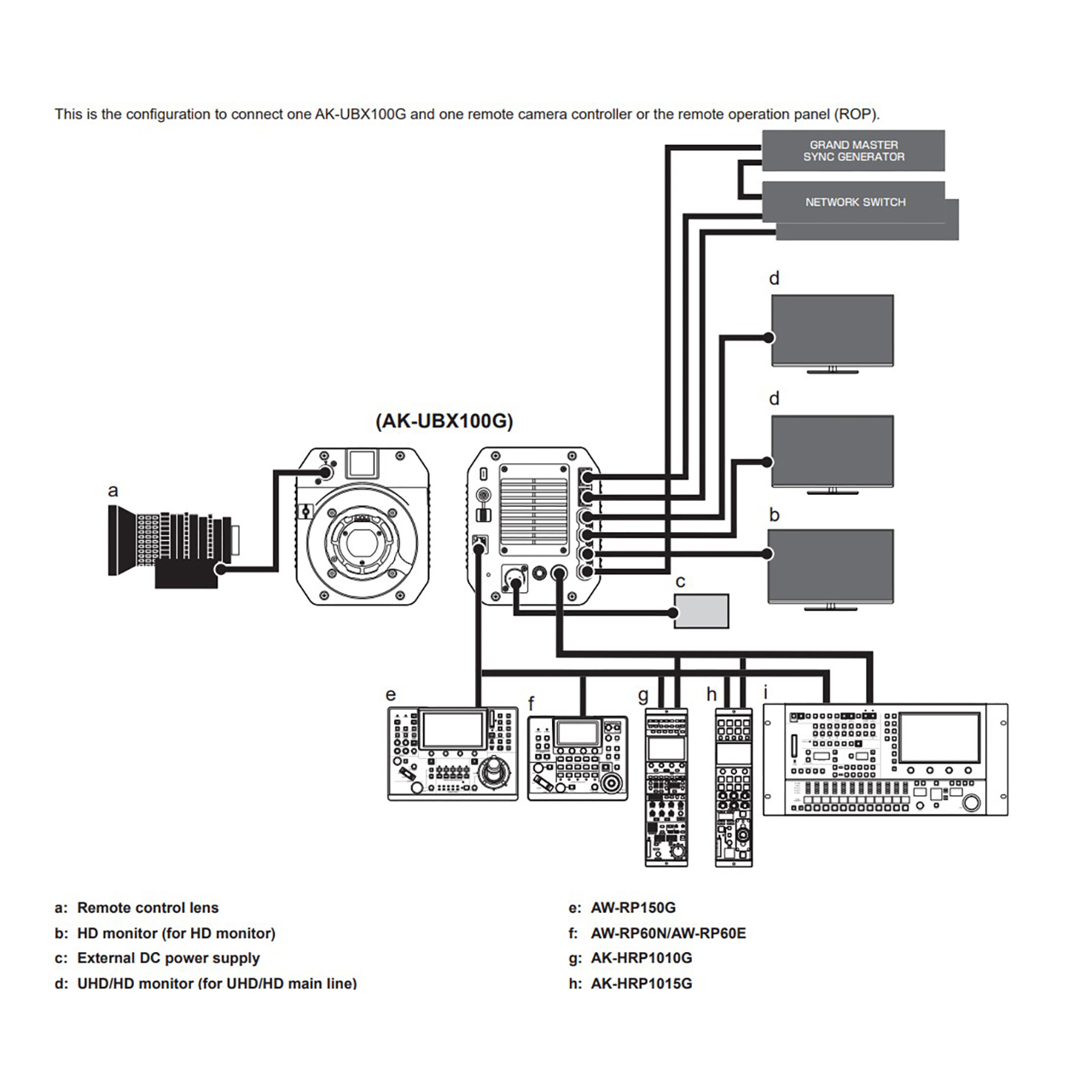

The AK-UBX100 connects directly to the same Remote Operation Panel (ROP) used with the AK-UCX100 and AW-UE160. Since button layouts and menu structures are standardized, operators can switch between models without confusion. Even in production environments where multiple camera systems are mixed, smooth and efficient operation is ensured.
Focus Function That Supports High-Level Shooting
With PDAF (phase detection autofocus), the camera can quickly and reliably focus on subjects regardless of the lens type being used or the operator's level of experience. stages, allowing skilled operators to seamlessly switch to manual fine-tuning whenever necessary. This ensures precise framing while maintaining creative control.
Ultra-Lightweight, Flat Design
With its lightweight and compact design, the camera reduces the need for counterweights even when mounted on gimbals or the tips of cranes. This design also broadens the range of options for lenses, rotators, and other accessories.
The flat-surface design on all four sides, combined with 1/4-inch screw holes, allows the body to be securely mounted on tripods, gimbals, ceiling rigs, or cranes without the need for tools. Simply plugging and unplugging cables makes it possible to quickly change orientation or installation location, enabling smooth integration with robotic heads.

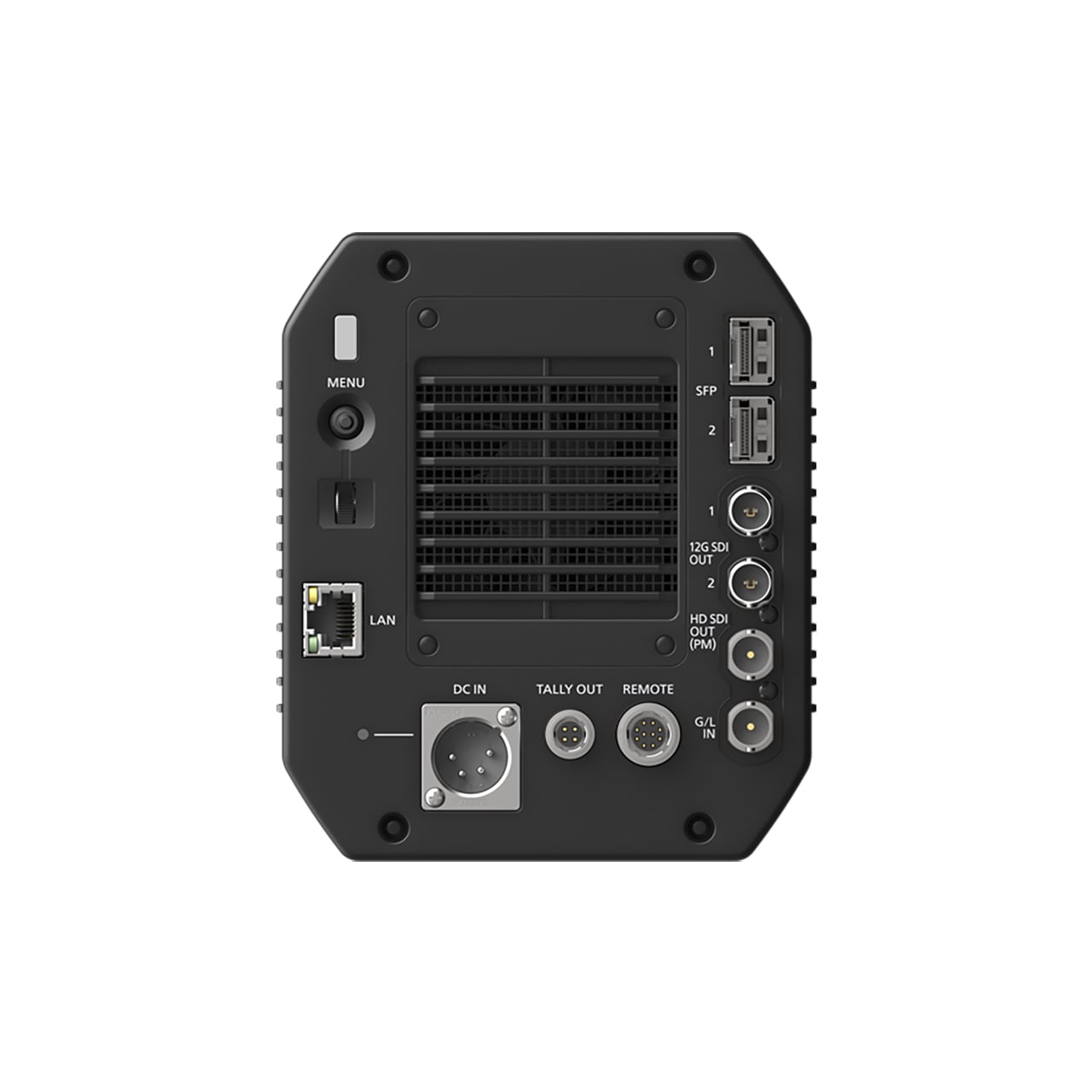

The AK-UBX100 is standard equipped with two SFP+/28 slots and two 12G SDI outputs. A/B redundant 4K A/B routes can be secured on both optical/IP and baseband lines.
Please Note: Image above is for illustration only - lens sold separately
