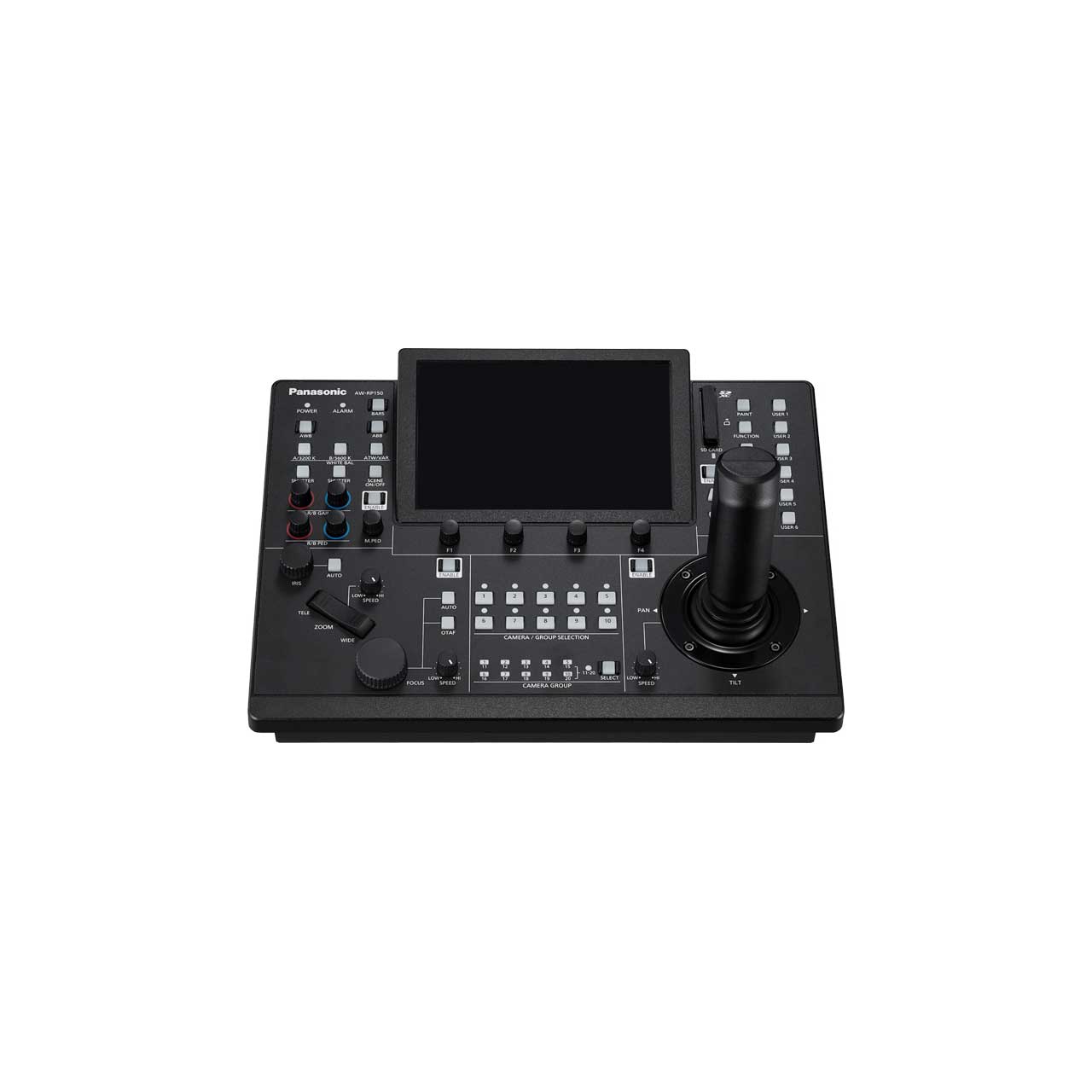

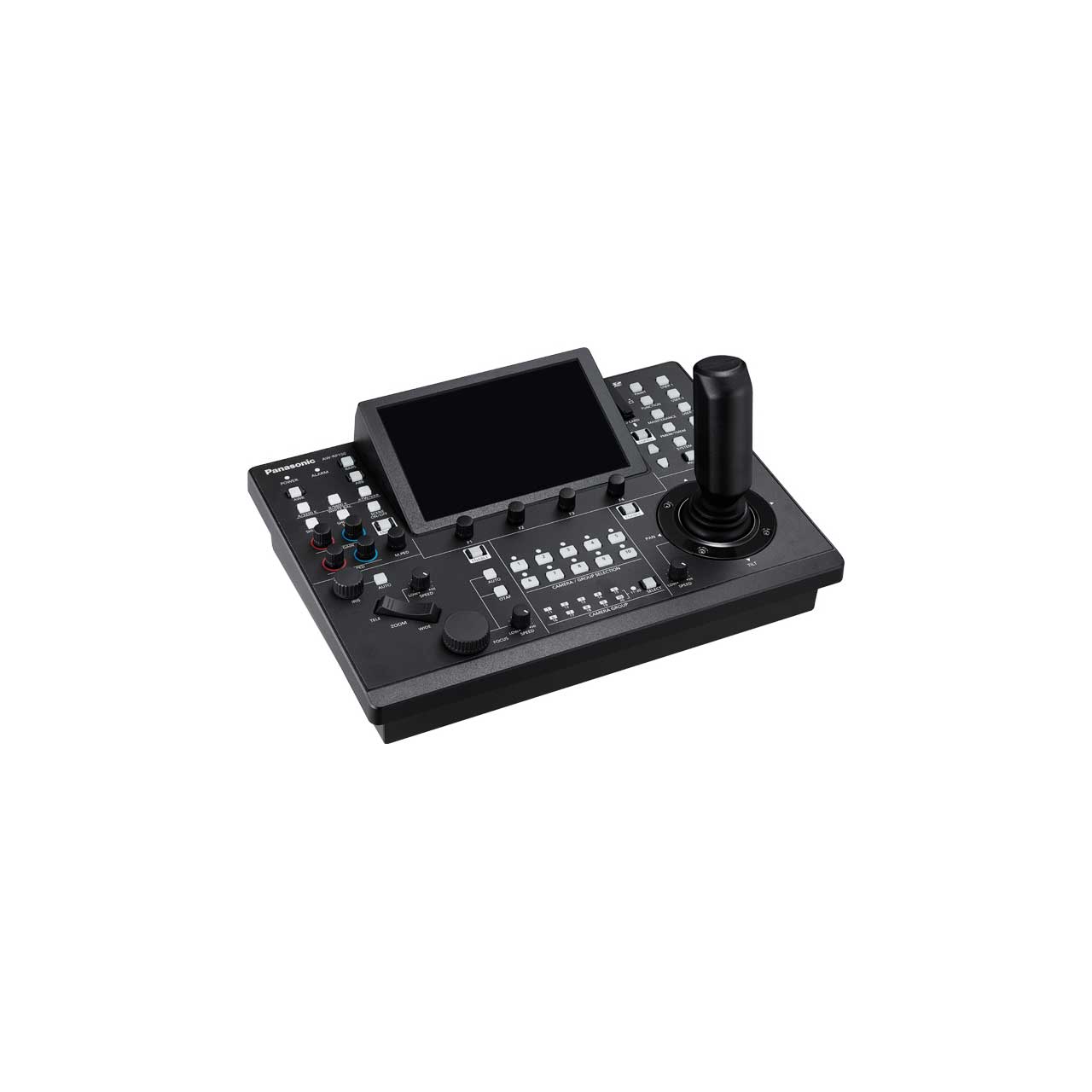

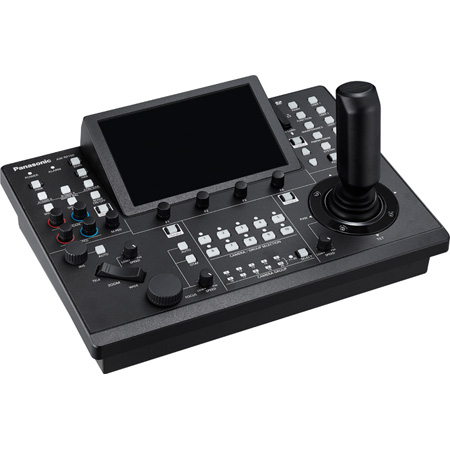

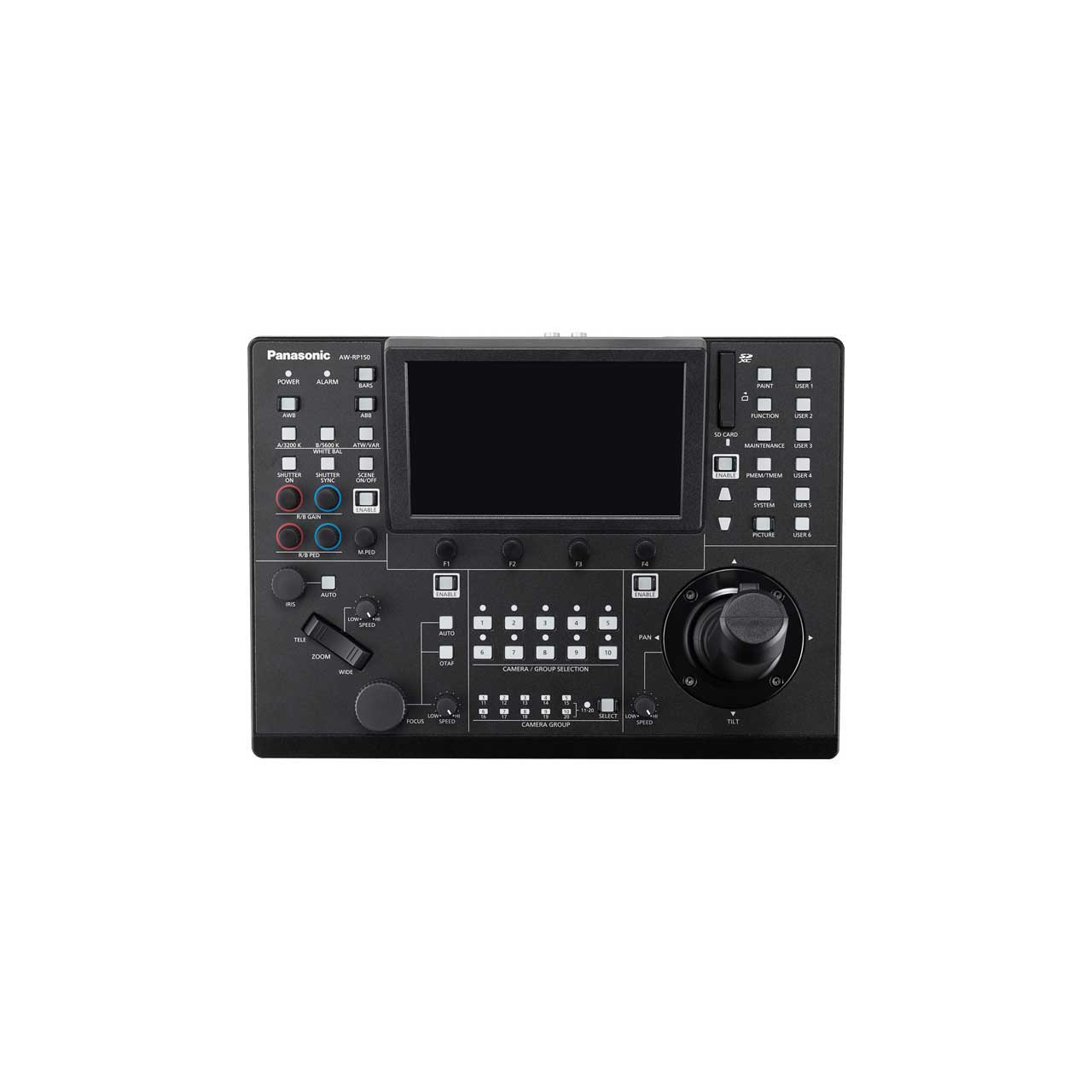

Panasonic AW-RP150GJ Panasonic Remote Camera Controller with 7 Inch Touchscreen
  • Panasonic AW-RP150GJ Panasonic Remote Camera Controller with 7 Inch Touchscreen
  • Panasonic AW-RP150GJ Panasonic Remote Camera Controller with 7 Inch Touchscreen
  • Panasonic AW-RP150GJ Panasonic Remote Camera Controller with 7 Inch Touchscreen

Questions? Ask a Markertek Expert:
800-522-2025 Email

Panasonic AW-RP150GJ Panasonic Remote Camera Controller with 7 Inch Touchscreen

Manufacturer: Panasonic

Item #: PAN-AW-RP150GJ   •   MFG #: AWRP150




Our Price:$5,000.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Panasonic AW-RP150 will be the newest remote camera controller to compliment Panasonic's comprehensive professional PTZ camera lineup. It has the same great functionality of the AW-RP120 and AW-RP50, and joins the lineup with significant improvements over those models, including a new one-hand operation joystick (controlling PTZ or Focus) and a large touch-panel LCD screen for monitoring and menu setting.

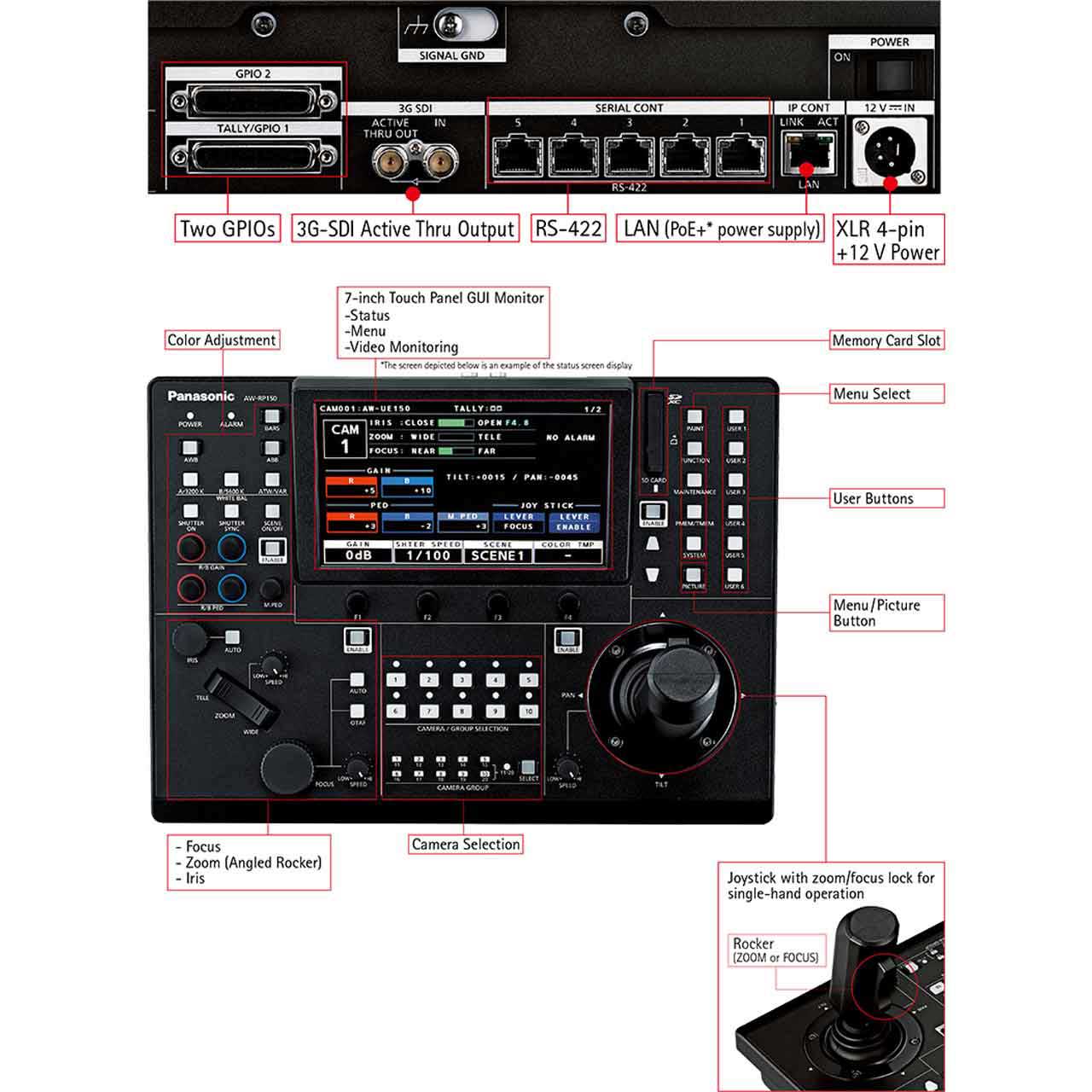

    • Features

      • Large touchscreen for easy usability
      • New joystick for one-handed operation
      • Simplified PTZ camera presets and tracing memory
      • Intuitive design elements based on direct feedback from everyday robotic camera operators

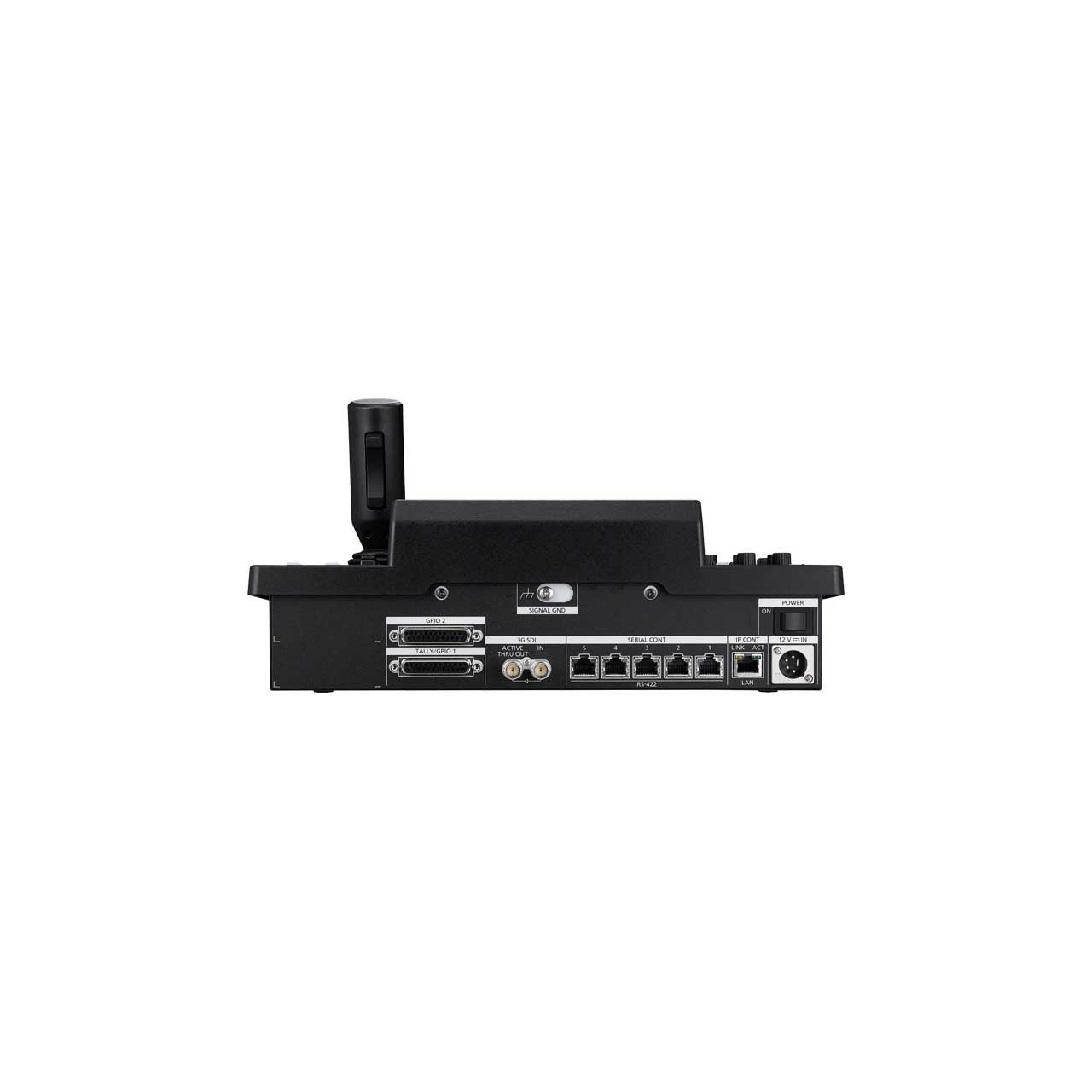

      • 3G-SDI Active Through Output, 5 x RS-422, LAN PoE+, 2 x GPIOs

    • Specifications

      • Power Requirements: 12 V DC (10.8 V to 13.2 V)
      • PoE++: IEEE802.3at standard - DC 42 V to 57 V (Camera Input)
      • Current consumption: 1.0 A (Connector Input); 0.6 A (PoE+ power supply)
      • Ambient Operating Temperature: 32°F to 104°F
      • Ambient Operating Humidity: 20% to 90% (no condensation)
      • Storage Temperature: -4°F to 122°F
      • Weight: Approx. 3.2 kg (7.05 lb)
      • Dimensions (WxHxD): 13-15/32" x 7" x 9-21/32" (excluding protrusions)
      • Controller Supported Equipment: IP/RS422, AW-UE150W/K, AW-HR140*1, AW-HE130W/K*1, AW-HN130W/K*1, AW-UE70W/K*1, AW-UN70W/K*1, AW-HE40 Series*1, AW-HN40HW/HK*1, AW-HE38HW/HK*1, AW-HN38HW/HK*1
      • Input/Output Connector: DC 12 V / IN XLR 4-pin
      • Input: 3G-SDI IN / SMPTE292 / 75Ω (BNC x 1)
      • Input Supported formats: 1080/59.94p*2, 1080/50p*2, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF
      • Output: ACTIVE THRU OUT SMPTE292 / 75Ω (BNC x 1)
      • Input/Output IP CONT: 100BASE-TX / PoE+ input
      • Connection cable: LAN cable, max. 100 m (328 ft) When connecting the unit via a switching hub:; Straight cable or a cross cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended; When connecting the unit directly: Crossover cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended
      • SERIAL CONT (RJ-45): RS-422 (control signals for remote cameras), TALLY OUT
      • Connecting cable: Straight cable (category 5e or better shielded cable), max. 1000 m (3280 ft)
      • TALLY OUT: Open collector output (negative logic) Maximum voltage resistance DC 24 V, Maximum current 50 mA
      • TALLY/GPIO 1: D-sub 25-pin, female, inch thread
      • TALLY IN: 10 inputs (for receiving photocoupler signals)
      • GPI: 6 inputs (for receiving photocoupler signals)
      • GPIO: 5 inputs (for receiving photocoupler signals) or 5 outputs (open collector outputs, negative logic) Input/output switched with menu settings
      • GPIO 2: D-sub 25-pin, female, inch thread
      • GPI: 10 inputs (for receiving photocoupler signals)
      • GPIO: 10 inputs (for receiving photocoupler signals) or 10 outputs (open collector outputs, negative logic) Input/output switched with menu settings
      • Reserve connectors: 2 connectors (For future expansion feature)
      • LCD Display: 7-inch Touch Panel GUI Monitor (WVGA (800×480) )
      • SD Memory Card slot: SDHC / SDXC Memory Card Slot x 1
      • No. of Connectable Cameras: 200 (IP), 5 (RS422)
      • No. of Camera Selection Buttons: 10
      • No. of Camera Groups: 20 (10 units per 1 group)
      • Preset Memory: No. of memory presets 100
      • Tracing Memory: No. of cameras Cam1 to Cam10; Recording time, no. of memory settings: Maximum 5 min. total per camera, maximum of 10 settings per camera
      • No. of User Assignable Buttons: 6 + up to 10 on the LCD menu
      • Pan / Tilt Speed Adjustment: 7 levels
      • Tally LED display color: green / red
