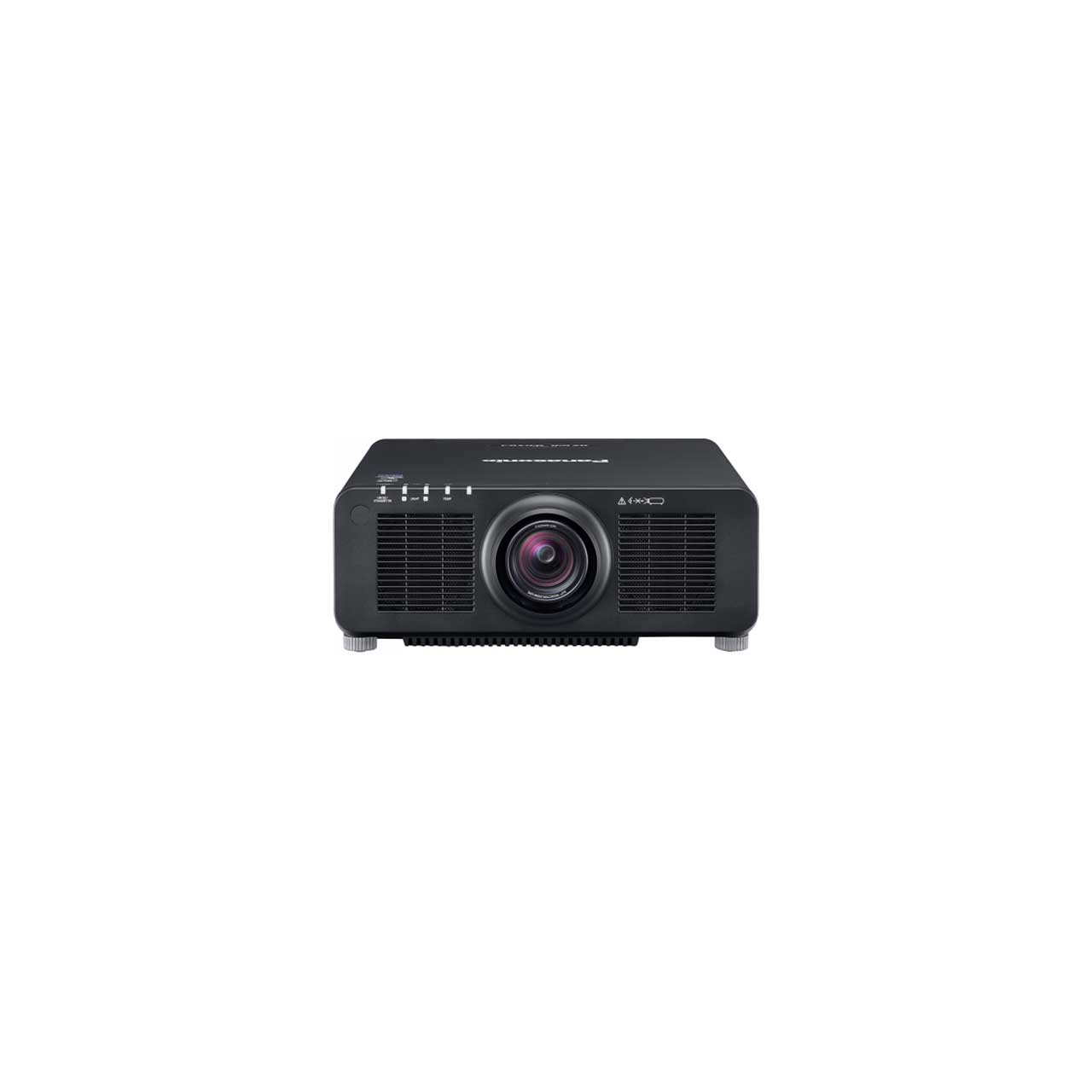

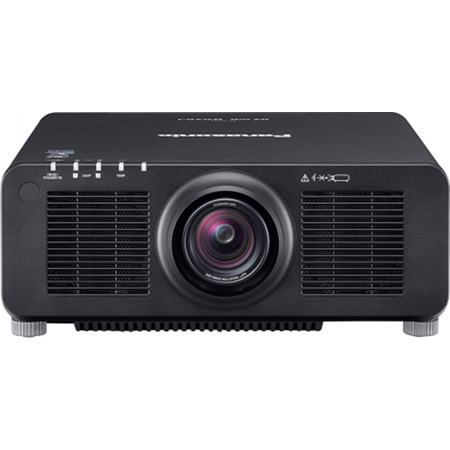

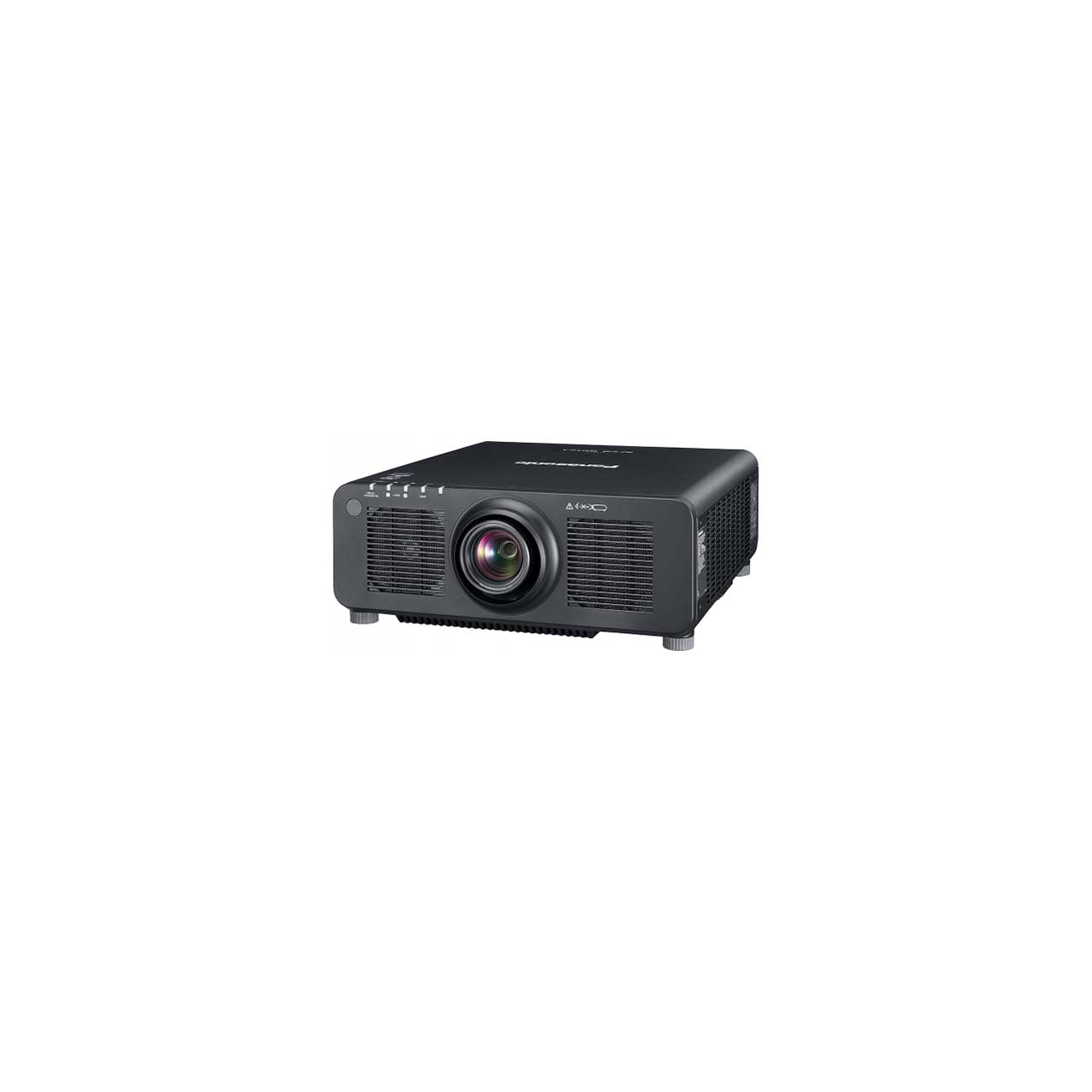

Panasonic PT-RCQ80 8000 ANSI Lumen 1DLP WUXGA Laser Projector - 1600 x 1200 - Black

PT-RCQ80BU - Overview

• Features:

  • Laser 1-Chip DLP, 8,000 lumens (ANSI), WUXGA, 4K Ready* laser projector
  • Rich Colour Harmonizer technology for improved and more accurate colour reproduction
  • Accepts 4K signal input
  • Projects a 2175x1697 high-resolution image by using pixel shift technology
  • Maintenance-free up to 20,000 hours maintenance-free operation with dust-resistant optical block and long lasting laser engine


• Specifications:

  • Projector Type: 1-Chip DLP™ projector
  • DLP™ chip - Display method: DLP™ chip x 1, DLP™ projection system
  • DLP™ chip - Number of Pixels: 2,304,000 (1920 x 1200) pixels, 4,608,000 (2,304,000 x 2) pixels when 4K Smooth Pixel Drive set to ON
  • Light source: Laser diodes
  • Resolution: 4K-equivalent (4K Smooth Pixel Drive:ON)
  • Screen size [diagonal] (mm): 1.27-15.24 m (50-600 in), 1.27-5.08 m (50-200 in) with ET-DLE055, 2.54-8.89 m (100-350 in) with ET-DLE035, 16:10 aspect ratio
  • Screen size [diagonal] (inch): 1.27-15.24 m (50-600 in), 1.27-5.08 m (50-200 in) with ET-DLE055, 2.54-8.89 m (100-350 in) with ET-DLE035, 16:10 aspect ratio
  • LENS: Optional lenses
  • Installation: Ceiling/floor, front/rear, free 360-degree installation

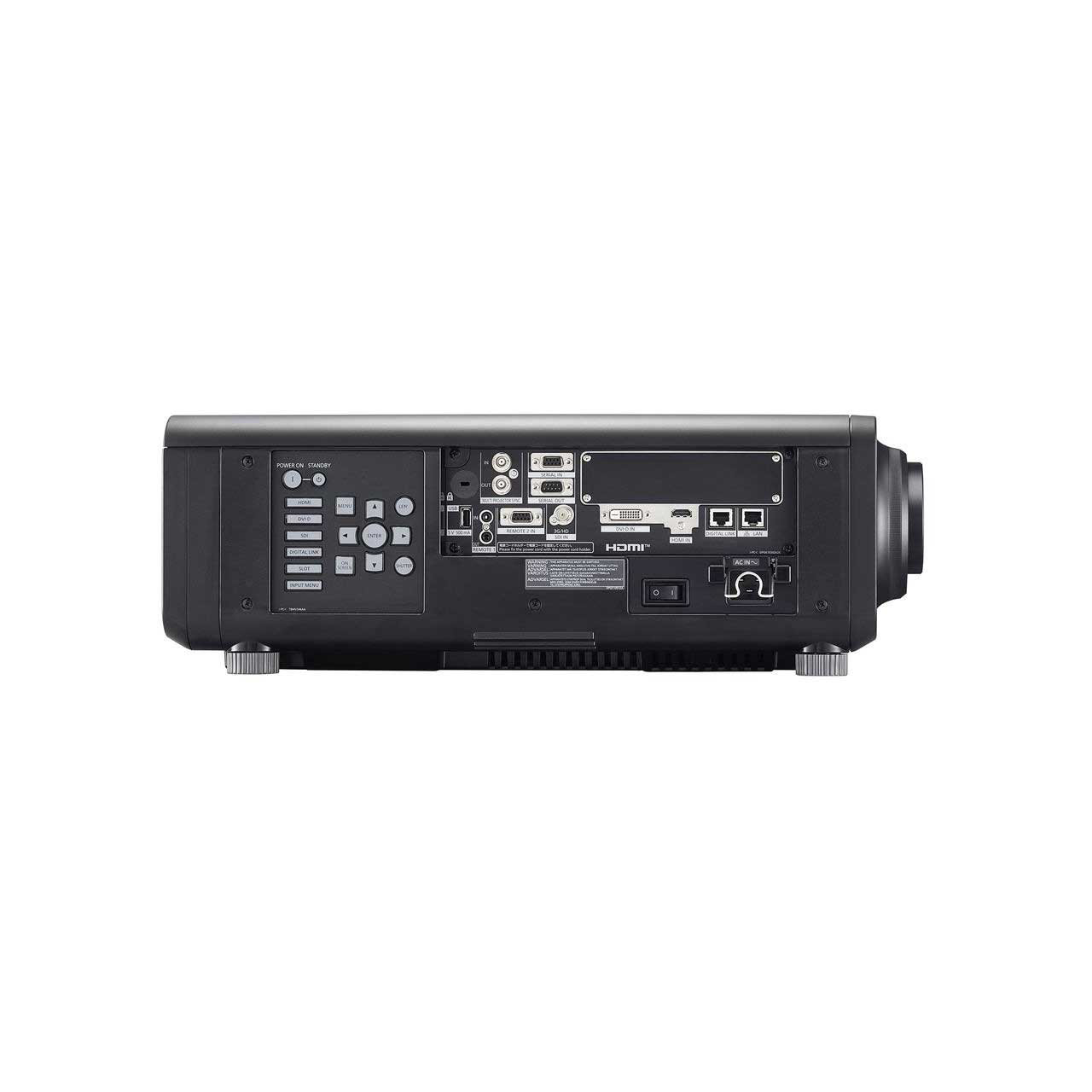

    Terminals
  • Terminals - SDI In: BNC x 1: 3G/HD-SDI input
  • Terminals - HDMI In: HDMI 19-pin x 1 (Deep Color, compatible with HDCP 2.2)
  • Terminals - DVI-D In: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
  • Terminals - Multi Projector Sync In: BNC x 1
  • Terminals - Multi Projector Sync Out: BNC x 1
  • Terminals - Serial In: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  • Terminals - Serial Out: D-sub 9-pin (male) x 1 for link control
  • Terminals - Remote 1 Out: M3 x 1 for link control (for wired remote control)
  • Terminals - Remote 2 In: D-sub 9-pin (female) x 1 for external control (parallel)
  • Terminals - LAN: RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compliant with PJLink™ (Class 2), Art-Net
  • Terminals - Expansion Slot: SLOT for interface boards, SLOT NX compatible


  • Power Supply: AC 100-240 V, 50/60 Hz
  • Power Consumption: TBD
  • Cabinet Materials: Molded plastic
  • Operation Noise: TBD
  • Operating Environment: Operating Temperature: 0-45 °C (32-113 °F), Operating Humidity: 10-80 % (no condensation)
  • Applicable Software: Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™
  • Terminals - REMOTE 1 IN: M3 x 1 for wired remote control
  • Contrast Ratio: 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: ON)
  • Terminals - USB: USB Connector (Type A) x 1 for Cloning/Wireless Module (output 5 V/500 mA)
  • Center-to-corner zone ratio: 90 %
  • DLP™ chip - Panel size: 17.0 mm (0.67 in) diagonal, 16:10 aspect ratio
  • Light output: 8,000 lm / 8,400 lm (Center)
  • Time until light output declines to 50 %: 20,000 hours (NORMAL) / 24,000 hours (ECO)
  • Lens shift - Vertical (from center of screen): +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered)
  • Lens shift - Horizontal (from center of screen: +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered)
  • Terminals - DIGITAL LINK: RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input
  • Dimensions (W x H x D): 498 x 200*6 x 581 mm (19 19/32 x 7 7/8" *6 x 22 7/8" ) (with supplied lens)
  • Weight: PT-RCQ80: Approx. 24.2 kg (53.4 lbs)


• Item Includes:

  • 1x Panasonic PT-RCQ80 8000 Lumens Laser WUXGA Resolution 4K DLP Projector - Black


• GTIN:

  0885170373556
