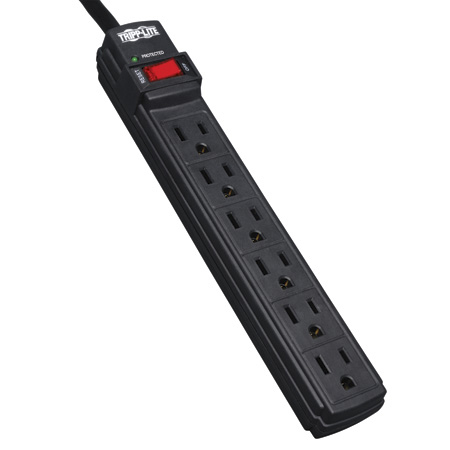

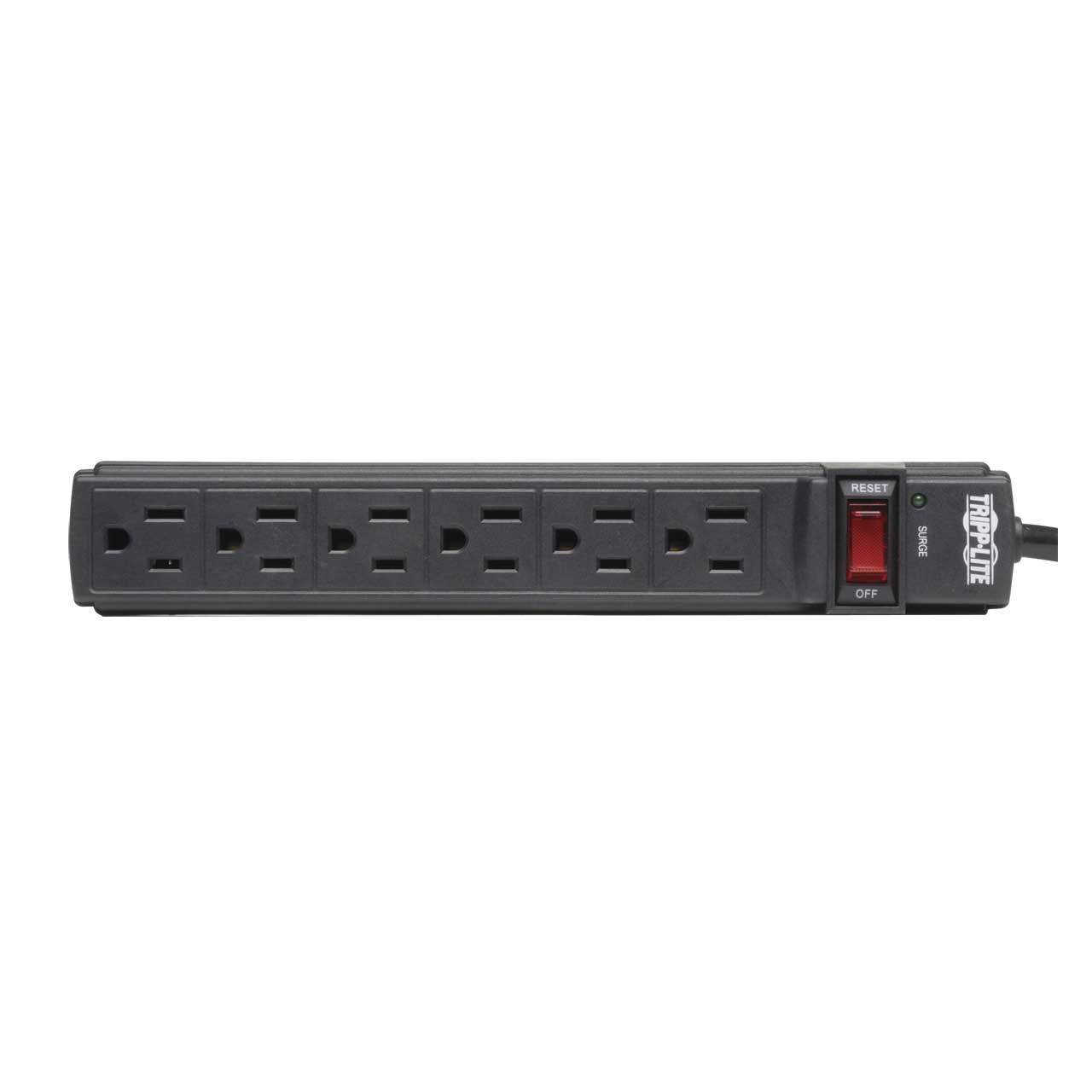

Tripp Lite TLP6B Surge Protector Strip 6 Outlet 6ft Cord 360 Joule Black

ITEM #: TRL-TLP6B MFG #: TLP6B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$20.80

Our Price:

$15.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    TLP6B - Overview

    Perfect for your home or office workstation, the Tripp Lite TLP6B Protect It! 6-Outlet Surge Protector features a surge protection rating of 360 joules to defend your sensitive electronic components against surges and spikes. In fact, Tripp Lite will repair or replace any connected equipment damaged by surges, including direct lightning strikes, up to $10,000 for life (valid in the U.S., Canada and Puerto Rico only).

    Because residential power outlets have three wires-hot line (H), neutral (N) and ground (G)-the TLP6B protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). It also filters out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.

    Your devices plug into six NEMA 5-15R outlets, one of which is placed at the end to accept a bulky transformer without blocking adjacent outlets. An integrated 15A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The lighted on/off switch provides one-touch control over connected equipment. A diagnostic LED confirms your connected equipment is protected.

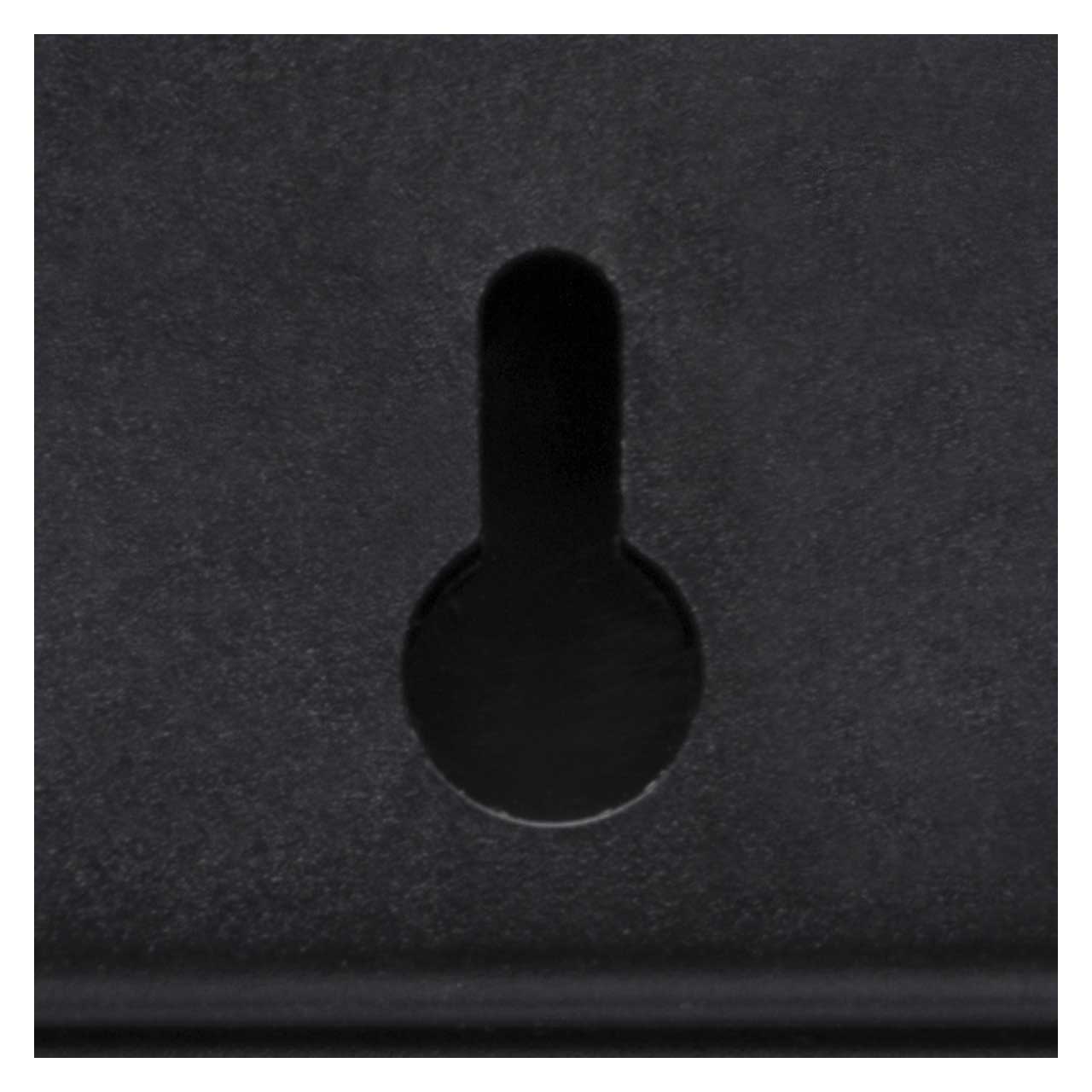

    The six-foot AC power cord with NEMA 5-15P plug reaches nearby outlets to fit easily into your workstation or home theater setup. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the black plastic housing.

    • Features:

      • Protects your computer, printer, scanner, router, modem and other small home electronics against surges and spikes
      • Recommended for any desktop, network or home electronics application requiring AC line protection
      • Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
      • Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
      • Exceeds IEEE 587 Category A and B surge suppression specifications
      • Lighted on/off switch provides one-touch control over connected equipment
      • Integrated 15A circuit breaker shuts down outlets in case of power overload
      • Diagnostic LED confirms protection status at a glance
      • Conforms to current UL 1449 3rd Edition safety standards
      • 6 NEMA 5-15R AC outlets accept most computers and peripherals
      • Special end outlet designed for bulky transformers without blocking other outlets

    • Specifications:

      • Input
      • Nominal Input Voltage(s) Supported: 120V AC
      • Recommended Electrical Service: 120V (110-125V)
      • Input Cord Gauge Type: 14 gauge; SJT
      • Voltage Compatibility (VAC): 120
      • Maximum Surge Amps: 24000
      • Input Plug Type: NEMA 5-15P
      • Input Cord Length (ft.): 6
      • Right-Angle Plug: No
      • Integrated Cord Clip: No

        Output
      • Frequency Compatibility: 60 Hz
      • Output (Watts): 1800
      • Output Receptacles: (6) 5-15R
      • Circuit Breaker (amps): 15
      • Overload Protection: 15A resettable illuminated combo switch / circuit breaker
      • Transformer Accommodation: (2) Yes
      • Outlet Orientation: Single row of 6 outlets
      • Right-Angle Outlets: No

        User Interface, Alerts & Controls
      • Diagnostic LED(s): Yes
      • Switches: Combination AC circuit breaker and 2 position red illuminated on/off power switch
      • Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status

        Surge / Noise Suppression
      • AC Suppression Joule Rating: 360
      • AC Suppression Response Time: < 1 ns
      • Protection Modes: L-N
      • Clamping Voltage (RMS): 150
      • UL1449 Let Through Rating: 500v
      • EMI / RFI Filtering: Up to 20 dB
      • Automatic Shut-Off: Yes

        Dataline Surge Suppression
      • Telephone/DSL Protection: No
      • Cable (Coax) Protection: No
      • Network (Ethernet) Protection: No

        Physical
      • Anti-Microbial Protective Coating: No
      • Color: Black
      • Color (AC Line Cord): Black
      • Housing Color: Black
      • Integrated Keyhole Mounting Slots: Yes
      • Material of Construction: Plastic
      • Receptacle Color: Black
      • Shipping Dimensions (hwd / in.): 9.21 x 3.77 x 1.10
      • Shipping Weight (lbs.): 0.97
      • Unit Dimensions (hwd / in.): 11.25 x 3.77 x 1.10
      • Unit Weight (lbs.): .81

        Special Features
      • Rotatable Outlets: No

        Standards & Compliance
      • Canada: cUL
      • Additional International Approvals: RoHS
      • Approvals: Exceeds IEEE 587 category A&B specifications
      • UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition
      • UL1363 (Power Tap): UL1363

    • Item Includes:

      • 1x TLP6B Protect It! 6-Outlet Surge Protector, Black Housing
      • 1x Owner's manual

    • GTIN:

      0037332166784
