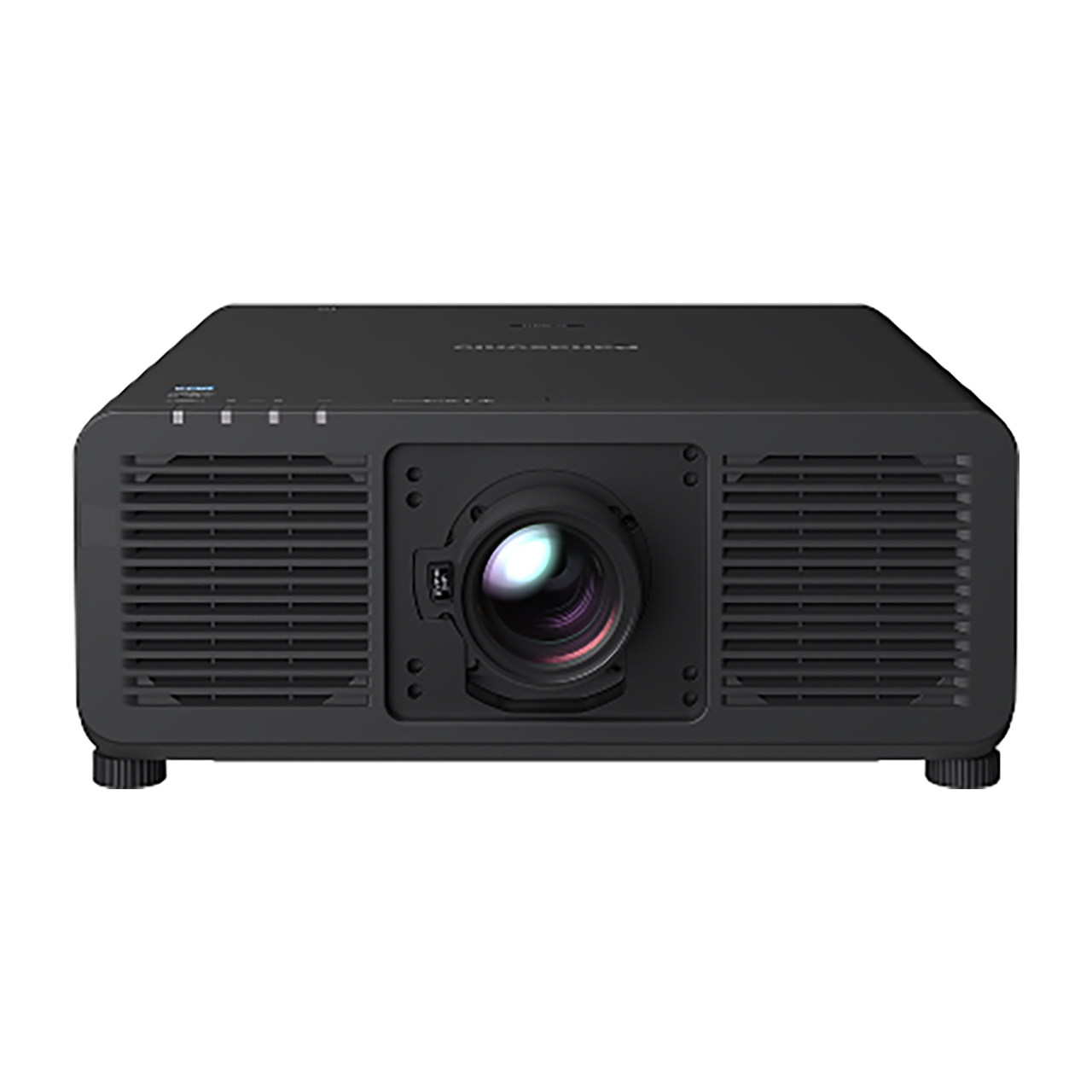

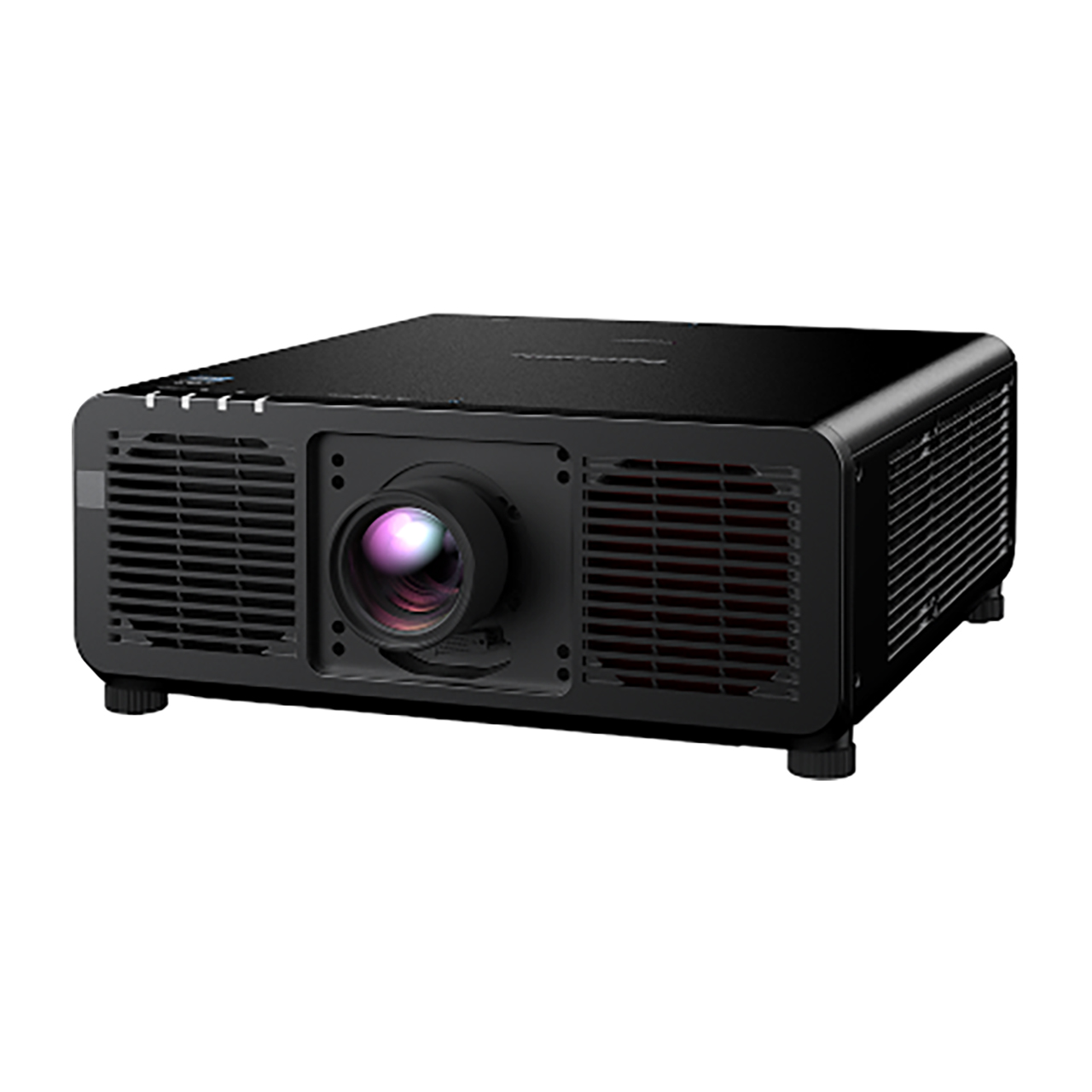

Panasonic PT-REQ10BU REQ12 Series 10000-Lumen Pixel Shift UHD 4K Laser DLP Projector - Black

PT-REQ10BU - Overview

• Specifications:

  • Dimensions (WxHxD): 19-5/8" x 8-11/32" x 21-3/16" (498mm x 212mm x 538mm)(with feet at shortest position, not including protruding parts)
  • Lens: Powered zoom (throw ratio 1.36 - 2.19:1 for supplied lens), powered focus (optional lenses also available)
  • Resolution: 4K (3840 x 2400 pixels)(Quad Pixel Drive: ON)
  • Operating Environment:
    - Temperature: 32°F - 113°F (0°C - 45°C)
    - Humidity: 10% - 80% (no condensation)
  • Keystone Correction Range:
    - Vertical: ±40°
    - Horizontal: ±40° (with supplied lens)
  • Installation: Ceiling/floor, front/rear, free 360° installation
  • Cabinet Materials: Molded plastic
  • Screen Size (diagonal): 70" - 700" (with supplied lens)
  • Applicable Software: Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System
  • Weight: 63.49lbs with supplied lens (TBD)
  • Contrast Ratio: 20,000:1 (Full On/Full Off) Dynamic Contrast) (TBD)
  • Power Supply: AC 100V - 240V, 50/60Hz
  • Light Source: Laser diodes

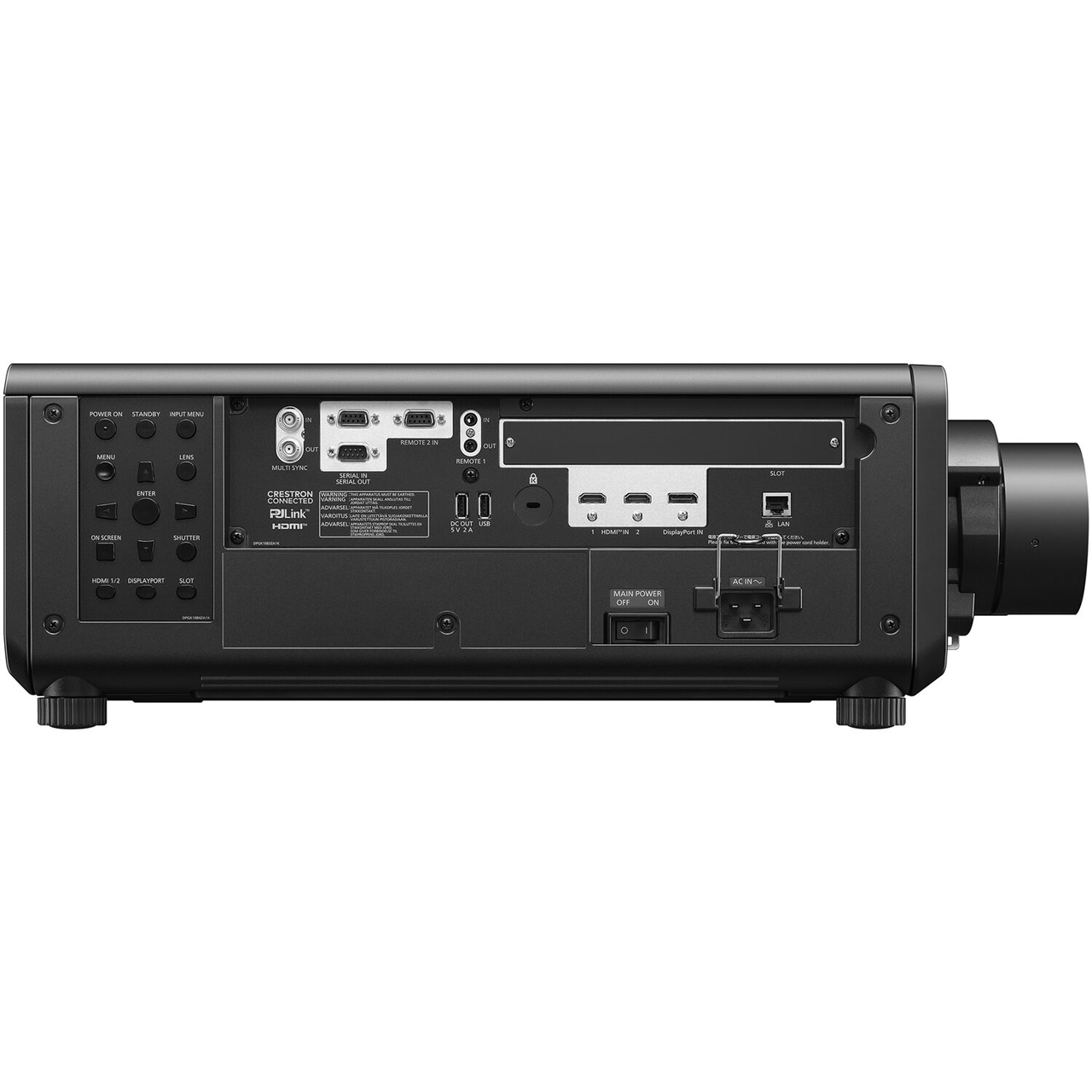

  • Terminals/SERIAL IN: 1x D-sub 9-pin (female) for external control (RS-232C compliant)
  • Terminals/LAN: 1x RJ-45 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
  • Terminals/DC OUT: 1x USB Type A (for power supply, DC 5V, 2A)
  • DLP Chip/Panel Size: 0.8" diagonal (16:10 aspect ratio)
  • DLP Chip/Display Method: 1x DLP chip, DLP projection system
  • Terminals/SERIAL OUT: 1x D-sub 9-pin (male) for link control (RS-232C compliant)
  • Terminals/USB: 1x USB connector (Type A) for optional AJ-WM50 Series Wireless Module/USB memory
  • Terminals/REMOTE 2 IN: 1x D-sub 9-pin (female) for external control (parallel)
  • Terminals/Expansion Slot: Open slot for for function boards, Intel SDM compatible
  • Terminals/REMOTE 1: 1x M3 stereo mini-jack for wired remote control
  • Terminals/REMOTE 1 OUT: 1x M3 stereo mini-jack for link control (for wired remote control)
  • Operation Noise: 37dB (NORMAL/ECO), 33dB (QUIET)
  • Projector Type: 1-Chip DLP projectors
  • DLP Chip/Number of Pixels: 2,304,000 (1920x1200 pixels)
  • Center-to-Corner Zone Ratio: 90°
  • Time Until Light Output Declines to 50°: 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
  • Lens Shift/Vertical (From the origin point of the lens mounter): ±29° (with supplied lens)
  • Lens Shift/Horizontal (From the origin point of the lens mounter): ±60° (with supplied lens)
  • Terminals/Multi Sync Out: 1x BNC
  • Light Output: 10,000 lm
  • Protocol Versions: IPv4, IPv6
  • Control Function via LAN: Crestron Connected V2, Crestron XiO Cloud, Art-Net DMX, AMXr DD, and PJLink (Class 2)
  • Terminals/HDMI 1/2 IN:: 2x HDMI (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
  • Terminals/DisplayPort: 1x DisplayPort (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
  • Terminals/Multi Sync In: 1x BNC
  • Power Consumption/Maximum Power Consumption: 980W (10-4.2 A) (1,000VA) (TBD)
  • Power Consumption/On-Mode Power Consumption:
    - Operating Mode Nomal: 600W (TBD)
    - Operating mode ECO: 640W (TBD)
    - Operating mode QUIE: 630W (TBD)


• Warranty:

  • 3 Year Warranty


• GTIN:

  0885170405424
