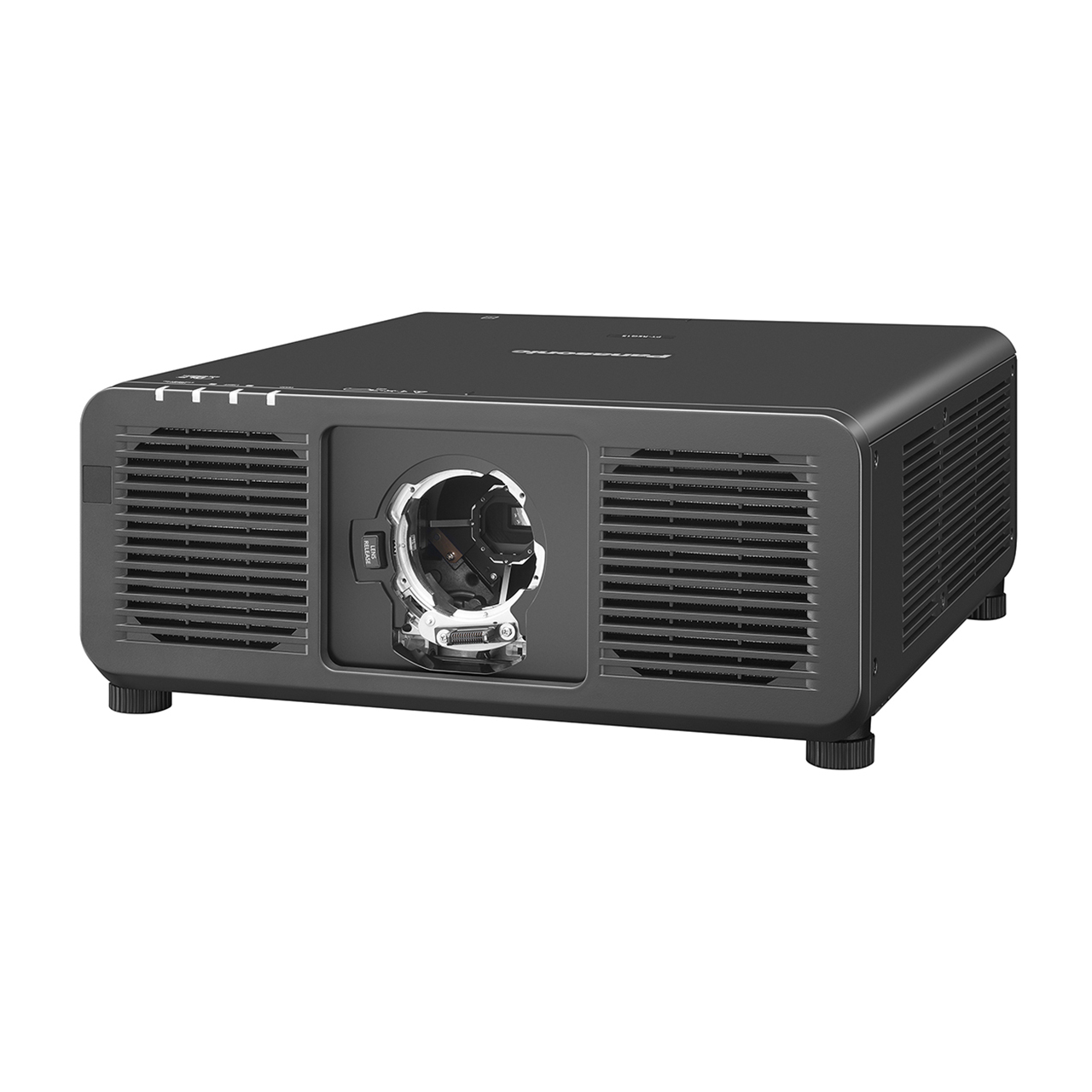

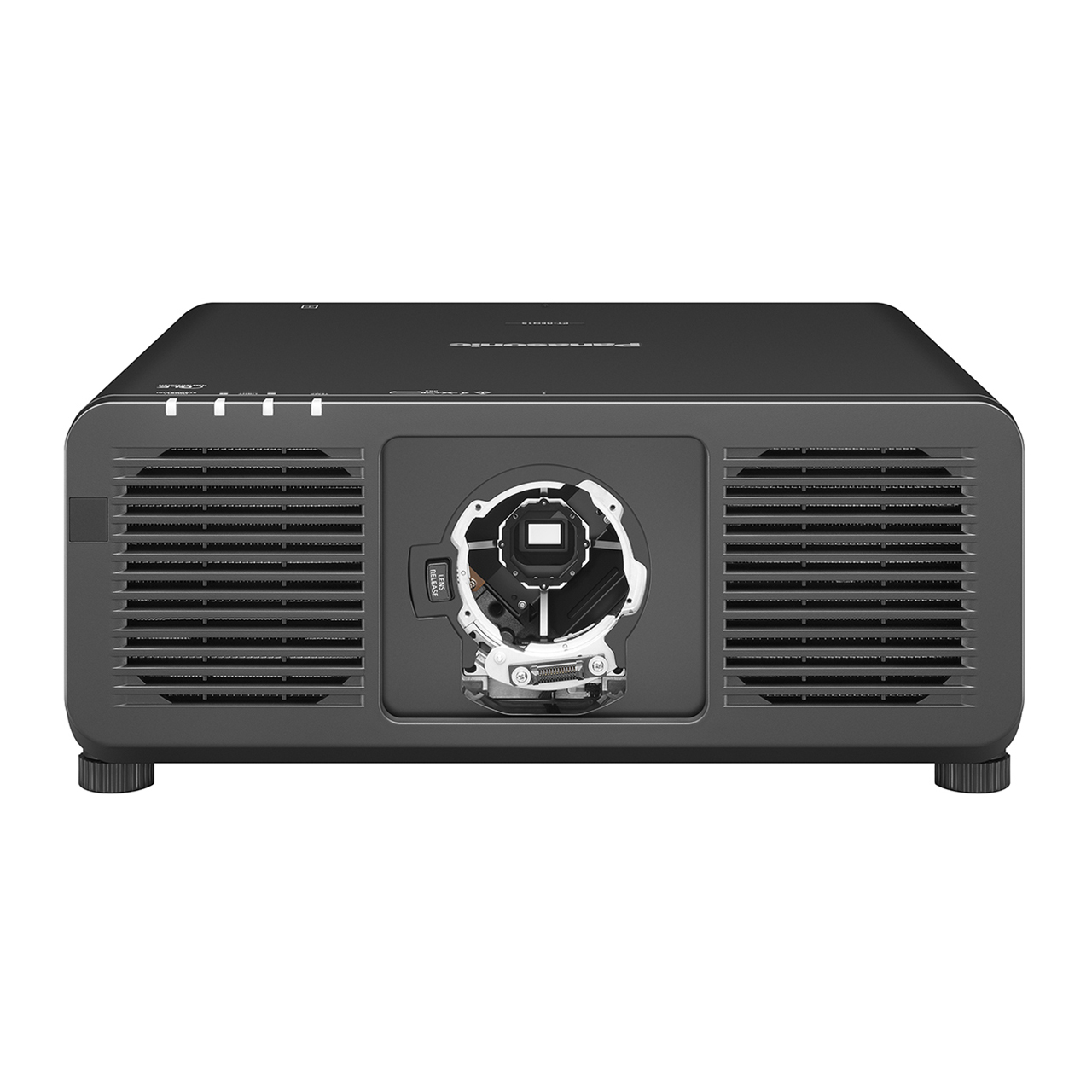

Panasonic PT-REQ15LBU 15000-Lumen Pixel Shift UHD 4K Laser DLP Projector - No Lens - Black

ITEM #: PAN-PT-REQ15LBU MFG #: PT-REQ15LBU

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$48,499.00

Our Price:

$39,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT-REQ15LBU - Overview

The Panasonic PT-REQ15LBU 4K Laser Projector is designed to streamline productions and expand the endless possibilities of entertainment by delivering exceptional, highly engaging immersive experiences with up to 15,000lm brightness, 4K resolution, and 240Hz projection capability.

Inspire Wonder with Spectacular 4K1 Visuals
Create smooth, detailed 4K images, harness 2K/240Hz projection with a latency of 6 ms or less, or merge digital and analog elements to gamify your attraction with real-time tracking projection-mapping SDK. REQ15 Series provides stunning high-contrast visuals with deep, accurate color courtesy of Rich Color Enhancer. From Artainment events to 360° projection mapping and interactive experiences, this quiet, compact, and efficient projector empowers your vision for tomorrow's immersive entertainment.

Compact Design Simplifies Complex Workflows
The compact REQ15 Series streamlines complex workflows with labor-saving innovations. It supports full brightness on AC 100V - 240V and new powered lenses with throw ratios from 0.308:1. Optional proprietary and third-party function boards are compatible with the Intel SDM standard-compatible SLOT to expand connectivity or enable support for AVoIP, while optional ET-FMP50 Series media processors simplify multi-projection layouts within a Panasonic ecosystem. Labor-saving features such as the NFC function and auto screen adjustment via camera further enhance efficiency.

Supreme Reliability for Long-Term Operation
A dust-resistant structure, including an optical engine and light-source module conforming to the IP5X Dust Protected (IEC 60529) standard, combines with liquid cooling to ensure 20,000 hours of maintenance-free operation. Input redundancy seamlessly transitions to a backup signal if the primary fails, minimizing interruptions. Multi Laser Drive Engine enhances reliability by reducing brightness loss in case of diode failure, while Remote Preview LITE supports input video previews on a PC, reducing projection errors.

  • Features:

    • Supports Art-Net DMX, PJLink, Crestron Connected V2, Crestron XiO Cloud, and Extron XTP
    • Register user images (BMP/PNG/JPEG) for test patterns, startup logos, and screensavers
    • Supports IPv6 network protocol
    • Data-Cloning Function via LAN or USB
    • 1 USB port for power supply, 1 USB port for optional AJ-WM50 Series Wireless Module and data transfer
    • New screen marker function and refreshed Web Control UI (REQ15 only)
    • DICOM Simulation Mode
    • Waveform Monitor Function

  • Specifications:

    • Projector Type: 1-Chip DLP projectors
    • DLP Chip:
      - Panel Size: 0.8" diagonal (16:10 aspect ratio)
      - Number of Pixels: 2,304,000 (1920 x 1200 pixels)
    • Light Source: Laser diode
    • Light Output: 15,000 Im/15,000 Im (ANSI)/15,500 Im (Center)
    • Time Until Light Output Declines to 50%: 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
    • Resolution: 4K (3840 x 2400 pixels)(Quad Pixel Drive: ON)
    • Contrast Ratio: 25,000:1 (Full On/Full Off, Dynamic Contrast [3])
    • Screen Size (diagonal): 70" - 1000" (with ET-C1S600)
    • Center-to-Corner Zone Ratio: 90%
    • Lens: PT-REQ15/REQ12/REQ10/REQ80: Powered zoom (throw ratio 1.36-2.10:1 for supplied lens), powered focus; PT-REQ15L/REQ12L/REQ10L/REQ80L: Optional powered zoom/focus lenses
    • Lens Shift (From the origin point of the lens mounter):
      - Vertical: ±60% (with ET-C1W400/W500/S600/T700/T800), ±50% (with ET-C1W300/U100), +78-88% (with ET-C1U200)
      - Horizontal: ±29% (with ET-C1W400/W500/S600/T700/T800), ±23% (with ET-C1W300/U100), ±9% (with ET-C1U200)
    • Keystone Correction Range:
      - Vertical: ±40° (±5" with ET-C1U100/ET-C1U200; ±10° with ET-C1W300; ±16° with ET-C1W400; ±22° with ET-C1W500)
      - Horizontal: ±40° (±3° with ET-C1U100; ±5" with ET-C1W300; ±10° with ET-C1W400; ±15" with ET-C1W500, cannot be used with ET-C1U200)

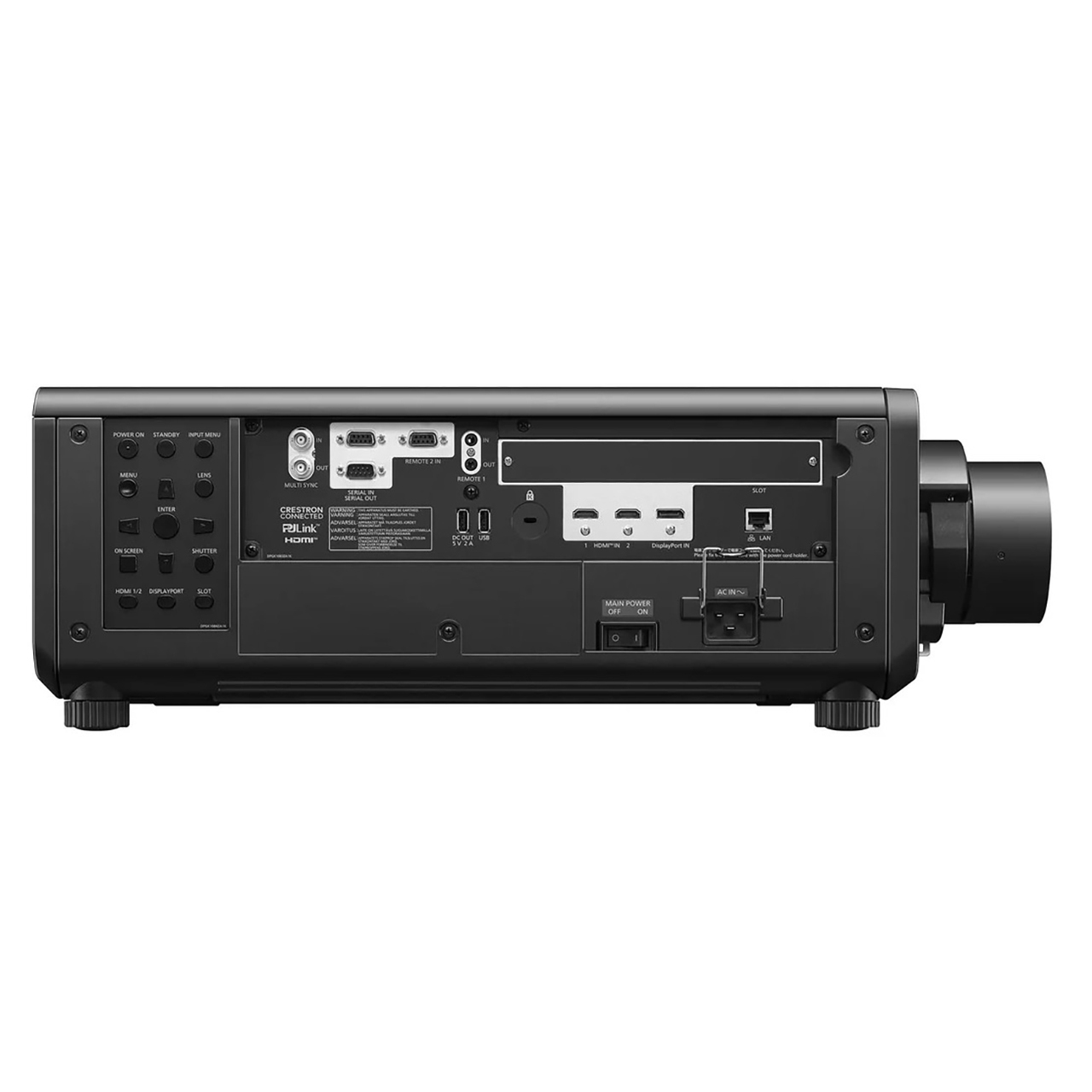

    • Terminals:
      - HDMI 1/2 IN: 2x HDMI (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
      - DisplayPort: 1x DisplayPort (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
      - MULTI SYNC IN: 1x BNC
      - MULTI SYNC OUT: 1x BNC
      - SERIAL IN: 1x D-sub 9-pin (female) for external control (RS-232C compliant)
      - SERIAL OUT: 1x D-sub 9-pin (male) for link control (RS-232C compliant)
      - REMOTE 1 IN: 1x M3 stereo mini-jack for wired remote control
      - REMOTE 1 OUT: 1x M3 stereo mini-jack for link control (for wired remote control)
      - REMOTE 2 IN: 1x D-sub 9-pin (female) for external control (parallel)
      - LAN: 1x RJ45 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
      - USB: 1x USB connector (Type A) for optional AJ-WM50 Series Wireless Module/USB memory
      - DC OUT: 1x USB Type A (for power supply, DC 5V, 2A)
      - Expansion Slot: Open slot for for function boards, Intel SDM standard-compatible
    • Protocol Versions: IPv4, IPv67
    • Power Supply: Single-phase AC 100V - 240V, 50/60Hz
    • Maximum Power Consumption: 1,140W (11.5A - 4.7A) (1,150VA) (Power consumption is 1,090W at AC 200V - 240V)
    • On-Mode Power Consumption (Operating Mode):
      - NORMAL: 985W (AC 100V - 120V), 940W (AC 200V - 240V)
      - ECO: 765W (AC 100V - 120V), 735W (AC 200V - 240V)
      - QUIET: 760W (AC 100V - 120V), 730W (AC 200V - 240V)
    • Operation Noise: 42dB (NORMAL/ECO), 38dB (QUIET)
    • Weight: 59.52lbs (27kg)
    • Operating Temperature: 32°F - 113°F (0°C - 45°C)
    • Operating Humidity: 10% - 80% (no condensation)
    • Applicable Software: Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System, Geometry Manager Pro, Smart Projector Control for IOS/Android
    • Control Function via LAN: Crestron Connected V2, Crestron XIO Cloud, Art-Net DMX, AMX DD, and PJLink (Class 2)

  • Item Includes:

    • 1x PT-REQ15LBU

  • Warranty:

    • 3 Year Limited Warranty

  • GTIN:

    0885170405417
