Panasonic PT-RZ690 6000-Lumen Laser Projector WUXGA Resolution 1920 x 1200 4K Input - White

ITEM #: PAN-PT-RZ690WU7 MFG #: PT-RZ690WU7

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$8,537.33

Our Price:

$8,110.47

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PT-RZ690WU7 - Overview

    Use the Panasonic PT-RZ690 Laser Projector to deepen immersion in any environment with vivid, accurate colors backed by up to 10,000 lm of brightness thanks to Quartet Color Harmonizer and 1-Chip DLPT imaging technology. With support for 4K/60p input signals, separate DIGITAL LINK and LAN terminals, and diverse optional lenses, these projectors reduce installation hassles with convenient flexibility.Engineered for 20,000 hours of maintenance-free reliability with lasting brightness and colour uniformity from the industry's leading dust-resistant optical engine.

    To compete with other forms of entertainment and education, museums are looking at new ways to make guests feel like they are part of the exhibits. At the same time, houses of worship are turning to technology to increase congregation attendance by making ceremonies more visually engaging. Because both rely on limited staff, technology that's easy to deploy and use is critical to success.

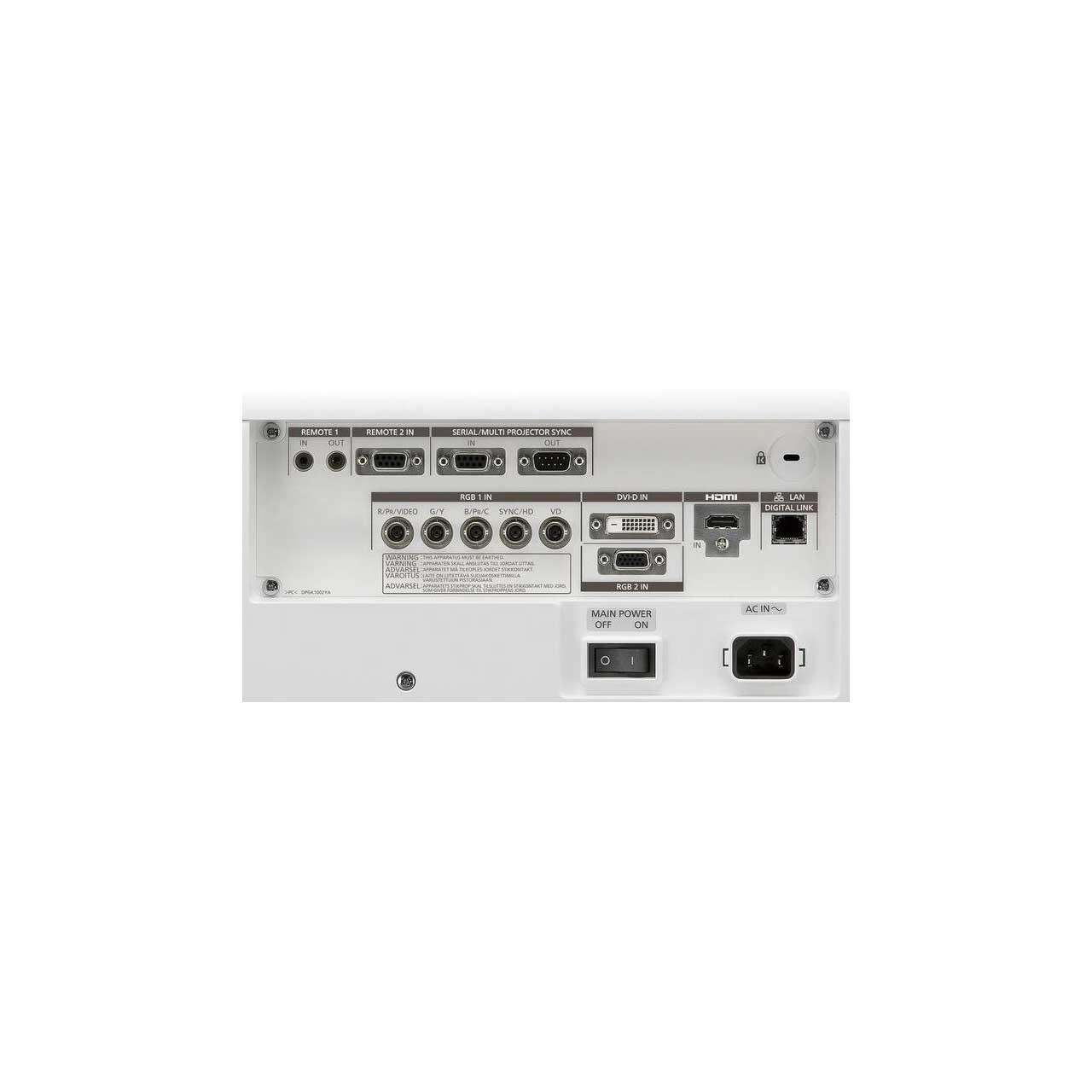

    Inputs/Outputs:
    1 x RJ45 (HDBaseT) Audio, Control, Data, Power, Video
    1 x HDMI Audio, Video Input
    1 x DVI-D Video Input
    1 x BNC (SDI) Video Input
    1 x 5BNC (SDI) Video Input
    1 x DE-15/DB-15 (VGA) Video Input
    1 x RJ45 (Ethernet) LAN
    1 x 1/8" / 3.5 mm Mini Remote Input
    1 x 1/8" / 3.5 mm Mini Remote Output
    1 x DE-9/DB-9 Remote Input
    1 x DE-9/DB-9 (RS-232) Control Input
    1 x DE-9/DB-9 (RS-232) Control Output

    • Features:

      • Laser 1-chip DLP, 6,200 lm (center)/ 6,000 lm (ANSI), WUXGA
      • Quartet Colour Harmonizer technology for more accurate colour reproduction
      • Maintenance free up to 20.000 hours with dust-resistant optical block and long lasting laser engine
      • Supports 4K/60p Signal Input, separate DIGITAL LINK and LAN terminals

    • Specifications:

      • Dimensions (W x H x D): With supplied lens: 9 19/32" x 7 7/8" x 22 7/8" Without lens: 19 19/32" x 7 7/8" x 21 3/16"
      • Power consumption: 490 W (Normal)/395 W (Eco)/ 200 W (Long Life 1)/180 W (Long Life 2)/ 160 W (Long Life 3)
      • Lens: With supplied lens: Powered zoom (throw ratio 1.71-2.41:1), powered focus F 1.7-1.9, f 25.6-35.7 mm Without lens: Optional powered zoom/focus lenses
      • Resolution: 1920 x 1200 pixels
      • Operating environment: Operating temperature: 2-113 °F, operating humidity: 10-80 % (no condensation)
      • Keystone correction range: Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035), Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020).
      • Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android
      • Contrast Ratio: 10,000:1 (Full On/Full Off, Dynamic Contrast [3])
      • Power supply: AC 100-240 V, 50/60 Hz
      • Light source: Laser diodes
      • Terminals - DVI-D In: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only).
      • Terminals - LAN: RJ-45 x 1 for network connection, PJLinkT (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible.
      • Terminals - SDI In: BNC x 1: 3G/HD/SD-SDI input.
      • Terminals - HDMI In: HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input).
      • Terminals - Digital Link: RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseTT compliant), PJLinkT (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible, 4K/60p signal input
      • Terminals - Remote 2 In: D-sub 9-pin (female) x1 for external control (parallel)
      • Light output: 6,000 lm (Normal) /6,200 lm (Center) / 4,800 lm (Eco) /2,400 lm (Long Life 1) / 2,000 lm (Long Life 2) /1,600 lm (Long Life 3)
      • Terminals - Remote 1 In: M3 x 1 for wired remote control
      • Terminals - Remote 1 Out: M3 x 1 for link control (for wired remote control)
      • Operation noise: 35 dB (Normal)
      • Projector type: 1-Chip DLP projector
      • DLP chip - Number of Pixels: 2,304,000 (1920 x 1200 pixels)
      • Terminals - Serial/Multi Projector Sync In: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
      • Terminals - Serial/Multi Projector Sync Out: D-sub 9-pin (male) x 1 for link control
      • Terminals - RGB 1 In: RGB x 1 (BNC x5): RGB/YPBPR/YCBCR
      • Terminals - RGB 2 In: D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBC
