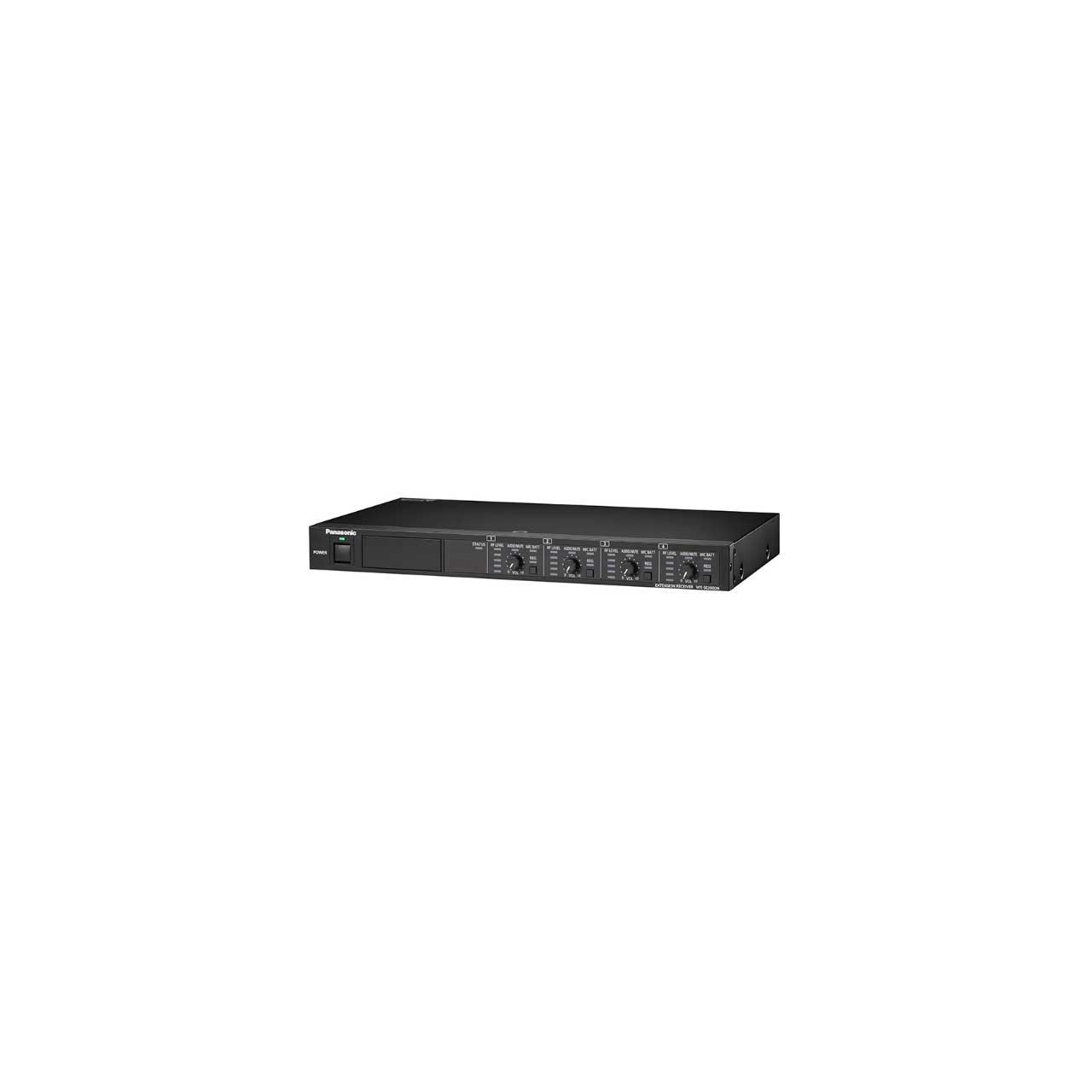

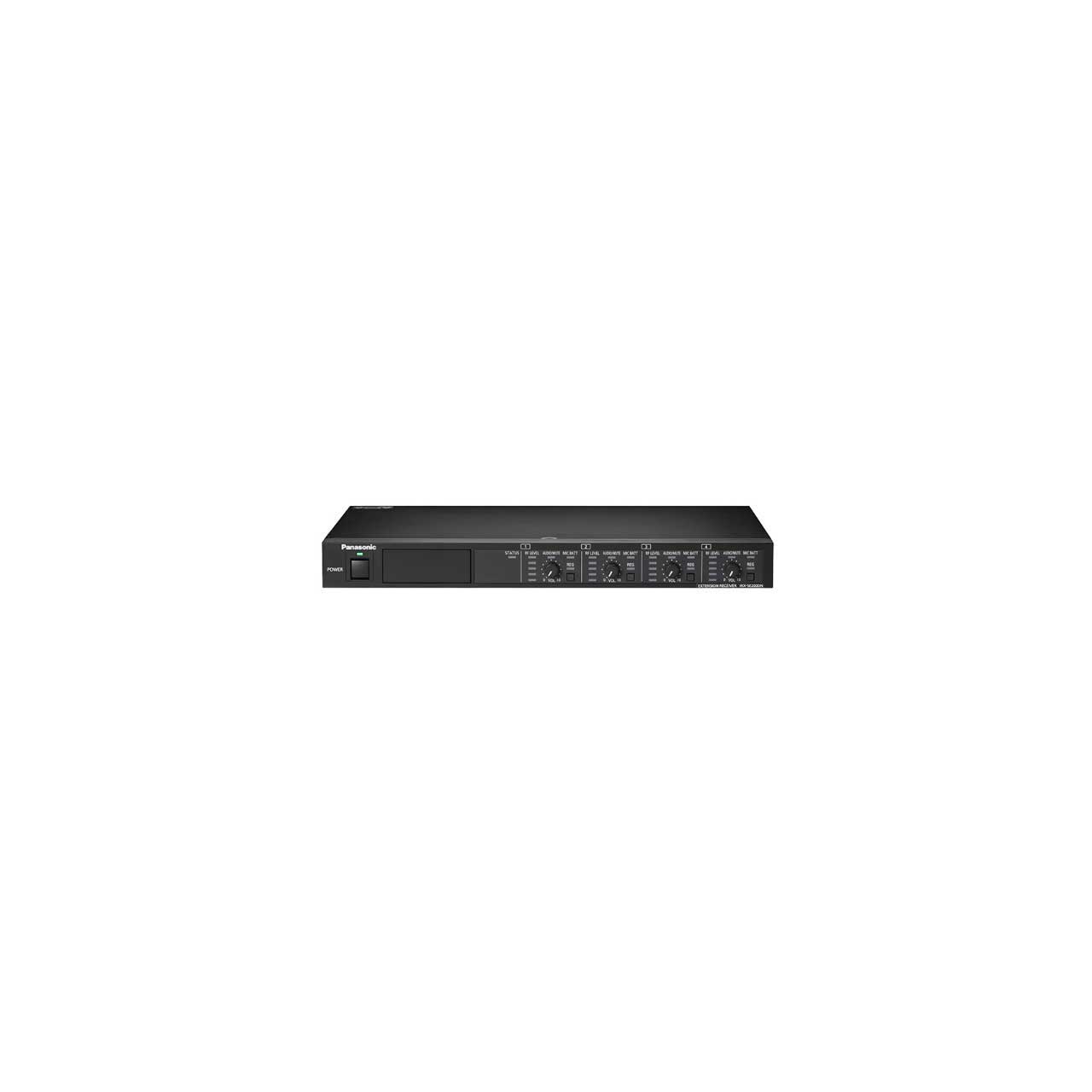

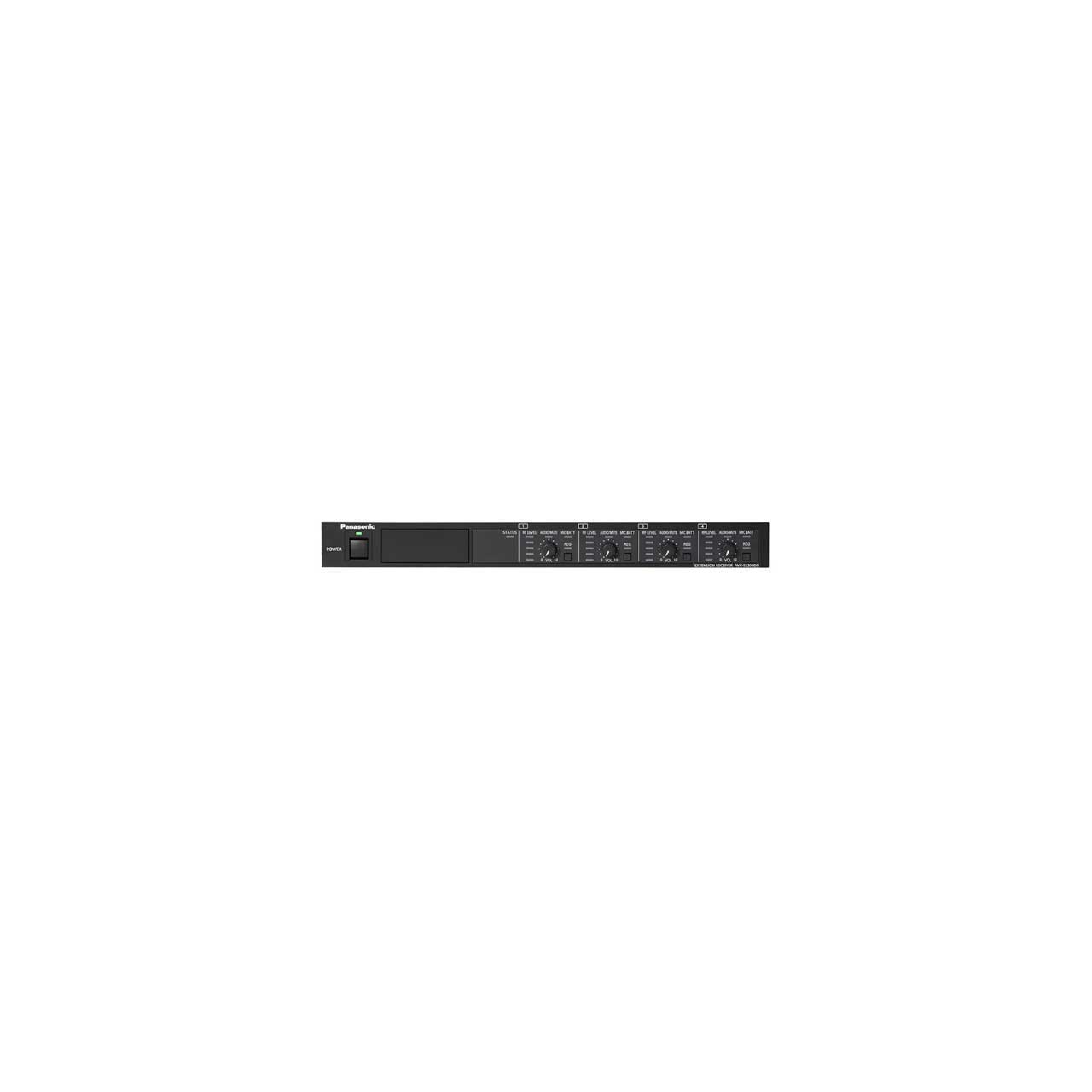

Panasonic WX-SE200DN Analog Dante Expansion Receiver for WX-SR204DN - up to 4 additional Wireless Mic Channels

ITEM #: PAN-WX-SE200DN MFG #: WX-SE200DN

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,647.00

Our Price:

$1,770.10

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


WX-SE200DN - Overview

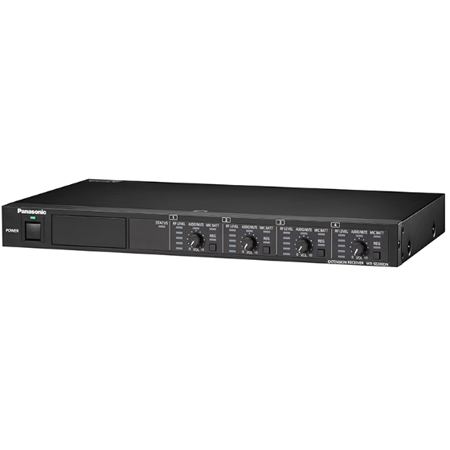

Designed to be used with Panasonic's WX-SR204DN 4-channel wireless mic receiver, the WX-SE200DN expansion receiver allows you to add up to 4 additional wireless microphone channels an existing Panasonic 4-channel system without the need to add an additional antenna to the system*. Choose between Panasonic's WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks) for microphone options. Perfect for classrooms, conference rooms, auditoriums, museums, retail, and bars / restaurants, the WX-SE200DN features a RJ45 (CAT5 / CAT5e / CAT6) connection to the Panasonic WX-SR204 4-channel wireless receiver, and Dante® primary and secondary connections for independent channel outputs, external audio input and a mix output. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Ships with rack ears for easy rack mount installation.*Depends on room size and desired coverage.

  • Features:

    • Provides Expansion to up to 4 additional wireless mic channels to an existing 4-channel system (WX-SR204DN required) without the need to install additional antennas.

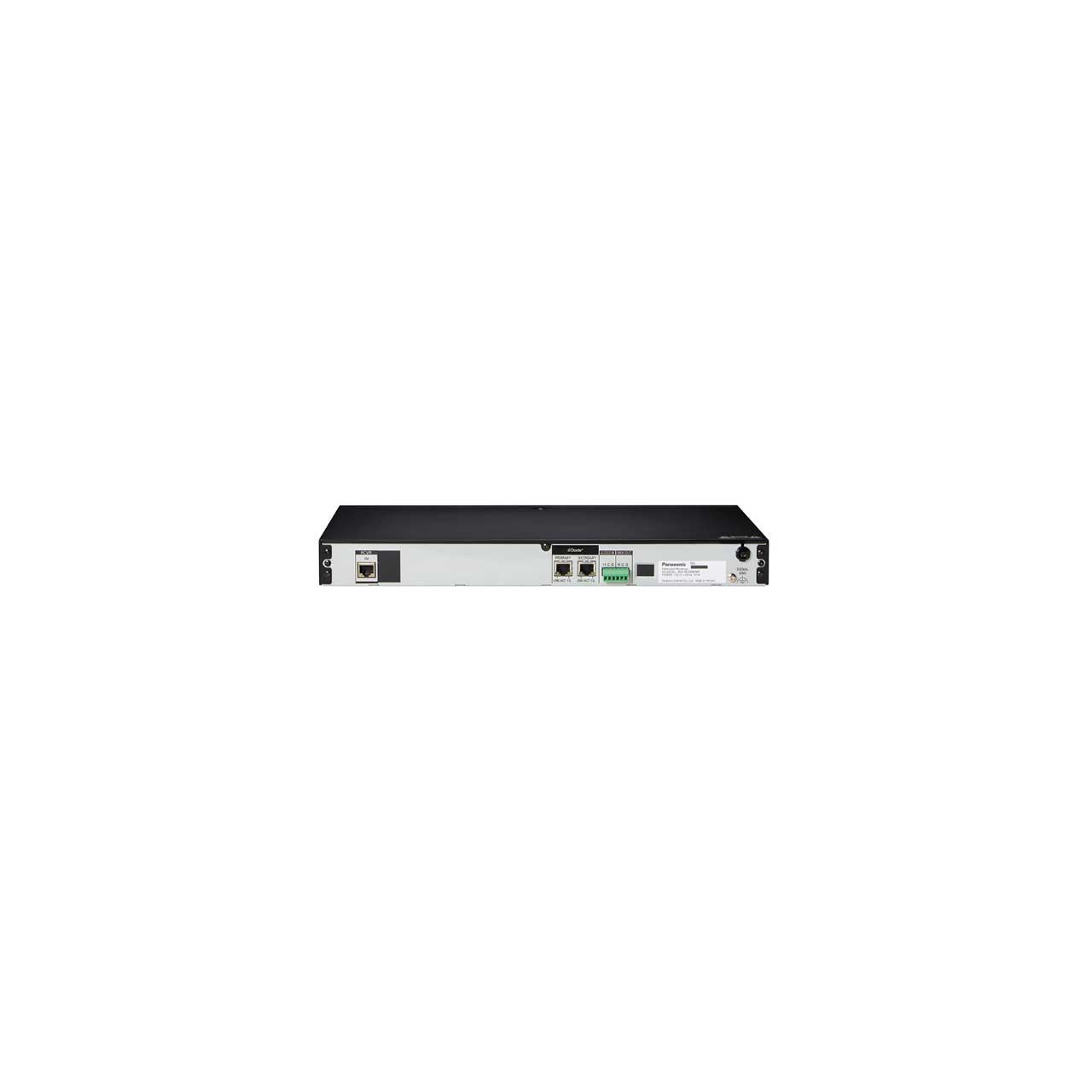

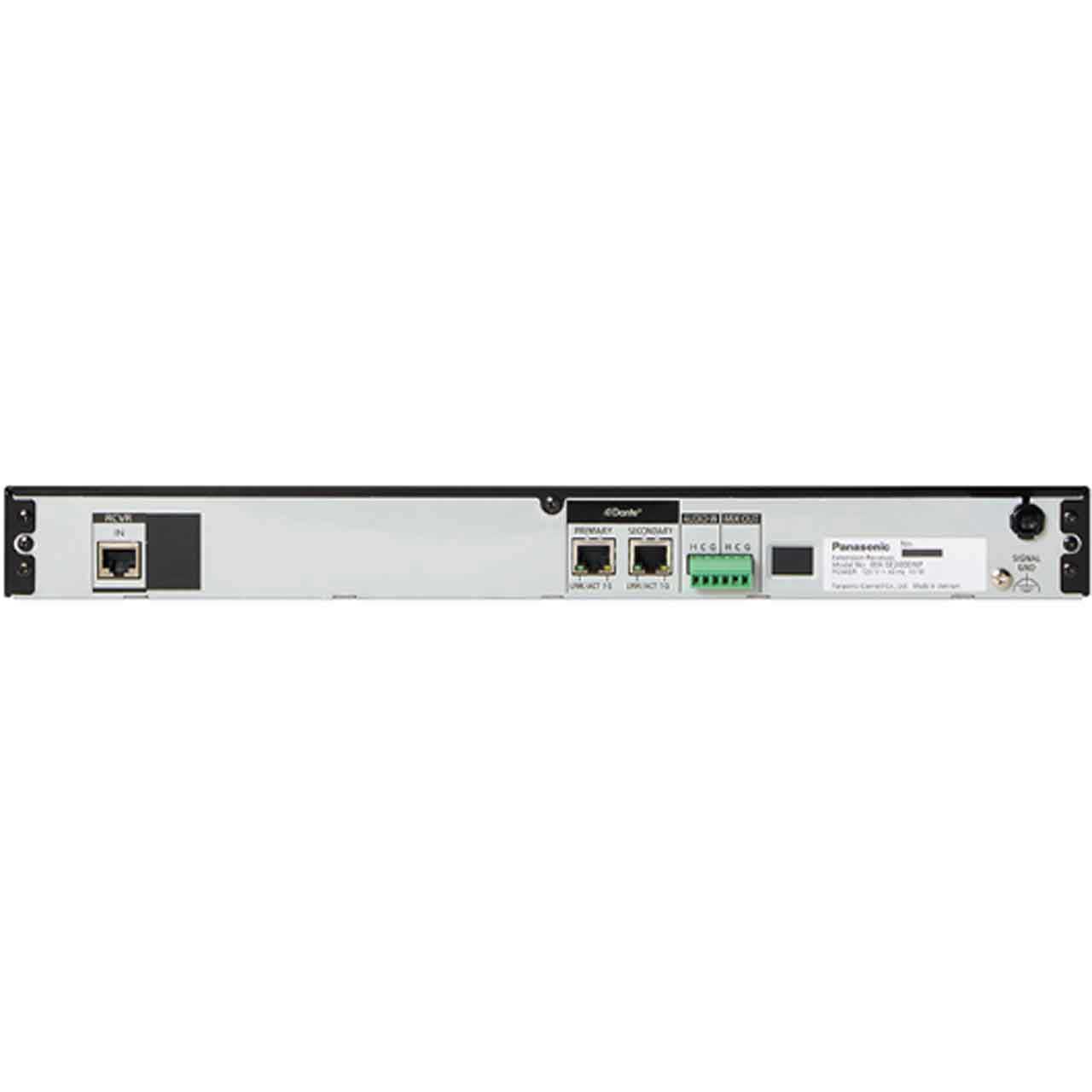

    • Dante® digital audio connections (2 x RJ45, 1 primary & 1 secondary) with AES67 mode. Dante Domain Manager Ready!
    • Easy to setup - no need for planning / allocation of channels; Secure pairing with Panasonic microphones
    • Supports external audio input and mixing with mic channels
    • Rack mountable (1u high, rack ears included)

  • Specifications:

    • Weight: 6.17 lbs.
    • Dimensions (W x H x D): 16-17/32 x 1-47/64 x 9-27/32 inches
    • Power: AC 120 V 60 Hz
    • Power consumption: 39 Watts
    • Display: LEDs for Power, Sync, Main, Remote, RF Level (5-level display), Audio level / mute, Mic battery, Register
    • Audio Input: 1.9 GHz DECT Wireless, EuroBlock (for external audio input)
    • Operating Ambient Temperature: 32° F to 113°F
    • Channel Output Circuits: 4
    • Channel Output Connectors: Dante (RJ45), Euroblock (for mix output only)
    • Channel Output Characteristics: Dante Primary & Secondary: CH1/Ch2/MIX
    • Euroblock connector: MIX only @ -10dBV balanced 600 Ohms
    • Channel Output Signal to Noise Ratio: 70 dB or greater
    • Channel Output Frequency Response: 50 Hz to 15 kHz
    • Channel Output Distortion: Less than 3%
    • Audio Input Characteristics: -10 dBV balanced 600 Ohms
    • Audio Input Frequency Response: 50 Hz to 15 kHz
    • Audio Input Distortion: Less than 3%
    • Mix Output Connectors: Dante Primary & Secondary or Euroblock
    • Mix Output Characteristics: Dante Primary & Secondary or Euroblock -10 dBV Balanced 600 Ohms
    • Mix Output Signal to Noise Ratio: 64 dB or greater
    • Mix Output Frequency Response: 50 Hz to 15 kHz
    • Mix Output Distortion: less than 3%
    • Extension Connector: 1 x RJ45, for WX-SR202 4-ch Receiver (required; sold separately)

  • Item Includes:

    • 1x Rack Ears

  • Warranty:

    • 3 Years

  • GTIN:

    0885170399525
